Views: 7 Author: Site Editor Publish Time: 2026-01-05 Origin: Site

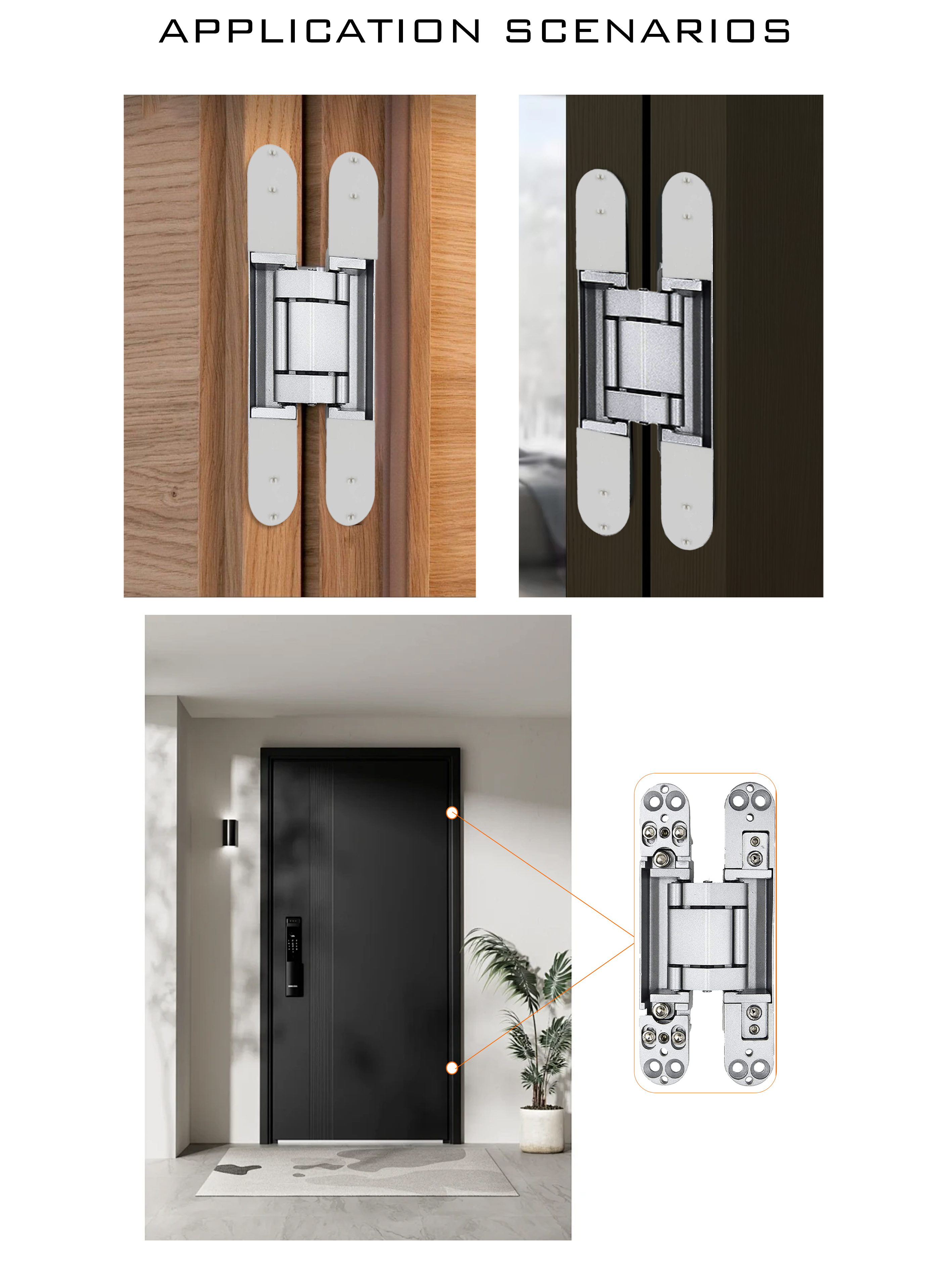

A 3D concealed hinge (also known as an invisible hinge) is a high-performance door component that remains completely hidden when the door is closed, while providing precise adjustment in three distinct directions.
Unlike traditional butt hinges where the "knuckle" or pin is visible, a 3D concealed hinge is mortised (recessed) into both the door and the frame to create a seamless, minimalist appearance.
The "3D" refers to its three - way adjustability, which allows you to fine - tune the door's position after it has been hung using a simple Allen key or screwdriver:
1.Vertical (X - axis): Moves the door up and down to align the top gap.
2.Horizontal (Y - axis): Moves the door side to side to center it perfectly within the frame.
3.Depth (Z - axis): Moves the door in and out (compression) to ensure a tight seal against the weatherstripping or to make it flush with the wall.
Classification Basis | Category Type | Key Features & Advantages |
Load Capacity | Light Duty (40kg - 60kg) | Ideal for interior wooden doors, cabinets, and thin residential doors. |
Medium Duty (80kg - 120kg) | Standard for solid wood interior doors and high-end residential entrance doors. | |
Heavy Duty (160kg - 300kg+) | Designed for armored doors, extra-tall commercial doors, and soundproof doors. | |
Material Build | Zinc Alloy | Most common; allows for precise complex 3D structures and varied finishes. |
304/316 Stainless Steel | Maximum corrosion resistance; perfect for bathrooms, coastal areas, or hospitals. | |
Aluminum Alloy | Lightweight and durable; often used for modern aluminum-frame glass doors. | |
Functionality | Standard 180° Opening | Allows the door to open fully against the wall for an unobstructed passage. |
Self-Closing / Buffer | Integrated hydraulic mechanism for automatic, silent, and soft closing. | |
Slim/Thin Door Type | Specialized ultra-thin design for doors with a thickness of only 25mm–30mm. | |
Application Site | Wood Door Type | Deep mortise design for standard solid wood or composite door frames. |
Aluminum Frame Type | Narrow-profile mounting plates designed specifically for slim metal frames. | |
Fire-Rated Type | Certified to withstand high temperatures without melting, ensuring structural safety. |
Never estimate; knowing your door's weight prevents sagging or hardware failure.
Light Duty (40-60kg): Perfect for hollow-core wood doors, standard bedroom doors, or office partitions.
Medium Duty (80-120kg): The standard for high-end solid wood doors or heavy residential entrance doors.
Heavy Duty (160kg+): Required for armored doors, oversized "Grand Entry" doors, or soundproof studio doors.
Pro Tip: Always leave a safety margin. If your door weighs 75kg, upgrade to a 100kg-rated hinge for better longevity.
Choosing the right material ensures the hinge lasts as long as the house itself.
Dry Interiors (Bedrooms/Closets): Choose Zinc Alloy. It offers the best variety of decorative finishes (Matte Black, Champagne Gold, Pearl Chrome) to match your interior design.
Humid Areas (Bathrooms/Coastal Homes): Choose 304/316 Stainless Steel. These are rust-proof and won't squeak or tarnish in moisture-heavy environments.
Minimalist Glass/Metal Doors: Choose Aluminum Alloy to maintain material consistency with slim-profile aluminum frames.
Invisible/Jib Doors: Use the Standard 180° Opening hinge. It ensures the door is completely flush with the wall when closed and stays out of the way when open.
Fire Safety Doors: Opt for Fire-Rated Stainless Steel hinges. These are tested to remain structurally sound under high heat, which is often a legal requirement for apartment entrance doors.
Ultra-Thin Doors: If your door panel is only 25mm–30mm thick, you must buy a Slim-Type hinge specifically designed for shallow mortising.
The "Silent Home" Choice: Choose Self-Closing/Buffer Hinges. These act like a soft-close kitchen drawer, pulling the door shut quietly and preventing it from slamming due to wind.
The "Perfectionist" Choice: Ensure the hinge has at least ±3mm of 3D adjustment. This allows you to fix any "crooked" installation errors without ever removing the door.
Degol Hardware Meets Your Needs:
1. Seamless Minimalist Aesthetic
Completely Invisible: The hinges are entirely hidden when the door is closed, creating the clean, "floating door" look essential for modern interior design and hidden jib doors.
180° Swing: Provides a full opening range for unobstructed access and a premium feel.
2. Precise 3D Adjustability
No Door Removal Required: Effortlessly adjust the door in three directions—Vertical, Horizontal, and Depth—using a simple Allen key. This easily fixes sagging, uneven gaps, or poor sealing without rehanging the door.
3. Heavy-Duty Durability
Superior Load Capacity: Built from high-strength zinc alloy or 304 stainless steel, supporting door weights from 40kg to 200kg.
Certified Performance: Tested for over 200,000 cycles to ensure smooth, silent operation and long-term structural integrity.
