DH1105
Degol
| Quantity: | |
|---|---|
Experience the ultimate fusion of modern design and industrial strength with the premium collection from Jiangmen Degol Hardware Co., Ltd., featuring our high-demand heavy duty pivot hinges, hidden door hardware, and stainless steel door hinges. Engineered for those seeking a concealed pivot door hinge that supports massive load-bearing capacities, our products transfer the door's weight directly to the floor, providing a far more durable solution than traditional side-hung alternatives. These heavy duty pivot hinges for secret doors are a top choice for architects creating invisible entrances or "bookcase doors," while our sleek stainless steel adjustable hinges offer a corrosion-resistant, minimalist aesthetic that fits perfectly into any contemporary interior. Whether you require a hidden door hinge for bookshelf doors or a versatile commercial grade pivot hardware system for high-traffic areas, our precision-machined ball-bearing technology ensures a silent, smooth 360-degree rotation that transforms even the heaviest entrance into an effortless architectural masterpiece.
Brand | Degol |
Product name | 3”*1.5”*1.2mm Silver iron door hinges made in China |
Finish | SSS, PSS, AB, AC, PVD or Customized |
Product Model | DH1105 |
Size | 3"*1.5"*1.2mm |
Accessory | Keys,Screws,Latch,Strick plate |
Type | Door handle lockset lever lock |
Material | Stainless steel 201, 304 or 316 |

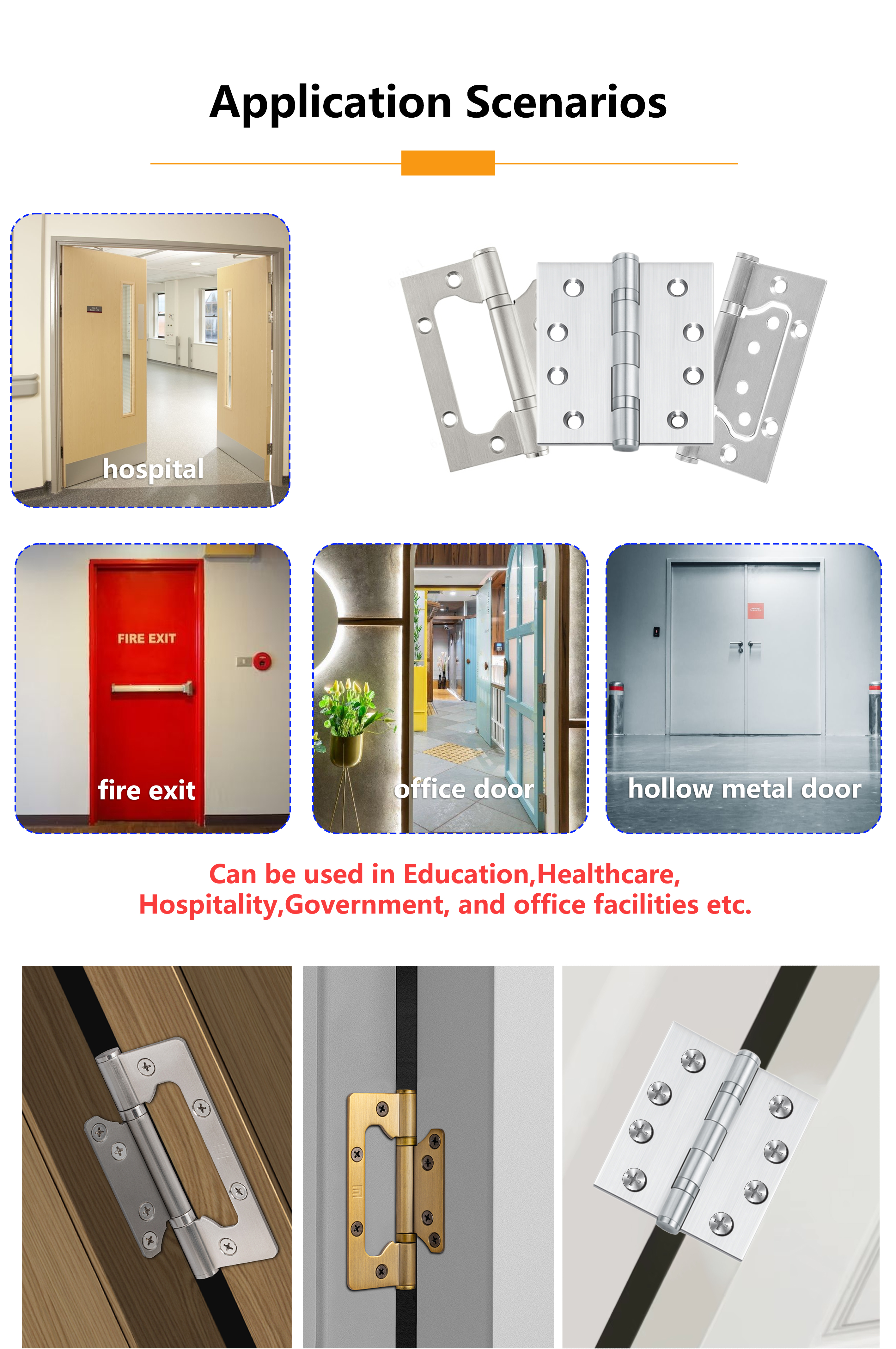

Suit for | Door,storeroom,classroom,hotel |
OEM | Welcome |
Sample | Free |
MOQ | 200 pieces |
Delivery time | Usually 25~35 days |
1. How to Install a Pivot Hinge
A pivot hinge is installed at the very top and bottom of the door rather than on the side. This allows the door to "pivot" from a single point.
Step 1: Preparation and Mortising
Mark the Pivot Point: Decide how far from the door edge you want the pivot point to be. Mark this exact spot on the floor, the top jamb, and both the top and bottom of the door.
Create the Recess: Use a chisel or router to create a "pocket" (mortise) in the top and bottom edges of the door so the hinge plates sit flush with the wood.
Step 2: Mounting the Hardware
Door Plates: Screw the pivot plates into the mortised sections at the top and bottom of the door.
Floor and Jamb Mounts: Secure the bottom pivot mount to the floor and the top pivot pin to the door frame header. Ensure they are perfectly aligned vertically using a plumb line.
Step 3: Hanging the Door
Engage the Bottom: Set the bottom of the door onto the floor pivot pin.
Secure the Top: Align the top of the door with the header mount. Most pivot hinges have a retractable pin or a screw-adjusted pin at the top that you slide into place to lock the door.

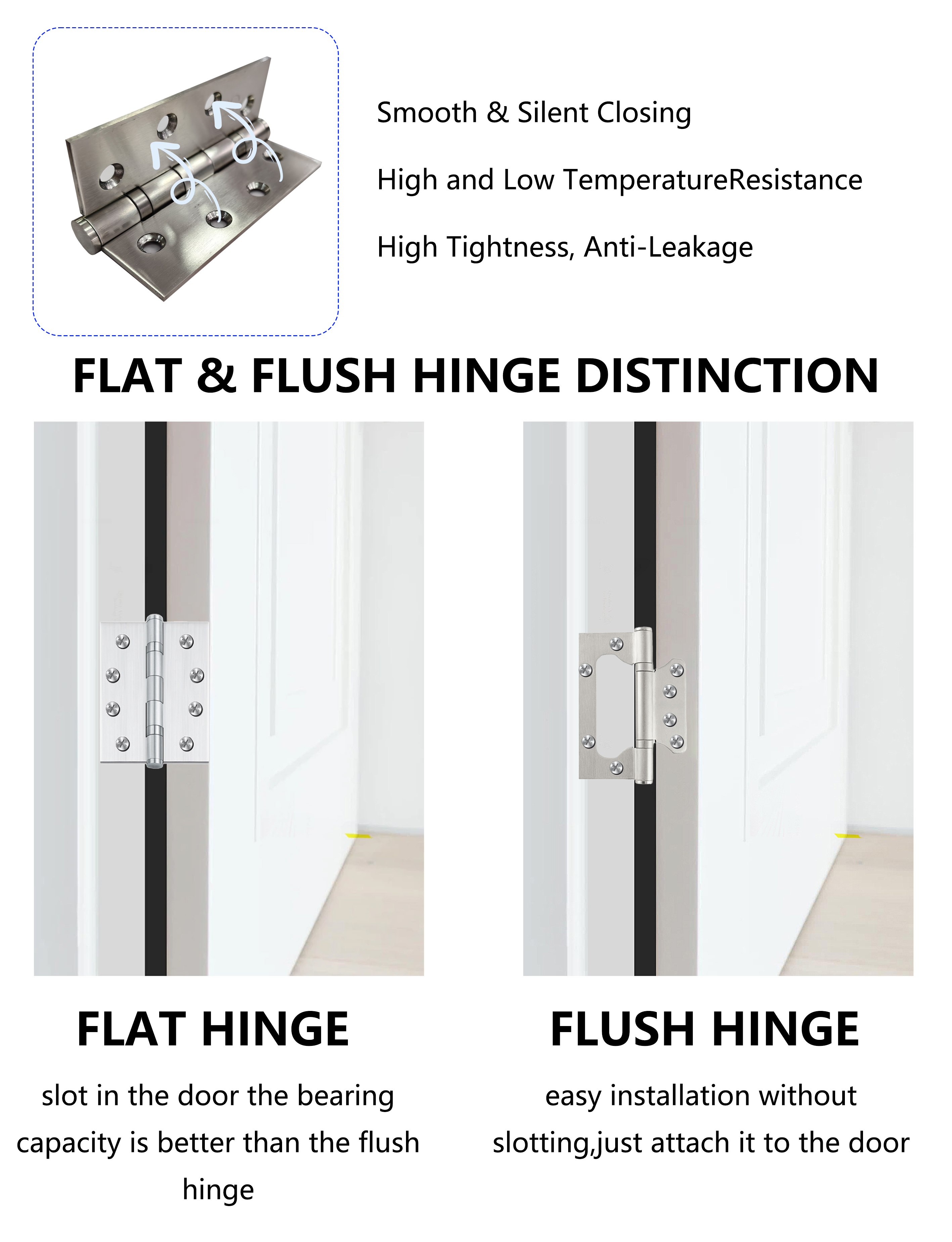

2. How to Install a Standard Butt Hinge
The butt hinge is the most common door hinge and is installed on the side of the door and the door frame.
Step 1: Mortising the Door and Frame
Trace the Hinge: Place the hinge on the side of the door (usually 5–7 inches from the top and 10–11 inches from the bottom) and trace its outline.
Chisel the Wood: Chisel out the traced area to a depth equal to the thickness of the hinge leaf. Repeat this process on the door jamb (frame) at the corresponding heights.
Step 2: Attaching the Hinges
Screw to Door: Place the hinges into the mortises on the door and secure them with the provided screws.
Test Alignment: Prop the door up in the frame using shims to ensure the gaps at the top and sides are even.
Step 3: Connecting to the Frame
Screw to Jamb: Fasten the other leaf of each hinge to the mortises on the door frame.
Insert Pins: If the hinges have removable pins, you can attach the leaves separately and then drop the pins in to join them.
1. Operation & Movement
Pivot Hinge: Simply push the door from either side; the floor-mounted bearing carries the weight, allowing the door to rotate smoothly on its vertical axis.
Standard/Ball-Bearing Hinges: Open and close the door as usual; the internal ball bearings in the high-grade stainless steel models ensure a silent, friction-free swing even for heavy solid-wood panels.
Swing Range: Pivot hinges allow for a 180° or 360° swing depending on your frame setup, while butt hinges are typically restricted by the door jamb.
2. Fine-Tuning & Adjustments
Vertical Alignment: If the door drags on the floor, use the adjustment screw on the pivot base to raise the door height.
Gap Consistency: For the butt hinges, ensure all screws are tightened equally to maintain a uniform gap between the door and the frame.
Top Pin Engagement: When using the pivot model, ensure the retractable top pin is fully extended into the header plate to keep the door securely upright.
3. Long-Term Maintenance
Cleaning: Use a soft, damp cloth to wipe the stainless steel surfaces and maintain the polished or satin finish.
Lubrication: While these hinges feature precision bearings, applying a drop of high-quality silicone lubricant once a year to the pivot points will ensure the mechanism remains silent.
The gap between the door and the floor typically needs to be between 5mm and 10mm to allow the pivot mechanism to function smoothly while maintaining a sleek, hidden appearance.
No, the floor plate is designed to be low-profile or recessed. Because it is installed at the axis point (usually in a corner), it stays out of the foot traffic path, making it safer than protruding door stops.
The product features a high-quality brushed stainless steel finish. This clean, modern look is designed to match other professional-grade 304 stainless steel handles and locks.
1. Massive Load-Bearing for "Heavy-Duty" Applications
Standard hinges hang a door from the side of the frame, which often leads to sagging, squeaking, or frame damage over time. Degol’s pivot design transfers 100% of the door's weight directly into the floor.
Ideal for Oversized Doors: It is the go-to choice for heavy solid-wood doors, metal-clad entrances, or massive "secret" bookcase doors that would destroy regular hinges.
Unmatched Longevity: By using a vertical axis and high-quality stainless steel (SUS304), the door remains perfectly balanced for years without needing adjustment.
2. The "Hidden" Designer Aesthetic
If you want a door to look like part of the wall, this is the hardware you need.
Concealed Minimalist Look: When closed, the hinge is entirely invisible. There are no metal "knuckles" or screws showing on the side of the door.
Invisible Doors: It is the preferred choice for "Secret Rooms" or minimalist apartments where clean, uninterrupted lines are required.
Versatile Swing: Many models allow the door to swing 360° or open in both directions (push-in/pull-out), providing architectural flexibility that standard hinges can't match.

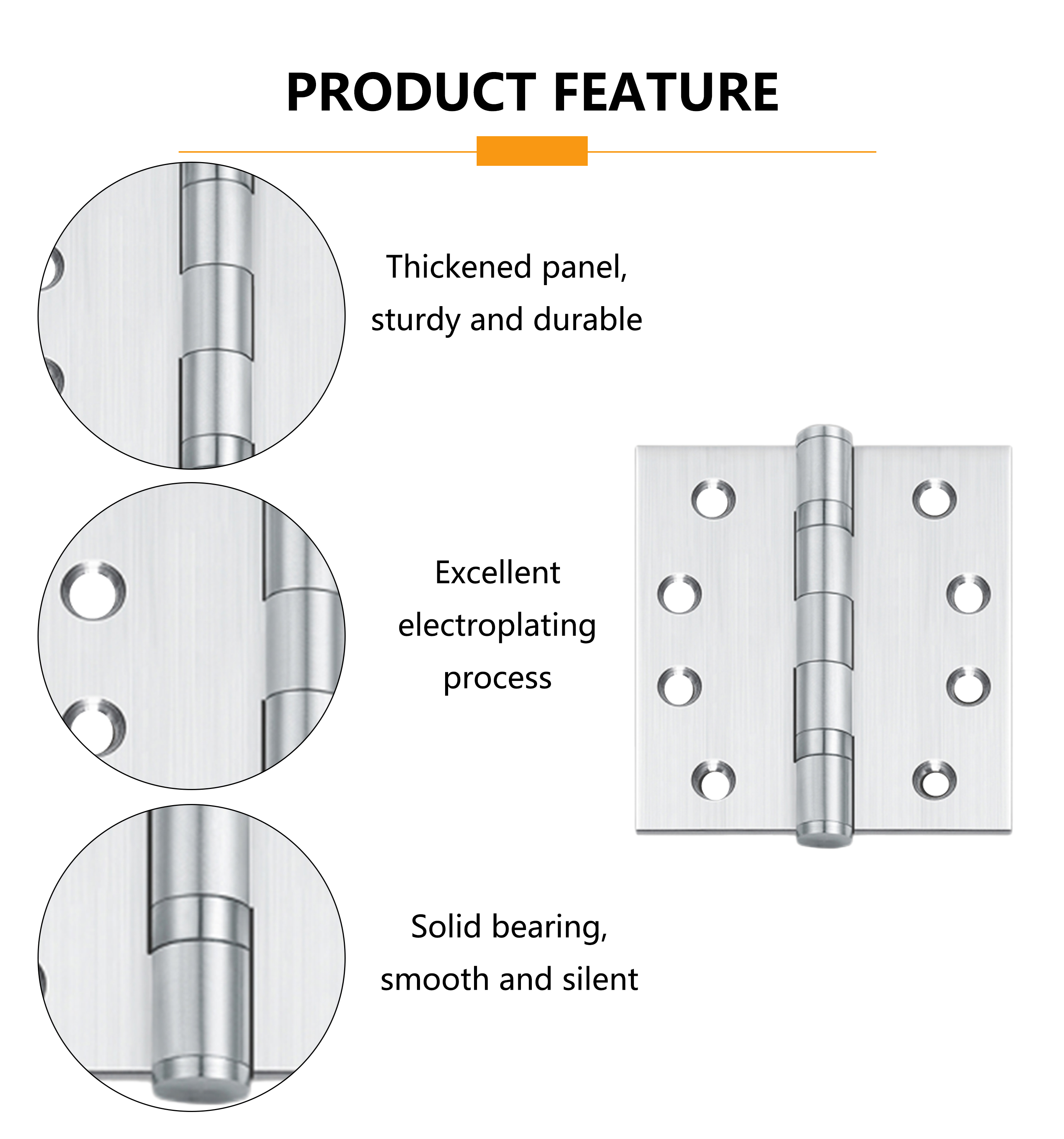

3. Precision Engineering & Silent Operation
Degol hardware is known for its smooth, "weightless" feel.
Frictionless Movement: Even a 300lb door can be opened with a single finger thanks to precision-machined ball bearings.
Corrosion Resistance: Made from premium stainless steel, these hinges are resistant to rust and wear, making them suitable for high-humidity areas (like luxury bathrooms) or coastal exterior entrances.
Adjustability: Unlike fixed hinges, these allow for post-installation fine-tuning to ensure the door sits perfectly flush with the floor and ceiling.
