Views: 7 Author: Site Editor Publish Time: 2025-08-14 Origin: Site

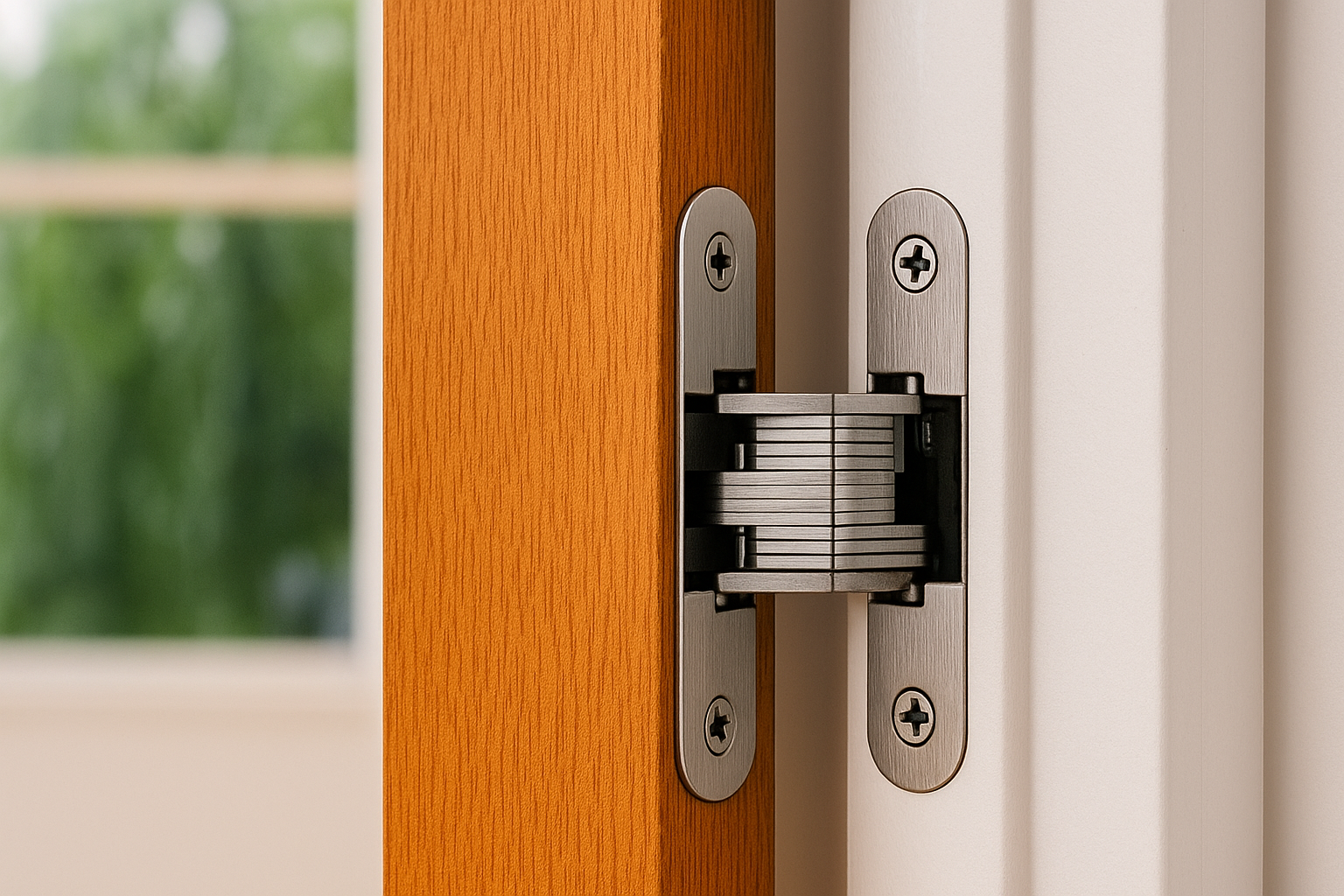

Concealed hinges are a crucial component in modern design. They allow doors to close seamlessly. The hardware remains completely hidden.
This creates a clean, minimalist aesthetic. However, not all concealed hinges are the same. Architects, designers, and homeowners must choose the right type.
The decision often comes down to 3D vs. 2D adjustable concealed hinges. This choice is critical for both aesthetics and functionality. This article will help you understand the differences.
We will explore the benefits and applications of each hinge type. By the end, you will know how to find the best adjustable hidden hinges for your specific project.
A two dimensional adjustable hidden hinge provides a simple solution. It allows for adjustments along two axes. These are typically the horizontal (width) and vertical (height) axes.
This type of hinge is a step up from a non-adjustable one. It offers enough flexibility to correct minor misalignments. The basic design is effective for many standard applications. Adjustments are usually made with a single tool. This makes the installation process relatively straightforward.
The main benefits of a 2D hinge include its simplicity and cost-effectiveness. It performs well for doors that do not carry heavy loads. It is a reliable choice for many interior doors. Its design is more than sufficient for general use.
These hinges ensure a smooth door operation. They maintain the sleek, invisible look of a concealed hinge system.
The two dimensional adjustable hidden hinge is perfect for specific applications. It is an excellent choice for light-to-medium weight interior doors.
It works well for cabinet doors and furniture. The hinge provides the necessary adjustments for these projects. It ensures a professional finish without excessive complexity.
Degol Hardware offers a high-quality product in this category. Their two dimensional adjustable hidden hinge is a prime example.
This product is crafted with a high-temperature baking paint finish. This special coating provides both durability and a sleek appearance. It makes the hinge resistant to corrosion and wear.
The hinge is designed for a door thickness of 40 MM. This is a common specification for many interior doors.
A 3D adjustable hinge is the pinnacle of hinge technology. It offers three axes of adjustment. These include horizontal, vertical, and depth (in-out) adjustments.
This third dimension is a significant advantage. It allows for much finer and more precise control over the door's position.
A three-dimensional hidden hinge can correct misalignments in every direction. This is essential for achieving a perfect flush fit. It also ensures the door operates without any friction.
The benefits of 3D hinges are numerous. They provide enhanced precision and flexibility. They are much better at handling heavier doors. The depth adjustment allows for a balanced distribution of weight. This reduces stress on the door and the frame.
This leads to a longer lifespan for the entire system. 3D hinges are therefore a more robust and stable solution. They are the ideal choice for high-end applications.
Projects that demand high precision and strength require 3D hinges. This includes large, heavy-duty doors in commercial buildings. The term industrial concealed hinge is often used for these applications. High-end residential doors also benefit from this technology. The hinge’s adjustability can compensate for any building settling over time.
Degol Hardware features an excellent line of these advanced hinges. Their italianate three-dimensional hidden hinges are a perfect fit. These hinges are also finished with a high-temperature baking paint. This gives them a beautiful and long-lasting finish.
They are designed for doors with a 30 MM thickness. This makes them a versatile choice for many projects.
The main difference lies in adjustment capability. A 2D hinge offers horizontal and vertical movement. It can fix common alignment problems. A 3D hinge adds depth adjustment. This third axis is a game-changer. It allows installers to recess the door perfectly into the frame.
This capability ensures a flawless, flush finish. It is the key to achieving a truly invisible door. For projects where every millimetre counts, the 3D hinge is the clear winner.
The design of 3D hinges often makes them more durable. They are built to handle heavier loads. This is due to their robust construction and multi-point adjustment system.
The depth adjustment helps distribute weight more effectively. This is crucial for large, heavy doors. For such applications, you need the strength of stainless steel heavy duty hidden hinges. These hinges prevent sagging over time.
Material is also a key factor in durability. Hinges are made from various materials. Aluminum alloy hidden hinges offer a good balance of strength and light weight. Zinc alloy hidden hinges are a common and effective choice for many interior doors.
For maximum strength and corrosion resistance, stainless steel conceal hinge products are the best. This is especially true for industrial or high-moisture environments.
The installation process for both hinges is similar. Both require mortising into the door and frame. However, the post-installation adjustments are different.
2D hinges offer simpler adjustments. 3D hinges provide more options. This can take slightly longer to fine-tune. But the extra time is often worth it for the superior result.
In terms of cost, 2D hinges are generally more affordable. Their simpler design requires less material and less complex manufacturing. 3D hinges are a higher-end product. Their advanced functionality comes at a higher price point.
However, this investment often pays for itself. It saves time during installation. It also reduces long-term maintenance needs.
Your project’s requirements should guide your choice. For standard residential doors, a two dimensional adjustable hidden hinge is often sufficient. It provides an excellent concealed look and reliable performance.
This is the ideal option for closets, pantries, and typical interior doors. It offers a great balance of quality and value.
For heavier doors, a more robust solution is needed. Commercial buildings and high-traffic areas require a durable hinge. For these projects, a three-dimensional hinge is the best choice.
This type of hinge can handle the constant use. It maintains perfect alignment. You should also consider an industrial concealed hinge. This ensures long-term reliability and security.
The door's material is also important. For heavy wooden doors or metal doors, the strength of a 3D hinge is essential. The depth adjustment can accommodate thick door panels. This allows for a flush fit with the frame.
The material of the hinge affects its performance and lifespan. Stainless steel conceal hinge products are highly resistant to rust and corrosion. They are the best choice for doors in humid environments. This includes bathrooms or coastal areas. They are also the strongest option for heavy doors.
Zinc alloy hidden hinges are very common for standard interior doors. They provide good strength and are cost-effective. Aluminum alloy hidden hinges are a good alternative. They are lightweight yet strong. They are often used in modern, light-frame doors.
Degol Hardware is a leader in concealed hinge technology. They offer a wide range of products. Their hinges are known for their precision and durability. Whether you need a simple 2D hinge or a powerful 3D solution, they have an option for you.
Degol Hardware's hinges are also finished with high-quality coatings. This ensures a beautiful and long-lasting product. For the most demanding projects, explore their stainless steel heavy duty hidden hinges.
In summary, choosing between a 2D and 3D concealed hinge is a critical decision. It impacts a door's performance and appearance. 2D hinges offer simplicity and value for standard doors. 3D hinges provide superior precision and strength for heavier or high-end applications.
Consider your project's specific needs carefully. Think about the door's weight, size, and material. This will help you make the right choice. For high-quality hidden hinges and expert solutions, explore Degol Hardware's extensive collection. They have the perfect product to ensure your project's success.
