aluminum sliding glass door lock clamp
1. One of the most professional sliding glass door lock manufacturer2. Latest design in the world, top security3. Computer brass key for high security4. Fixed strong hook tongue by new design too5. Smooth lock mechanism which is easy to lock and open6. Specification

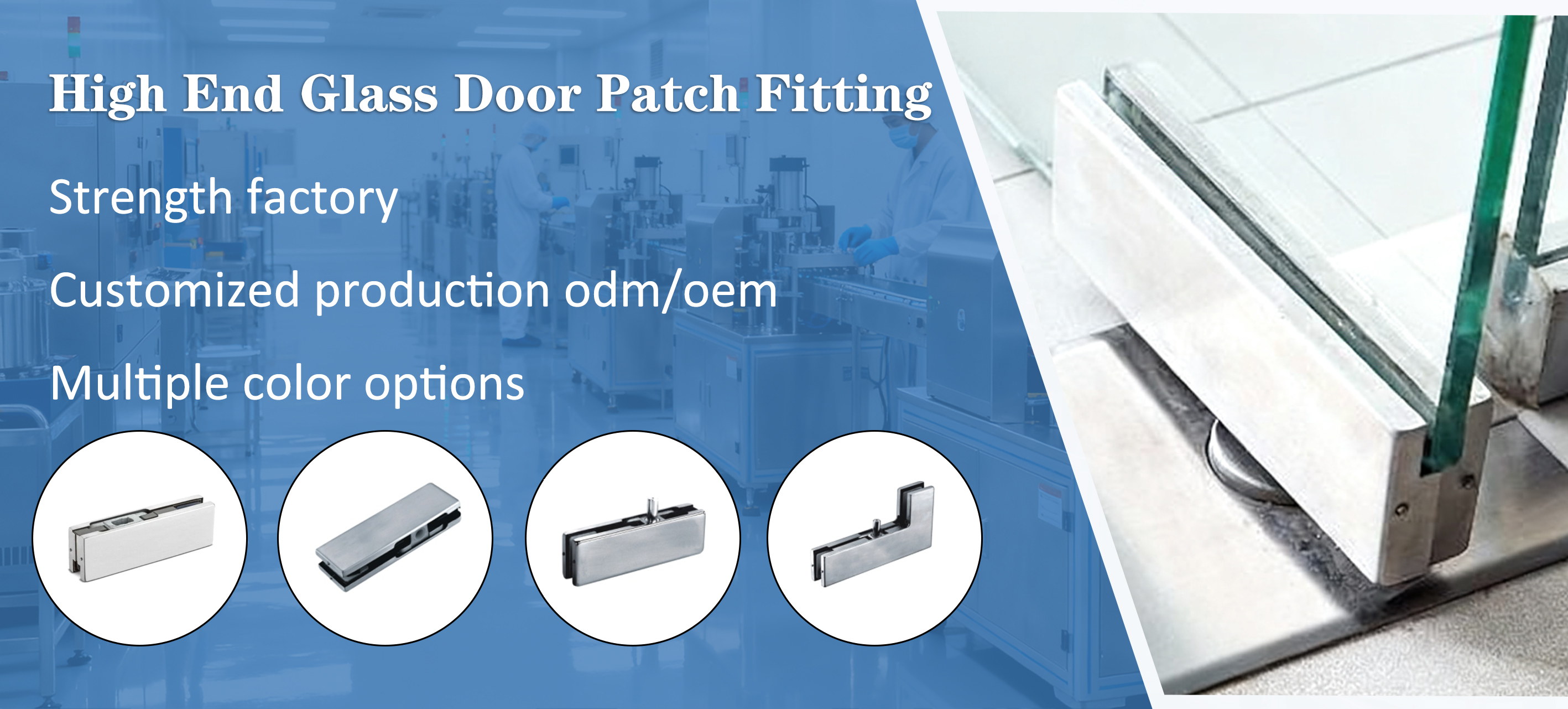

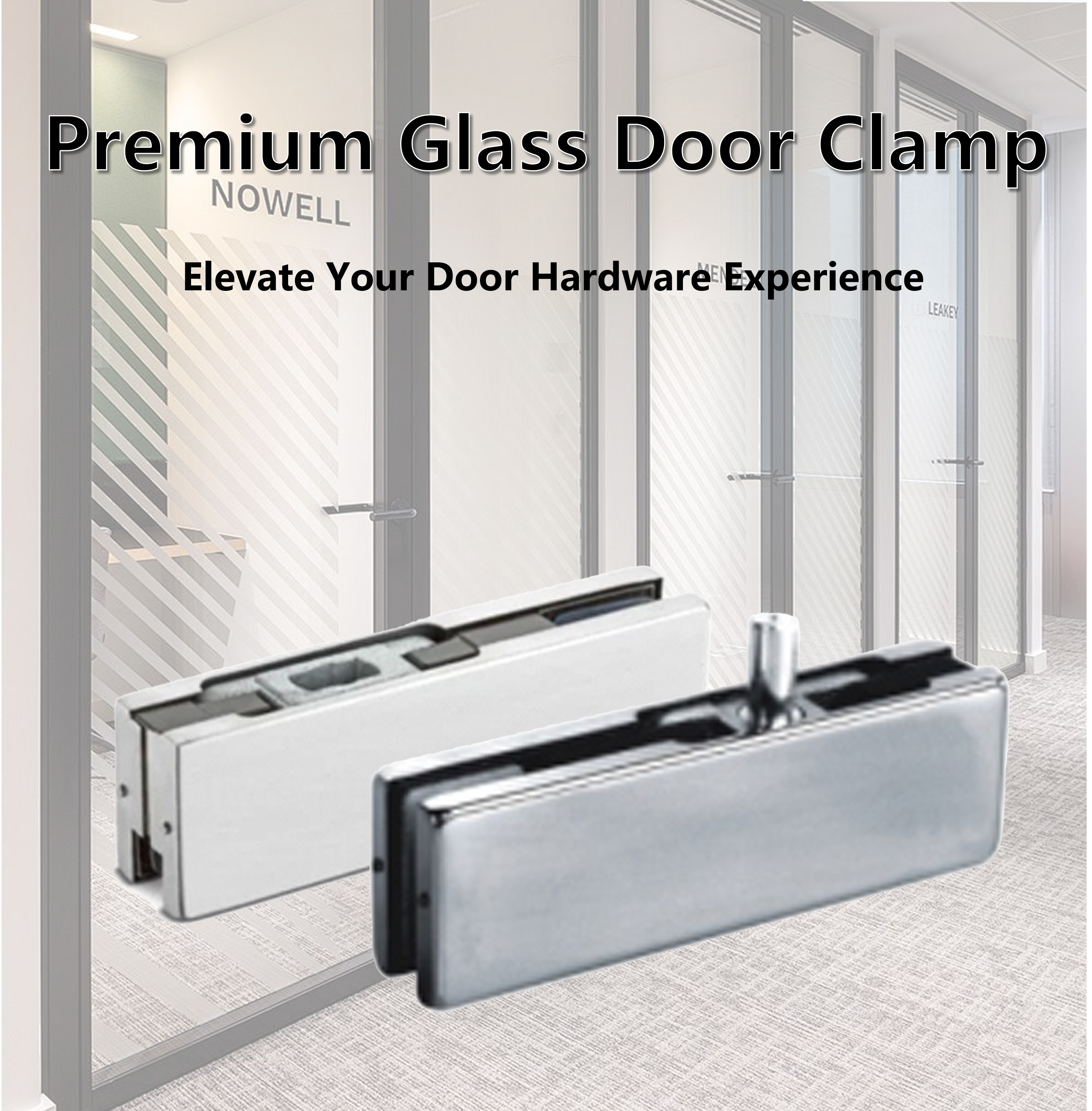

This stainless steel patch fitting is an essential component for frameless glass door hardware systems, providing a secure and minimalist connection point. Engineered as an L-shaped over panel connector, it is specifically designed to support commercial glass door fittings by linking transom panels to side glass walls with professional stability. This heavy duty patch fitting is crafted from rustproof materials to ensure long-lasting performance in high-traffic environments like offices and shopfronts. Its sleek, mirror-polished finish enhances the aesthetic of modern pivot glass doors, making it a top choice for architects seeking a seamless, all-glass look.
as below:
Brand | Degol |
Product name | Aluminum Sliding Glass Door Lock Clamp Commercial Glass Door Fittings |
Finish | SSS/ SSP |
Function | Glass to glass |
Type | Patch fitting |
Material | SS430,SS201,SS304,SS316 |
Suit for | 8-12mm tempered glass |
Max door weight | 150kg |
OEM | Welcome |
Sample | Free |
Delivery time | Usually 25~35 days |
1.Glass Preparation: Ensure the glass panels have the correct factory-made cut-outs and holes required for an L-shaped over-panel connector.
2.Remove Cover Plates: Use the provided hex key to loosen the small screws and remove the stainless steel decorative cover plates from the internal body.
3.Position Internal Body: Place the internal aluminum or steel body onto the corner of the glass panel, aligning it with the pre-drilled holes.
4.Install Gaskets: Insert the protective PVC or rubber gaskets between the metal body and the glass to prevent direct contact and cracking.
5.Secure Bolts: Pass the connecting bolts through the glass holes and tighten them firmly into the opposite side of the fitting body.
6.Snap On Covers: Once the fitting is securely tightened and the glass is aligned, snap the stainless steel cover plates back into position.

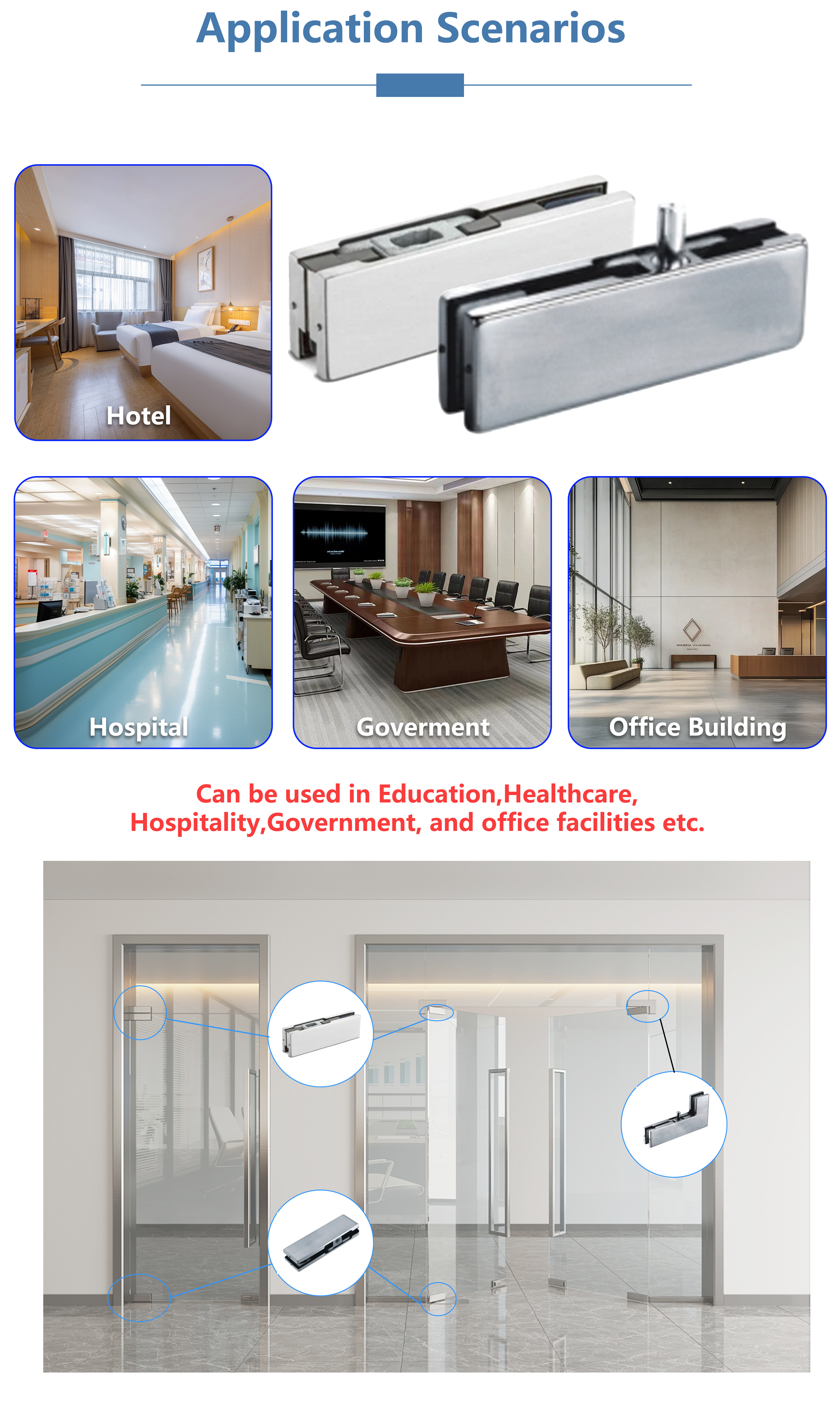

1.Top Corner: Connecting a swinging glass door to a glass "transom" (the fixed panel above the door).
2.Side Wall: Securing a fixed glass partition to a wall or floor.
3.Safety Note: Glass doors are extremely heavy. Always have at least one other person help you hold the glass in place while you align and tighten the fittings.

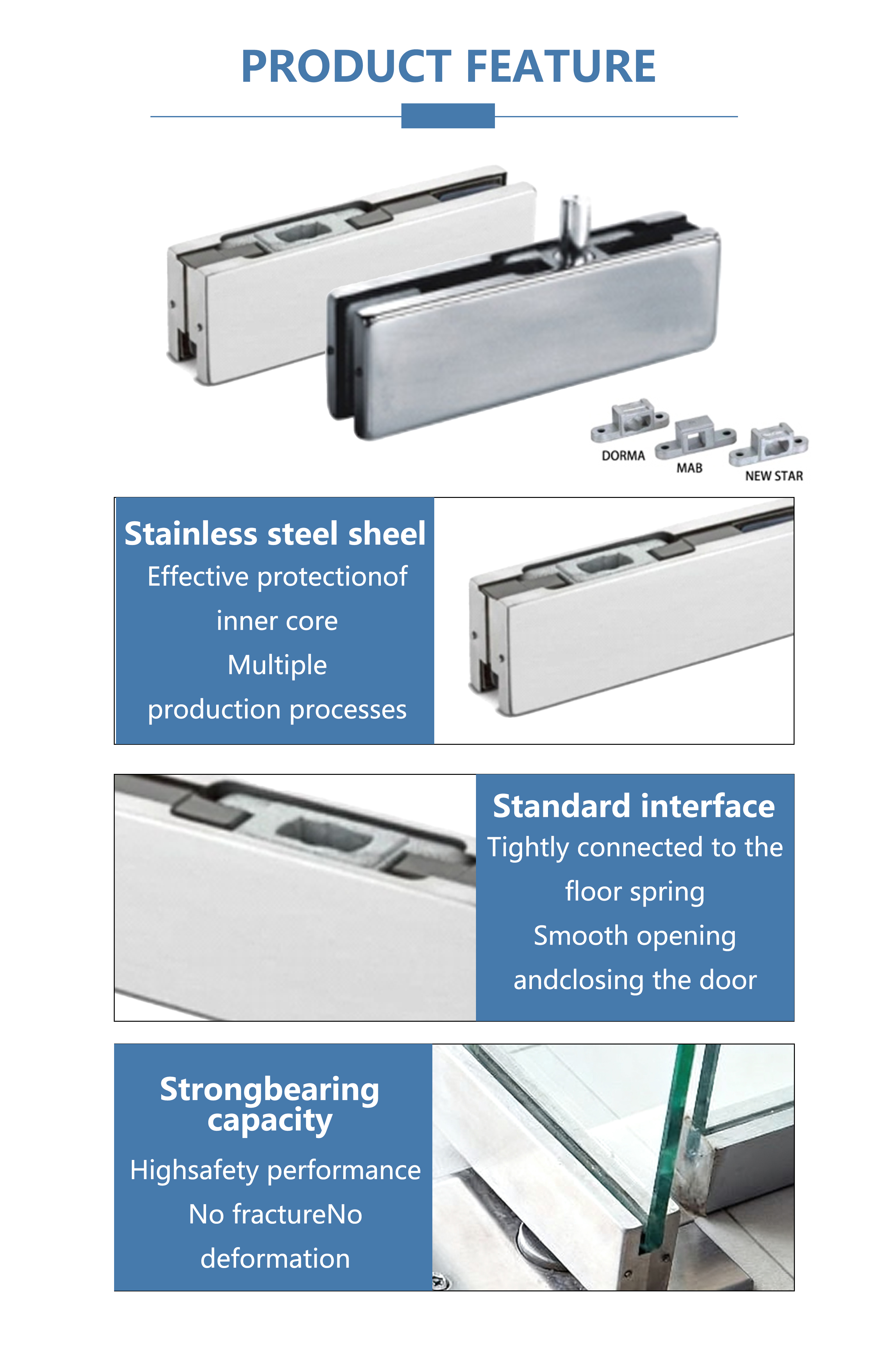

1. High-Quality Material Construction
Stainless Steel (SS304/SS316): The outer cover plates are typically made of high-grade stainless steel. This makes them highly resistant to corrosion and rust, which is essential if the door is located near a bathroom, kitchen, or exterior entrance.
Aluminum Alloy Core: The internal body is usually a high-strength die-cast aluminum alloy. This provides the "clamping" power needed to hold heavy glass without adding unnecessary weight to the pivot.
2. Sleek "Frameless" Aesthetic
Minimalist Design: Unlike traditional bulky door frames, these patch fittings allow for a "glass-on-glass" look. The L-shape is specifically designed to connect a door to a transom (the glass panel above) or a side panel with minimal visible hardware.
Finish Options: They are available in various finishes, such as Satin (brushed) or Mirror (polished), allowing you to match other office or home hardware like handles and locks.
3. Structural Versatility
Wide Compatibility: Degol fittings are engineered to work with standard 10mm to 12mm tempered glass, which are the most common thicknesses for architectural glass partitions.
Adjustability: They often feature internal adjustment mechanisms that allow the installer to slightly realign the door if the floor or ceiling isn't perfectly level.
4. Safety & Security
Gasket Protection: These fittings come with specially formulated gaskets (usually PVC or rubber) that prevent direct metal-to-glass contact. This is critical for preventing the glass from "exploding" due to thermal expansion or vibration.
Strength: They are tested for high-frequency use (often up to 200,000 cycles), making them reliable for high-traffic areas like office lobbies or storefronts.
Custom Support & Sale:+86-750-3915520
Phone:+86 13725946499
E-mail:info@degolhardware.com
Address: Building 2, No. 898 Jiangmen Avenue Middle, Pengjiang District, Jiangmen CityGuangdong, China 529000
1) We guarantee the quality, if the products have some probrem after delivering to your country, we would like to solve it.
2) We will response your questions within 2 work-hours
3) We will email to customer the pictures of production process ;
1. What is the payment terms acceptable ?
Normally T/T is appreciated. L/C for old customers only.
T/T: 30% deposit before production, balance before shipment.
L/C at sight
2. How do I know if my order has been received?
When we get your order by mail or fax, we will sign back the PI to you by mail or fax. We'll also email you to confirm we have your order.
3.When will my order be delivered?
You'll see the estimated delivery lead time on the PI. For regular items, usually deliver within 30 days. For special items, normally 40-50 days. We will update this daily to let you know the latest situation by mail.
4. How can I check the latest prices?
We've always got special offers for you. With so many great deals, you could find that lots of products are cheaper than you thought!
5.How can I get more details about products on this website?
For more information on any products featured on this website (how to set up, what the product is made from, compatibility, after-sales service, warranties and so on), please contact us.
6. Can I add to an existing order?
You can add items to your order until you confirm your payment details and complete the order. Once the order is confirmed, you can't add items to the same order. If you want to buy more items, please place a new order.
7. Can I have a sample of to check?
Sure,we can send you the samples for free,but you need to pay the freight,we can return it to you when the order is confirmed.
