DH1032
Degol
| Quantity: | |
|---|---|
The DH1032 Sturdy L Shape Lift Off Butt Hinge is a detachable door hinge designed for household door installation, furniture applications and architectural renovation projects.
Featuring an L-shape lift-off structure and stainless steel construction as described in the product name, the DH1032 combines the functionality of a traditional butt hinge with the convenience of a detachable hinge mechanism.
Unlike conventional fixed-pin butt hinges, lift-off hinges are designed to allow the door leaf to be separated from the frame-mounted hinge component when the door is positioned and lifted in the required direction. This can simplify door removal during renovation, maintenance or installation work.
The supplied reference drawing shows a nominal overall hinge height of 100 mm, an individual leaf width of 30 mm, a leaf thickness of 2.5 mm and a six-hole mounting arrangement.
With its satin silver appearance and practical detachable configuration, the DH1032 can be considered for residential doors, compatible cabinets, utility doors and interior renovation projects.
For international hardware importers, wholesalers, door manufacturers and building material distributors, Jiangmen Degol Hardware Co., Ltd. welcomes enquiries for technical details, samples, surface finishes and wholesale quotations.
The DH1032 is an L-shaped lift-off butt hinge intended to connect a door or panel to its supporting frame while allowing separation of the hinge components when correctly operated.
A lift-off hinge typically consists of two mating hinge sections with compatible knuckle and pivot arrangements. Its detachable design permits the door leaf or panel to be removed without necessarily unscrewing both hinge leaves from their mounting surfaces.
Lift-off detachable hinge mechanism
L-shape / offset knuckle arrangement
Screw-fixed hinge leaves
Six-hole reference mounting configuration
Rounded / radius edge details
Satin silver metallic appearance
Suitable for compatible household door renovation projects
The actual lifting direction, handed configuration, pivot construction and load-bearing performance should be verified using a production sample and the final manufacturer-approved specification.
| Specification Item | Details |
|---|---|
| Model Number | DH1032 |
| Product Type | Lift-Off Butt Hinge |
| Product Style | L Shape / Detachable |
| Main Material | Stainless Steel, grade to be confirmed |
| Surface Appearance | Satin Silver |
| Nominal Overall Height | 100 mm |
| Nominal Leaf Width | 30 mm |
| Nominal Open Width | 60 mm |
| Nominal Leaf Thickness | 2.5 mm |
| Mounting Hole Quantity | 6 |
| Reference Hole Diameter | 5.5 mm |
| Reference Hole Center Spacing | 32 mm |
| Upper Knuckle Length | 46 mm |
| Lower Knuckle Length | 46 mm |
| Barrel Projection | 12 mm |
| Corner Radius | To be confirmed |
| Detachable Design | Yes – Lift-Off Structure |
| Opening Angle | To be confirmed |
| Left / Right Hand Option | To be confirmed |
| Load Capacity | To be confirmed by manufacturer |
| Recommended Door Weight | Subject to hinge configuration and testing |
| Screw Specification | To be confirmed |
| Corrosion Resistance | Test data to be confirmed |
| Installation | Surface-mounted or recessed as required by compatible door design |
| Application | Residential Doors, Cabinet Panels, Renovation |
| OEM / ODM | Subject to order requirements |
| MOQ | Contact DEGOL |
| Dimension Unit | Millimeters (mm) |
Specification Notice: The numerical measurements above are taken from the supplied market-benchmark drawing, not a verified DH1032 factory datasheet. Final dimensions, tolerances and material specifications must be confirmed before purchase or production.

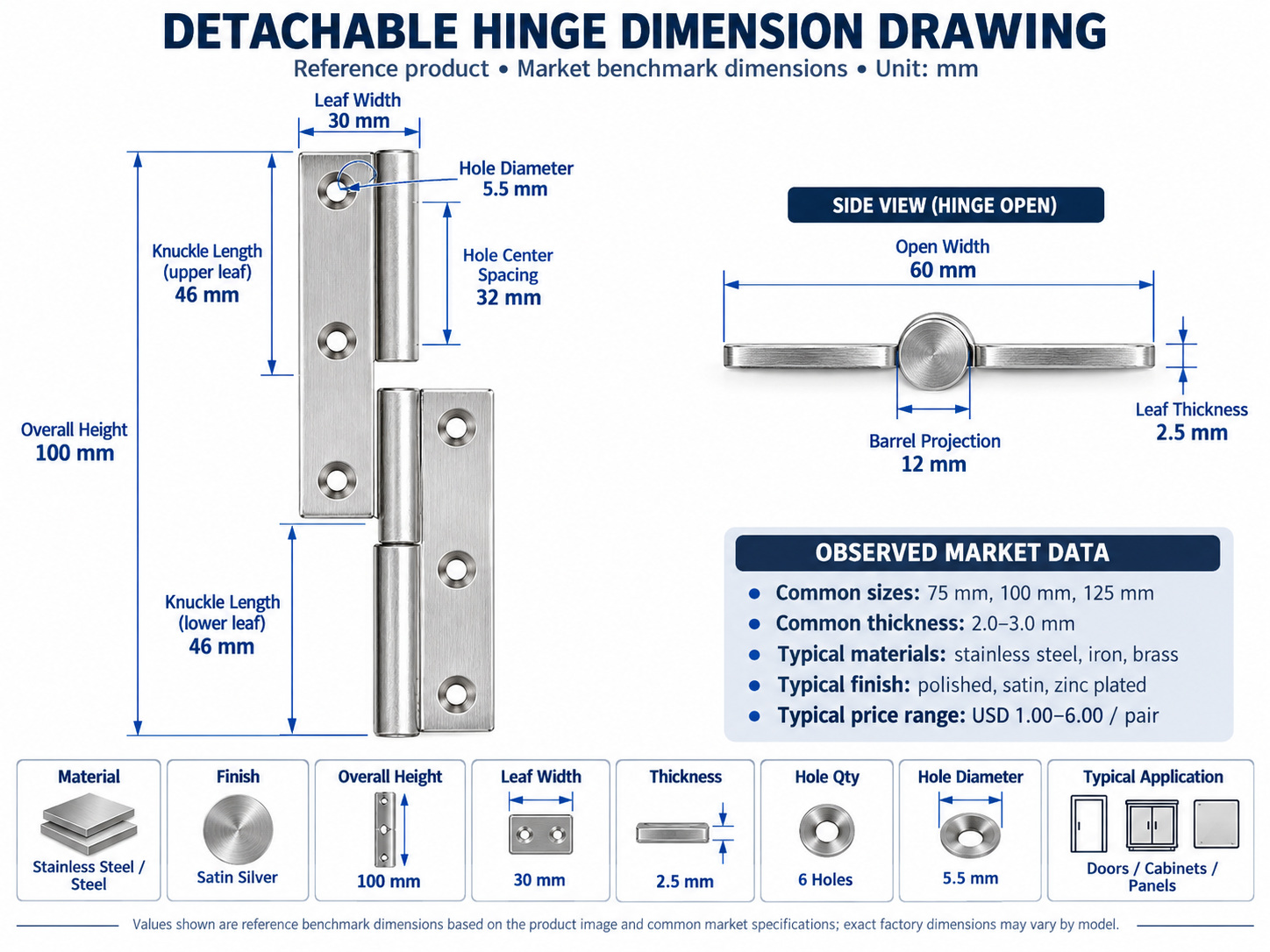

The supplied DH1032 reference drawing provides front and open-hinge views of a detachable L-shape lift-off hinge.
| Dimension Item | Reference Measurement |
|---|---|
| Overall Height | 100 mm |
| Individual Leaf Width | 30 mm |
| Total Open Width | 60 mm |
| Leaf Thickness | 2.5 mm |
| Upper Knuckle Length | 46 mm |
| Lower Knuckle Length | 46 mm |
| Mounting Hole Quantity | 6 |
| Hole Diameter | 5.5 mm |
| Hole Center Spacing | 32 mm |
| Barrel Projection | 12 mm |
Overall Height – 100 mm
The reference height of the detachable hinge assembly, measured vertically from the upper end to the lower end.
Leaf Width – 30 mm
Each hinge leaf has a reference width of 30 mm in the supplied drawing.
Open Width – 60 mm
The reference drawing indicates a total open width of 60 mm across the hinge assembly.
Leaf Thickness – 2.5 mm
The hinge leaf thickness is shown as 2.5 mm, representing a common structural dimension for this style of hinge.
Upper and Lower Knuckle Length – 46 mm
The illustrated hinge includes an upper and a lower knuckle section, each with a reference length of 46 mm.
Hole Diameter – 5.5 mm
The fixing-hole diameter is marked as 5.5 mm. The holes are illustrated with countersunk details.
Hole Center Spacing – 32 mm
The reference dimension between the indicated mounting-hole centers is 32 mm.
Barrel Projection – 12 mm
The open-hinge view identifies a 12 mm reference projection around the central barrel.
All dimensions are shown in millimeters.
The drawing is a market reference and does not constitute a certified production drawing.
Manufacturing tolerances have not been provided.
Screw-hole locations, countersink specifications and exact corner radius require confirmation.
Lift-off clearance, pin engagement and door handing should be checked before installation.
Request the official DH1032 CAD drawing or approved sample before high-volume door machining.
The DH1032 product name identifies stainless steel construction, while the supplied drawing shows a satin silver metallic appearance.
Stainless steel door hinges are commonly considered for applications where appearance, mechanical strength and corrosion resistance are important selection factors.
However, the actual stainless steel grade and corrosion-resistance performance of the DH1032 must be verified.
| Component / Feature | Description |
|---|---|
| Hinge Leaves | Stainless Steel – Grade to Be Confirmed |
| Hinge Pin / Pivot | Material to be confirmed |
| Knuckle Assembly | Lift-Off Configuration |
| Surface Appearance | Satin Silver |
| Surface Treatment | To be confirmed |
| Corner Detail | Rounded / Radius Style |
| Fixing Holes | Countersunk Style, as illustrated |
| Corrosion Resistance | Subject to material grade and testing |
| Optional Surface Finishes | Subject to manufacturer confirmation |
| Custom Material Requests | Subject to technical and production feasibility |
The satin silver finish offers a neutral metallic appearance suitable for many interior architectural hardware applications.
Buyers may enquire about alternative decorative finishes such as polished stainless steel, black or other project-specific colors, subject to manufacturing feasibility.
For coastal, outdoor or high-humidity environments, confirm the stainless steel grade, pivot material and corrosion-resistance test results before specifying the hinge.
The DH1032 Lift Off Butt Hinge can be considered for door and panel applications where convenient removal and straightforward mounting are important.
Suitable for evaluation in compatible interior doors of houses, apartments and renovation projects.
The detachable structure can make it easier to remove and reinstall a door during selected maintenance or renovation tasks.
May be considered for cabinets, furniture access panels and removable interior panels when the hinge geometry and load rating are appropriate.
Potentially suitable for lightweight or appropriately rated utility doors requiring periodic removal.
Lift-off hinges can be useful where access for maintenance or replacement is required.
The DH1032 may be evaluated as part of a broader door hardware range for importers, wholesalers and project suppliers.
Door manufacturers can assess the hinge for compatible door constructions according to the final machining drawing and verified structural performance.
| Door Type | Suitability Considerations |
|---|---|
| Wooden Interior Doors | Confirm fixing strength and door weight |
| Engineered Wood Doors | Verify frame and door-edge construction |
| Household Doors | Check installation geometry and handed direction |
| Cabinet Doors | Confirm panel thickness and hinge load rating |
| Utility Doors | Verify frequency of use and required durability |
| Renovation Doors | Confirm existing screw-hole compatibility |
| Removable Access Panels | Check pivot arrangement and lifting clearance |
| Custom Interior Doors | Confirm approved dimensions and load requirements |
Before specifying the DH1032 for a project, confirm the following:
Door weight and size
Door material and construction
Frame fixing strength
Number of hinges required
Left-hand or right-hand opening
Available upward lift-off clearance
Screw size and fixing positions
Environmental exposure conditions
For security, fire-rated or other regulated door assemblies, product selection should be based on relevant test documentation and complete door-system requirements.
The following procedure is a general guide for lift-off butt hinges and should be used alongside the approved DH1032 installation instructions.
Step 1: Check Door Compatibility
Measure the door and frame, confirm the door weight and identify the required hinge handing.
Check that sufficient vertical clearance is available for the detachable mechanism.
Step 2: Determine Hinge Positions
Mark the positions on the door and frame according to the door manufacturer’s recommended hinge layout.
The number and spacing of hinges should be selected according to the verified loading requirements.
Step 3: Prepare Mounting Surfaces
Position the hinge leaves and mark the screw-hole centers.
If recessing is required by the door design, prepare suitable hinge recesses using the approved measurements.
Step 4: Fix the Door-Side Hinge Component
Attach the appropriate hinge component to the door using compatible screws.
Do not overtighten the screws or damage the fixing holes.
Step 5: Fix the Frame-Side Hinge Component
Secure the corresponding hinge component to the door frame, ensuring accurate vertical alignment.
Step 6: Engage the Lift-Off Mechanism
Position the door so that the two hinge sections align correctly.
Lower or engage the door-side section onto the frame-side pivot arrangement according to the final product configuration.
Step 7: Check Door Movement
Open and close the door to ensure smooth movement without binding or interference.
Step 8: Verify Fixing Stability
Check that all screws are secure and that the hinge sections remain properly engaged throughout operation.
Step 9: Test the Detachable Function
Where safe and appropriate, verify the specified lift-off operation according to the manufacturer's instructions.
Installation Safety Note
Lift-off hinges may allow a door to be removed by lifting. Where unintended removal would create a safety or security risk, consult the door-system designer about suitable retention measures or alternative hinge types.
The detachable hinge structure is intended to make door removal and reinstallation more convenient than traditional fixed-pin arrangements in compatible installations.
The offset knuckle arrangement provides a distinctive configuration for door mounting and hinge engagement.
The stated stainless steel construction is a useful material option for architectural hardware applications, subject to grade verification.
The neutral metallic appearance can coordinate with a wide range of modern door handles, locks and fittings.
The reference design includes six fixing holes for distributing attachment points across the hinge leaves.
The market-benchmark dimensions support initial product comparison and compatibility assessment for door hardware procurement.
The lift-off function may reduce the need to remove fixing screws when temporarily detaching a compatible door.
The hinge can be evaluated for household doors, furniture panels, utility doors and renovation work.
The DH1032 is relevant to door hardware importers, distributors, renovation material suppliers and architectural hardware buyers.
DEGOL welcomes enquiries regarding product finishes, packaging, technical details and customization requirements.
Jiangmen Degol Hardware Co., Ltd. welcomes OEM and ODM enquiries for the DH1032 detachable hinge and related architectural door hardware products.
International buyers can submit their intended application, order quantity and required specifications for evaluation.
Material Requirements
Customers may request confirmation of stainless steel grade or enquire about alternative material specifications.
Surface Finish Options
Different decorative finishes can be discussed according to product construction and manufacturing feasibility.
Dimension Requirements
Custom dimensions, hinge leaves and hole layouts may be reviewed where tooling and manufacturing conditions allow.
Branding and Private Label
Buyers can enquire about product identification, packaging labels and private-label requirements.
Custom Packaging
Retail boxes, export cartons, product labels and project-specific packing arrangements can be discussed.
Technical Drawing Review
Customers may submit installation drawings or required hole patterns for feasibility assessment.
Sample Evaluation
Sample requests can be arranged subject to availability and commercial confirmation.
All customization options, minimum order quantities, tooling costs and lead times must be confirmed before production.
| Order Item | Details |
|---|---|
| Product Model | DH1032 |
| Product Description | Stainless Steel L Shape Lift Off Butt Hinge |
| Product Brand | DEGOL |
| Product Category | Detachable Door Hinges |
| Sales Type | Wholesale / Project Procurement |
| Sample Availability | Contact DEGOL |
| MOQ | To Be Confirmed |
| Wholesale Price | Based on quantity and specifications |
| Standard Packaging | To Be Confirmed |
| Custom Packaging | Subject to order requirements |
| Retail Packaging | Subject to availability |
| Private Label | Enquiries Welcome |
| OEM / ODM | Subject to feasibility |
| Production Lead Time | To Be Confirmed |
| Shipping Options | Subject to destination and agreement |
| Payment Terms | Confirmed during quotation |
| Export Documentation | According to shipment requirements |
Submit an enquiry for model DH1032.
Provide the required quantity and destination market.
Confirm the final dimensions, stainless steel grade and surface finish.
Request a sample or official technical drawing.
Verify hinge handing and the required door load capacity.
Confirm packaging, MOQ and wholesale pricing.
Approve the final order specifications before production.
Jiangmen Degol Hardware Co., Ltd. serves the architectural door hardware market and provides product enquiry channels for overseas importers, distributors, door manufacturers and project purchasing companies.
For the DH1032 detachable door hinge, DEGOL can be contacted regarding product selection, technical details, sample enquiries, customized specifications and wholesale quotations.
Product Specification Enquiries
Buyers can request the dimensional, material and surface-finish information required for product evaluation.
Technical Drawing Support
Official drawings and installation-related information may be requested for confirmation.
Sample and Product Evaluation
Sample availability and evaluation arrangements can be discussed before bulk orders.
OEM / ODM Project Enquiries
Project-specific design, branding, packaging and technical requirements may be reviewed.
Wholesale Order Coordination
Buyers can confirm quantity requirements, lead time, packaging and shipment details through DEGOL's sales channels.
Export Sales Enquiries
International buyers may request commercial quotations and discuss applicable export order requirements.
Specific factory production capacity, quality certifications, equipment, testing capabilities and delivery commitments should be verified directly with DEGOL.
Company: Jiangmen Degol Hardware Co., Ltd.
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
WhatsApp: +86 13725946499
Q1: What is the DH1032 lift-off butt hinge?
The DH1032 is an L-shape detachable butt hinge designed to connect a door to its frame while allowing the mating hinge sections to be separated through a lift-off mechanism.
Q2: What is the main advantage of a lift-off door hinge?
Its main advantage is convenient door removal for compatible installations without needing to unscrew every hinge leaf.
Q3: Is the DH1032 made of stainless steel?
The supplied product name identifies stainless steel construction. The exact grade and pivot material must be confirmed with DEGOL.
Q4: What are the dimensions of the DH1032 hinge?
The supplied market reference drawing shows a 100 mm overall height, 30 mm leaf width per side, 60 mm open width and 2.5 mm leaf thickness. These are reference dimensions requiring factory confirmation.
Q5: How many mounting holes does the hinge have?
The reference drawing shows six mounting holes, with three on each hinge leaf.
Q6: What is the reference mounting-hole diameter?
The supplied drawing shows a 5.5 mm hole diameter.
Q7: Can the DH1032 be used on wooden doors?
It can be considered for compatible wooden doors, provided the load capacity, mounting geometry and fixing requirements are verified.
Q8: Is this hinge suitable for household renovation?
Yes, the product is intended for household door renovation applications, subject to the particular door and frame requirements.
Q9: Is the DH1032 available for left-hand and right-hand doors?
The required handing and available product variants must be confirmed with DEGOL before ordering.
Q10: Is the DH1032 suitable for heavy doors?
The supplied information does not establish a verified load rating. Request the recommended door weight and hinge quantity before selecting it for heavy applications.
Q11: What is the opening angle?
The maximum opening angle has not been confirmed in the supplied product information.
Q12: Can I order the hinge with a black finish?
Buyers may enquire about black and other decorative finish options. Availability and MOQ must be confirmed.
Q13: Is this hinge suitable for outdoor use?
Outdoor suitability depends on the stainless steel grade, pivot construction, surface treatment and corrosion testing. Confirm environmental compatibility before specifying outdoor use.
Q14: Can I request a DH1032 sample before bulk purchasing?
Contact DEGOL to confirm sample availability, sample cost and delivery arrangements.
Q15: Does DEGOL accept OEM / ODM hinge orders?
DEGOL welcomes OEM / ODM enquiries. Dimensions, finishes, packaging and customization requests can be evaluated for feasibility.
Q16: How can I get a wholesale quotation for DH1032?
Contact DEGOL via WhatsApp or email with the model number, requested quantity, finish, delivery destination and any technical requirements.
Looking for a stainless steel L-shape lift-off butt hinge for your architectural door hardware range? Contact DEGOL Hardware for product specifications, technical drawings, available finishes, sample information and wholesale pricing.
Product Model: DH1032
Product Name: DH1032 Sturdy L Shape Lift Off Butt Hinge Stainless Steel Radius Detachable Hinge for Household Door Renovation
Company: Jiangmen Degol Hardware Co., Ltd.
WhatsApp: +86 13725946499
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
Request Your DH1032 Stainless Steel L-Shape Lift-Off Butt Hinge Wholesale Quote Today.
Contact DEGOL on WhatsApp – DH1032 Wholesale Quote
