DH1034
Degol
| Quantity: | |
|---|---|

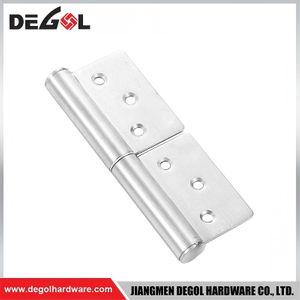

The DH1034 Stainless Steel Flag Hinge is a flat-shape detachable door hinge designed for compatible doors, cabinets, furniture panels and access panels.
Featuring two flat mounting leaves connected by a cylindrical central barrel, the DH1034 combines a practical screw-fixed installation structure with a lift-off hinge configuration.
Unlike conventional fixed-pin hinges, a lift-off hinge is designed to allow a compatible door or panel to be removed by lifting it away from the mating hinge component, subject to the actual hinge configuration and installation direction.
The supplied reference drawing illustrates a nominal overall height of 100 mm, a leaf width of approximately 44 mm, a barrel diameter of 14 mm and a leaf thickness of 3 mm.
The flat mounting leaves feature four countersunk mounting holes per leaf in the reference design, providing mounting points for compatible screws.
With its clean metallic appearance and detachable structure, the DH1034 can be evaluated for architectural door hardware, cabinet fittings, removable access panels and selected interior applications.
For international hardware wholesalers, furniture manufacturers, door manufacturers and project procurement teams, Jiangmen Degol Hardware Co., Ltd. welcomes enquiries regarding technical specifications, samples, available finishes and wholesale pricing.
The DH1034 is a flat-plate flag-style lift-off hinge intended to connect a compatible door or panel to a supporting frame while allowing convenient separation of the mating hinge components.
A lift-off hinge generally uses interlocking pivot components that permit the door or panel to be removed without necessarily unscrewing the mounting leaves.
The flat mounting plates are designed to be attached to the corresponding door and frame surfaces using compatible fasteners.
Flat-plate flag hinge design
Detachable lift-off structure
Cylindrical central barrel
Screw-fixed mounting leaves
Countersunk mounting holes
Metallic architectural hardware appearance
Suitable for compatible doors and panels
Convenient door removal for maintenance or replacement
The actual handing, pivot engagement, lifting direction and load capacity must be confirmed against the official DH1034 specification before installation.
| Specification Item | Details |
|---|---|
| Model Number | DH1034 |
| Product Name | Stainless Steel Flag Hinge |
| Product Style | Flat Shape |
| Hinge Type | Detachable Lift-Off Hinge |
| Main Construction | Flat Mounting Leaves and Central Barrel |
| Material | Stainless Steel – Grade to Be Confirmed |
| Comparable Material Reference | AISI 304 Stainless Steel |
| Surface Appearance | Satin Stainless Steel |
| Overall Height | 100 mm – Reference |
| Leaf Width | Approximately 44 mm – Reference |
| Barrel Diameter | 14 mm – Reference |
| Leaf Thickness | 3 mm – Reference |
| Mounting Hole Quantity | 4 per Leaf – Reference |
| Mounting Hole Type | Countersunk |
| Opening Configuration | See Approved Product Drawing |
| Detachable Mechanism | Lift-Off |
| Corrosion Resistance | Subject to Material Grade and Testing |
| Door Handing | To Be Confirmed |
| Mounting Method | Screw Fixing |
| Applications | Doors, Cabinets, Access Panels and Furniture |
| OEM / ODM | Subject to Feasibility |
| Dimension Unit | mm |
Specification Notice: The supplied drawing is marked as a market reference. The dimensions, material grade and performance values shown for comparable products are not verified DH1034 factory specifications.

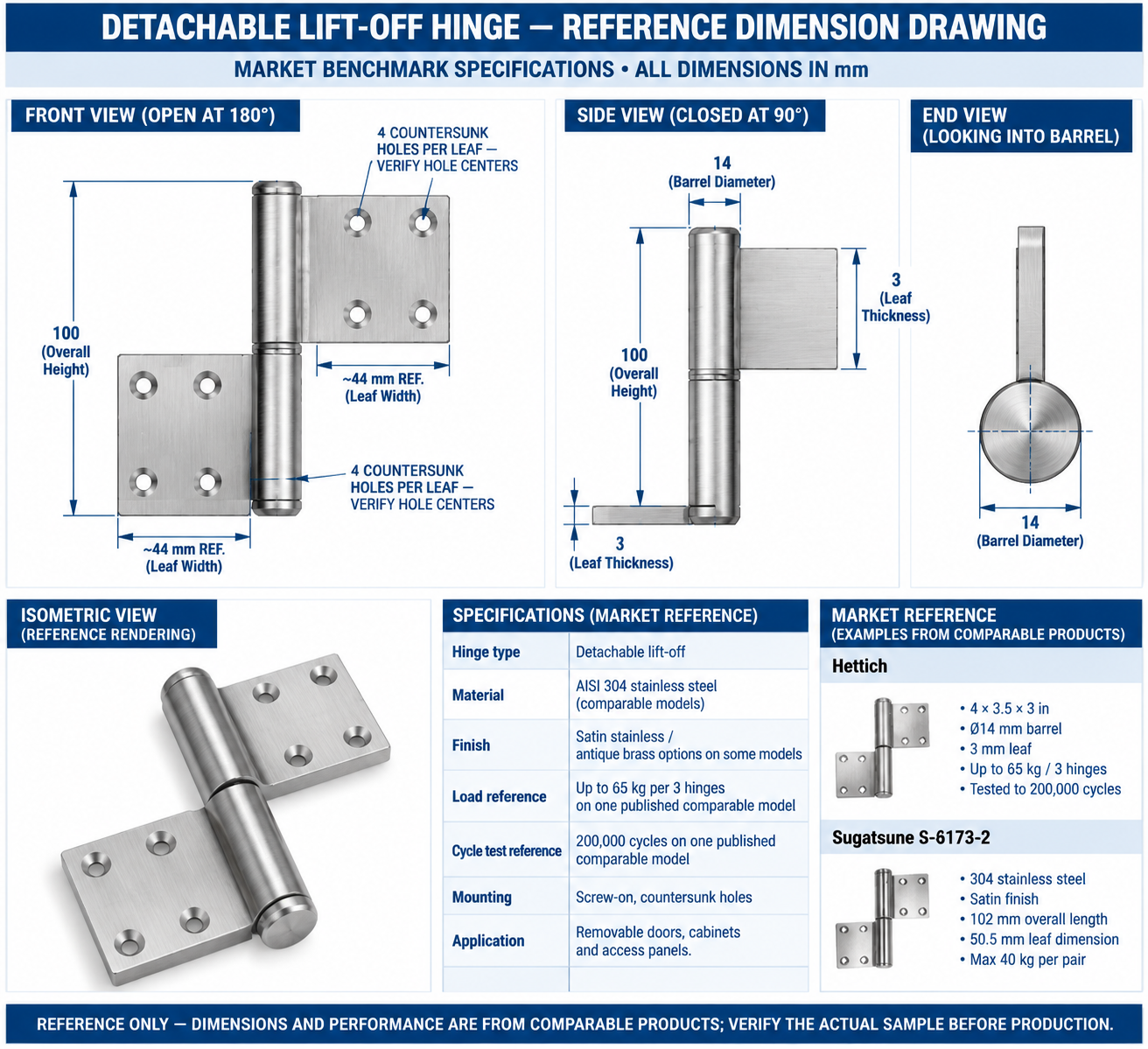

The supplied reference drawing illustrates the detachable lift-off hinge in front, side and end views, together with an isometric product rendering.
The drawing provides preliminary dimensions for product comparison and design evaluation.
| Dimension Item | Reference Measurement |
|---|---|
| Overall Height | 100 mm |
| Leaf Width | Approximately 44 mm |
| Barrel Diameter | 14 mm |
| Leaf Thickness | 3 mm |
| Countersunk Holes per Leaf | 4 |
| Total Mounting Holes | 8 |
| Hole Diameter | To Be Confirmed |
| Hole Center Spacing | To Be Confirmed |
| Mounting Screw Size | To Be Confirmed |
The reference overall height is 100 mm, measured vertically across the assembled hinge leaves.
The illustrated mounting leaves have an approximate reference width of 44 mm. The final dimensions should be confirmed before preparing installation cutouts or drilling templates.
The cylindrical central barrel is identified with a reference outside diameter of 14 mm.
The reference drawing indicates a mounting-leaf thickness of 3 mm.
The drawing shows four countersunk mounting holes on each leaf, giving a total of eight holes in the illustrated configuration.
The exact hole diameter, countersink angle, hole spacing and screw specification are not provided.
All dimensions are expressed in millimeters.
The drawing is for reference only.
Actual production dimensions and tolerances must be confirmed.
Hole positions should be checked against the approved factory drawing.
Door thickness compatibility depends on the complete installation geometry.
Confirm the lift-off direction and pivot arrangement before ordering.
Do not use comparable product performance data as verified DH1034 specifications.
The DH1034 product name identifies stainless steel construction, while the reference drawing presents a satin silver metallic appearance.
AISI 304 stainless steel is listed in the drawing as a material used in comparable products. This does not establish that the DH1034 itself is manufactured from AISI 304.
| Component / Feature | Description |
|---|---|
| Mounting Leaves | Stainless Steel – Grade to Be Confirmed |
| Central Barrel | Material and Construction to Be Confirmed |
| Pivot Components | Material to Be Confirmed |
| Surface Appearance | Satin Stainless Steel |
| Comparable Material Reference | AISI 304 Stainless Steel |
| Alternative Finish Reference | Antique Brass on Some Comparable Models |
| Standard DH1034 Finish | To Be Confirmed |
| Surface Treatment | To Be Confirmed |
| Corrosion Resistance | Test Data to Be Confirmed |
| Custom Finishes | Subject to Manufacturing Feasibility |
A satin metallic appearance offers a neutral finish suitable for modern architectural hardware, cabinet fittings and interior door accessories.
Buyers may enquire about polished metallic finishes, antique brass appearance or other decorative treatments, subject to product construction and manufacturing availability.
For applications requiring specific corrosion resistance or hygiene standards, confirm the actual stainless steel grade and applicable test documentation.
The final product material should be verified through the manufacturer's specification or material documentation rather than inferred from appearance.
The DH1034 Stainless Steel Flag Hinge can be evaluated for applications where a flat mounting configuration and removable door or panel function are required.
Suitable for evaluation on compatible interior doors where the hinge dimensions and load rating meet the installation requirements.
The detachable design may be useful for cabinet doors requiring convenient removal for servicing or replacement.
Can be considered for compatible removable access panels used in buildings, equipment enclosures or furniture.
The flat mounting leaves may suit selected furniture and storage applications, subject to the hinge's verified load capacity.
The lift-off structure can simplify door removal during selected maintenance and renovation work.
The satin metallic appearance can coordinate with other door fittings in modern architectural hardware collections.
May be evaluated for compatible doors and panels in offices, storage areas and commercial interiors.
The DH1034 can be considered by importers, furniture hardware distributors, door manufacturers and architectural hardware wholesalers.
| Door / Panel Type | Suitability Considerations |
|---|---|
| Wooden Interior Doors | Confirm door weight and screw-holding strength |
| Engineered Wood Doors | Check core construction and fixing requirements |
| Cabinet Doors | Verify panel dimensions and hinge load rating |
| Furniture Panels | Confirm mounting geometry and operating frequency |
| Access Panels | Check the required removal direction and clearance |
| Storage Doors | Verify structural support and durability requirements |
| Renovation Doors | Confirm existing hole positions and dimensions |
| Custom Panels | Match the approved mounting drawing |
Before selecting the DH1034, confirm:
Door or panel weight
Door height and width
Material and construction of the mounting surfaces
Required hinge quantity
Available lifting clearance
Mounting-hole positions
Screw type and fixing depth
Required opening angle
Left-hand or right-hand configuration, if applicable
Environmental exposure and corrosion requirements
The supplied reference drawing does not establish a verified maximum door weight or a specific recommended number of hinges for DH1034.
The following procedure describes a general installation approach for screw-fixed lift-off hinges. The actual DH1034 should be installed according to the approved product drawing and manufacturer's instructions.
Step 1: Confirm Product Compatibility
Check the hinge dimensions, lifting direction, door weight and mounting surface.
Step 2: Mark the Hinge Positions
Determine the appropriate hinge locations according to the door manufacturer's recommendations and the required loading conditions.
Step 3: Align the Mounting Leaves
Position the leaves on the door and frame, ensuring that the mating barrel components align correctly.
Step 4: Mark the Fixing Holes
Mark the countersunk hole positions using the actual hinge or approved template.
Do not assume that the reference drawing provides exact production hole coordinates.
Step 5: Prepare the Mounting Surfaces
Prepare suitable pilot holes or recesses where required by the door material and selected fasteners.
Step 6: Secure the First Hinge Leaf
Attach the first mounting leaf using compatible screws and the recommended tightening method.
Step 7: Secure the Second Hinge Leaf
Fix the corresponding leaf to the mating door or frame surface, maintaining alignment between the pivot components.
Step 8: Engage the Lift-Off Mechanism
Fit the mating hinge sections together according to the product's intended assembly direction.
Step 9: Check Door Movement
Open and close the door to confirm that the hinge operates smoothly without binding or excessive play.
Step 10: Verify the Detachable Function
Where safe and appropriate, test the lift-off function according to the manufacturer's instructions.
Ensure that the door is adequately supported during installation and removal.
For heavy doors or panels, use suitable lifting equipment and qualified installers. Confirm the manufacturer's load rating before use.
The hinge is designed to facilitate door or panel removal in compatible installations without necessarily removing the mounting screws.
The flat plate configuration supports a straightforward screw-fixed installation approach.
The stated stainless steel construction offers a material option for architectural hardware applications, subject to grade verification.
The central barrel provides the pivot structure for the detachable hinge mechanism.
The illustrated countersunk holes accommodate compatible countersunk fasteners and can provide a neat mounting appearance when correctly installed.
The neutral finish can coordinate with contemporary door handles, cabinet hardware and other metal fittings.
The lift-off configuration can make selected doors and panels easier to remove for servicing or replacement.
The hinge can be evaluated for interior doors, cabinets, furniture and compatible access panels.
The DH1034 is relevant to hardware distributors, importers, furniture manufacturers and architectural door hardware suppliers.
DEGOL welcomes enquiries regarding specifications, finishes, branding and packaging for potential customized orders.
Jiangmen Degol Hardware Co., Ltd. welcomes OEM and ODM enquiries for the DH1034 stainless steel flag hinge and related architectural hardware products.
Material Requirements
Buyers can request confirmation of the standard material grade or submit alternative material requirements for evaluation.
Surface Finish
Alternative metallic finishes and decorative treatments may be discussed according to manufacturing feasibility.
Dimensions
Custom overall height, leaf width, barrel diameter and leaf thickness may be reviewed where technically feasible.
Mounting Hole Layout
Buyers can submit their required hole spacing and countersink specifications for technical assessment.
Branding and Private Label
Product identification and private-label requirements can be discussed.
Customized Packaging
Retail boxes, product labels, export cartons and project-specific packing options may be evaluated.
Technical Drawing Review
Customers can submit drawings or installation requirements for compatibility assessment.
Sample Evaluation
Sample availability can be confirmed for customers who wish to verify the product before bulk purchasing.
All customization options, tooling requirements, MOQ and lead times are subject to technical feasibility and commercial confirmation.
| Order Item | Details |
|---|---|
| Product Model | DH1034 |
| Product Name | Stainless Steel Flag Hinge |
| Product Style | Flat Shape Detachable Lift-Off Hinge |
| Brand | DEGOL |
| Product Category | Door Hinges / Architectural Hardware |
| Sales Type | Wholesale / Project Procurement |
| Sample Availability | Contact DEGOL |
| MOQ | To Be Confirmed |
| Wholesale Price | Based on Quantity and Specifications |
| Standard Packaging | To Be Confirmed |
| Customized Packaging | Subject to Order Requirements |
| Private Label | Enquiries Welcome |
| Material Grade | To Be Confirmed |
| Available Finishes | To Be Confirmed |
| Production Lead Time | To Be Confirmed |
| Shipping Method | Subject to Destination and Agreement |
| Payment Terms | Confirmed During Quotation |
| Inspection Requirements | Subject to Order Specifications |
Contact DEGOL with model number DH1034.
Specify the required quantity and target market.
Confirm the actual dimensions and stainless steel grade.
Verify the required finish and mounting-hole configuration.
Request an official drawing or sample.
Confirm door compatibility and load capacity.
Discuss packaging, MOQ and wholesale pricing.
Approve the final specifications before production.
Jiangmen Degol Hardware Co., Ltd. serves the architectural hardware market and welcomes product and wholesale enquiries from international distributors, door manufacturers, furniture hardware suppliers and project buyers.
For the DH1034 flag hinge, DEGOL can be contacted regarding product specifications, available finishes, sample requests, technical drawings and bulk purchasing requirements.
Product Specification Enquiries
Buyers may request the verified dimensions, material details and recommended applications.
Technical Drawing Support
Available drawings and mounting details can be requested for installation planning.
Material and Finish Information
Customers can confirm the applicable material grade and available surface treatments.
Sample Requests
Sample availability and evaluation arrangements can be discussed before bulk purchasing.
OEM / ODM Projects
Customization requirements involving dimensions, mounting details, branding and packaging may be reviewed.
Wholesale Quotations
Buyers can request commercial quotations based on the required specifications and order quantities.
Export Order Coordination
Packaging, delivery requirements and commercial documentation can be discussed with DEGOL.
Actual production capacity, factory equipment, quality certifications and delivery commitments should be confirmed directly with the company.
Company: Jiangmen Degol Hardware Co., Ltd.
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
WhatsApp: +86 13725946499
Q1: What is the DH1034 stainless steel flag hinge?
The DH1034 is a flat-shape flag hinge described as a detachable lift-off hinge for compatible doors, cabinets and panels.
Q2: What is a lift-off hinge?
A lift-off hinge is designed to allow a compatible door or panel to be removed by lifting it away from the mating hinge component, subject to the hinge configuration.
Q3: What are the reference dimensions of DH1034?
The supplied drawing shows an overall height of 100 mm, an approximate leaf width of 44 mm, a barrel diameter of 14 mm and a leaf thickness of 3 mm. These dimensions require factory confirmation.
Q4: How many mounting holes does the hinge have?
The reference drawing shows four countersunk holes per leaf, giving eight holes in total.
Q5: Is DH1034 made of AISI 304 stainless steel?
AISI 304 is identified as a material used in comparable products. The actual DH1034 material grade must be confirmed with DEGOL.
Q6: What surface finishes are available?
The reference drawing shows a satin stainless steel appearance and mentions antique brass on some comparable models. Actual DH1034 finish options must be confirmed.
Q7: What is the load capacity of DH1034?
The verified load capacity has not been provided. Request the manufacturer's rated capacity and recommended hinge quantity before selecting the product.
Q8: Is DH1034 suitable for cabinet doors?
It can be considered for compatible cabinet doors, provided the dimensions, fixing strength and load requirements are appropriate.
Q9: Can DH1034 be used on access panels?
The detachable structure may be suitable for compatible access panels requiring periodic removal.
Q10: Can this hinge be used on heavy doors?
Heavy-door suitability cannot be established from the reference dimensions alone. Confirm the rated load, door construction and required hinge quantity with DEGOL.
Q11: Is the hinge left-hand or right-hand?
The actual handing and availability of directional variants must be confirmed with DEGOL.
Q12: Does the hinge require countersunk screws?
The reference drawing shows countersunk mounting holes. Confirm the required screw dimensions and head specifications before installation.
Q13: Can I request customized hinge dimensions?
Buyers may submit custom dimensions for evaluation, subject to manufacturing feasibility and order requirements.
Q14: Can DEGOL provide samples?
Contact DEGOL to confirm sample availability, cost and delivery arrangements.
Q15: Does DEGOL accept OEM / ODM orders?
DEGOL welcomes OEM / ODM enquiries regarding product dimensions, finishes, branding and packaging, subject to feasibility.
Q16: What is the MOQ for DH1034?
The minimum order quantity must be confirmed directly with DEGOL.
Q17: How can I obtain wholesale pricing?
Send the product model, required quantity, finish and destination market to DEGOL through WhatsApp or email.
Looking for a stainless steel flat-shape detachable flag hinge for your architectural door hardware, cabinet hardware or furniture fitting range? Contact DEGOL Hardware for product specifications, technical drawings, available finishes, sample information and wholesale pricing.
Product Model: DH1034
Product Name: DH1034 Stainless Steel Flag Hinge Flat Shape
Company: Jiangmen Degol Hardware Co., Ltd.
WhatsApp: +86 13725946499
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
Request Your DH1034 Stainless Steel Flag Hinge Wholesale Quote Today.
Contact DEGOL on WhatsApp – Request DH1034 Wholesale Pricing
