The DH1035 Durable Self Closing Spring Hinge is a double-action spring hinge designed for compatible swing doors in commercial, hospitality and residential interior environments.
Also known as a café door hinge or saloon door hinge, this type of hardware allows a door to swing in both directions and return toward its closed position through an integrated spring mechanism.
The DH1035 features a dual-barrel appearance, a central mounting leaf and decorative metallic cover components, creating a distinctive design for doors that require convenient two-way access.
Double-action spring hinges are commonly considered for restaurant service doors, café entrances, kitchen swing doors, pantry doors and selected interior partitions where hands-free passage and automatic spring return are desirable.
The supplied reference drawing indicates an overall height of approximately 102 mm, an overall width of approximately 72 mm, a barrel diameter of approximately 16 mm and a leaf thickness of approximately 3 mm.
These dimensions are reference values from comparable market products rather than verified factory measurements for DH1035.
For international architectural hardware distributors, restaurant equipment suppliers, commercial door manufacturers and wholesale buyers, Jiangmen Degol Hardware Co., Ltd. welcomes enquiries regarding specifications, available finishes, samples and bulk pricing.
The DH1035 is a double-action spring hinge intended to support two-way swing movement and spring-assisted return on compatible door assemblies.
Unlike a conventional butt hinge, a double-action spring hinge is designed to permit movement in both directions around its pivot mechanism.
An integrated spring provides a return force that moves the door toward its resting position after the user passes through. The actual return behavior, closing force and adjustment method depend on the hinge design.
Double-action swing mechanism
Spring-assisted door return
Two-way door opening
Dual-barrel decorative construction
Central mounting leaf
Metallic cover components
Suitable for compatible café and saloon doors
Intended for frequent-access interior applications
The product's exact spring mechanism, adjustment procedure, maximum opening angle and rated door capacity must be confirmed against the approved DH1035 specification.
Important: A spring hinge is not automatically equivalent to a hydraulic door closer. Controlled closing speed, hold-open capability and other door-control functions should not be assumed unless confirmed by the manufacturer.
| Specification Item | Details |
|---|---|
| Model Number | DH1035 |
| Product Name | Durable Self Closing Spring Hinge |
| Hinge Type | Double-Action Spring Hinge |
| Common Product Names | Café Door Hinge / Saloon Door Hinge |
| Operating Mechanism | Spring-Return, Double-Action Design |
| Overall Height | Approximately 102 mm – Reference |
| Overall Width | Approximately 72 mm – Reference |
| Center Leaf Width | Approximately 18 mm – Reference |
| Barrel Outside Diameter | Approximately 16 mm – Reference |
| Side Projection | Approximately 28 mm per Side – Reference |
| Leaf Thickness | Approximately 3.0 mm – Reference |
| Tension Pin Length | Approximately 42 mm – Reference |
| Tension Pin Diameter | Approximately 3 mm – Reference |
| Reference Construction | Steel Body with Solid Brass Cover Plates |
| Mounting Method | Screw Fixing |
| Suitable Applications | Café Doors, Saloon Doors, Kitchen Swing Doors |
| OEM / ODM | Subject to Feasibility |
| Dimension Unit | mm |
Specification Notice: All numerical dimensions above are reference measurements from the supplied illustration. Material composition, spring performance and load ratings have not been verified for the actual DH1035 product.

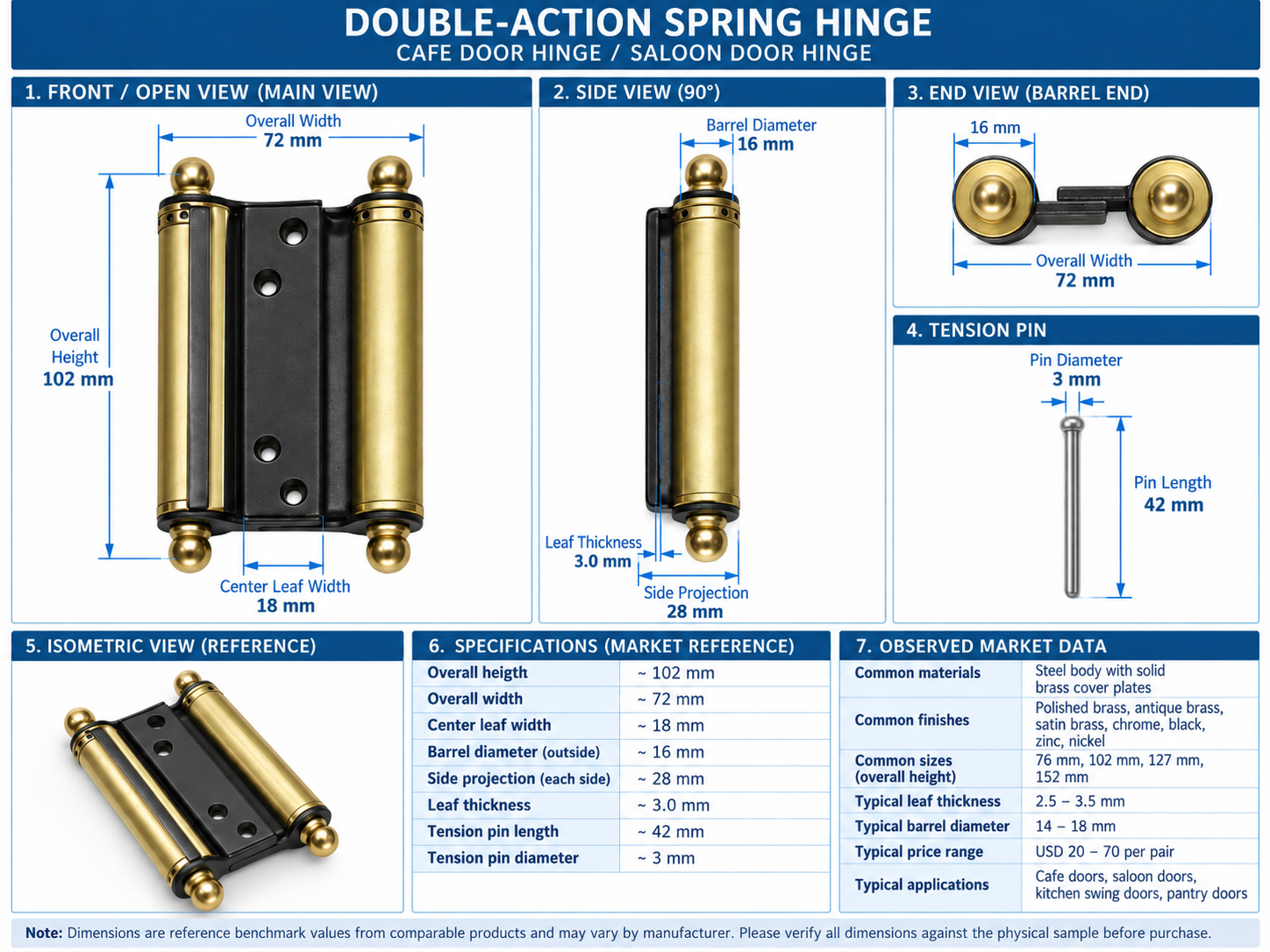

The supplied DH1035 reference drawing illustrates the double-action spring hinge from the front, side and barrel-end views, together with a separate tension pin.
| Dimension Item | Reference Measurement |
|---|---|
| Overall Height | Approximately 102 mm |
| Overall Width | Approximately 72 mm |
| Center Leaf Width | Approximately 18 mm |
| Barrel Diameter | Approximately 16 mm |
| Side Projection | Approximately 28 mm per Side |
| Leaf Thickness | Approximately 3.0 mm |
| Tension Pin Length | Approximately 42 mm |
| Tension Pin Diameter | Approximately 3 mm |
The reference overall height is measured vertically across the assembled hinge, including the illustrated upper and lower end components.
The drawing identifies a total width of approximately 72 mm across the two barrel assemblies.
The central mounting leaf is shown with a reference width of approximately 18 mm.
The cylindrical spring barrel is identified with an outside diameter of approximately 16 mm.
The side-view illustration indicates a side projection of approximately 28 mm for each side of the assembly.
The precise reference points used for this measurement should be verified against the official drawing.
The central mounting leaf is shown with a reference thickness of 3.0 mm.
The separate tension pin is illustrated with a length of approximately 42 mm and a diameter of approximately 3 mm.
Its exact purpose, engagement method and compatibility must be confirmed using the manufacturer's installation instructions.
All dimensions are expressed in millimeters.
The drawing provides market benchmark dimensions.
Exact DH1035 production dimensions have not been verified.
Manufacturing tolerances and fixing-hole specifications are unavailable.
Confirm the supplied tension pin and spring adjustment arrangement.
Confirm the door clearance and required opening angle before installation.
Obtain the official mounting template before preparing the door or frame.
The supplied reference drawing describes comparable products using a steel body with solid brass cover plates.
The pictured product features gold-colored barrel covers and a black central mounting section. These visual details do not independently confirm the base materials or finish specification of DH1035.
| Component / Feature | Description |
|---|---|
| Main Spring Body | Material to Be Confirmed |
| Barrel Cover Plates | Brass or Brass-Covered Construction – To Be Confirmed |
| Central Mounting Leaf | Material to Be Confirmed |
| Spring Mechanism | Type and Material to Be Confirmed |
| Tension Pin | Material to Be Confirmed |
| Reference Appearance | Brass / Black |
| Potential Finish Options | Polished Brass, Antique Brass, Satin Brass, Chrome, Black, Zinc or Nickel |
| Standard DH1035 Finish | To Be Confirmed |
| Corrosion Resistance | Test Data to Be Confirmed |
| Custom Surface Treatment | Subject to Feasibility |
A polished brass appearance provides a decorative finish that can complement traditional café doors, hospitality interiors and classic architectural hardware.
An antique brass finish may suit heritage-inspired interiors and traditional restaurant or saloon door designs.
Buyers may enquire about chrome, satin brass, black, nickel or other finish options. Availability depends on the actual product construction and manufacturing capability.
Before ordering, confirm whether the visible brass-colored components are solid brass, plated steel, brass covers or another construction.
The exact spring-body material and corrosion-resistance performance should also be verified.
The DH1035 Double-Action Spring Hinge can be evaluated for compatible swing doors where two-way access and spring-assisted return are required.
Suitable for consideration in café and coffee shop interiors where staff and customers need convenient passage between spaces.
May be evaluated for compatible restaurant service doors separating dining areas, service counters and back-of-house spaces.
Can be considered for suitable kitchen swing doors, subject to door weight, hygiene requirements and applicable building regulations.
The double-action design is commonly associated with saloon-style doors that swing in both directions.
Can be evaluated for interior pantry and storage doors requiring frequent passage.
Potentially suitable for selected hotel, restaurant and hospitality interior applications.
May be considered for compatible lightweight interior swing doors where the operating characteristics are appropriate.
The DH1035 is relevant to distributors and importers sourcing café door hinges, spring hinges and specialty swing-door hardware.
Application note: Suitability for fire doors, smoke-control doors or regulated food-service installations must be confirmed separately. A spring hinge alone does not establish compliance with these requirements.
| Door Type | Suitability Considerations |
|---|---|
| Café Swing Doors | Confirm door weight and swing clearance |
| Saloon Doors | Verify two-way opening and return requirements |
| Restaurant Service Doors | Check traffic frequency and closing behavior |
| Commercial Kitchen Doors | Confirm hygiene, safety and regulatory requirements |
| Pantry Doors | Verify door dimensions and fixing strength |
| Interior Wooden Doors | Check door construction and screw-holding strength |
| Lightweight Composite Doors | Confirm the mounting arrangement |
| Custom Swing Doors | Match the approved technical drawing |
Before selecting DH1035, confirm:
Door weight and dimensions
Door material and thickness
Required opening direction
Desired two-way swing function
Required opening angle
Available side and barrel clearance
Spring return requirements
Mounting screw specifications
Door-frame construction
Applicable building and safety regulations
The supplied drawing does not establish the maximum supported door weight, door width or rated cycle life for DH1035.
The following is a general installation overview for double-action spring hinges. The actual DH1035 must be installed according to its approved instructions.
Step 1: Confirm Door Compatibility
Check the door dimensions, weight, material and required two-way swing behavior.
Ensure the selected hinge is rated for the intended application.
Step 2: Inspect the Hinge Assembly
Verify the spring barrels, mounting leaf, fasteners and any supplied tension-adjustment pin.
Step 3: Determine the Mounting Position
Mark the installation location according to the approved mounting template.
Check that the hinge barrels will have sufficient clearance throughout the door's movement.
Step 4: Prepare the Mounting Surface
Prepare fixing holes or mounting recesses according to the door material and manufacturer's instructions.
Step 5: Secure the Mounting Leaf
Attach the central mounting leaf using the specified fasteners and tightening method.
Step 6: Attach the Door
Position and secure the door-side mounting components according to the actual hinge configuration.
Support the door throughout the installation.
Step 7: Verify Alignment
Check that the hinge axis is correctly aligned and that the door can swing in both intended directions without obstruction.
Step 8: Adjust Spring Tension if Supported
If the DH1035 provides an adjustable spring mechanism, follow the manufacturer's procedure and use only the specified tension pin or adjustment tool.
Do not assume that the separate pin shown in the drawing is compatible with an unverified adjustment method.
Step 9: Test the Spring Return
Move the door in both directions and check whether it returns toward the intended resting position.
Step 10: Perform the Final Inspection
Verify fixing stability, spring operation, clearance and safe door movement.
Spring-loaded mechanisms can store mechanical energy. Incorrect adjustment or removal of tension components may cause sudden movement or injury.
Use the correct tools and follow the manufacturer's instructions. Do not exceed the permitted spring tension or opening angle.
The hinge is designed for compatible doors that need to swing in both directions.
The integrated spring mechanism is intended to return the door toward its resting position after passage.
The product category is well suited to evaluation for café-style and saloon-style swing doors.
The dual-barrel appearance provides a distinctive look for visible specialty door hardware.
Brass-colored finishes can complement traditional hospitality interiors and decorative architectural hardware.
The central mounting leaf provides a compact interface for compatible installation arrangements.
The double-action design can simplify passage through compatible doors in busy interior environments.
The hinge can be evaluated for restaurants, cafés, pantry doors and other suitable interior swing-door applications.
The DH1035 can complement a broader architectural hardware portfolio for importers and wholesalers.
DEGOL welcomes enquiries regarding dimensions, finish options, packaging and project-specific requirements.
Jiangmen Degol Hardware Co., Ltd. welcomes OEM and ODM enquiries for the DH1035 spring hinge and related architectural door hardware products.
Material Requirements
Buyers may request confirmation of the standard body and cover materials or submit alternative requirements for evaluation.
Surface Finishes
Polished brass, antique brass, satin brass, chrome, black, nickel and other finishes may be discussed subject to availability.
Product Dimensions
Custom overall height, barrel diameter, leaf width and thickness requirements can be reviewed for feasibility.
Spring Performance
Buyers can submit their required door-return behavior and operating requirements for technical evaluation.
Any changes to spring force, opening angle or closing characteristics must be assessed against the actual hinge design.
Branding and Private Label
Product identification and private-label requirements may be discussed.
Customized Packaging
Retail boxes, product labels, export cartons and project-specific packing arrangements can be evaluated.
Technical Drawing Review
Customer drawings and installation requirements can be submitted for compatibility assessment.
Sample Evaluation
Sample availability can be confirmed for buyers who wish to test the spring action and door fit before bulk purchasing.
All customization options, tooling requirements, MOQ and production lead times are subject to technical feasibility and commercial confirmation.
| Order Item | Details |
|---|---|
| Product Model | DH1035 |
| Product Name | Durable Self Closing Spring Hinge |
| Product Type | Double-Action Spring Hinge |
| Brand | DEGOL |
| Product Category | Café Door / Saloon Door Hardware |
| Sales Type | Wholesale / Project Procurement |
| Sample Availability | Contact DEGOL |
| MOQ | To Be Confirmed |
| Wholesale Price | Based on Quantity and Specifications |
| Standard Packaging | To Be Confirmed |
| Customized Packaging | Subject to Order Requirements |
| Private Label | Enquiries Welcome |
| Material | To Be Confirmed |
| Available Finishes | To Be Confirmed |
| Spring Configuration | To Be Confirmed |
| Production Lead Time | To Be Confirmed |
| Shipping Method | Subject to Destination and Agreement |
| Payment Terms | Confirmed During Quotation |
| Inspection Requirements | Subject to Order Specifications |
Contact DEGOL with model number DH1035.
Specify the required quantity and destination market.
Confirm the actual dimensions and materials.
Select the required surface finish.
Confirm the spring-return mechanism and adjustment requirements.
Verify door compatibility and load capacity.
Request samples and available technical drawings.
Confirm MOQ, wholesale price, packaging and delivery schedule.
Approve the final product specifications before production.
Jiangmen Degol Hardware Co., Ltd. serves the architectural door hardware market and welcomes product enquiries from international distributors, commercial door suppliers, hospitality hardware wholesalers and project buyers.
For the DH1035 spring hinge, DEGOL can be contacted regarding product specifications, finish options, sample requests, technical drawings and bulk purchasing requirements.
Product Specification Enquiries
Buyers may request verified dimensions, material details and application recommendations.
Technical Drawing Support
Available product drawings and mounting details can be requested for installation planning.
Material and Finish Information
Customers can confirm the actual body material, cover construction and available decorative finishes.
Spring Mechanism Enquiries
Buyers may request information about spring adjustment, operating direction and return performance.
Sample Requests
Sample availability, cost and shipment arrangements can be discussed before bulk purchasing.
OEM / ODM Projects
Customization requests involving dimensions, finishes, branding and packaging may be evaluated.
Wholesale Quotations
Commercial quotations can be requested according to the final specifications and order quantity.
Export Order Coordination
Packaging, delivery requirements and commercial documentation can be discussed with DEGOL.
Specific factory capacity, production equipment, quality certifications, testing capabilities and delivery commitments should be verified directly with the company.
Company: Jiangmen Degol Hardware Co., Ltd.
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
WhatsApp: +86 13725946499
Q1: What is the DH1035 spring hinge?
The DH1035 is a double-action spring hinge intended for compatible swing doors, including café-style and saloon-style doors.
Q2: What is a double-action spring hinge?
A double-action spring hinge allows a compatible door to swing in two directions and uses a spring mechanism to return the door toward its resting position.
Q3: Is the DH1035 suitable for café doors?
It can be evaluated for café doors, provided the door dimensions, weight and required operating characteristics match the verified product specifications.
Q4: Is the DH1035 suitable for saloon doors?
The double-action design is relevant to saloon-style doors. Confirm the actual opening angle, door weight and installation configuration before ordering.
Q5: What are the reference dimensions of DH1035?
The supplied drawing shows an overall height of approximately 102 mm, overall width of 72 mm, barrel diameter of 16 mm and leaf thickness of 3 mm. These are reference values requiring factory confirmation.
Q6: What material is the DH1035 made of?
The drawing describes comparable hinges as having a steel body with brass cover plates. The actual DH1035 material and cover construction must be confirmed.
Q7: What finishes are available?
The reference image lists polished brass, antique brass, satin brass, chrome, black, zinc and nickel as common market finishes. Actual DH1035 finish availability must be verified.
Q8: Can the spring tension be adjusted?
The supplied image shows a separate tension pin, but the adjustment method for DH1035 has not been verified. Request the manufacturer's instructions before attempting adjustment.
Q9: Does the DH1035 close the door automatically?
It is described as a self-closing spring hinge. The actual return force and closing behavior should be verified under the intended installation conditions.
Q10: Does it provide controlled closing speed?
A spring-return mechanism does not necessarily provide hydraulic speed control. Confirm the operating characteristics with DEGOL.
Q11: What is the maximum door weight?
A verified load rating has not been provided. Contact DEGOL for the rated door weight, dimensions and recommended hinge configuration.
Q12: Can the DH1035 be used on heavy commercial doors?
Its suitability depends on the verified load rating, door construction and usage conditions. Do not assume heavy-door compatibility from the product name alone.
Q13: Can the hinge be used in commercial kitchens?
It can be evaluated for compatible kitchen swing doors. Confirm hygiene, safety, fire-door and other project requirements where applicable.
Q14: Can I request customized finishes?
Buyers may enquire about alternative finishes and customization feasibility.
Q15: Does DEGOL accept OEM / ODM orders?
DEGOL welcomes OEM / ODM enquiries regarding dimensions, finishes, branding and packaging, subject to manufacturing feasibility.
Q16: Can I request a sample before placing a bulk order?
Contact DEGOL to confirm sample availability, sample cost and shipping arrangements.
Q17: What is the MOQ for DH1035?
The minimum order quantity must be confirmed directly with DEGOL according to the final product configuration and order requirements.
Q18: How can I obtain a wholesale quotation?
Send DEGOL the model number DH1035, required quantity, destination country, finish and intended door application through WhatsApp or email.
Looking for a double-action spring hinge for your café door, saloon door or commercial swing-door hardware range? Contact DEGOL Hardware for product specifications, technical drawings, available finishes, sample information and wholesale pricing.
Product Model: DH1035
Product Name: DH1035 Durable Self Closing Spring Hinge
Company: Jiangmen Degol Hardware Co., Ltd.
WhatsApp: +86 13725946499
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
Request Your DH1035 Double-Action Spring Hinge Wholesale Quote Today.
Contact DEGOL on WhatsApp – Request DH1035 Wholesale Pricing
