How to install drawer handle?

Views: 1     Author: Site Editor     Publish Time: 2022-01-24      Origin: Site

twitter sharing button
line sharing button
wechat sharing button
facebook sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

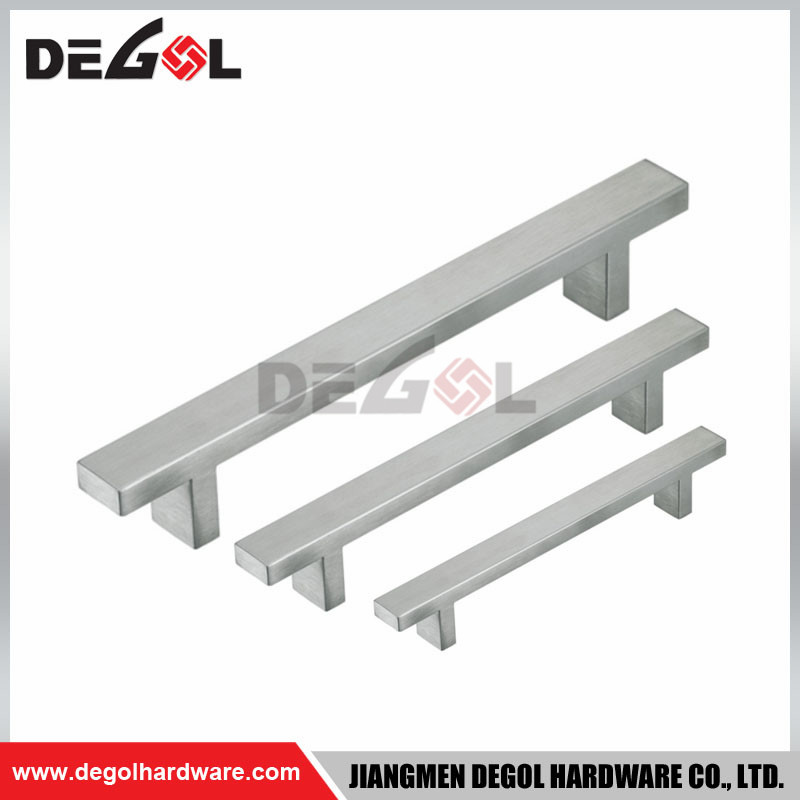

FH111

Put a bit of paper tape on the door panel, and draw two marks according to the hole distance on the handle. Now the normal specification of the handle is the 32mm system, that is, the distance between the two holes is an integer multiple of 32, such as: 64, 96, 128, 160, etc. Etc. The length of the original screw of the handle is 2.2cm! Generally, the standard cabinet door is 1.8cm thick and equipped with 2.2cm screws; if it is a 2.0cm board, it is equipped with 2.5cm screws, and a 2.5cm thick board is equipped with 3.0cm screws. Screws, 3.0cm thick wood with 3.5cm screws. And so on, the screws are 3-5MM thicker than the board! If you don’t know the thickness of the board, you can ask the woodworker, or measure the thickness of the board yourself, so as not to match the wrong screws and delay the construction period!
