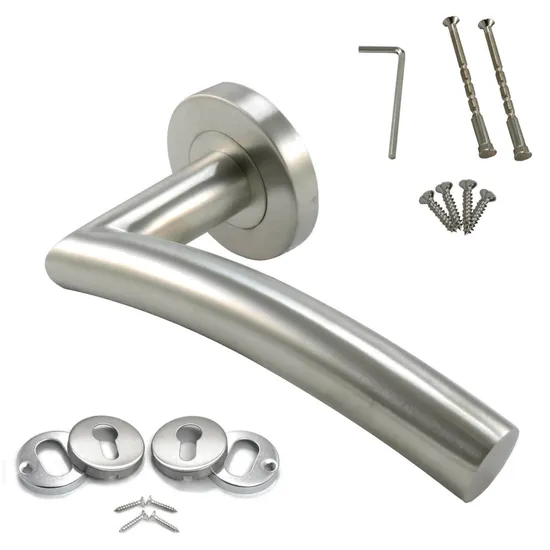

The LH1009 Curved Tubular Arched Lever Handle is a modern stainless steel door handle featuring a smooth curved tubular lever with an arched profile and round rose structure. Its flowing shape combines a contemporary appearance with a comfortable grip, making it suitable for modern interior door applications.
The tubular lever design provides a clean and lightweight visual appearance, while the curved profile offers a pPackaging & Order Informationractical grip for everyday door operation. The LH1009 is suitable for residential buildings, hotels, offices, apartments and commercial interior projects.
DEGOL provides flexible options for material, dimensions, surface finishes, packaging and customization, supporting both standard hardware supply and OEM and ODM projects.
A Curved Tubular Arched Lever Handle is a door lever handle featuring a tubular construction and smoothly curved arched profile. The curved lever creates a softer and more ergonomic appearance compared with straight or angular door handles.
It is commonly used for interior wooden doors, residential projects, hotel rooms, offices and modern commercial buildings.
Smooth curved arched lever design
Tubular handle construction
Modern and contemporary appearance
Comfortable ergonomic grip
Round rose structure
Stainless steel construction
Smooth lever operation
Concealed fixing design
Suitable for residential and commercial projects
Multiple surface finishes available
OEM and ODM customization supported
| Attribute | Details |
|---|---|
| Material | Stainless Steel |
| Material Grade | SS304 / SS201 |
| Handle Design | Curved Tubular Arched Lever |
| Rose Shape | Round Rose |

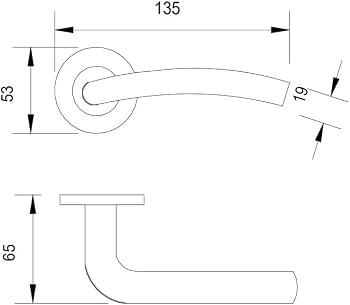

| Handle Length | 135mm |
| Tube Diameter | 19mm |
| Projection | Actual Product Size |
| Spindle Size | 8mm / Customized |
| Fixing Method | Concealed / Bolt Through Fixing |
| Installation | Rose Mounted |
| Door Thickness | Customized |
| Finish | Satin / Brushed / Polished / Matte Black / Customized |
Suitable for projects requiring good corrosion resistance, durability and long-term use.
A cost-effective stainless steel option for general interior door applications.
| Finish | Suitable Applications |
|---|---|
| Satin Stainless Steel | Residential / Commercial |
| Brushed Stainless Steel | Modern Interior Projects |
| Polished Stainless Steel | Premium Interior Projects |
| Matte Black | Modern Residential / Hotel |
| PVD Gold | Premium Architectural Projects |
| Customized Finish | OEM Projects |
Houses
Villas
Apartments
Bedrooms
Interior Rooms
Hotels
Resorts
Guest Rooms
Hospitality Projects
Offices
Restaurants
Shopping Malls
Commercial Buildings
Interior Design Projects
Residential Developments
Commercial Renovation Projects
Modern Architectural Projects
| Door Type | Application |
|---|---|
| Wooden Door | ✓ |
| Interior Door | ✓ |
| Hotel Room Door | ✓ |
| Office Door | ✓ |
| Apartment Door | ✓ |
| Commercial Door | ✓ |
| Glass Door | Depends on configuration |
Step 1: Check the Door
Check the door thickness, lock position and existing installation holes before installation.
Step 2: Install the Lock or Latch
Install the compatible mortise lock or latch into the door and make sure the spindle hole is correctly aligned.
Step 3: Install the Spindle
Insert the square spindle through the lock body and ensure it passes correctly through the door.
Step 4: Install the Rose Base
Position the round rose base on the door and align it with the spindle and fixing holes.
Step 5: Install the Lever Handle
Place the LH1009 curved tubular lever onto the spindle and secure the handle to the rose assembly.
Step 6: Secure the Handle
Tighten the fixing screws and make sure the handle is firmly attached to the door.
Step 7: Install the Rose Cover
Fit the decorative rose cover to conceal the fixing screws and complete the installation.
Step 8: Test the Handle
Operate the handle several times to check the lever movement, spring return and lock operation.
The smooth arched profile creates a softer and more contemporary appearance compared with traditional straight lever handles.
The tubular profile provides a clean and lightweight visual appearance while maintaining a practical grip.
The curved shape provides a comfortable hand position for everyday door operation.
Stainless steel provides durability and reliable performance for regular interior door use.
Suitable for residential, hospitality, office and commercial interior projects.
DEGOL can customize dimensions, finishes, logos and packaging according to project requirements.
Custom Handle Length
Custom Tube Diameter
Custom Rose Design
Custom Surface Finish
Custom Logo
Custom Packaging
OEM Production
ODM Development
| Attribute | Details |
|---|---|
| Packaging | Individual Box / Bulk Packing |
| Logo | Customized |
| Sample | Available |
| MOQ | Customized |
| Production Time | Customized |
| Shipping | Global Export Support |
| OEM | Available |
| ODM | Available |
The LH1009 Curved Tubular Arched Lever Handle is supported by DEGOL's door hardware manufacturing and quality control capabilities.
Material Preparation → Component Production → Surface Treatment → Assembly → Function Testing → Quality Inspection → Packaging
A Curved Tubular Arched Lever Handle is a modern door handle featuring a tubular lever with a smooth curved and arched profile. It combines contemporary design with a comfortable grip.
LH1009 is available in stainless steel, with SS304 and SS201 options depending on project requirements.
It is suitable for interior wooden doors, residential buildings, hotels, offices, apartments and commercial projects.
Available finishes can include satin, brushed, polished, matte black, PVD and customized finishes.
Yes. DEGOL can customize handle length, tube diameter, rose design and other specifications according to project requirements.
Yes. DEGOL provides OEM and ODM services including dimensions, surface finishes, logos and packaging.
Yes. Samples can be provided for evaluation before bulk production.
MOQ depends on the product configuration, customization requirements and order quantity.
