PDH1006
Degol
| Quantity: | |
|---|---|
The PDH1006 Rotating Pivot Hinge is a concealed corner-mount door pivot hardware solution designed for compatible wooden door systems, interior architectural doors and renovation projects.
Featuring a top-and-bottom pivot mounting concept, the PDH1006 is intended to support door rotation around a vertical pivot axis while minimizing the visibility of conventional side-mounted hinge hardware.
Unlike traditional butt hinges, pivot hinge systems transfer door movement through pivot assemblies positioned near the top and bottom of the door. This arrangement can provide a clean architectural appearance and a distinctive rotational opening mechanism.
The PDH1006 product description identifies a heavy-duty bearing design. Its actual load capacity, bearing specification and operating performance should be confirmed through the manufacturer's technical documentation.
The supplied reference drawing shows a top pivot plate measuring 130 × 24 mm and a bottom pivot plate measuring 105 × 24 mm, with a nominal plate thickness of 4 mm.
This product can be considered for residential interior doors, wooden door renovation, custom architectural doors and concealed pivot door systems where the installation dimensions and load requirements are compatible.
For international architectural hardware distributors, project contractors, door manufacturers and wholesale buyers, Jiangmen Degol Hardware Co., Ltd. welcomes enquiries concerning samples, product specifications, finishes and bulk pricing.
The PDH1006 is a rotating concealed door pivot hinge intended to provide a pivoting connection between a compatible door leaf and its supporting structure.
A pivot hinge typically uses a vertical pivot axis rather than conventional side-mounted hinge leaves. In a top-and-bottom pivot configuration, the pivot hardware is installed at selected positions near the upper and lower sections of the door assembly.
Rotating door pivot mechanism
Concealed corner mounting concept
Top and bottom pivot assembly arrangement
Bearing-related product design
Screw-fixed mounting plates
Compact plate construction
Suitable for compatible wooden door renovation projects
Minimal visible side-hinge hardware
The exact mechanism and mounting orientation must be confirmed through the manufacturer's final product specifications.
Important: A pivot hinge is not automatically equivalent to a floor spring, hydraulic door closer or automatic self-closing hinge. No closing-control function should be assumed unless separately specified.
| Specification Item | Details |
|---|---|
| Model Number | PDH1006 |
| Product Name | Rotating Pivot Hinge |
| Product Category | Concealed Door Pivot Hardware |
| Pivot Design | Top and Bottom Pivot Arrangement |
| Mounting Type | Corner / Concealed Mount |
| Bearing Feature | Identified in Product Name; specification to be confirmed |
| Top Pivot Plate Length | 130 mm – Reference |
| Bottom Pivot Plate Length | 105 mm – Reference |
| Pivot Plate Width | 24 mm – Reference |
| Pivot Plate Thickness | 4 mm – Reference |
| Top Socket Outer Diameter | 18 mm – Reference |
| Bottom Pivot Diameter | 16 mm – Reference |
| Top Socket Height | 21.5 mm – Reference |
| Bottom Pivot Height | 21.5 mm – Reference |
| Mounting Hole Design | Countersunk, as illustrated |
| Mounting Hole Diameter | Model-dependent |
| Main Material | To Be Confirmed |
| Surface Appearance | Satin Stainless Steel |
| Suitable Applications | Interior Wooden Doors and Renovation Projects |
| Installation Method | Screw Fixing / Pivot Mounting |
| OEM / ODM | Subject to Project Requirements |
| Sample Availability | Contact DEGOL |
| MOQ | To Be Confirmed |
| Dimension Unit | mm |
Specification Notice: The measurements in the supplied illustration are reference market-benchmark dimensions. They should not be treated as verified PDH1006 production dimensions without confirmation from DEGOL.

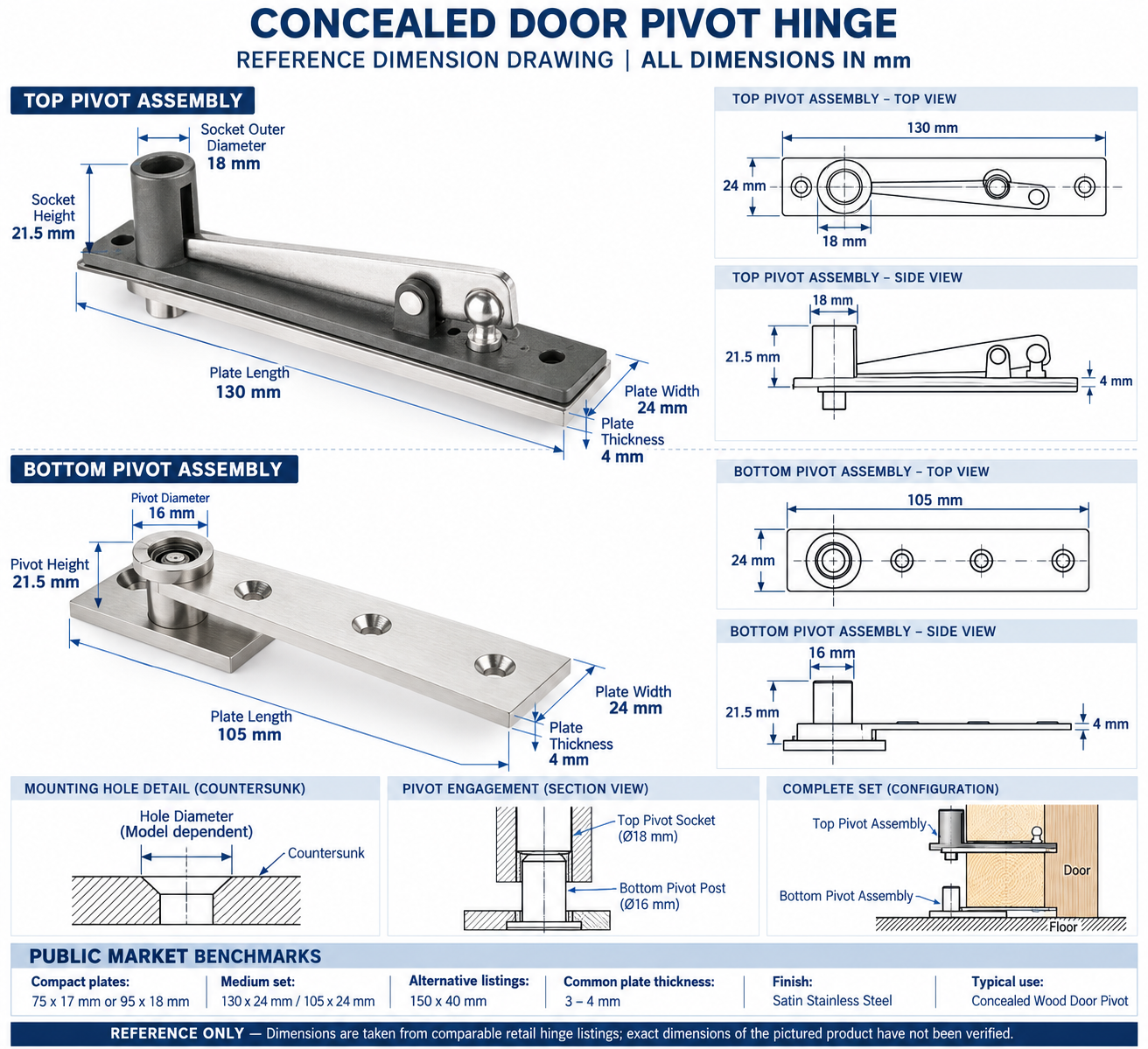

The reference drawing illustrates a concealed door pivot system with separate top and bottom pivot assemblies.
| Dimension Item | Reference Measurement |
|---|---|
| Top Pivot Plate Length | 130 mm |
| Top Pivot Plate Width | 24 mm |
| Top Pivot Plate Thickness | 4 mm |
| Top Pivot Socket Outer Diameter | 18 mm |
| Top Pivot Socket Height | 21.5 mm |
| Bottom Pivot Plate Length | 105 mm |
| Bottom Pivot Plate Width | 24 mm |
| Bottom Pivot Plate Thickness | 4 mm |
| Bottom Pivot Diameter | 16 mm |
| Bottom Pivot Height | 21.5 mm |
| Mounting Hole Diameter | Model-dependent |
| Pivot Engagement | See Approved Installation Drawing |
The top pivot assembly is illustrated with a rectangular mounting plate and an integrated cylindrical pivot socket.
Plate Length – 130 mm
The reference length of the top pivot mounting plate.
Plate Width – 24 mm
The nominal transverse width of the top mounting plate.
Plate Thickness – 4 mm
The reference thickness of the metallic plate structure.
Socket Outer Diameter – 18 mm
The specified outside diameter of the upper pivot socket.
Socket Height – 21.5 mm
The vertical socket height shown in the technical illustration.
The actual fixing-hole positions, socket engagement depth and mounting configuration should be confirmed before installation.
The bottom pivot assembly includes a mounting plate and an illustrated cylindrical pivot component.
Plate Length – 105 mm
The reference length of the lower pivot mounting plate.
Plate Width – 24 mm
The nominal width of the lower plate.
Plate Thickness – 4 mm
The plate thickness indicated in the drawing.
Pivot Diameter – 16 mm
The nominal diameter of the lower pivot component.
Pivot Height – 21.5 mm
The vertical pivot height shown in the reference drawing.
The technical illustration shows a top pivot socket with an 18 mm outer diameter and a bottom pivot component with a 16 mm diameter.
These values refer to different external features and should not be interpreted as a direct 18 mm internal socket / 16 mm shaft mating specification.
The actual engagement dimensions, running clearance and bearing arrangement must be verified using the official engineering drawing.
All dimensions are stated in millimeters.
The drawing is provided for reference only.
Exact production dimensions have not been verified.
Mounting-hole diameters may vary by model.
Fixing-hole positions and tolerances require confirmation.
Bearing specifications and load ratings are not supplied.
The door pivot offset and opening angle must be confirmed.
The top and bottom assemblies shown must be verified as the actual components supplied with model PDH1006.
The PDH1006 reference drawing presents a metallic hinge system with a satin stainless steel appearance.
The exact product material, stainless steel grade and bearing construction have not been specified.
| Component / Feature | Description |
|---|---|
| Top Pivot Mounting Plate | Base material to be confirmed |
| Bottom Pivot Mounting Plate | Base material to be confirmed |
| Pivot Socket | Material to be confirmed |
| Pivot Post | Material to be confirmed |
| Bearing Mechanism | Type and material to be confirmed |
| Surface Appearance | Satin Stainless Steel |
| Surface Treatment | To be confirmed |
| Countersunk Fixing Holes | Shown in reference drawing |
| Corrosion Resistance | Test data to be confirmed |
| Custom Finish | Subject to manufacturing feasibility |
A satin stainless steel appearance provides a clean metallic look commonly associated with modern architectural hardware.
The product can be evaluated for projects requiring coordinated door hardware finishes.
Buyers may enquire about alternative finishes, including polished metallic appearances or dark decorative coatings, subject to product construction and manufacturing availability.
For high-humidity, coastal or exterior applications, corrosion-resistance requirements should be confirmed using material and product test documentation.
The PDH1006 Rotating Pivot Hinge is intended for compatible door installations where a concealed pivot mechanism and minimal visible hardware are desired.
Potentially suitable for interior wooden door systems after confirming the weight, dimensions and pivot installation requirements.
Can be evaluated for replacement or renovation projects involving compatible pivot-style door mounting systems.
The concealed installation concept may complement minimalist contemporary door designs.
Suitable for consideration in custom door projects where the door structure is designed around a pivot axis.
Can be evaluated for compatible office door assemblies subject to usage and load requirements.
May be considered for selected hotel or serviced accommodation applications where project specifications permit.
Relevant to door manufacturers developing pivot-door configurations with approved top and bottom mounting details.
The PDH1006 may be incorporated into product evaluation and sourcing programs for architectural hardware distributors and importers.
| Door Type | Application Considerations |
|---|---|
| Solid Wooden Doors | Verify door weight and structural fixing points |
| Engineered Wood Doors | Confirm internal reinforcement and mounting strength |
| Interior Pivot Doors | Check pivot position and engagement requirements |
| Residential Doors | Verify dimensions and available clearances |
| Flush Architectural Doors | Confirm concealed mounting geometry |
| Custom Wooden Doors | Check the approved mounting design |
| Renovation Doors | Verify existing door and frame compatibility |
| Commercial Interior Doors | Confirm durability and load requirements |
Before selecting the PDH1006, verify:
Door weight and dimensions
Door thickness and construction
Pivot axis position
Top mounting structure
Bottom mounting structure
Required opening angle
Clearance during rotation
Bearing load rating
Fixing screw requirements
Applicable project safety standards
The supplied drawing does not establish a maximum door height, width or weight.
The following steps describe a general concealed top-and-bottom pivot installation concept.
Installation must follow the final PDH1006 manufacturer's instructions and approved project drawings.
Step 1: Verify Product Components
Confirm the actual parts included in the PDH1006 set, their orientation and the intended fixing positions.
Step 2: Check Door Specifications
Measure the door height, width, thickness and weight.
Ensure the selected pivot configuration has a verified suitable load rating.
Step 3: Determine the Pivot Axis
Identify the required pivot position according to the door design.
Check the necessary clearances between the door leaf, frame, floor and surrounding surfaces.
Step 4: Prepare the Top Mounting Location
Mark the upper pivot mounting position using the approved installation drawing.
Prepare any necessary fixing holes or recesses for the correct component.
Step 5: Prepare the Bottom Mounting Location
Mark the lower pivot position so that the pivot axis is correctly aligned with the upper assembly.
Confirm that the supporting structure is strong enough for the intended loads.
Step 6: Install the Pivot Mounting Plates
Fix the supplied mounting components using approved fasteners.
Avoid using unsupported screw types or drilling positions.
Step 7: Assemble and Position the Door
Engage the pivot components according to the manufacturer's prescribed installation sequence.
Support the door safely throughout the process.
Step 8: Check Alignment
Confirm vertical alignment, door gaps, pivot engagement and rotation clearance.
Step 9: Test Door Movement
Open and close the door carefully to verify that it rotates smoothly without binding.
Step 10: Complete the Final Inspection
Check all fixings and ensure the installed door remains stable throughout its intended range of movement.
Installation Safety Note
Pivot door hardware can carry significant concentrated forces. Installation should be performed by a qualified installer, particularly for large or heavy doors.
Do not use the PDH1006 on fire-rated or regulated door systems without appropriate testing and approval.
The top-and-bottom pivot configuration can reduce the visibility of conventional side-mounted door hinges.
The hinge is designed for rotational door movement around a defined pivot axis.
The product description identifies a bearing feature intended for smooth rotational operation. Actual bearing performance requires confirmation.
The reference drawing shows relatively narrow mounting plates suitable for evaluation in space-conscious door designs.
The hidden-mount design can contribute to a clean and minimalist appearance in compatible interior doors.
A top-and-bottom pivot system provides an alternative door-mounting configuration to traditional side-mounted butt hinges.
The product may be considered for compatible renovation projects involving pivot-style door installation.
The illustration provides useful reference dimensions for preliminary comparison and product selection.
The PDH1006 is relevant to buyers sourcing concealed pivot hardware for door manufacturing and architectural hardware product ranges.
DEGOL welcomes discussions involving finishing requirements, samples, technical specifications and wholesale procurement.
Jiangmen Degol Hardware Co., Ltd. welcomes OEM and ODM enquiries for the PDH1006 pivot hinge and related architectural door hardware products.
International buyers can provide their application requirements for technical and commercial review.
Material Specifications
Buyers may request confirmation of the standard material or enquire about project-specific material requirements.
Surface Finish Options
Alternative decorative finishes may be discussed subject to production feasibility.
Product Dimensions
Custom plate dimensions, hole positions and pivot configurations can be reviewed where manufacturing conditions permit.
Branding Requirements
Buyers may enquire about product branding, private labels and identification markings.
Packaging Design
Customized boxes, export cartons, labels and packing methods can be discussed.
Technical Drawings
Customer drawings and specific installation requirements may be submitted for evaluation.
Sample Evaluation
Customers can request sample availability and technical confirmation before bulk procurement.
Project Procurement
Buyers may submit quantities, door specifications and target delivery requirements for a formal quotation.
All OEM / ODM requests are subject to technical feasibility, applicable MOQ, tooling requirements and agreed production schedules.
| Order Item | Details |
|---|---|
| Product Model | PDH1006 |
| Product Description | Rotating Concealed Door Pivot Hinge |
| Brand | DEGOL |
| Product Category | Door Pivot Hardware |
| Sales Type | Wholesale / Project Enquiry |
| Set Configuration | Confirm Included Components |
| Sample Availability | Contact DEGOL |
| MOQ | To Be Confirmed |
| Wholesale Price | Based on specifications and quantity |
| Standard Packaging | To Be Confirmed |
| Customized Packaging | Subject to order agreement |
| Private Label | Enquiries Welcome |
| Material Options | To Be Confirmed |
| Available Finishes | To Be Confirmed |
| Production Lead Time | To Be Confirmed |
| Shipping Method | Subject to order requirements |
| Payment Terms | Confirmed during quotation |
| Technical Documentation | Request from DEGOL |
Send DEGOL an enquiry for PDH1006.
Provide the required order quantity.
Confirm the intended door type, weight and dimensions.
Request the manufacturer's official dimensions and load-rating information.
Confirm the supplied pivot components, material and finish.
Request sample and packaging information.
Confirm MOQ, unit price, lead time and shipping terms.
Approve the final specifications before production.
Jiangmen Degol Hardware Co., Ltd. serves the architectural hardware market and welcomes product and wholesale enquiries from international importers, hardware distributors, door manufacturers and project buyers.
For model PDH1006, DEGOL can be contacted regarding technical requirements, sample requests, finish options, packaging and bulk procurement.
Technical Product Information
Buyers may request official dimensions, material specifications and recommended product applications.
Product Sample Enquiries
Sample availability and evaluation requirements can be discussed prior to ordering.
Drawing and Installation Review
DEGOL can be contacted for available technical documentation and installation-related information.
Wholesale Quotations
Product pricing can be requested according to quantity, specifications and destination requirements.
OEM / ODM Enquiries
Customization requests involving product details, finish, branding and packaging may be evaluated.
Export Order Coordination
Commercial terms, order preparation, packing requirements and shipment arrangements can be discussed with DEGOL.
Quality Requirements
Buyers may specify inspection requirements and request available quality documentation during product evaluation.
Actual production capacity, quality certifications, testing capabilities and verified lead times should be confirmed directly with the company.
Company: Jiangmen Degol Hardware Co., Ltd.
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
WhatsApp: +86 13725946499
Q1: What is the PDH1006 rotating pivot hinge?
The PDH1006 is a concealed corner-mount pivot hinge product intended for compatible door systems using a rotating pivot mechanism.
Q2: What is the difference between a pivot hinge and a traditional butt hinge?
A pivot hinge allows a door to rotate around a pivot axis, commonly supported by top and bottom assemblies. A traditional butt hinge typically mounts along the side edge of the door.
Q3: Is the PDH1006 a concealed hinge?
The product is described as a hidden-mount pivot hinge. The degree of concealment depends on the actual door and frame installation.
Q4: What are the reference dimensions of the PDH1006?
The supplied illustration shows a 130 × 24 mm upper mounting plate, a 105 × 24 mm lower mounting plate and a 4 mm reference plate thickness.
Q5: What is the top pivot socket diameter?
The reference drawing specifies an 18 mm outside diameter for the top pivot socket.
Q6: What is the bottom pivot diameter?
The lower pivot component is identified with a reference diameter of 16 mm.
Q7: Does the PDH1006 include a bearing?
The product name identifies a bearing feature. The actual bearing type and mechanical specification should be confirmed with DEGOL.
Q8: Is this pivot hinge suitable for heavy wooden doors?
The product is described as heavy duty, but no verified load capacity is provided. Buyers must confirm the rated capacity before selecting it for a heavy door.
Q9: Can the PDH1006 be used for residential renovation?
It can be considered for compatible renovation projects after confirming the door structure and mounting requirements.
Q10: What is the opening angle of the PDH1006?
The maximum opening angle is not specified in the supplied reference drawing and should be confirmed with DEGOL.
Q11: Is the PDH1006 a self-closing hinge?
No self-closing function is established by the supplied information. It should not be advertised as self-closing unless verified.
Q12: Can the hinge be installed on wooden doors?
Yes, it can be evaluated for compatible wooden door systems, provided the fixing structure and load requirements are confirmed.
Q13: Is the mounting plate made of stainless steel?
The reference image shows a satin stainless steel appearance, but the actual base material and grade require confirmation.
Q14: Does the product include both top and bottom pivot assemblies?
The supplied reference illustration shows both assemblies. The actual PDH1006 sales set configuration must be confirmed.
Q15: Can DEGOL provide OEM / ODM customization?
DEGOL welcomes OEM / ODM enquiries regarding technical specifications, finishes, branding and packaging. Availability depends on feasibility and order requirements.
Q16: Can I order a sample before bulk purchasing?
Contact DEGOL to confirm sample availability, cost and delivery arrangements.
Q17: What is the MOQ for PDH1006?
The MOQ should be confirmed directly with DEGOL according to the required configuration and order specifications.
Q18: How can I request wholesale pricing?
Send the model number PDH1006, required quantity, destination market and technical requirements to DEGOL through WhatsApp or email.
Looking for a concealed rotating pivot hinge with a bearing design for your architectural door hardware range? Contact DEGOL Hardware for product specifications, technical drawings, available finishes, sample information and wholesale pricing.
Product Model: PDH1006
Product Name: PDH1006 Rotating Pivot Hinge Corner Hidden Mount Heavy Duty Bearing for Renovation Door
Company: Jiangmen Degol Hardware Co., Ltd.
WhatsApp: +86 13725946499
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
Request Your PDH1006 Rotating Concealed Pivot Hinge Wholesale Quote Today.
Contact DEGOL on WhatsApp – Request PDH1006 Wholesale Pricing
