What is the difference between the exposed handle and the concealed handle?The difference in the installation position of the handle

The finger pulls are wooden strips or metal objects installed on doors, windows or drawers that are easy to switch by hand. Our common handles are mainly divided into exposed handles and concealed handles. What are the differences between the two? Today,Degol will answer them one by one for you.

The handle can be divided into an exposed handle and a concealed handle according to the installation method. The main difference is that one is clearly visible from the outside and protrudes out of the furniture, and the other is hidden in the home, which is divided into side handles. , Embedded handle, so we can clearly see it directly through the way of furniture installation.

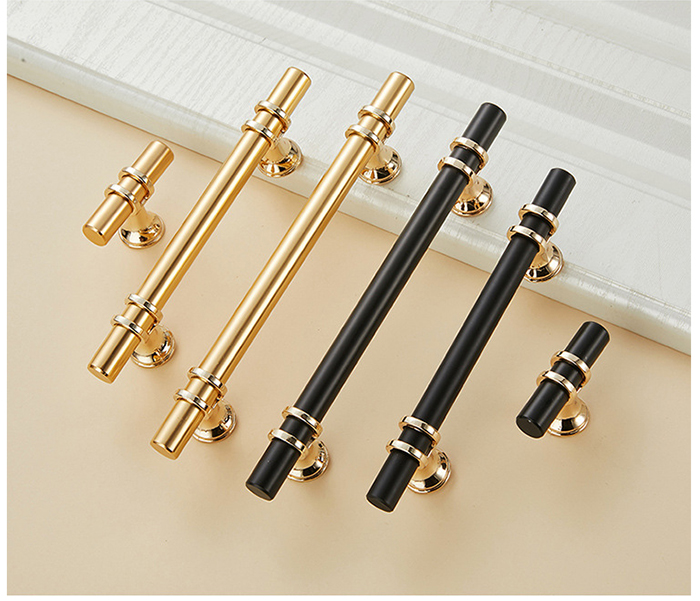

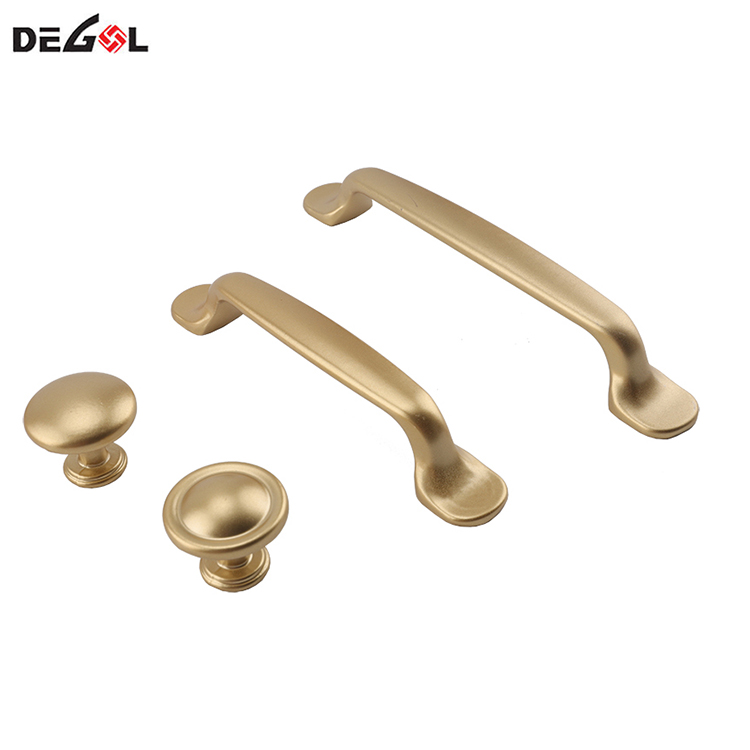

Surface mounted Handle installation location:

Handles are generally divided into horizontal and vertical installations, regardless of whether they are horizontal or vertical, they must be unified.

The shape and orientation of the handle should be unified.

Drawer panels, up-turn doors, and down-turn door handles shall be installed horizontally.

The upper cabinet door panel handle is installed below the door panel, and the lower cabinet Door Panel handle is installed above the door panel.

The installation position of the handle of the tall (long) cabinet door panel is determined by negotiation based on the height of the owner, and must not be decided blindly.

The handles of drawer panels, down-turn doors, up-turn doors, and door panels with door accessories are generally installed in the width center of the door panels, and the Handles of the door panels are generally installed on the side away from the installation hinges.

There are two installation heights for the handle of the drawer panel, which are installed at the center of the panel height or at the same height from the upper edge of the panel.

When installing the handle, the distance between the side hole of the handle and the edge of the board is generally 45mm.

When installing a handle on a door panel with a shape on the surface (such as a solid wood door panel), you must confirm it with the owner, because the handle selected by the designer may not be suitable for installation sometimes, and the installed effect is very unsightly.

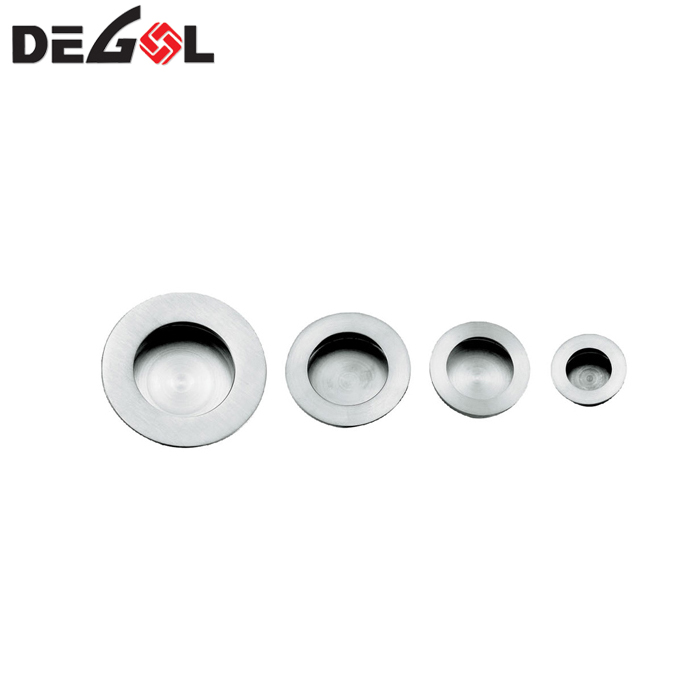

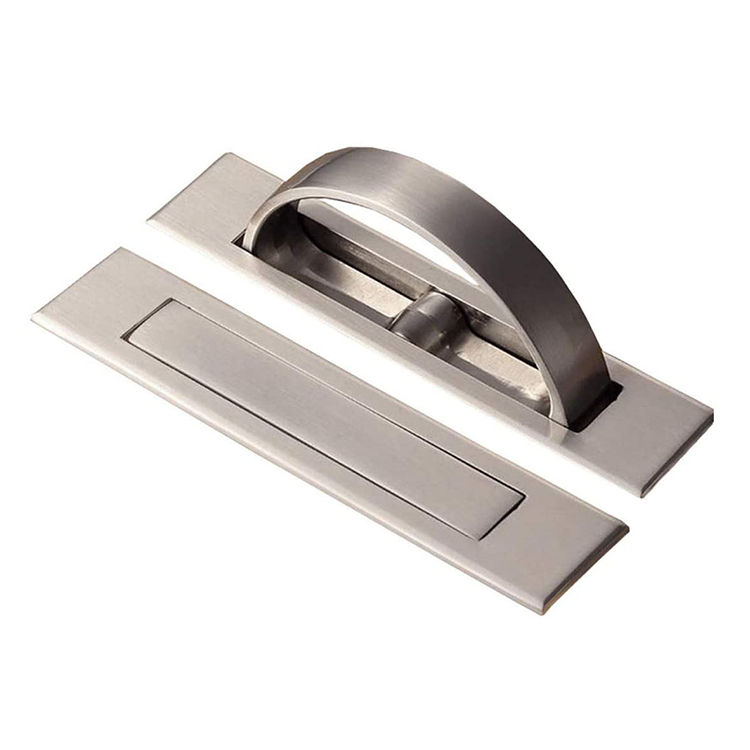

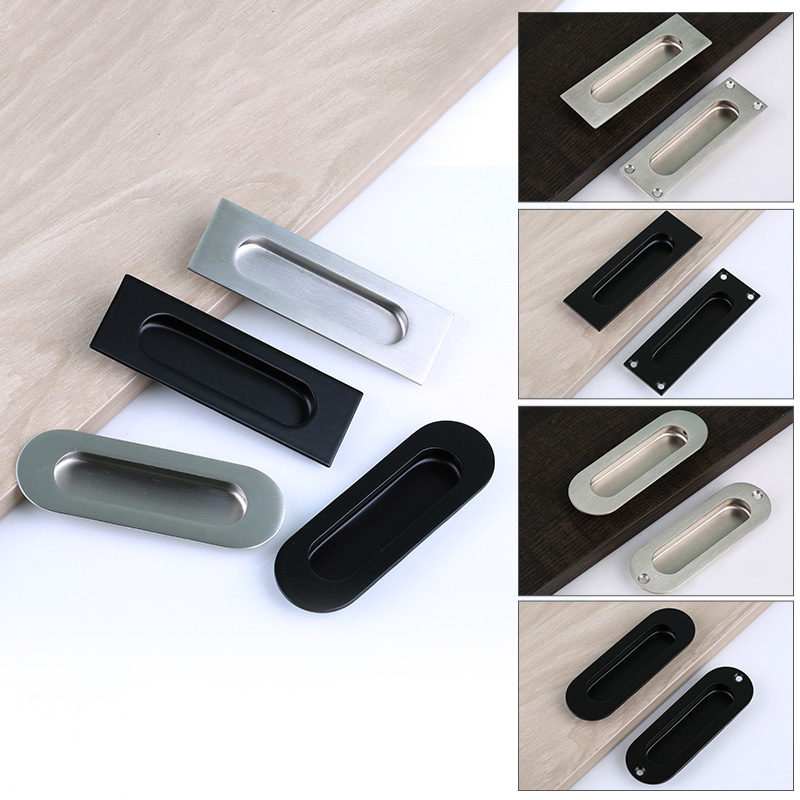

Concealed handle installation location:

Lock the screw through the hole on the front of the concealed handle.

Lock the screw from the back, and screw the screw into the nut of the concealed handle on the front of the door panel.

For the embedded Concealed Handle, it is necessary to draw a line around the embedded concealed handle with a pencil first, and then use a trimmer to shave the groove.

It can be seen that the handle can be divided into an exposed handle and a concealed handle according to the installation method. The main difference is that one is clearly visible from the outside and protrudes out of the furniture, and the other is hidden in the home. Side handle, embedded handle. People can choose appropriately according to their actual needs.
