Hidden doors, also known as invisible flush doors, have become a mainstream design element in modern minimalist residences, high-end villas, boutique hotels and commercial offices. Different from ordinary interior doors with exposed hinges and hardware, hidden doors pursue a seamless wall integration effect, with no protruding accessories or broken lines on the door surface. The perfect operation and flat aesthetic of invisible doors completely depend on professional hidden door hardware. Improper hardware matching will cause door sagging, uneven gaps, unable to close tightly and exposed mechanical structures, ruining the overall decorative effect.
With 12 years of professional door hardware manufacturing experience, Degol Hardware ranks among China’s top 50 architectural hardware manufacturers. All our hidden door accessories pass strict load-bearing, durability and salt spray anti-rust tests and have CE certification, meeting high-standard engineering and home decoration requirements. To help users accurately match invisible door accessories and solve common installation and selection problems, we systematically introduce three core hidden door hardware: concealed hinge, pivot hinge (top and bottom pivot), and concealed door closer, analyzing their features, advantages and applicable scenarios.
Complete invisible door hardware mainly includes three supporting parts: concealed hinge for door rotation, top and bottom pivot hinge (pivot hinge) for heavy door load-bearing, and concealed door closer for automatic buffering closing. Each hardware has independent functional positioning and installation logic, which needs to be selected according to door weight, door size and design style.

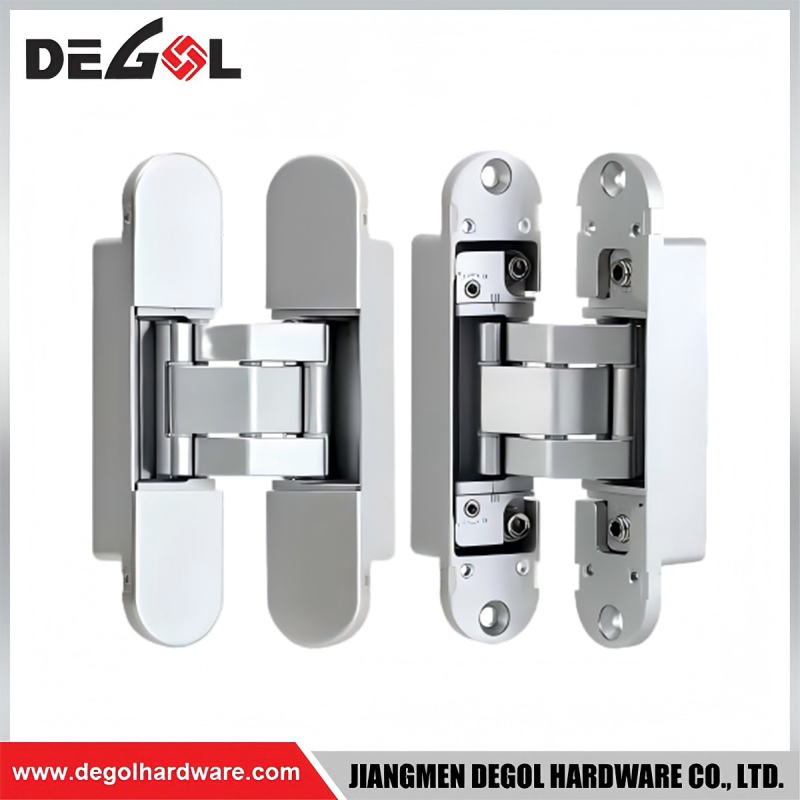

Concealed hinge is the most basic and widely used invisible door connecting hardware. It is fully embedded inside the door edge and door frame, completely hidden when the door is closed, and only slightly exposed when the door is opened, realizing a true seamless flat wall effect. Most high-quality concealed hinges adopt 3D adjustable structural design, which can fine-tune the door panel up, down, left and right, effectively correcting installation errors and door sagging problems.
Made of high-strength zinc alloy or stainless steel, standardized concealed hinges feature strong wear resistance, silent rotation and long service life. The opening angle is usually 110°–180°, meeting daily door opening and closing needs. Unlike traditional exposed butt hinges, it has no protruding hinge leaves, perfectly retaining the integrity of the wall and door panel.
Core Advantages: Fully invisible, multi-dimensional adjustable, easy to install and debug, silent operation, diverse color finishes (matte black, brushed silver, gold) to match various decoration styles.
Applicable Scenarios: Light and medium-weight invisible wooden doors, interior partition hidden doors, TV background wall hidden doors, bedroom invisible doors, hotel room flush doors.

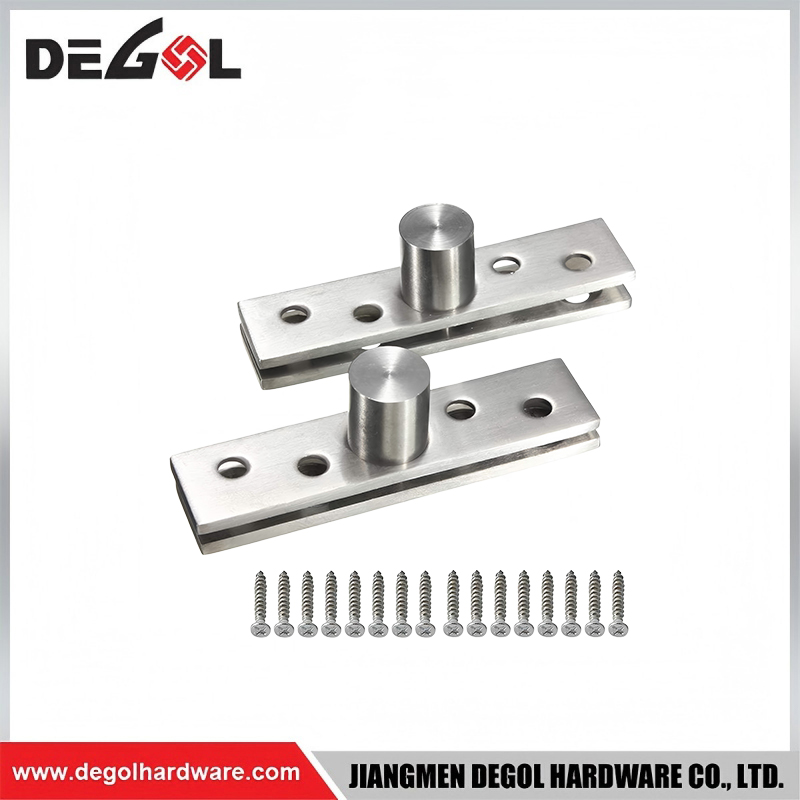

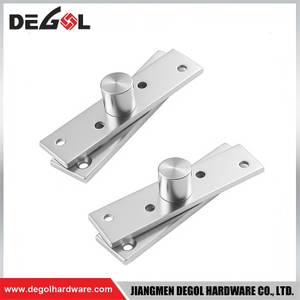

Pivot hinge, commonly known as heaven and earth shaft, is a heavy-duty hidden door hardware designed for large and heavy invisible doors. Different from side-mounted concealed hinges, the pivot structure is installed on the top and bottom of the door panel, with no side hinge accessories at all. The door body rotates around the central vertical axis, supporting 360° free rotation in some upgraded models.
The top and bottom pivot hinges bear the entire weight of the door panel, solving the problem of insufficient load-bearing capacity of ordinary concealed hinges for oversized thick doors. The precision shaft body runs smoothly without jamming or shaking, and the thickened metal structure effectively prevents long-term door sagging and deformation. It is the preferred hardware for high-weight customized invisible doors.
Core Advantages: Super load-bearing capacity, zero side exposure, support for ultra-thick and ultra-wide door panels, stable rotation, no door sagging, high-end architectural texture.
Applicable Scenarios: High-end villa oversized invisible doors, large wall hidden doors, heavy solid wood invisible doors, luxury club and exhibition hall decorative hidden doors.

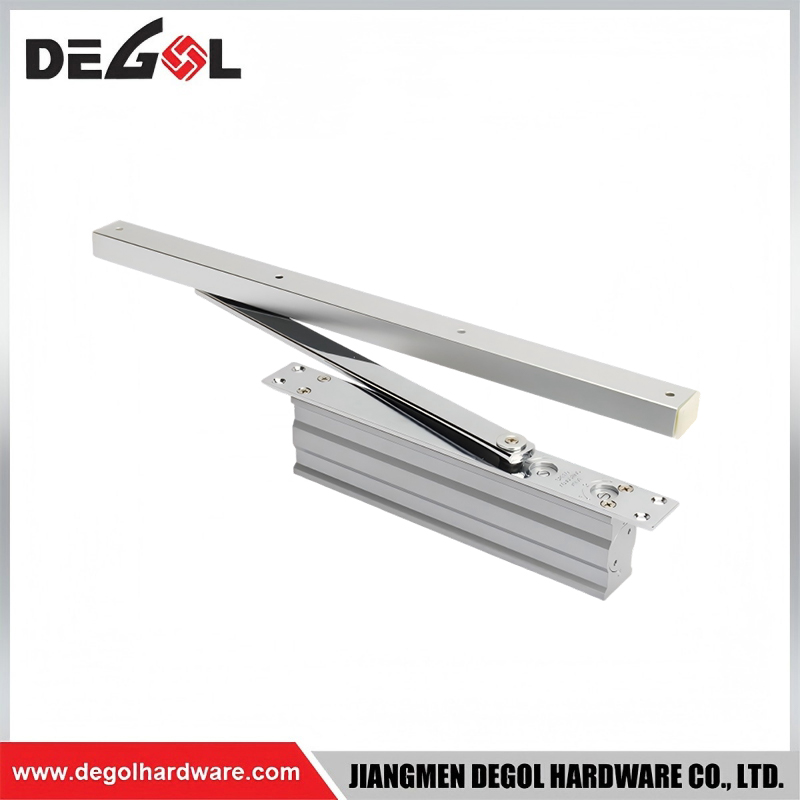

Concealed door closer is a functional hidden accessory supporting automatic door closing and buffer silencing. Traditional exposed door closers will destroy the flatness of invisible doors, while embedded concealed door closers are completely installed inside the door frame or door body, with no exposed arms or shells on the surface, perfectly compatible with invisible door design.
Adopting built-in hydraulic buffer technology, the hidden door closer can automatically slow down in the final closing stage, realizing silent and soft door closing. It effectively avoids door slamming noise, collision damage and pinching accidents. The closing speed and closing force can be fine-tuned according to door weight and usage habits, adapting to different door body specifications.
Core Advantages: Fully hidden installation, silent buffer closing, adjustable speed and force, anti-collision and anti-pinch, no damage to door appearance.
Applicable Scenarios: All kinds of invisible doors needing automatic closing, residential hidden doors, office invisible passage doors, hotel silent flush doors, private space hidden doors.
Hardware Type | Installation Position | Load-Bearing Capacity | Best Application |
|---|---|---|---|
Concealed Hinge | Door side embedded mounting | Light-Medium | Ordinary household invisible doors |
Pivot Hinge (Heaven and Earth Shaft) | Top & bottom door mounting | Medium-Heavy | Large heavy customized invisible doors |
Concealed Door Closer | Internal door frame embedded | Match all door weights | All invisible doors needing auto closing |
1. Match Hardware by Door Weight: For conventional lightweight invisible doors below 40kg, choose adjustable concealed hinges for cost-effective collocation; for thick solid wood or oversized doors above 40kg, must use top and bottom pivot hinges to avoid door deformation and sagging.
2. Standard Embedded Installation: All hidden hardware needs standardized grooving and embedded installation. Ensure the installation groove fits tightly with the hardware to avoid gaps and shaking, which is the key to stable long-term operation.
3. Reasonable Matching of Closing Function: Invisible doors in frequently used passages are recommended to be equipped with concealed door closers to realize automatic closing, ensuring space privacy and avoiding open door gaps affecting wall integrity.
4. Post-Installation Fine Adjustment: After hardware installation, adjust the hinge gap and door closing speed repeatedly to ensure the door is flat with the wall, closes tightly, rotates smoothly without noise or jamming.
Q1: What is the difference between a concealed hinge and a pivot hinge?
Concealed hinges are side-embedded, suitable for ordinary lightweight invisible doors with convenient adjustment and low cost. Pivot hinges (heaven and earth shaft) are top and bottom mounted, with super load-bearing capacity, specially used for heavy and large customized invisible doors, achieving a more high-end seamless effect.
Q2: Can I install a concealed door closer on any invisible door?
Yes. The embedded design of concealed door closers does not affect the flatness of invisible doors. It is compatible with both concealed hinge and pivot hinge door systems, suitable for most wooden invisible doors used in families, offices and hotels.
Q3: Why does my invisible door sag after long-term use?
The main reasons are insufficient hardware load-bearing capacity and unadjusted hinge gaps. Heavy doors using ordinary concealed hinges are prone to deformation. It is recommended to replace with pivot hinges or readjust the 3D hinge balance regularly.
Q4: Do hidden door hardware need daily maintenance?
Yes. Keep the embedded installation gap clean and dust-free, and regularly lubricate the hinge and closer shaft with silicone lubricant. Avoid oil dirt accumulation, which can effectively extend hardware service life and keep the door opening and closing smooth.
Q5: Are hidden door hardware suitable for outdoor doors?
Hidden door hardware is mainly designed for interior invisible doors. Outdoor doors are affected by wind, rain and temperature changes, which easily cause hardware corrosion and hydraulic failure. It is not recommended for outdoor scenarios.
Concealed hinges, pivot hinges (heaven and earth shaft) and concealed door closers constitute the three core hardware systems of modern hidden doors. Concealed hinges are the basic rotating accessories for conventional invisible doors; pivot hinges solve the load-bearing pain points of heavy oversized hidden doors; concealed door closers realize silent and automatic closing functions. Scientific hardware matching and standardized installation can perfectly present the seamless wall integration effect of hidden doors. With CE-certified quality, 12 years of manufacturing experience and mature overseas engineering supporting capabilities, Degol Hardware provides complete sets of high-quality hidden door hardware solutions for global high-end interior decoration and commercial architectural projects.
