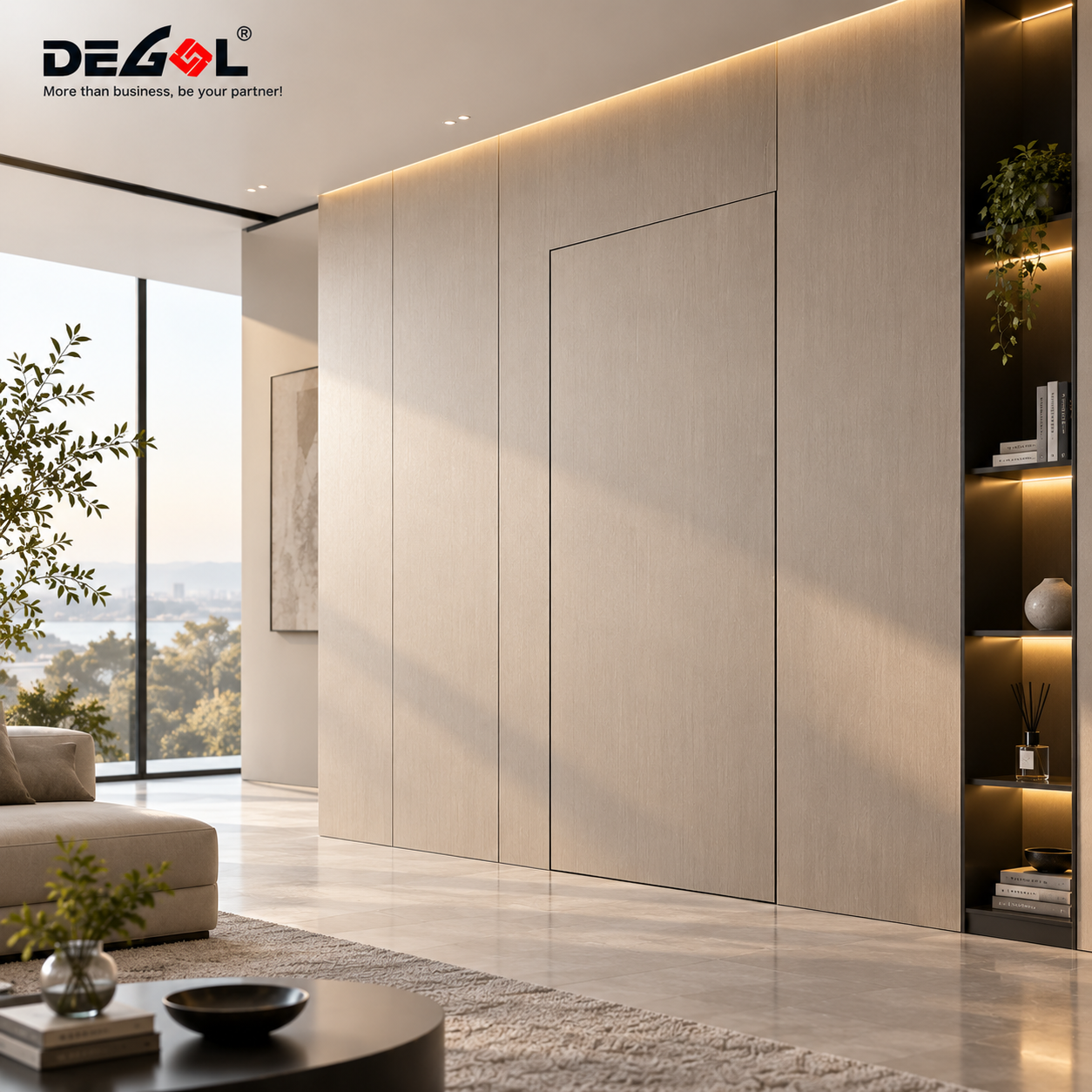

Hidden doors are becoming increasingly popular in modern homes, hotels, offices, and commercial interiors. Unlike traditional doors, hidden doors are designed to blend into walls, cabinets, bookcases, or decorative panels, creating a clean and seamless appearance.
But how does a door work when you cannot see the hinges or other hardware?
The answer is hidden door hardware.
Hidden door hardware is designed to control the movement, support, alignment, and closing of a door while keeping the main hardware concealed from normal view. Depending on the door design, the system may use concealed hinges, pivot hardware, sliding door hardware, or a combination of different components.
In this guide, we will explain how hidden door hardware works, what types of hardware are commonly used, and how to choose the right solution for different hidden door applications.
Hidden door hardware refers to hardware components designed to install and operate doors while keeping the hardware visually concealed.

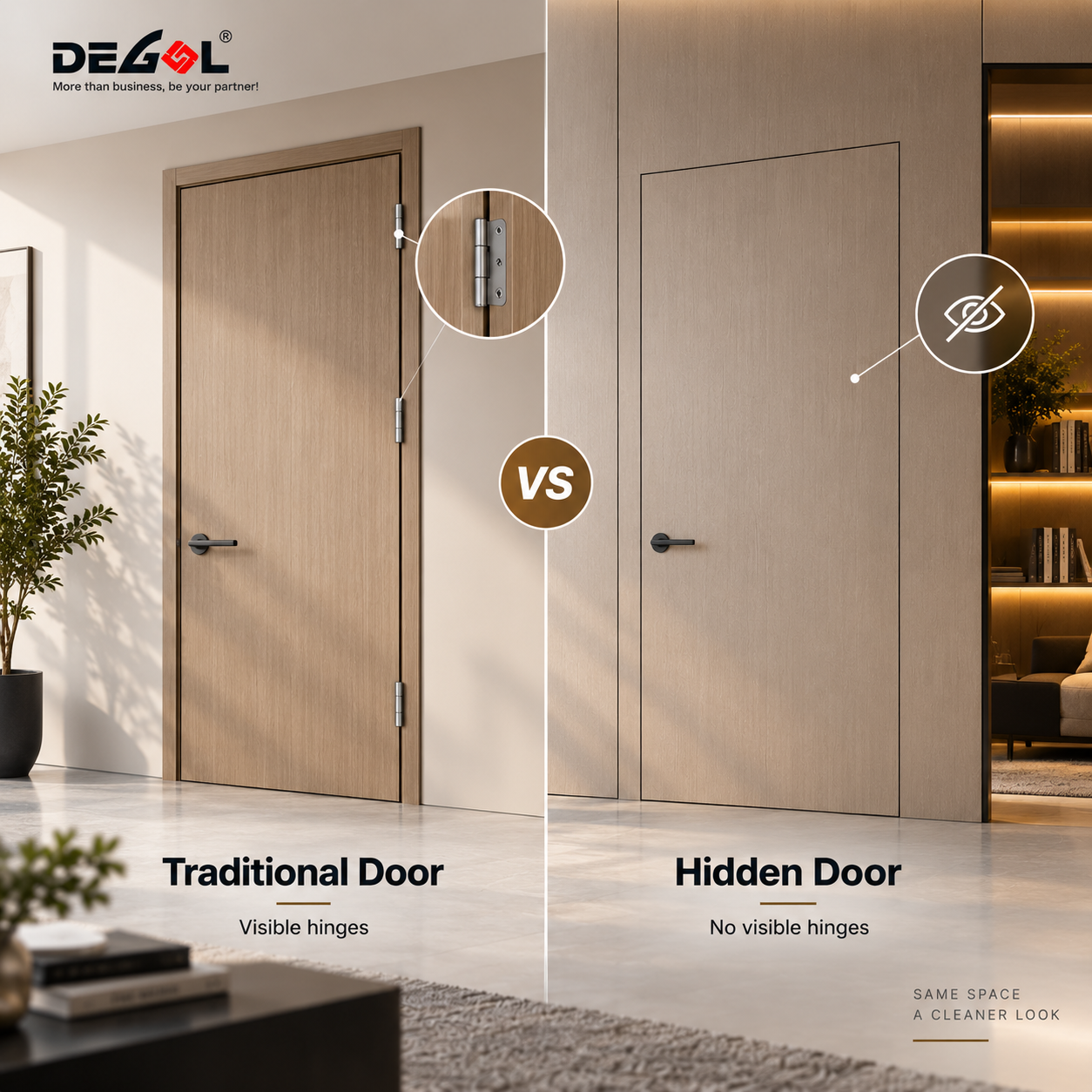

Traditional doors normally use visible butt hinges, handles, locks, and other components. With a hidden door, the hardware is recessed into the door, frame, wall, or floor so that the door can appear to be part of the surrounding architecture.
The main purpose is simple:
Keep the door functional while making the hardware less visible.
A hidden door system may include:
Concealed door hinges
Invisible door hinges
Pivot door hardware
Top and bottom pivot hardware
Concealed door latches
Magnetic door catches
Sliding door tracks
Sliding door rollers
Pocket door hardware
Concealed door handles
The exact hardware required depends on the door's weight, size, construction, opening direction, installation conditions, and application.
There is no single mechanism used for every hidden door.
Most hidden doors can be divided into several basic systems according to how the door moves.

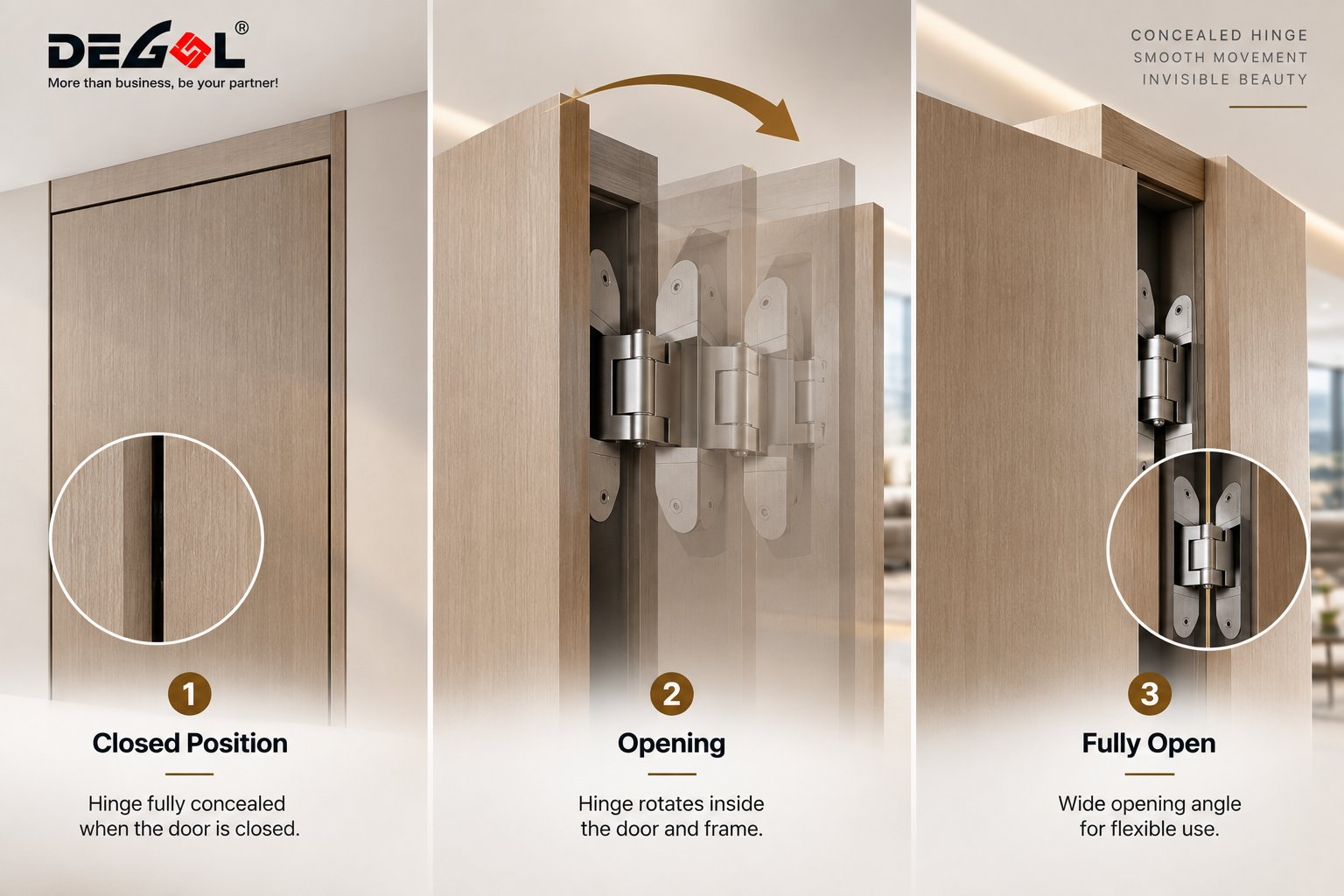

A concealed hinge is one of the most common solutions for a hidden or flush door.
Unlike a traditional hinge that remains visible when the door is closed, a concealed hinge is installed inside specially prepared recesses in the door and frame.
When the door is closed, the hinge body is hidden between the door and frame.
When the door opens, the internal hinge mechanism allows the door to rotate while maintaining its position and alignment.
The basic movement is:
Closed Door → Hinge Mechanism Moves → Door Rotates → Open Door
This design allows the door surface to remain clean and visually uninterrupted.
Concealed hinges are particularly suitable for:
Flush interior doors
Invisible doors
Modern minimalist doors
Hidden wall doors
Office doors
Hotel interior doors
Custom architectural doors
For standard-size hidden doors, concealed hinges can be an excellent choice when the main goal is to achieve a seamless appearance.

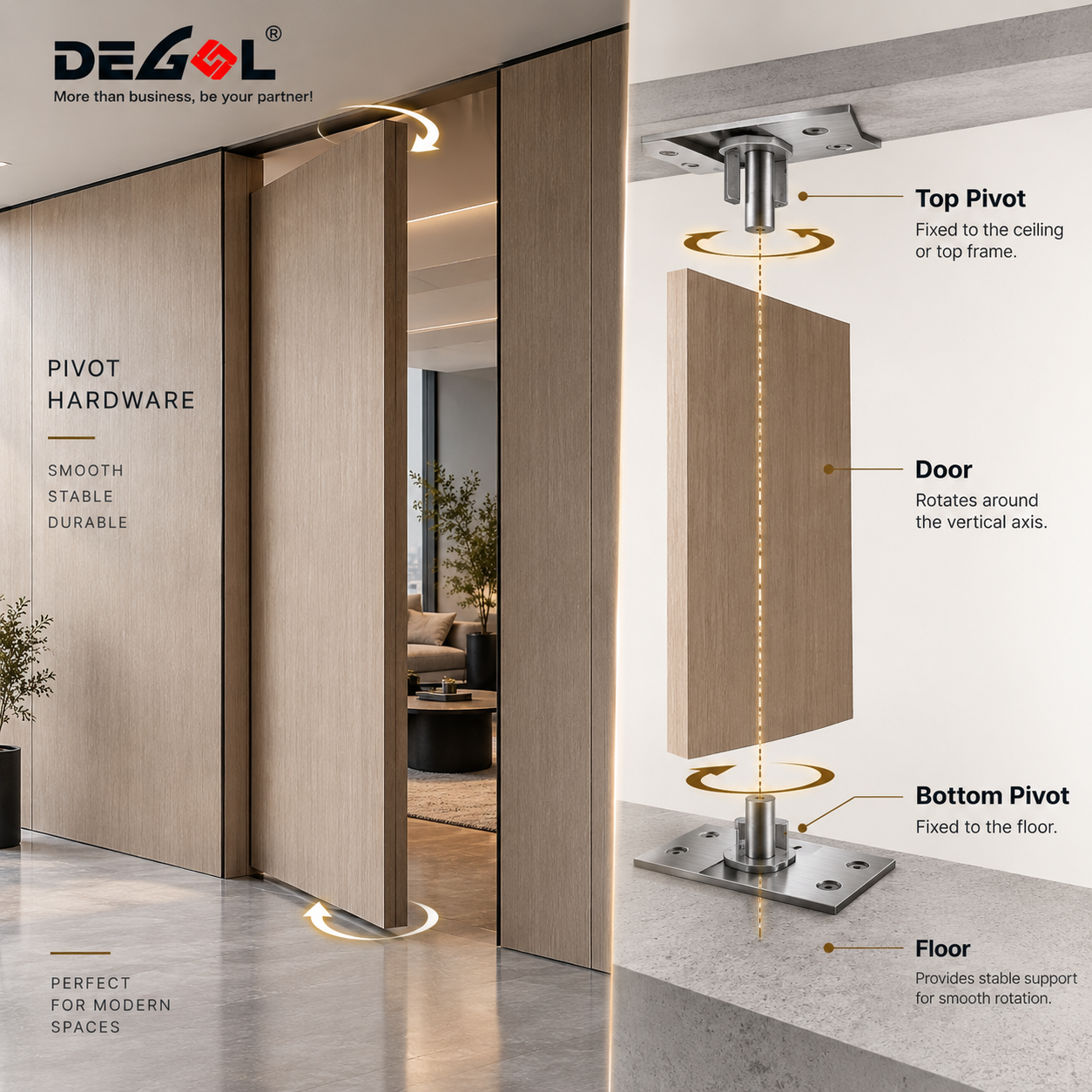

Pivot hardware works differently from a traditional side hinge.
Instead of attaching the door to the frame along one vertical side, a pivot system creates a vertical rotation axis through pivot points.
A typical pivot system uses hardware positioned near the top and bottom of the door.
The bottom pivot provides a stable rotation point, while the top pivot helps maintain the door's position and alignment.
When the door opens, the entire door rotates around this vertical axis.
A simplified structure looks like this:
Top Pivot
↓
Door Panel
↓
Bottom Pivot
↓
Floor
This type of system is particularly useful for large, heavy, or oversized doors.
Pivot hardware can be suitable when the door is:
Large
Tall
Heavy
Oversized
Designed as a statement entrance
Made with thick or decorative materials
For example, a large flush door integrated into a feature wall may use pivot hardware instead of conventional side hinges.
The pivot mechanism can also provide designers with more flexibility in door positioning and opening configurations.
Not every hidden door swings open.
Some hidden doors are designed to slide horizontally.
In this type of system, the door moves along a concealed or partially concealed track. Rollers or wheels support the door and allow it to move smoothly along the track.
The basic components may include:
Sliding door track
Sliding door rollers
Door guides
Hanging components
Door stops
Concealed handles
Sliding door locks
When the door is closed, the surrounding wall or cabinet can make the door difficult to distinguish from the rest of the interior.
When the door is opened, it slides sideways rather than swinging into the room.
Hidden doors and pocket doors are related, but they are not exactly the same.
A hidden door is mainly designed to blend into its surrounding environment.
A pocket door is designed to slide into a cavity inside the wall when opened.
For example:
Hidden Swing Door
The door rotates around concealed hinges or pivot hardware.
Pocket Door
The door slides into the wall.
Hidden Sliding Door
The door slides horizontally while the track and other operating components may be concealed.
Therefore, the best hardware depends on both the appearance you want and the way the door needs to operate.

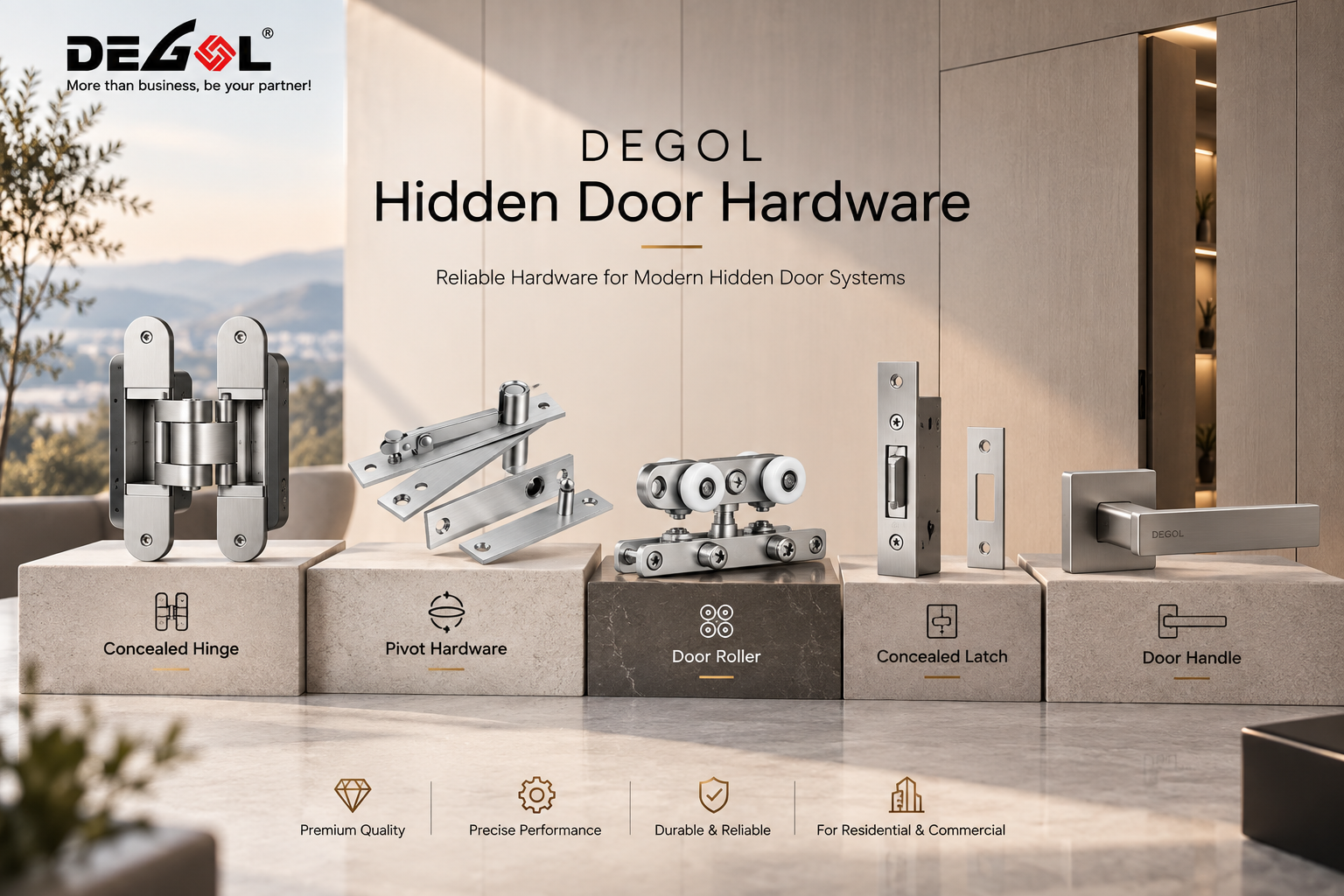

A hidden door is rarely created by one single piece of hardware.
A complete system may include several components working together.
Concealed hinges control the opening and closing movement of a swinging hidden door.
They are especially useful for flush doors where visible hinges would interrupt the design.
Pivot hardware supports and rotates large or heavy doors around a vertical axis.
It can be used for architectural doors, oversized doors, and some hidden bookcase or feature-wall doors.
A concealed latch keeps the door securely closed without creating a large visible lock body.
Magnetic catches can help keep lightweight doors closed while maintaining a clean appearance.
Sliding door rollers support sliding doors and allow them to move along a track.
For heavier doors, the roller and track system needs to be selected according to the actual door load.
Door guides help prevent excessive lateral movement and keep a sliding door aligned during operation.
Choosing the right hidden door hardware starts with understanding how each system works.
Hardware Type | Door Movement | Typical Application | Main Advantage |
|---|---|---|---|
Concealed Door Hinge | Swing | Flush interior doors | Clean appearance |
Pivot Hardware | Rotate around pivot axis | Large and heavy doors | Suitable for oversized doors |
Sliding Door Hardware | Slide horizontally | Hidden sliding doors | Saves swing space |
Pocket Door Hardware | Slide into wall cavity | Residential and commercial interiors | Door disappears into wall |
Concealed Latch | Lock or hold closed | Hidden doors | Minimal visible hardware |
There is no universally best hidden door hardware.
The right choice depends on the door design and installation requirements.
Before selecting hidden door hardware, several factors should be considered.
Door weight is one of the most important factors.
A lightweight interior door may require a different hinge system from a large solid wood door or a door with decorative panels.
When calculating the required hardware capacity, consider the complete door assembly rather than only the door panel.
For example, a door may include:
Wood
Glass
Metal components
Mirrors
Decorative panels
Shelving
Additional accessories
All of these can affect the total weight.
The size of the door also affects hardware selection.
A standard interior door and a floor-to-ceiling architectural door have very different requirements.
Tall and wide doors may require heavy-duty concealed hinges or a pivot system designed for higher loads.
Think about how far the door needs to open.
Some applications only require a limited opening angle, while others need the door to open widely.
The surrounding wall, furniture, cabinets, and other objects should also be considered.
The construction of the door affects the installation method.
For example, a solid wood door, aluminum-framed door, glass door, and lightweight composite door may require different hardware solutions.
Before purchasing hardware, check:
Door thickness
Door material
Door weight
Door dimensions
Frame construction
Mounting position
Concealed hardware usually requires accurate installation.
The door and frame may need to be machined or recessed to accommodate the hardware.
The installer should make sure there is enough space for:
Hardware body
Mounting plates
Screws
Adjustment mechanisms
Door movement
Accurate installation is especially important for concealed hinges because small alignment errors can affect the door gap and opening performance.
The same hidden door hardware may not be suitable for every application.
For example:
Residential hidden door
Usually focuses on appearance, smooth operation, and easy installation.
Hotel hidden door
May require higher durability because the door can be used frequently.
Office hidden door
May prioritize durability, privacy, and convenient access.
Hidden bookcase door
May require stronger hardware because the door structure can be significantly heavier.
Large architectural hidden door
May require a heavy-duty pivot system.

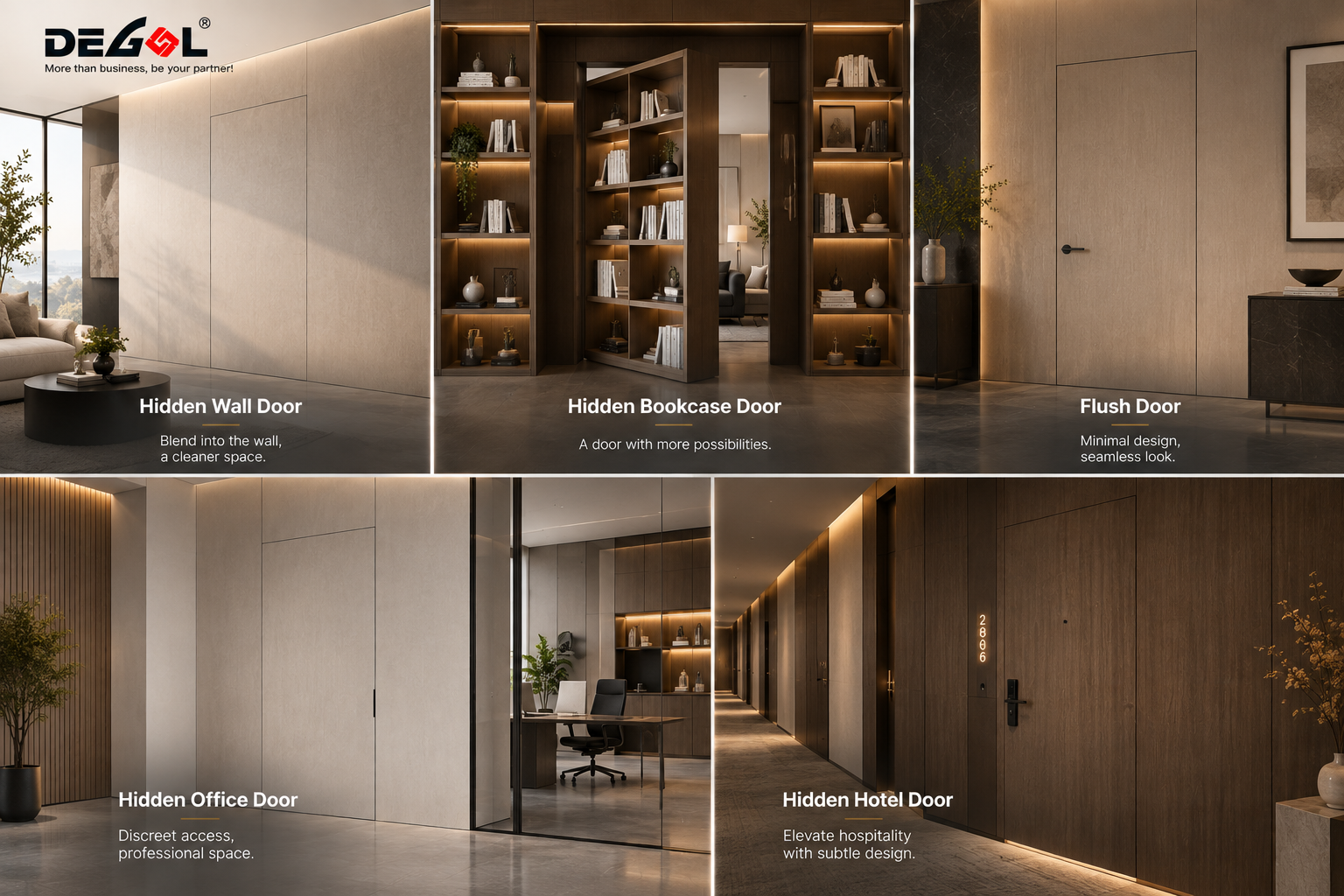

Hidden door systems can be used in many different environments.
Hidden doors can be integrated into:
Feature walls
Bedrooms
Home offices
Walk-in closets
Storage rooms
Living rooms
The door can use the same material and finish as the surrounding wall to create a seamless appearance.
Hotels often use hidden or flush doors in premium interior spaces.
The clean appearance can help create a more sophisticated architectural design.
Hidden doors can be used for:
Meeting rooms
Private offices
Storage rooms
Service areas
Staff-only areas
A bookcase door is a classic example of a concealed entrance.
The door is integrated into a bookshelf or wall structure, making the entrance less obvious when closed.
Because the bookcase itself can add considerable weight, hardware capacity and structural support should be carefully considered.
Large commercial spaces may use concealed or pivoting doors for:
Reception areas
Conference rooms
Showrooms
Restaurants
Retail stores
Architectural entrances
The growing popularity of hidden door hardware is closely connected to modern interior design.
Many designers and homeowners want fewer visible elements and cleaner architectural lines.
Instead of making the door stand out, the goal is often to make the door blend into the architecture.
This creates several design advantages.
The absence of visible hinges and bulky hardware creates a cleaner appearance.
A hidden door can become part of a wall, cabinet, or bookcase.
Different hardware systems can support different door styles and applications.
Hidden hardware works particularly well with minimalist and contemporary interiors.
Even high-quality hidden hardware can perform poorly if the system is incorrectly selected or installed.
Here are some common problems.
Possible causes include:
Incorrect hinge adjustment
Door misalignment
Incorrect installation
Excessive door weight
Frame movement
This can happen when the door is not properly aligned.
Concealed hinges with adjustment functions can make installation and fine-tuning easier.
Possible causes include:
Incorrect roller selection
Excessive door weight
Damaged rollers
Track contamination
Poor installation
For heavy doors, the hardware must be selected according to the actual load and application.
This is especially important for large pivot doors and heavy concealed-door systems.
Proper maintenance can help extend the service life of the hardware.
Check the door alignment regularly and make adjustments when necessary.
Keep the hinge area clean and inspect mounting screws periodically.
Check the pivot points and mounting components.
Make sure the door remains properly aligned and operates smoothly.
Keep the track clean and inspect the rollers regularly.
Remove dust and debris that could affect smooth movement.
Check that the door closes and releases correctly.
If the closing force changes significantly, inspect the alignment and mounting position.
A practical hidden door project can be planned in several steps.
Determine whether the door will be:
Swinging
Pivoting
Sliding
Pocket style
Record:
Door width
Door height
Door thickness
Total door weight
Choose concealed hinges, pivot hardware, sliding hardware, or a suitable combination.
Make sure the selected hardware is appropriate for the actual door weight and dimensions.
Determine where the hardware will be installed and whether machining or recessing is required.
After installation, check:
Door gaps
Opening angle
Alignment
Closing performance
Smooth operation
Open and close the door repeatedly to make sure the hardware operates correctly under normal conditions.
In some cases, yes.
However, the door frame, door construction, available installation space, and hardware requirements should be evaluated first.
Some heavy-duty concealed hinges are designed for heavier applications, but the correct product must be selected according to the manufacturer's rated capacity and the actual door weight.
For particularly large or heavy doors, a pivot system may be more appropriate.
A concealed hinge or heavy-duty pivot system may be suitable depending on the total weight, dimensions, and construction of the bookcase door.
Yes.
A hidden door can use a sliding system when the design requires the door to move horizontally instead of swinging open.
A concealed hinge is normally installed between the door and frame and allows the door to swing from the side.
A pivot system creates a rotation point at the top and bottom of the door, allowing the door to rotate around a vertical axis.
Hidden door hardware is much more than a concealed hinge.
It is a complete approach to controlling door movement while maintaining a clean architectural appearance.
For standard flush doors, concealed hinges can provide a practical solution.
For large or heavy doors, pivot door hardware can provide the required support and rotation mechanism.
For space-saving applications, sliding or pocket door hardware can allow the door to move horizontally and disappear into the surrounding structure.
The most important thing is to select hardware according to the door weight, dimensions, construction, opening method, and installation environment.
With the right hardware system, a functional door can become almost invisible.
At DEGOL Hardware, we provide hardware solutions for different architectural and interior door applications, including concealed door hardware, pivot door hardware, sliding door hardware, door hinges, door locks, and other architectural hardware.
Whether you are developing a hidden door, flush door, large pivot door, sliding door, or custom architectural door, selecting the right hardware at the beginning of the project can make installation and long-term operation much easier.
Looking for hidden door hardware for your next project?
Contact DEGOL Hardware to discuss your door dimensions, weight, application, and hardware requirements.
