LH1075
Degol
| Quantity: | |
|---|---|

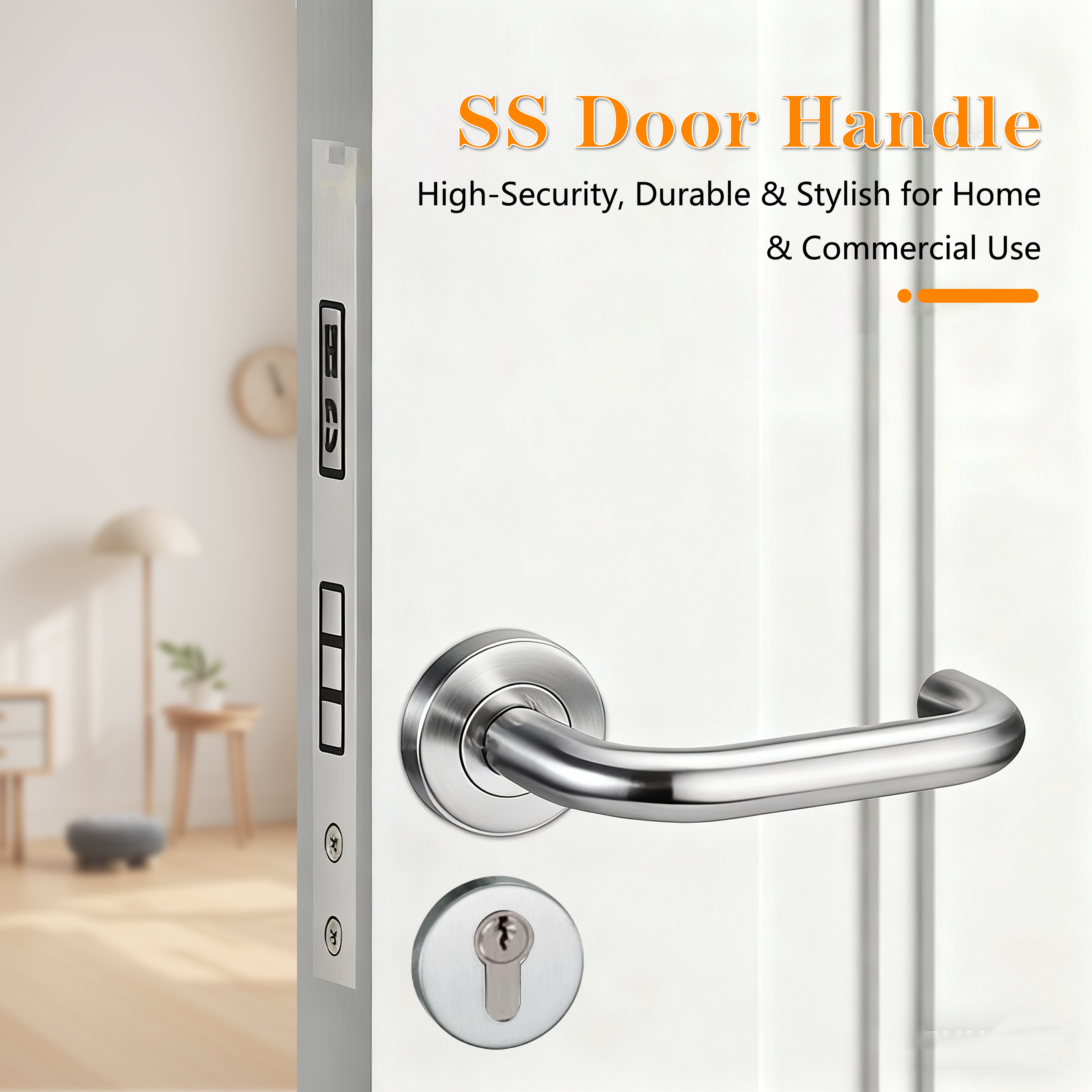

This durable modern stainless steel lever door handle features a sleek square rose design, combining a minimalist aesthetic with high-quality brushed finish hardware for superior corrosion resistance. Perfectly suited for contemporary interiors, this internal door handle with escutcheon offers an ergonomic grip and effortless installation, making it a high-demand choice for homeowners and contractors seeking premium modern architectural ironmongery solutions.
Brand | Degol |

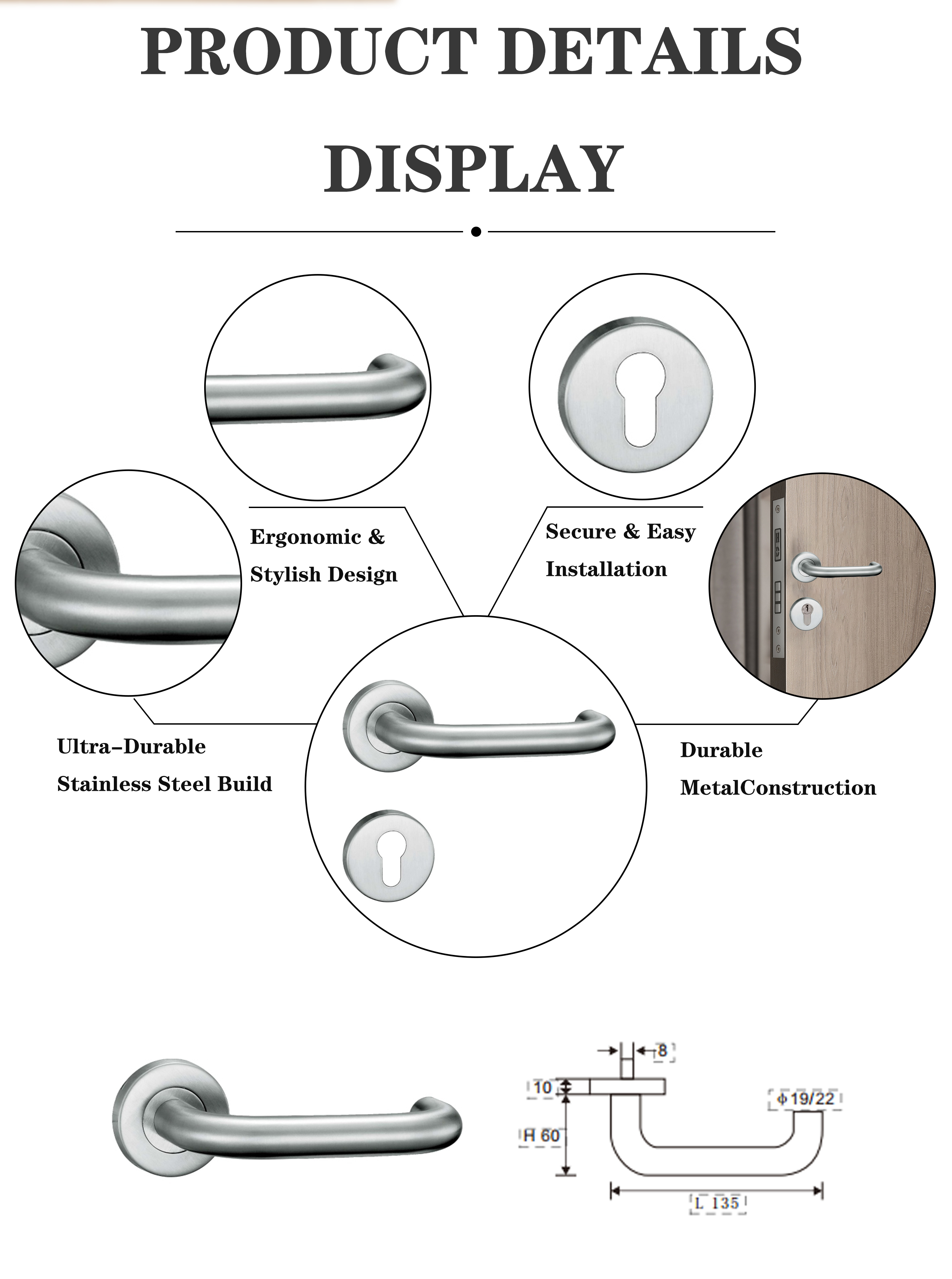

Product name | 19*135*60mm High security front door handles Stainless steel door handles (SUS 304) |
Color | SSS,PSS,AB,AC,PVD |
Product Model | LH1075 |
Tube diameter | 19mm/ 22mm |
Size | 125mm, 130mm, 135mm, 140mm |
Door thickness | 35mm-60mm or special request |
Suit for | wood door, metal door, interior door, exterior door |
Material | Stainless steel |
OEM | Welcome |
Sample | Free |
Brand | Degol |
1. Prepare the Door and Spindle
Ensure your latch or lock mechanism is already installed in the door.
Insert the spindle (the square metal bar) through the latch. Ensure it protrudes equally on both sides.
Tip: If the spindle is too long for your door thickness, you may need to cut it down slightly with a hacksaw.
2. Align the Handles
Remove the outer square rose covers from the handles to reveal the inner mounting plates.
Slide the handles onto the spindle on both sides of the door.
Hold them firmly and use a level (or measure from the floor) to ensure they are perfectly straight.
3. Mark and Drill Fixing Holes
With the handles in place, use a pencil to mark the screw holes through the mounting plate.
For Wood Screws: Drill small 2mm pilot holes.
For Bolt-Through Fixings: (Recommended for extra stability) Drill 5mm holes all the way through the door.
4. Secure the Mounting Plates
Secure the inner plates to the door using the provided screws or "male-female" bolts.
Tighten evenly on both sides to avoid tilting the handle.
5. Attach the Rose Covers and Lever
Slide the square rose covers over the levers and snap or screw them onto the mounting plates.
Most square designs feature a small grub screw at the bottom of the rose; tighten this with your Allen key to lock the cover in place.
Finally, tighten the grub screw located on the underside of the lever handle itself to secure it to the spindle.
6. Install the Escutcheon (Keyhole Cover)
Repeat the alignment and drilling process for the matching square escutcheon over your keyhole or cylinder.
1. Basic Operation
Opening: Simply press the horizontal lever downward with your hand (or even your elbow if your hands are full). This retracts the internal latch, allowing the door to swing open.
Closing: Push or pull the door shut. The spring-loaded latch will automatically click into the striker plate on the door frame. You do not need to hold the handle down to close it.
Spring Action: These handles are "sprung," meaning the lever will automatically return to its perfect horizontal position as soon as you release it.
2. Using the Lock (Escutcheon)
The small square piece below the handle is the escutcheon (keyhole cover).
Insert your key into the slot and turn it to engage the mortice lock inside the door.
The handle itself will still move up and down when locked, but the door will remain securely fastened because the separate deadbolt is engaged.
3. Safety Features
Emergency Access: If this is a bathroom set, the exterior side usually features an "emergency release" slot. In an emergency, you can unlock the door from the outside using a flat-head screwdriver or a coin.
Ergonomics: The flat T-bar design is specifically made to be "low-effort," making it easy to use for children or the elderly compared to traditional round knobs.
4. Maintenance for Sellers/Users
To keep the product in "premium" condition and ensure a smooth user experience:
Lubrication: If the handle ever feels "gritty" or squeaks, apply a small drop of light machine oil or graphite lubricant to the base of the lever and the latch bolt.
Cleaning: Use a soft, damp cloth only. Avoid abrasive chemical cleaners, as they can strip the brushed/satin protective coating.
Tightening: Over months of heavy use, the small grub screws (the tiny screws on the underside) might loosen. A quick half-turn with an Allen key will make the handle feel "solid" again.
1. Modern Geometric Design
This is a lever-on-square-rose handle, which is the current "gold standard" for modern interior design.
Square Rose: Unlike traditional round plates, the square base offers a sharp, architecturally interesting look that complements minimalist and "industrial-chic" decor.
Sleek Profile: Its clean T-bar lever is visually lightweight, ensuring it doesn't clutter the appearance of your doors.
2. High-Performance Materials
Degol typically manufactures these using Grade 304 or 316 Stainless Steel or high-density Zinc Alloy.
Corrosion Resistance: The stainless steel options are virtually rust-proof, making them perfect for kitchens, bathrooms, and even coastal environments where salt air can ruin cheaper hardware.
Hygiene: Stainless steel is non-porous and naturally easier to clean, which is a major benefit for high-touch surfaces like door handles.
3. Engineering & Longevity
Sprung Mechanism: These handles are "sprung," meaning they have an internal high-tension spring that ensures the lever returns to a perfect horizontal position every time, preventing the "sagging" look common in budget handles.
Concealed Fixings: The rose has a snap-on cover that hides the screws. This provides a "seamless" look where no unsightly screw heads are visible on the door face.
Fire Safety: Many of Degol’s stainless steel levers are fire-rated, offering an extra layer of safety for apartment or office use.
