DH1016
Degol
| Quantity: | |
|---|---|

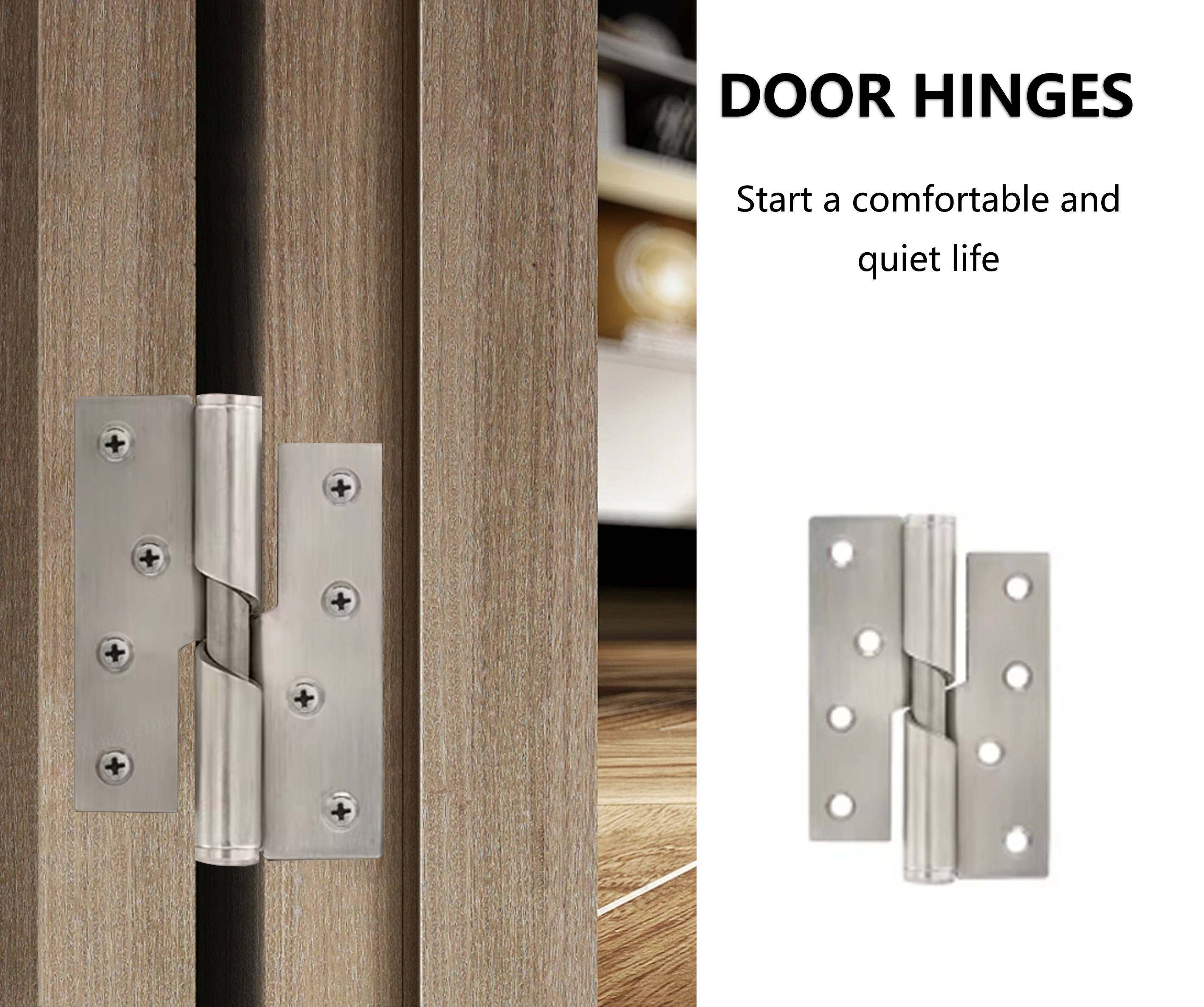

Elevate your architectural projects with these premium stainless steel ball bearing hinges from Degol Hardware, meticulously engineered to provide the perfect balance of modern aesthetics and heavy-duty performance. Crafted from high-grade, rust-resistant 304 stainless steel, these hinges feature a precision-aligned ball bearing mechanism that ensures a whisper-quiet, frictionless opening experience for both heavy residential wooden doors and high-traffic commercial entries. Whether you are looking for a sleek brushed finish or a classic metallic tone, this modern architectural hardware offers superior load-bearing capacity and anti-sagging durability, making it a top-tier choice for contractors and homeowners seeking long-lasting, professional-grade door fittings with a sophisticated, contemporary look.
Brand | Degol |
Product name | 4*3 Inch Stainless steel lift-off door hinges made in China |
Finish | SSS, PSS, AB, AC, PVD or Customized |
Product Model | DH1016 |
Size | 4"*3"*2mm |
Accessory | Keys,Screws,Latch,Strick plate |
Type | Door handle lockset lever lock |
Material | Stainless steel |
Suit for | Door,storeroom,classroom,hotel |
OEM | Welcome |
Sample | Free |
MOQ | 200 pieces |
Delivery time | Usually 25~35 days |
1. Mark the Hinge Positions
Standard placement for residential doors is 5–7 inches from the top and 10–11 inches from the bottom. For heavy-duty iron hinges, we strongly recommend a third hinge placed exactly in the middle to prevent the door from bowing or sagging over time. Trace the outline of the hinge leaf onto the door edge with a sharp pencil.
2. Create the Mortise (The Recess)
Use a sharp wood chisel to tap along your traced lines. The depth of the cut must match the thickness of the hinge leaf so it sits perfectly flush with the wood. Carefully shave out the wood until the recess is flat and even.
3. Drill Pilot Holes
Place the hinge in the mortise and mark the screw holes. Always drill pilot holes using a drill bit slightly smaller than your screws. This step is critical for iron hinges to prevent the wood from splitting under the high tension of the heavy metal.
4. Secure and Test
Screw the hinges onto the door first, then prop the door in the frame using wedges to maintain a 3mm gap at the top. Once secured to the frame, swing the door several times to check for a smooth, frictionless operation.
1. Weight and Load Distribution
Because iron hinges are designed for heavy-duty applications, such as solid wood or security doors, proper weight distribution is essential.
Use Multiple Hinges: Always use at least three hinges for standard doors. For extra-heavy or oversized doors, a fourth hinge may be necessary to prevent the top hinge from pulling away or the door from sagging.
Check Alignment: Ensure all hinge pins are perfectly aligned vertically. If they are slightly off, the iron-on-iron friction will increase significantly, leading to grinding noises and faster wear on the axis.
2. Anti-Corrosion Maintenance
Iron is more susceptible to environmental moisture than stainless steel, so protecting the finish is your top priority.
Keep Dry: Regularly wipe down the hinges with a dry, soft cloth to remove dust and condensation. Dust can trap moisture against the metal, leading to "pitting" or rust spots.
Surface Inspection: Periodically inspect the powder coating or plating. If you see any scratches or chips, apply a small amount of rust-inhibiting touch-up paint immediately to prevent oxidation from spreading.
3. Lubrication for Silent Operation
Iron hinges can develop a squeak if the internal pin becomes dry.
Lubricate Twice a Year: Apply a few drops of silicone spray or light machine oil (like 3-in-1 oil) to the top of each hinge knuckle.
Distribute the Oil: Open and close the door several times to work the lubricant down into the pin and bearings. Always wipe away any excess oil with a paper towel, as leftover grease will attract grit that acts like sandpaper inside the hinge.
The product features a high-quality brushed stainless steel finish. This clean, modern look is designed to match other professional-grade 304 stainless steel handles and locks.
Yes, it is manufactured from 304 stainless steel, which offers excellent resistance to corrosion and oxidation. This makes it suitable for use in humid environments like bathrooms or kitchens.

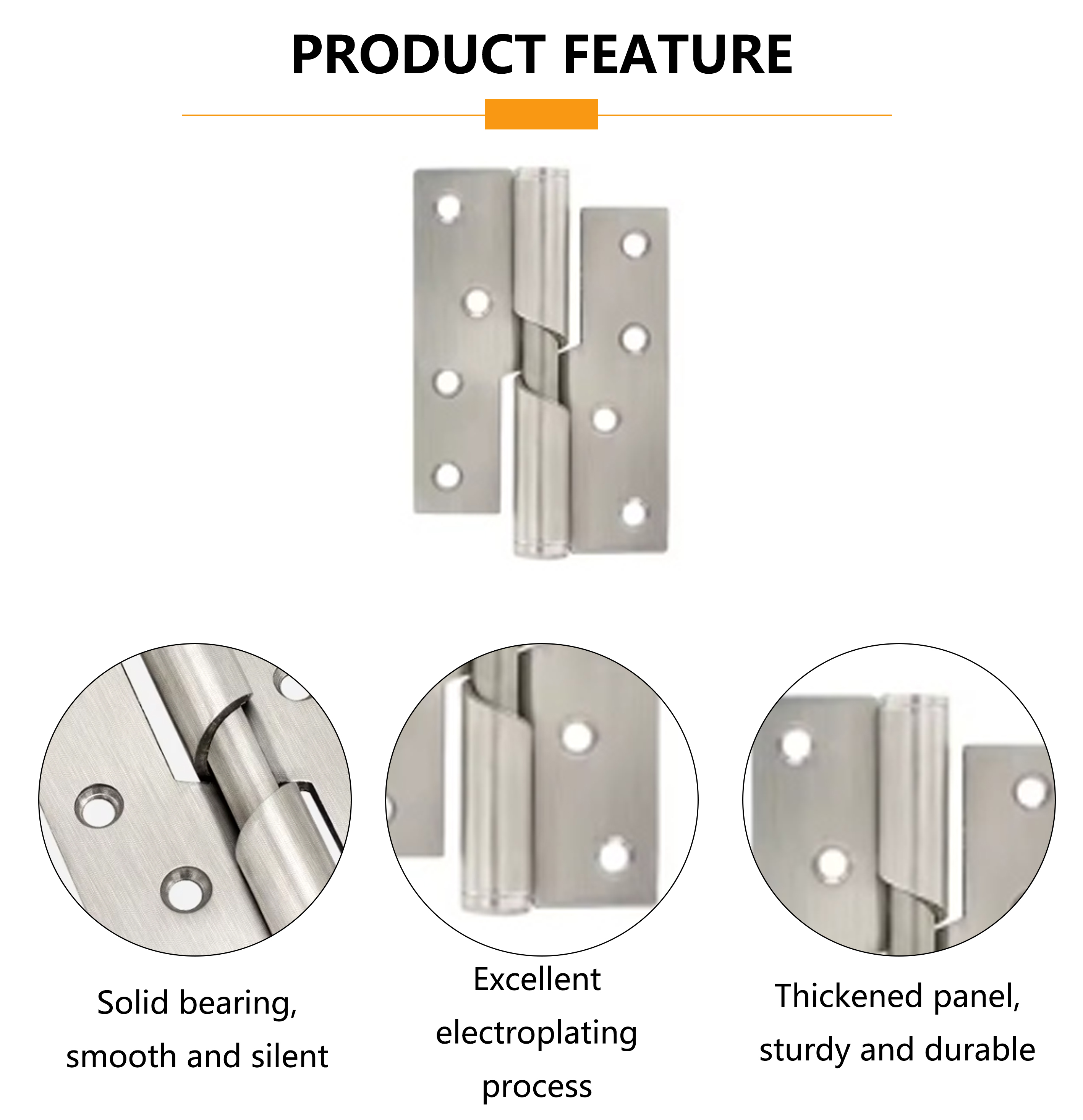

It is designed for silent operation. The internal ball-bearing mechanism ensures that the door rotates smoothly without the squeaking or grinding sounds common with traditional hinges.
1. Industrial-Grade Durability
Degol hinges are manufactured using full-material construction, meaning they are solid throughout with no internal air pockets or sand holes.
Superior Load Bearing: They are engineered to handle the significant weight of heavy solid wood or metal doors without bending or sagging over time.
304 Stainless Steel: Their stainless models provide exceptional rust resistance, making them ideal for high-humidity areas like bathrooms or coastal environments.
2. Precision Engineering for Silent Operation
Degol focuses on the "experience" of opening a door by eliminating common friction points.
Ball Bearing Technology: High-quality integrated bearings ensure a whisper-quiet swing and prevent the metal-on-metal grinding that causes squeaks and black graphite dust.
Anti-Friction Surface: The internal pins are precision-fitted to ensure a smooth, consistent rotation every time the door is used.
3. Professional Aesthetic Finishes
Degol hardware is designed to serve as an architectural accent rather than just a functional component.
Refined Surfaces: They offer high-end finishes like matte black powder coating, satin nickel, and polished chrome that are resistant to peeling and abrasion.
Versatile Design: Their clean, modern lines fit perfectly into Modern Farmhouse, Industrial, or Contemporary design schemes.
