Sliding‑door rollers are the core hardware component that decides whether your patio sliding glass door or wardrobe sliding closet door can slide smoothly, quietly and durably. Poor‑quality or mismatched rollers often lead to sticking movement, sagging panels, loud grinding noise, derailment and frequent replacement. Whether you are upgrading balcony patio doors, renovating built‑in wardrobes, or sourcing hardware for residential projects, knowing the five main roller styles, their strengths and suitable applications will help you pick the exact sliding‑door roller for your job.
Below we break down 5 mainstream sliding‑door roller styles widely used for both patio sliding door roller and wardrobe sliding door roller systems.
Single‑wheel adjustable rollers are the most popular bottom‑mount roller for standard‑weight aluminium, vinyl or u‑PVC patio sliding doors.
One nylon or stainless‑steel wheel housed inside a metal bracket
Built‑in height‑adjustment screw to correct door sag and fine‑tune panel gap
Flat tread wheel designed for flat bottom tracks
‑ Cost‑effective, simple‑to‑replace design
‑ Compact size fits narrow‑profile door sills
‑ Easy on‑site height adjustment after installation
‑ Standard residential patio sliding glass doors, balcony sliding doors
‑ Light‑to‑medium‑weight wardrobe bypass sliding doors

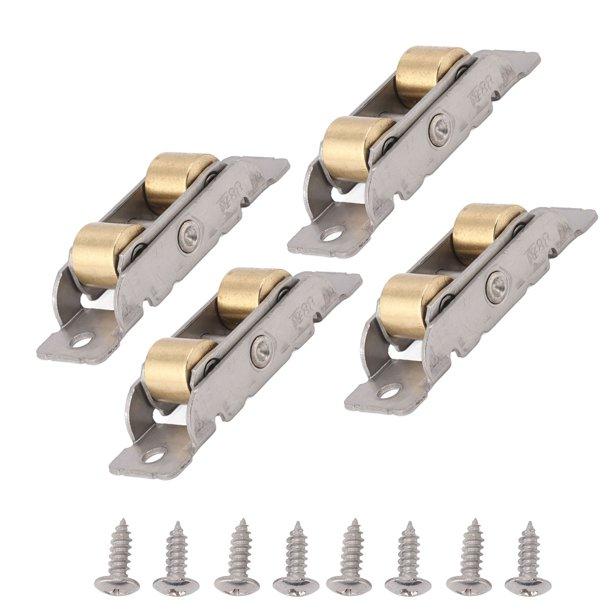

Tandem rollers carry the door weight across two wheels on one mounting bracket, also known as twin‑wheel rollers
‑ Two parallel wheels on a shared carriage base
‑ Most models equipped with ball bearings and adjustable height screws
‑ Evenly distributes heavy‑door load across two contact points
‑ Much‑improved weight‑bearing capacity, far less risk of door sagging
‑ Smoother sliding motion with reduced track wear
‑ Stable performance for large wide glass panels
‑ Heavy‑weight patio sliding glass doors, large‑size exterior sliding doors
‑ Oversized solid‑wood wardrobe sliding doors
‑ High‑traffic residential and light‑commercial sliding door projects

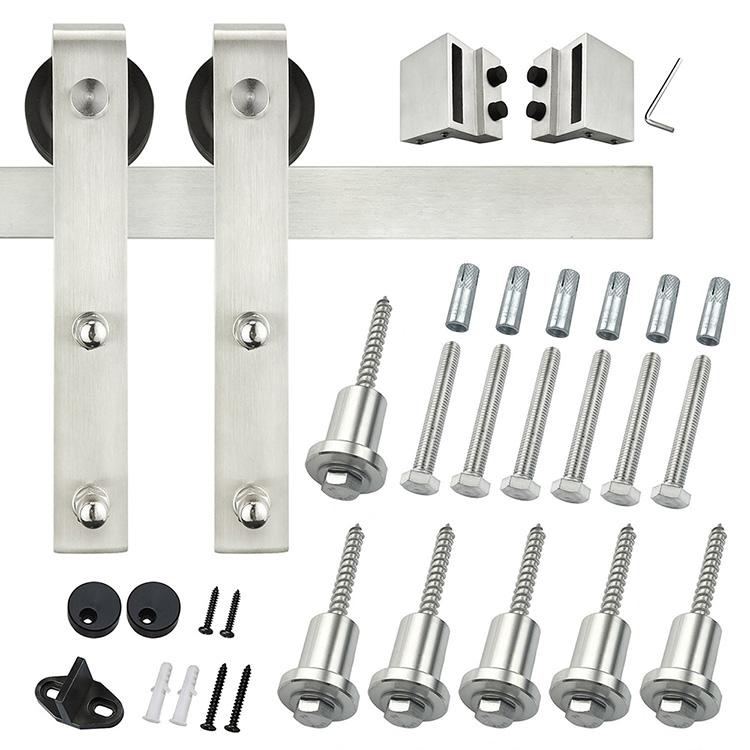

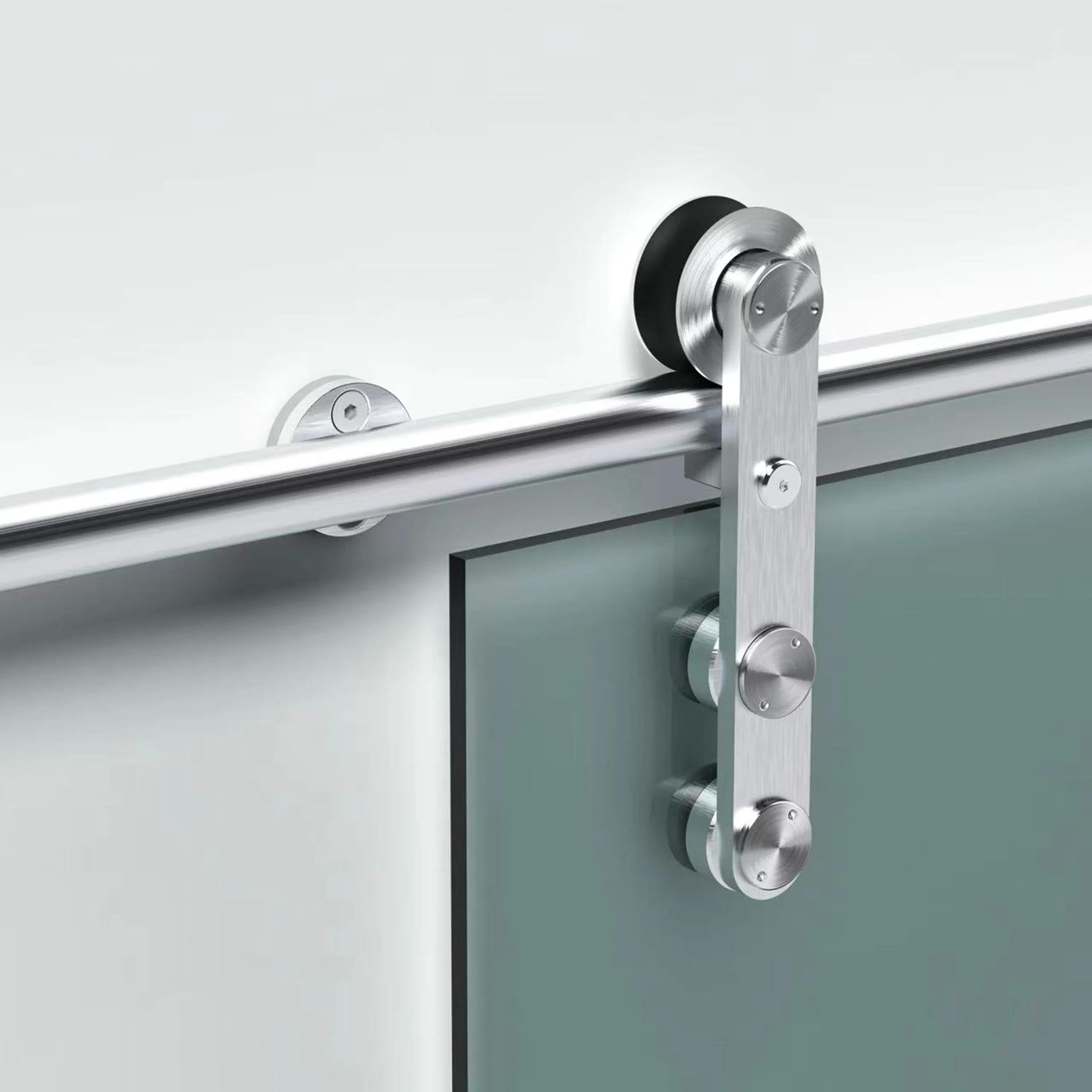

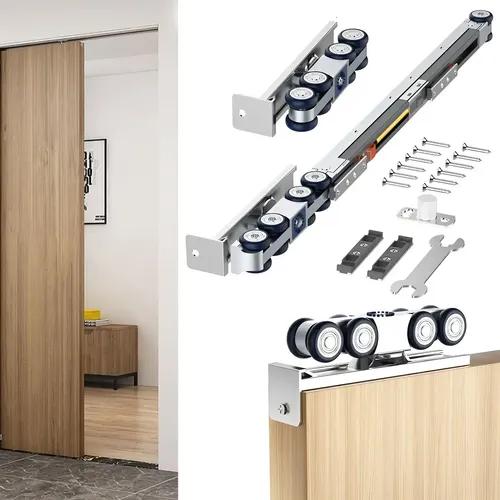

Unlike bottom‑rolling patio door rollers, top‑hung rollers are installed on the top edge of sliding doors, running along an upper track with no bottom floor rail required.
‑ Roller assembly mounts on top of door panel
‑ Weight hangs from the overhead track
‑ Nylon silent wheels; many versions add soft‑close buffer function
‑ No bottom track to collect dust, dirt or debris
‑ Very smooth, quiet sliding movement
‑ Floor‑track‑free opening for easy floor cleaning

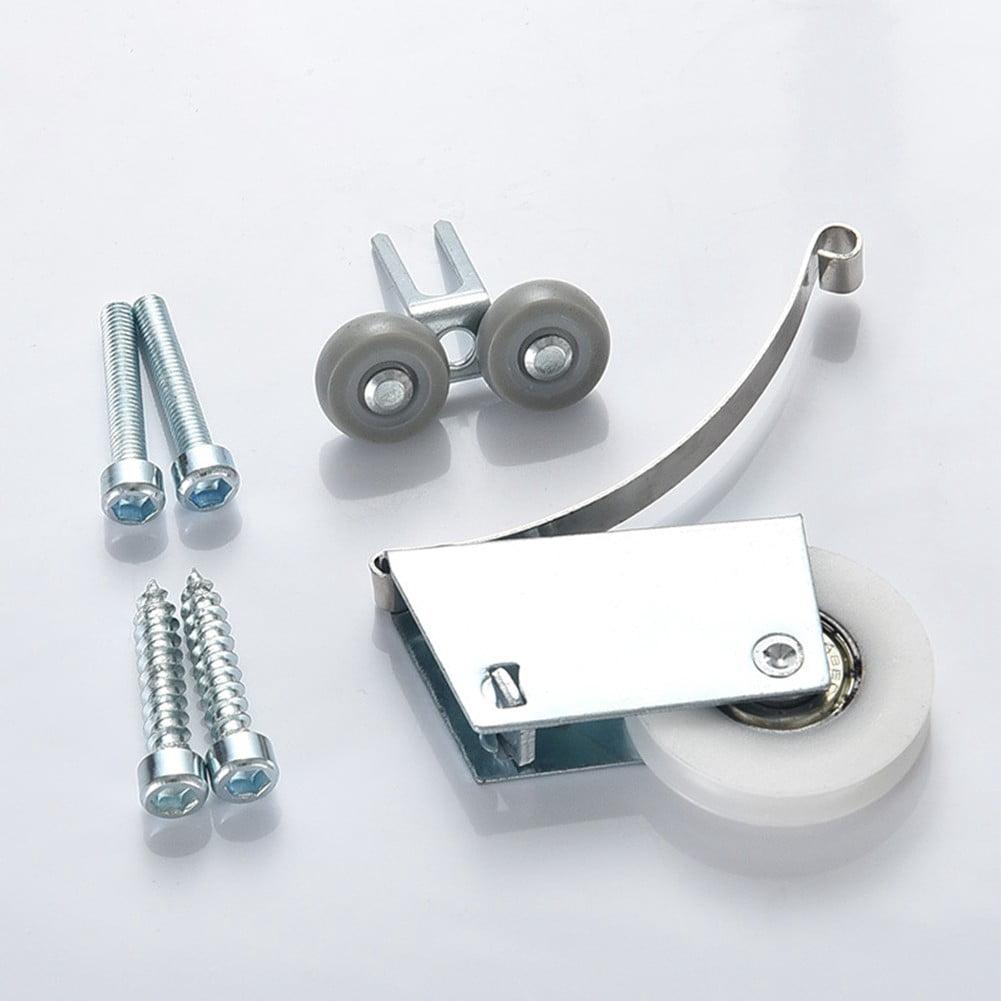

‑ Wardrobe sliding doors, closet bypass doors, room divider sliding panels
‑ Interior furniture sliding doors; rarely used for exterior patio doors
U‑groove (concave) rollers feature a curved indented groove on the wheel surface, engineered to lock onto raised round‑bar tracks.
‑ Curved concave wheel profile
‑ Prevents the sliding door from drifting sideways or jumping off the track
‑ Available in nylon, POM or stainless‑steel wheel materials
‑ Excellent lateral anti‑derailment guidance
‑ Stable sliding even when there is slight side impact
‑ Low‑noise rolling performance
‑ Wardrobe sliding‑door systems with round raised rails
‑ Custom interior sliding furniture doors
‑ Some aluminium‑profile patio door systems with round guide tracks
Soft‑close damper rollers are an upgraded functional sliding‑door roller variant, integrating hydraulic buffer parts into the roller assembly.
‑ Built‑in hydraulic or spring buffer mechanism
‑ Automatically slows down the door in the last travel section before fully closing
‑ Can be bottom‑mount roller or top‑hung hanging roller style
‑ Eliminates loud slamming noise
‑ Protects wardrobe doors, glass panels and door frame edges from impact damage
‑ Prevents user‑pinch injuries
‑ Modern wardrobe sliding doors, closet sliding doors, cabinet sliding doors
‑ Premium‑grade interior patio sliding doors for quiet family‑home environments
Roller Type | Primary Mount Position | Typical Usage Scene |
|---|---|---|
Single‑Wheel Adjustable Bottom Roller | Bottom‑mount | Standard patio door, small wardrobe door |
Tandem‑Wheel Roller | Bottom‑mount | Large glass patio door, heavy wood wardrobe door |
Top‑Hung Suspended Roller | Top‑mount | Wardrobe closet door, interior room divider |
U‑Groove Concave Roller | Bottom‑mount | Wardrobe doors with round raised track rail |
Soft‑Close Damper Roller | Top / Bottom mount | High‑end wardrobe, quiet‑operation patio doors |
Confirm your door weight first: single‑wheel rollers suit lighter panels, tandem dual‑wheel rollers for heavy glass patio doors.
Match the wheel profile with your existing track: flat wheel for flat track; U‑groove wheel for round raised rail.
Check adjustment function: adjustable‑height rollers are strongly recommended to fix long‑term door sagging problems.
Select nylon / POM wheels for quieter operation; stainless‑steel wheels for heavy‑duty, high‑wear outdoor patio door scenarios.
A: Not generally. Wardrobe rollers are mostly designed for light‑weight interior furniture doors, without weather‑resistant and heavy‑load properties required for exterior patio sliding doors. Always choose patio‑specific bottom‑mount rollers for outdoor glass doors.
A: If your glass sliding‑door panel is wider than 90cm and weighs more than 35kg, tandem dual‑wheel rollers are the safer, longer‑lasting choice.
A: Derailment usually happens from three causes: mismatched wheel profile and track shape, worn‑out rollers, or an unbalanced, sagging door panel. U‑groove concave rollers are a good upgrade choice if you frequently experience derailment on round guide rails.
A: Nylon and POM wheels deliver quieter rolling performance for indoor wardrobe doors. Stainless‑steel wheels offer higher wear resistance and load capacity, making them more suitable for heavy‑duty, outdoor‑exposed patio sliding doors.
A: Yes, highly recommended. Height‑adjustment screws let you lift or lower the door panel to correct sagging, fix uneven door gaps and eliminate dragging against the track over long‑term use.
