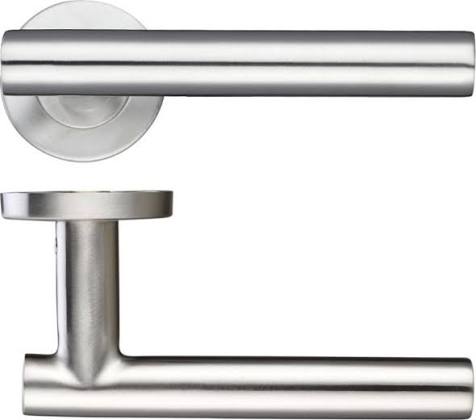

The LH1004 T-Bar Lever On Rose Handle is a modern stainless steel door handle designed with a minimalist T-bar lever style and round concealed rose structure.
It provides a clean architectural appearance and smooth operation, making it suitable for residential interiors, hotels, offices, apartments and commercial building projects.
With stainless steel construction, multiple finish options and OEM customization capability, DEGOL provides reliable door hardware solutions for global projects.
A T-Bar Lever On Rose Handle is a modern door handle featuring a straight T-shaped lever mounted on a round rose.
Compared with traditional door handles, the T-bar design provides a simple and contemporary appearance, while the concealed rose creates a clean and premium look for modern interior spaces.
Modern T-bar lever design
Round concealed rose structure
Stainless steel construction
Comfortable ergonomic grip
Smooth lever operation
Hidden fixing design
Suitable for residential and commercial applications
Multiple surface finishes available
OEM and ODM customization supported

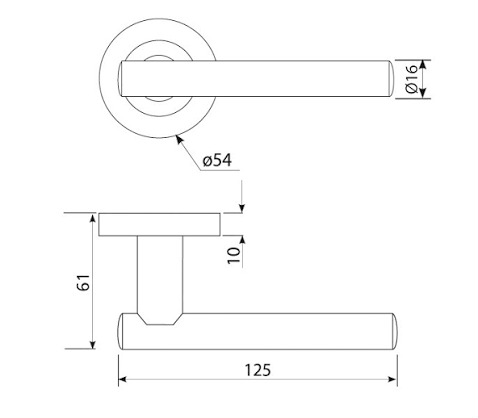

| Attribute | Details | Attribute | Details | Attribute | Details |
| Material | Stainless Steel | Material Grade | SS304 / SS201 | Handle Design | T-Bar Lever |
| Rose Shape | Round Rose | Handle Diameter | 19mm / Customized | Handle Length | Approx. 125-140mm |
| Projection | Approx. 55-65mm | Rose Diameter | 50-54mm | Rose Thickness | 6-10mm |
| Spindle Size | 8mm | Installation | Concealed Fixing | Door Thickness | 30-45mm / Customized |
| Finish | Satin / Polished / Matte Black / Customized | ||||
| Material | Advantage |
|---|---|
| SS304 Stainless Steel | Better corrosion resistance, suitable for premium projects |
| SS201 Stainless Steel | Cost-effective option for general applications |
| Finish | Application |
|---|---|
| Satin Stainless Steel | Modern commercial projects |
| Polished Stainless Steel | Premium interior design |
| Matte Black | Luxury residential and hotel projects |
| PVD Gold | High-end architectural projects |
| Customized Finish | OEM projects |
| Residential | Apartments | Villas | Houses | Interior rooms |
| Commercial | Hotels | Offices | Shopping malls | Commercial buildings |
| Architectural Projects | Modern interior projects | Hospitality projects | Renovation projects |
| Door Type | Suitable |
|---|---|
| Wooden Door | ✓ |
| Interior Door | ✓ |
| Hotel Room Door | ✓ |
| Office Door | ✓ |
| Apartment Door | ✓ |
| Commercial Door | ✓ |
Step 1: Prepare the Door
Check the door thickness, handle position and lock installation hole to ensure they meet the handle specifications. Make sure the door surface is clean and ready for installation.
Step 2: Install the Latch and Lock Body
Install the compatible latch or mortise lock into the door edge according to the lock manufacturer's instructions. Ensure the spindle hole is aligned correctly.
Step 3: Install the Spindle
Insert the square spindle through the lock body and make sure it passes smoothly through both sides of the door.
Step 4: Fix the Rose Base
Place the round rose base onto the door surface and align it with the spindle and fixing holes. Secure the rose base using the supplied screws.
Step 5: Attach the T-Bar Lever Handle
Install the T-bar lever handle onto the rose base and tighten the fixing screw to secure the handle firmly.
Step 6: Install the Rose Cover
Fit the decorative rose cover over the fixing base to hide the screws and create a clean, modern appearance.
Step 7: Test the Handle Function
Operate the handle several times to check smooth movement, proper spring return and secure installation. Adjust if necessary.
The minimalist T-bar structure matches contemporary architectural styles.
Stainless steel construction provides durability for daily door operation.
Suitable for residential, hospitality and commercial projects.
DEGOL supports customized sizes, finishes and OEM solutions.
Custom Handle Size
Custom Rose Design
Custom Surface Finish
Custom Logo
Custom Packaging
OEM Production
ODM Development
| Attribute | Details |
|---|---|
| Packaging | Individual Box / Bulk Packing |
| Sample | Available |
| MOQ | Customized |
| Production Time | Customized |
| Shipping | Global Export Support |
How to Choose a T-Bar Lever On Rose Handle?
Material selection
Handle size
Rose design
Door application
Finish selection
Project requirements
The LH1008 Hollow Lever Handle can be presented together with DEGOL's factory production capability to show customers the complete manufacturing process.
Material Preparation → Component Production → Hollow Lever Forming → Surface Treatment → Assembly → Function Testing → Quality Inspection → Packaging
A T-Bar Lever On Rose Handle is a modern interior door handle with a straight T-shaped lever mounted on a round rose, providing a minimalist and clean appearance.
LH1004 is manufactured from stainless steel, with SS304 and SS201 material options available.
It is suitable for interior wooden doors, hotel doors, office doors, apartments and commercial buildings.
DEGOL provides satin stainless steel, polished stainless steel, matte black and customized finishes.
Yes. DEGOL provides OEM and ODM services including size, finish, logo and packaging customization.
MOQ depends on customization requirements and order quantity.
Yes, samples are available for quality checking before bulk production.
