ML1024
Degol
| Quantity: | |
|---|---|

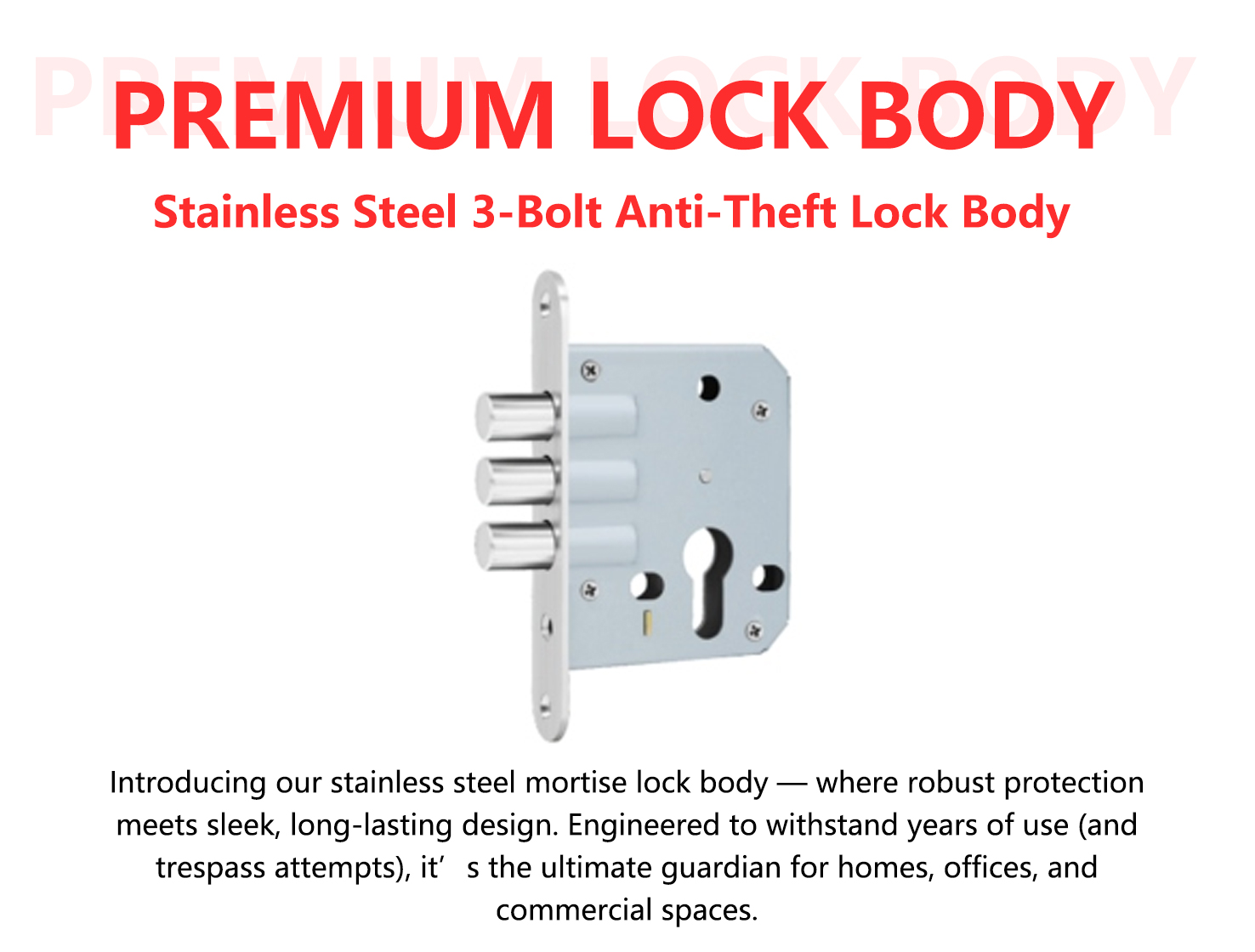

This heavy duty high security mortise lock is engineered with premium stainless steel 304 components to provide an uncompromising level of protection for both residential and commercial projects. Featuring a robust three-bolt lock body design, it serves as a superior European standard mortise lock case replacement, ensuring a precise fit and enhanced resistance against forced entry. The multi-point deadbolt system offers a high-security advantage over traditional single-bolt models, making it the ideal smart lock body replacement for users looking to upgrade their door hardware with a reliable, anti-vandal mechanism. With its corrosion-resistant finish and smooth mechanical operation, this specialized lock case is the preferred choice for architects and contractors requiring long-lasting performance in a triple-bolt security door hardware solution.
Brand | Degol |
Product name | CC5085mm Stainless steel Three-bolt Lock Body With Hook Heavy Duty High Security Mortise Lock |
Finish | SSS, PSS, AB, AC, PVD or Customized |
Product Model | ML1024 |
Size | 20*85mm,40*85mm,45*85mm,50*85mm,60*85mm |
Weight | 300g |
Surface | Silver/customizable |
Suit for | wood door, metal door, interior door, exterior door |
Material | Stainless steel |
OEM | Welcome |
Sample | Free |
1. Mortise Preparation
Mark the Door: Use the lock body as a template to mark the depth and height on the edge of the door.
Cut the Slot: Use a mortising machine or a drill and chisel to create the internal pocket where the lock case will sit.
2. Fitting the Lock Body
Insert the Case: Slide the stainless steel lock body into the prepared slot to ensure it sits flush against the door edge.
Secure Faceplate: Use the provided heavy-duty screws to fix the faceplate firmly to the side of the door.
3. Component Alignment
Install Cylinder and Spindle: Insert the key cylinder through the designated profile hole and slide the square spindle through the handle hub.
Mount the Strike Plate: Align the strike plate on the door frame with the three deadbolts and the latch to ensure smooth locking engagement.
1. Daily Operation
Retract Latch: Turn the door handle downward to retract the top latch and open the door.
Engage Deadbolts: Turn the key or thumb-turn two full rotations to extend the three reinforced deadbolts into the door frame for maximum security.
Automatic Latching: When closing the door, the spring-loaded latch will automatically engage to keep the door shut even when the bolts are not thrown.
2. Maintenance
Check Alignment: Ensure the three bolts align perfectly with the strike plate on the door frame to prevent friction or jamming.
Surface Care: Wipe the stainless steel faceplate with a damp cloth to remove fingerprints and prevent surface oxidation.
Lubrication: Apply a dry graphite lubricant to the keyway and a small amount of grease to the bolts once a year to maintain smooth mechanical movement.
1. Triple-Bolt High Security
Reinforced Deadbolts: Unlike standard locks with one small bolt, this model features three heavy-duty deadbolts that distribute the force of an attempted break-in across a larger surface area.
Anti-Saw Protection: The hardened stainless steel bolts are designed to resist cutting and sawing, providing a formidable barrier for perimeter doors.
2. Marine-Grade Stainless Steel 304
Corrosion Resistance: The entire lock case and faceplate are constructed from Grade 304 stainless steel, making it immune to rust and oxidation in humid or coastal environments.
Long-Term Aesthetics: The brushed steel finish maintains a professional, high-end look without the pitting or peeling common in cheaper zinc-alloy lock bodies.
3. Universal Compatibility
European Standard (DIN): This lock body follows standard architectural dimensions, making it a perfect smart lock body replacement or an easy upgrade for existing European-style doors.
Fire Rated Safety: Designed to meet strict safety codes, the all-metal construction ensures the lock remains functional even under high-heat conditions during an emergency.
Welcome to contact us
Custom Support & Sale:+86-750-3915520
Phone:+86 13725946499
E-mail:info@degolhardware.com
Address: Building 2, No. 898 Jiangmen Avenue Middle, Pengjiang District, Jiangmen CityGuangdong, China 529000
