ML1017 Stainless Steel Multi-Bolt Mortise Lock Body 70mm Backset Security Door Lock

Product Introduction

The DEGOL ML1017 Stainless Steel Multi-Bolt Mortise Lock Body is an architectural door locking component designed for compatible door assemblies requiring a multi-bolt mechanical locking configuration.

Featuring a 70mm backset, the ML1017 incorporates a rectangular mortise lock case, an extended faceplate and multiple locking elements arranged along the door edge.

The supplied technical drawing illustrates several rectangular bolt components, a handle spindle opening and a cylinder-profile cutout, indicating a lock body configuration intended to operate with compatible door handles and cylinder hardware.

The design may be considered for security door systems, wooden entrance doors, metal door assemblies and architectural locking applications where the overall door preparation and operating mechanism meet the product requirements.

Unlike a conventional single-deadbolt lock, a multi-bolt mortise lock body can incorporate several locking elements within an integrated lock case or connected locking system.

For international architectural hardware distributors, door manufacturers, importers and construction project buyers, DEGOL provides a direct channel for product specifications, technical documentation, samples and wholesale quotations.

Buyers should verify the ML1017 lock dimensions, material grades, actual bolt arrangement, cylinder compatibility and installation requirements before ordering.

Product Definition

What Is a Stainless Steel Multi-Bolt Mortise Lock Body?

A stainless steel multi-bolt mortise lock body is a mechanical door locking component designed to be installed within a prepared cavity in the door edge.

It uses multiple bolt or latch elements to engage with compatible strike openings or receiving hardware in the door frame.

The lock body may be operated through a compatible handle, key cylinder or other designated mechanical control, depending on the internal mechanism.

The DEGOL ML1017 drawing shows an extended faceplate with several bolt elements, making it a multi-bolt mortise lock configuration rather than a simple single-latch lock body.

How Does a Multi-Bolt Mortise Lock Work?

When the operating mechanism is activated, the internal components control the movement of the relevant latch and bolt elements.

In a typical multi-bolt arrangement, one or more bolts extend into matching receiving positions in the door frame to secure the door.

When unlocked, the operating mechanism allows the relevant locking elements to retract or disengage.

The exact sequence depends on the specific lock's mechanism and must be verified for ML1017.

Multi-Bolt Lock vs. Single Deadbolt Lock

Important: Multi-bolt construction does not automatically establish a certified security grade or compatibility with fire-rated doors.

Product Specification

Technical Drawing & Dimensions

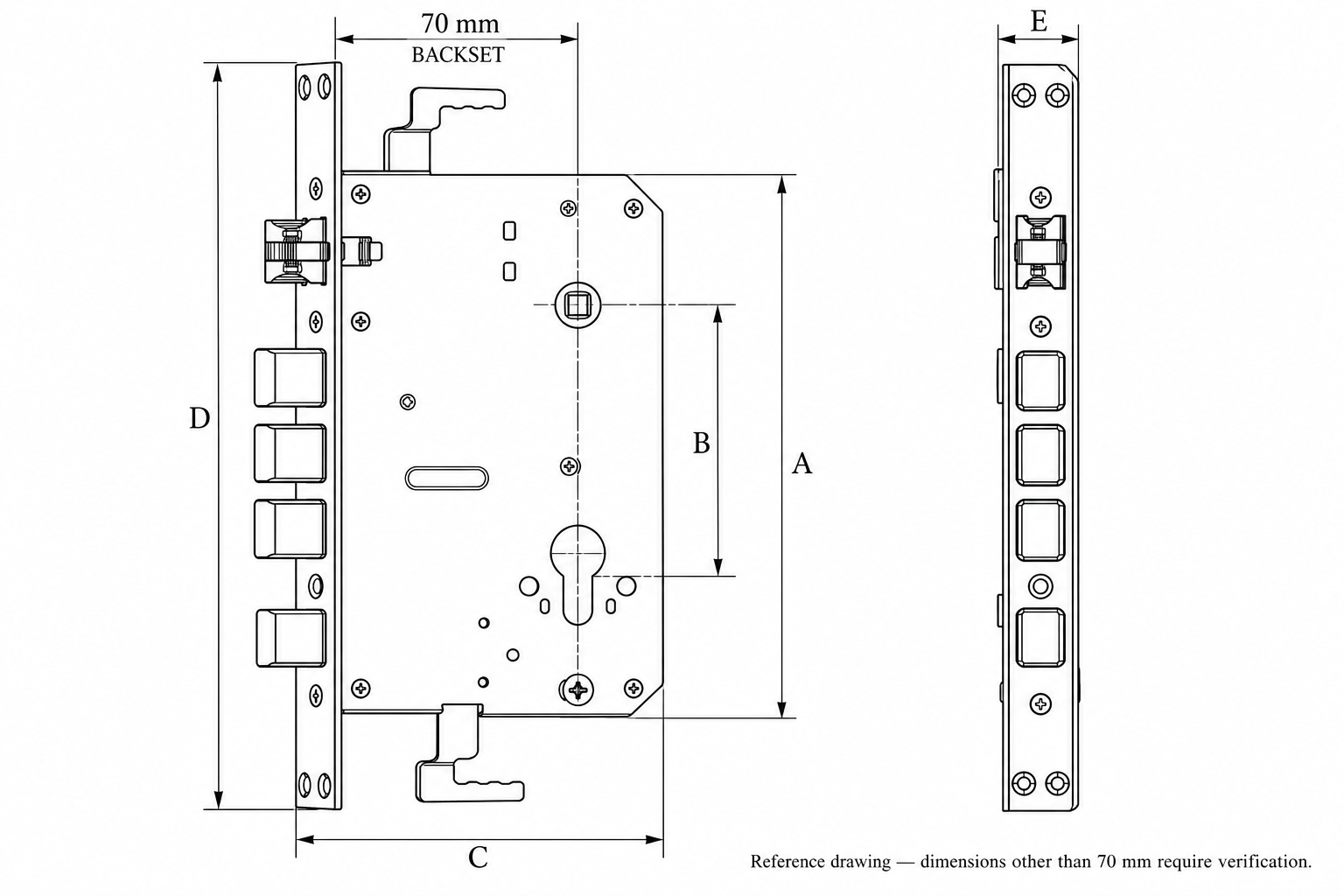

The ML1017 technical reference drawing provides important information about the overall mortise lock body design, faceplate structure, multi-bolt arrangement and operating hardware locations.

The drawing includes side and edge views with dimension references labeled A, B, C, D and E.

Confirmed and Unconfirmed Technical Dimensions

1. Backset – 70 mm

The drawing explicitly labels a 70 mm backset. This is an important specification for selecting a compatible handle position and door preparation.

For installation, the manufacturer's precise reference edge and centerline must be followed.

2. Lock Case Height – A

Dimension A is shown vertically alongside the main rectangular lock case.

The actual height must be confirmed to determine the size of the mortise pocket required in the door.

3. Spindle-to-Cylinder Distance – B

Dimension B is illustrated between the handle spindle and the cylinder region.

This measurement is important for selecting compatible handle backplates, door escutcheons and cylinder hardware.

4. Lock Body Depth – C

Dimension C represents a horizontal reference dimension from the faceplate region toward the rear of the lock case.

Its exact datum points should be checked against the manufacturer's final drawing.

5. Faceplate Length – D

Dimension D corresponds to the full length of the vertical front plate shown along the door edge.

It is important for door edge preparation and installation clearance.

6. Faceplate Width – E

Dimension E is marked across the faceplate width in the edge view.

The correct measurement is essential for preparing an accurately sized faceplate recess.

7. Multiple Locking Elements

The drawing illustrates four rectangular bolt elements together with an additional upper latch or auxiliary locking feature.

The actual internal mechanism and operating sequence should be confirmed before describing this model as a specific numbered-point locking system.

8. Upper and Lower Linkage Components

The image also shows projecting linkage-like components near the top and bottom of the lock case.

Their functions and compatibility with extension rods or additional locking hardware require verification.

Technical Drawing Request

For final production and installation, buyers should obtain:

• Fully dimensioned ML1017 technical drawing

• Exact A, B, C, D and E dimensions

• Lock body thickness

• Handle spindle size

• Cylinder cutout measurements

• Bolt extension / retraction distances

• Faceplate screw spacing

• Strike plate and keeper arrangement

• Upper and lower linkage specifications

• Installation instructions

Technical Notice: The supplied drawing states that dimensions other than the 70 mm backset require verification. It should not be used as a complete machining template.

Material & Surface Finish

The DEGOL ML1017 Stainless Steel Multi-Bolt Lock Body belongs to the architectural mortise lock hardware category, where material selection and surface treatment contribute to mechanical reliability, corrosion resistance and the product's appearance.

DEGOL publishes other stainless steel multi-bolt and mortise lock products with sanded metal finishes, including ML1003 and ML1024. These provide background on the company's lock product range, but their material grades and specifications should not automatically be assigned to ML1017.

Stainless Steel Material Options

Buyers may ask DEGOL whether stainless steel grades such as SUS201 or SUS304 are available for the faceplate or other ML1017 components.

Material selection should be verified separately for each component, because the outer housing, internal mechanism, bolts and faceplate may not be manufactured from the same material.

Surface Finish Options

Depending on production availability, buyers can inquire about satin stainless steel, polished stainless steel, silver sanded finish or customized surface treatments.

Maintenance and Environmental Suitability

For doors installed in high-humidity or outdoor environments, buyers should confirm corrosion resistance, material grade and recommended maintenance requirements before ordering.

Applications

The DEGOL ML1017 Multi-Bolt Mortise Lock Body can be considered for architectural door systems requiring a multi-element mechanical locking arrangement.

1. Residential Entrance Doors

A compatible multi-bolt mortise lock can provide a coordinated mechanical locking arrangement for suitable residential entrance doors.

2. Security Door Systems

The ML1017 can be evaluated for security door assemblies requiring multiple bolt receiving points, subject to confirmed hardware compatibility and performance requirements.

3. Apartment Entrance Doors

The mortise lock body may be considered in apartment door hardware projects where its locking configuration meets local building and emergency egress requirements.

4. Commercial Building Doors

Multi-bolt mortise hardware may be used on selected commercial doors where the product's operating mechanism and installation arrangement are appropriate.

5. Metal Door Manufacturing

Metal door manufacturers can evaluate ML1017 for compatible prepared door sections after checking the lock case depth, thickness and faceplate dimensions.

6. Wooden Door Manufacturing

Wooden door manufacturers may incorporate suitable mortise lock bodies into factory-prepared door systems.

7. Architectural Door Hardware Projects

The model can be considered alongside compatible lever handles, cylinders, strike plates and door accessories.

8. Door Hardware Wholesale Distribution

ML1017 is relevant to international distributors and importers sourcing multi-bolt mechanical lock bodies for their architectural hardware ranges.

Suitable Door Types

Compatibility Notice

The 70 mm backset alone does not determine whether ML1017 will fit a particular door.

The complete lock case dimensions, faceplate configuration, spindle position, cylinder arrangement and receiving strikes must be checked before installation.

Installation Guide

Step 1 – Confirm Door Compatibility

Check the door thickness, material, mortise cavity, opening direction and applicable building regulations.

Step 2 – Review the Technical Drawing

Obtain the verified ML1017 dimensions, including the 70 mm backset and confirmed A–E measurements.

Step 3 – Mark the Lock Position

Identify the required mounting height, handle spindle centerline, cylinder centerline and faceplate location.

Step 4 – Prepare the Door Mortise

Create the lock case cavity according to the manufacturer's approved dimensions.

Step 5 – Prepare the Faceplate Recess

Machine the door edge to accommodate the full-length faceplate without interfering with the lock's moving components.

Step 6 – Install the Mortise Lock Body

Insert the lock case into the prepared cavity and secure it using the recommended mounting screws.

Step 7 – Install Compatible Operating Hardware

Fit the appropriate door handle, spindle and cylinder according to the actual ML1017 configuration.

Step 8 – Install Strikes and Receiving Hardware

Position the matching strikes or keepers in the door frame so the latch and bolts engage correctly.

Step 9 – Connect Additional Components

If the confirmed model includes extension rods or other auxiliary locking components, install them in accordance with the manufacturer-approved instructions.

Step 10 – Test the Locking Mechanism

With the door open, check all applicable bolt movements, handle operation and cylinder locking functions.

Step 11 – Check Door Alignment

Close the door carefully and verify that the bolt and latch elements align with their respective receiving points.

Step 12 – Complete Final Inspection

Confirm that the lock operates smoothly, secures correctly, releases appropriately and does not interfere with the door's required safety functions.

Installation Safety Notice: Do not modify the internal lock mechanism or use the product on fire-rated or emergency exit doors without verifying the relevant hardware approval and egress requirements.

Product Advantages

1. Multi-Bolt Locking Configuration

The ML1017 drawing shows several bolt elements arranged within an integrated mortise lock body.

2. 70 mm Backset

The documented 70 mm backset provides a key reference for preliminary door hardware selection and installation planning.

3. Integrated Mortise Case Design

The main locking mechanism is housed within a rectangular lock case designed for integration into a properly prepared door edge.

4. Extended Lock Faceplate

The long faceplate accommodates multiple locking elements and provides an integrated door-edge hardware arrangement.

5. Handle and Cylinder Interface

The illustrated handle spindle opening and cylinder cutout support selection of compatible mechanical operating hardware.

6. Multi-Component Door Hardware Integration

The lock may be combined with suitable handles, cylinders, strikes and other architectural door fittings.

7. Residential and Commercial Project Potential

The product category is relevant to compatible entrance doors, security door systems and selected commercial applications.

8. Wholesale Sourcing Support

DEGOL provides contact channels for technical documentation, product configurations, samples and wholesale quotations.

9. OEM / ODM Customization Inquiries

Buyers can discuss material specifications, finishes, packaging and other feasible custom requirements with DEGOL.

OEM / ODM Service

DEGOL Hardware welcomes OEM and ODM inquiries from door manufacturers, lock distributors, hardware wholesalers, importers and project procurement teams.

For the ML1017 Multi-Bolt Lock Body, customization requirements can be evaluated according to engineering feasibility, product design and order quantity.

OEM / ODM Ordering Requirements

Please provide the requested lock body dimensions, backset, spindle-to-cylinder center distance, faceplate size, intended door type, target market, expected order quantity and any applicable performance requirements.

Changes to locking elements or operating mechanisms may require additional technical validation.

Packaging & Order Information

Wholesale Ordering Recommendations

To obtain an accurate quotation, customers should provide the ML1017 model number, required quantity, full dimensional requirements, destination country, preferred finish and accessory requirements.

For door manufacturing projects, the complete installation drawing should be approved before final procurement.

Factory Capability

Jiangmen Degol Hardware Co., Ltd. – Architectural Door Lock Manufacturer & Supplier in China

DEGOL Hardware is a China-based supplier of architectural door hardware for residential, commercial and building project applications.

Its product portfolio includes mortise lock bodies, cylinders, door handles, hinges, door closers and other architectural hardware products.

Mortise Lock Product Range

DEGOL publishes a range of stainless steel mortise and multi-bolt lock body products, including ML1003 and ML1024, for different door hardware requirements.

DEGOL accepts inquiries from international hardware distributors, importers and construction procurement teams regarding available products, order quantities and commercial terms.

OEM / ODM Product Inquiries

Buyers can discuss custom specifications, material options, surface finishes and private-label packaging based on production feasibility.

Architectural Hardware Coordination

Customers can inquire about matching lock cylinders, lever handles, door hinges and related fittings for coordinated door hardware procurement.

Technical Documentation and Product Evaluation

DEGOL can be contacted to provide verified specifications, technical drawings, sample availability and supporting product documentation.

International Business Contact

Company: Jiangmen Degol Hardware Co., Ltd.

Website: degolhardware.com

WhatsApp: +86 13725946499

Email: info@degolhardware.com

FAQ – ML1017 Stainless Steel Multi-Bolt Lock Body

Q1: What is the DEGOL ML1017 Multi-Bolt Lock Body?

The DEGOL ML1017 is a stainless steel multi-bolt mortise lock body model illustrated with multiple bolt elements, a long faceplate, a handle spindle opening and a cylinder cutout.

Q2: What is the backset of the ML1017?

The supplied engineering drawing explicitly specifies a 70 mm backset.

Q3: What is a multi-bolt mortise lock?

A multi-bolt mortise lock is a door locking mechanism installed inside a mortise cavity and designed to operate multiple locking elements through a compatible mechanical system.

Q4: How many locking bolts does ML1017 have?

The supplied drawing shows four rectangular bolt elements and an additional upper latch or auxiliary element. However, the exact functional locking-point count and operating sequence require confirmation.

Q5: What are dimensions A, B, C, D and E?

They identify important lock body and faceplate measurements, but the drawing does not provide their numerical values. Buyers should request a fully dimensioned ML1017 technical drawing.

Q6: Is ML1017 compatible with European profile cylinders?

The drawing shows a cylinder cutout resembling a European-profile cylinder opening. Actual cylinder compatibility must be confirmed using the official specification.

Q7: What handle can be used with the ML1017?

A compatible lever handle or other specified operating hardware may be used, provided the spindle size, fixing positions and operating requirements match the lock body.

Q8: Is the ML1017 made entirely of stainless steel?

The product is identified as a stainless steel multi-bolt lock body, but the exact material and grade of each internal and external component must be confirmed.

Q9: What surface finishes are available?

Available finishes should be confirmed with DEGOL. Buyers may submit satin, polished or other project-specific finish requirements.

Q10: Can ML1017 be installed on wooden doors?

It may be suitable for wooden doors with adequate thickness, structural support and the required mortise preparation.

Q11: Can ML1017 be used on metal security doors?

The lock may be considered for compatible metal security door systems, subject to confirmed lock dimensions, frame reinforcement and matching strike hardware.

Q12: Is ML1017 a certified high-security lock?

No specific security grade or certification has been independently verified for ML1017. Buyers should request appropriate test documentation if certification is required.

Q13: Can ML1017 be used on fire-rated doors?

Fire door suitability must be supported by the appropriate hardware approval and compatibility with the approved fire-rated door assembly.

Q14: Does ML1017 include a lock cylinder and handles?

The supplied drawing shows operating interfaces but does not establish the contents of the standard product package. Cylinder and handle inclusion should be confirmed before purchase.

Q15: Can DEGOL customize the ML1017 lock body?

Customers can request technical review of different dimensions, material specifications, finishes and packaging requirements. Availability depends on design and production feasibility.

Q16: Does DEGOL provide OEM / ODM services?

DEGOL accepts OEM and ODM inquiries for architectural door hardware, subject to final product specifications and commercial terms.

Q17: Can I purchase ML1017 lock bodies in bulk?

Wholesale customers can contact DEGOL to discuss minimum order quantities, samples, production lead times and volume pricing.

Q18: How do I request a wholesale quotation for ML1017?

Contact DEGOL Hardware through WhatsApp, email or the official website. Include the ML1017 model, quantity, required dimensions, preferred finish, destination market and customization requirements.

Contact DEGOL – Request a Wholesale Quote
