How to remove door lever handle set?

A door lever handle set is a fundamental mechanical interface that enables controlled opening, closing, and locking of interior and exterior doors. Compared to traditional knob-style handles, lever sets deliver superior ergonomics, accessibility, and design flexibility, making them the dominant choice in modern residential, commercial, and institutional buildings.

Over time, handles may become loose, suffer mechanical wear, or require replacement due to aesthetic or functional upgrades. Removing a lever handle set safely and correctly is essential to avoid damaging door surfaces, lock bodies, or internal hardware components.

Degol will provide you with a detailed explanation of the mechanical principles of the handle, the complete disassembly process, the mainstream product styles, as well as additional knowledge on troubleshooting and maintenance. This will offer you practical operation guidance that can be implemented.

Mechanical Principles & Core Components

Before disassembly, understanding how a lever handle operates ensures safer, faster removal. All standard lever sets rely on force transfer, spring reset, and mechanical interlock principles.

• Working Mechanism

Force Transmission: When downward pressure is applied to the lever, rotational force transfers through a square spindle to the latch bolt inside the lock body. The bolt retracts, allowing the door to open.

Spring Reset: A torsion spring inside the handle housing automatically returns the lever to its horizontal resting position once pressure is released. This extends the latch bolt and secures the door.

Interlock Fixing: Handles are secured via set screws, spring-loaded detent pins, or threaded rosettes. These fasteners connect the outer lever, inner base, and spindle into a single assembly.

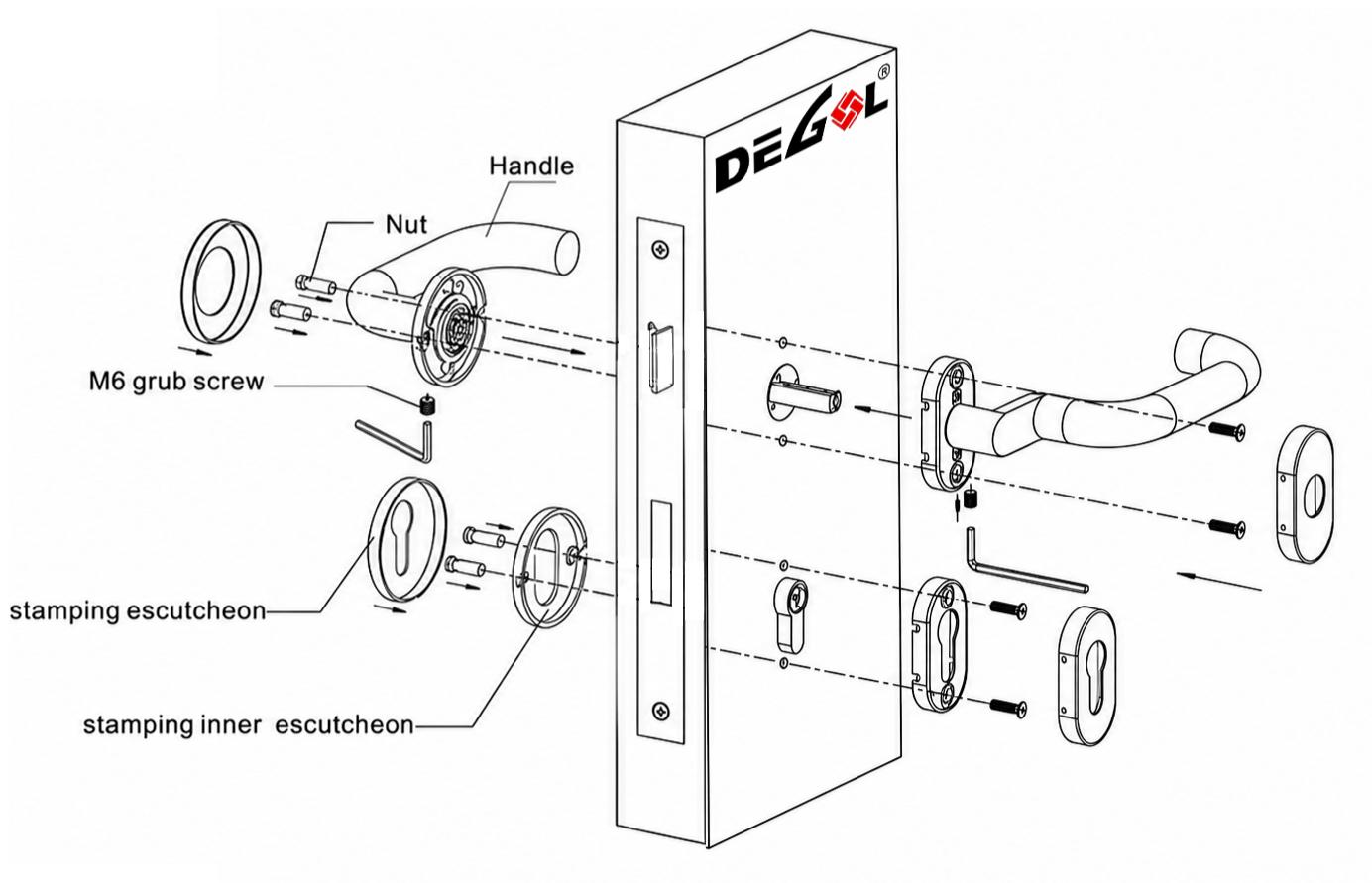

• Key Components

Lever: Ergonomic operating arm (outer and inner).

Spindle: Square metal rod (8mm/10mm standard) for force transfer.

Rosette/Backplate: Decorative and protective cover plate.

Set Screw / Detent Pin: Primary locking fasteners.

Return Spring: Provides reset torque.

Latch Bolt: Sliding bolt that secures the door.

Mounting Bolts: Long through-bolts connecting inner and outer assemblies.



Step-by-Step Removal Guide

This procedure applies to concealed set screw, detent pin, and exposed screw types. Tools required: Phillips screwdriver, flathead screwdriver, hex key set, masking tape, and a small container for parts.

• Pre-Removal Preparation

Open the door fully and wedge it open to prevent swinging during work.

Apply masking tape around the lever base to protect paint or finishes from scratches.

Lay a soft towel on the floor below to catch small screws or pins.

Identify the fastener type: hidden set screw, detent pinhole, or visible screws.

• Locate and Release the Outer Lever

①Set Screw Type (Most Common):

Find a small hole on the bottom or side of the lever neck.

Insert the correct hex key and rotate counterclockwise 2–3 turns (do not fully remove).

Pull the lever straight outward to disengage from the spindle.

②Detent Pin Type (Modern Handles):

Locate a tiny pinhole on the lever shaft or rosette edge.

Insert a straightened paperclip or thin tool and press firmly inward.

While maintaining pressure, pull the lever outward until it releases.

③Exposed Screw Type (Older Designs):

Remove the two visible screws on the inner rosette.

Pull inner and outer levers apart simultaneously.

• Remove the Rosette/Backplate

After lever removal, the circular rosette is exposed.

For snap-on rosettes: Gently pry the edge with a taped flathead screwdriver.

For threaded rosettes: Twist counterclockwise by hand or with a cloth for grip.

Set the rosette aside with other small parts.

• Detach the Mounting Base & Through-Bolts

Two long through-bolts will be visible, passing through the door.

Hold the outer assembly steady while removing bolts from the inner side.

Pull both inner and outer base assemblies away from the door.

• Extract the Spindle & Latch Mechanism

Slide the square spindle out from the lock body.

At the door edge, remove the two screws securing the latch faceplate.

Pull the latch bolt assembly out of the door mortise.

Clean the mortise area and inspect for wear or rust.

Main Styles of Door Lever Handle Sets & Feature Comparison

Lever handles differ in function, installation, and design. Below is a summary of key attributes:

 ※Style-Specific Removal Notes

Passage Lever: Simplest internal structure; focus on set screw location.

Privacy Lever: Avoid prying the emergency release hole; keep the latch assembly intact.

Keyed Entry Lever: Remove the cylinder plug after base removal to avoid damage.

Dummy Lever: No spindle or latch; just detach the decorative plate.

Fire-Rated Lever: Bolts are heavier; use proper torque to avoid stripping threads.



Common Issues & Professional Troubleshooting

Based on field experience, these are the most frequent problems during removal:

Set Screw Seized or Rusted

Apply a penetrating lubricant to the hole.

Wait 3–5 minutes, then use a properly sized hex key to avoid rounding.

Never use excessive force—this strips the screw head.

Lever Stuck After Loosening Screw

Gently wiggle left-right while pulling outward.

Dust or minor rust on the spindle is common; clean with a dry cloth once removed.

Hidden Fastener Hard to Locate

Check bottom, side, and rear of the lever neck.

Use a flashlight—manufacturers hide fasteners on non-visible surfaces for aesthetics.

Rosette Won’t Pry Off

Look for a small notch on the edge; insert screwdriver there.

If threaded, apply gentle pressure while twisting—do not bend the plate.

 ※Maintenance & Reinstallation Tips

Part Organization: Label and store screws, spindles, and gaskets in a small bag to avoid loss.

Clean & Lubricate: Wipe the spindle and latch with a dry cloth; apply a dry lubricant before reinstallation.

Screw Tightness: During reinstallation, torque screws to 0.8–1.2 N·m (hand-tight plus 1/4 turn).

Regular Inspection: For high-traffic doors, check set screw tightness every 6 months.



FAQ

Q1: Do I need professional tools to remove a lever handle?

A: No. Standard household tools (screwdrivers, hex keys) suffice. Lubricant may help with rusted parts, but power tools are unnecessary.

Q2: Can I reuse the handle after removal?

A: Yes—if all parts are intact, undamaged, and clean. Reverse the removal steps for reinstallation. Replace worn springs or damaged spindles if needed.

Q3: What’s the difference between interior and exterior lever removal?

A: Exterior handles are usually keyed entry type with thicker bolts and a cylinder. Interior handles are passage or privacy type with simpler, lighter components.

Q4: Are fire-rated levers harder to remove?

A: The steps are identical, but fire-rated hardware uses higher-grade steel and tighter tolerances. Use proper tools and avoid prying to preserve fire integrity.



Removing a door lever handle set is a mechanical task that rewards patience and precision. By understanding the force transfer and interlock principles, identifying the fastener type, and following a structured workflow, you can safely disassemble any standard lever set without damage.

Different styles—passage, privacy, keyed entry, dummy, and fire-rated—each have unique design features that affect removal steps. Always inspect for wear, clean components, and organize parts for reuse or replacement.
