Views: 1 Author: Site Editor Publish Time: 2026-03-24 Origin: Site
| Parameter | Description |

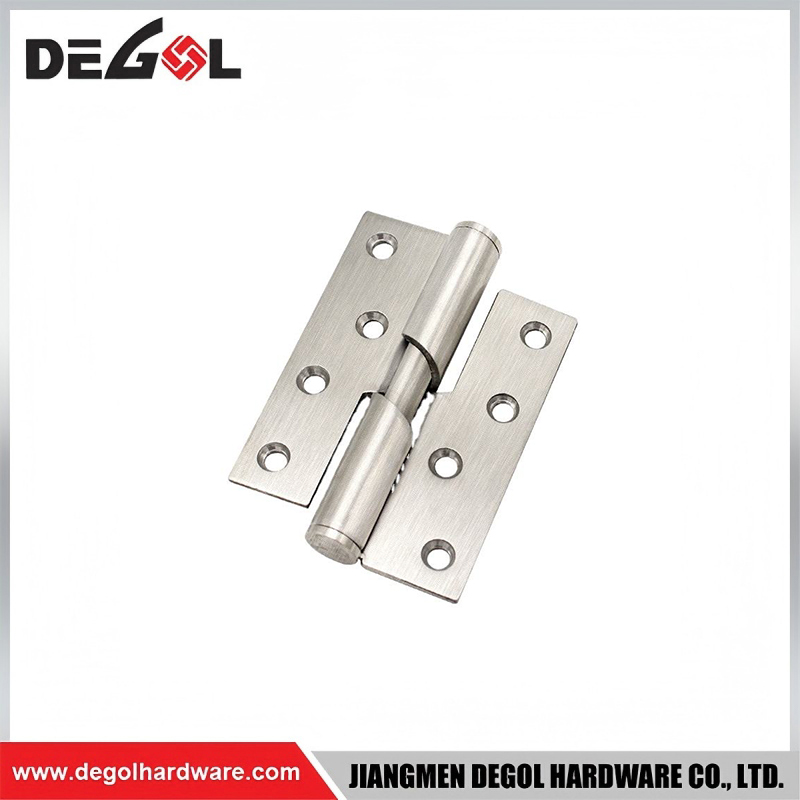

| Product Name | Lift-Off Hinge / Rising Butt Hinge |
| Material | Steel / Stainless Steel 304 / Zinc Alloy |

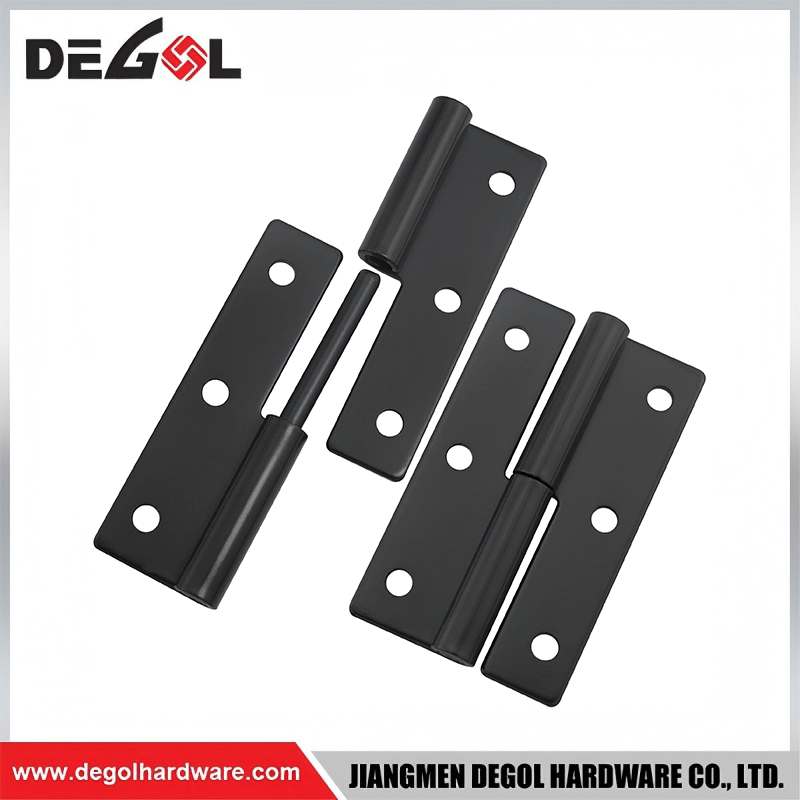

| Finish | Polished, Brushed, Satin, Black Powder Coated |
| Pin Type | Removable / Lift-Off Pin |

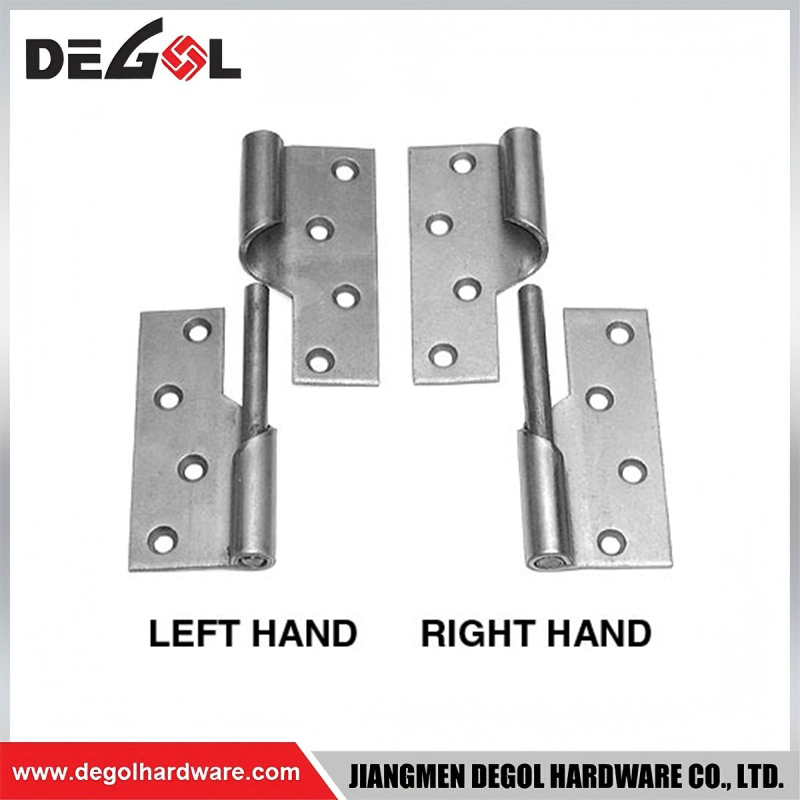

| Leaf Type | Left Hand (LH), Right Hand (RH), Reversible |
| Size (Length × Width) | 75×50mm, 100×60mm, 125×70mm, 150×80mm |
Question: Since it can be removed just by lifting up, can the thief dismantle the door from the outside?
Answer: As long as the door is closed, it is usually safe.
For most doors, the distance from the top of the door frame (or the ceiling) is shorter than the height of the hinge pin. This means there is not enough space to lift it upwards.
For outdoor doors, it is usually recommended to install the hinge pins facing inward, or to use models with anti-pick security studs. Even if the hinge pins are exposed externally, the door cannot be lifted when it is closed.
Question: When buying this hinge, do I have to choose left or right hand? What if I buy it wrong and it won't work?
Answer: It cannot be used interchangeably. If you make a wrong purchase, it won't fit.
Judgment method: Stand facing the direction the door opens (the side the door opens towards you). If the hinge is on the left, it is left-hand type; on the right, it is right-hand type.
Principle: The hinge pin must be supported below. If installed in the opposite way, the door will fall down as soon as it is hung.
Question: I have already bought this hinge, but no matter how hard I try to lift the door, it just doesn't budge?
Answer: Usually, there are three reasons for this:
Paint/Stain adhesion: The gap of the hinge was sealed by paint during the decoration, and a utility knife is needed to cut through it.
Insufficient space: The gap at the top of the door is too small, and the door hits the top of the door frame, but the hinge pin has not fully come out of the base.
Installation verticality deviation: If the two hinges are not on a precise vertical line, there will be a "clamping" force, resulting in excessive friction and making it impossible to lift.
Question: Will this "two-piece" design be less stable than ordinary hinges?
Answer: As long as the material is selected correctly, the load-bearing capacity is not an issue.
In the industrial field, there are many heavy-duty stainless steel or zinc alloy detachable hinges specifically used for the doors of machinery cabinets weighing several hundred kilograms.
Secret: The key lies in the thickness of the hinge and the diameter of the hinge pin. For extremely high or heavy doors, the weight can be shared by installing more hinges (such as 3-4).
Question: Should the part with the hinge pin be installed on the door frame or on the door panel?
Answer: The standard practice is: the part with the hinge pin (the male part) should be installed on the door frame, with the hinge pin facing upwards.
Reason: This utilizes gravity to make the door panel (the female part) fit onto the hinge pin. If installed in the opposite way (with the hinge pin inserted into the door panel from below), the door is extremely prone to falling off and extremely difficult to align during installation.
Advanced technique: When installing multiple hinges, if the hinge pin on the lower part is cut short a little, when hanging the door, first align the long hinge pin on the upper part, then the short hinge pin on the lower part, it will be much easier.
By cross-referencing material, load capacity, size, and installation parameters, you can confidently pick lift off hinges that deliver long-lasting performance and seamless lift-off functionality. Always verify specifications against your project’s weight, space, and environmental needs to ensure optimal compatibility and durability for every application.
