LH1100
Degol
| Quantity: | |
|---|---|
The DEGOL LH1100 U-Shaped Return to Door Lever Handle is a contemporary architectural door hardware product featuring a distinctive curved return-to-door lever, a minimalist square rose, and an elegant satin silver appearance.
Designed for modern residential and commercial interiors, the LH1100 combines a smooth, rounded gripping section with a gently curved lever that turns back toward the door at its outer end.
Unlike conventional straight lever handles, the LH1100 features a U-shaped return profile, creating a distinctive architectural appearance while reducing the prominence of an outward-facing lever tip.
The reference technical drawing indicates an overall handle length of approximately 135 mm, a projection of approximately 62 mm, and a rounded lever diameter of approximately 22 mm.
The lever is mounted on a square rose measuring approximately 52 × 52 mm. A matching square escutcheon with a vertical oval keyhole opening is also illustrated.
The LH1100 can be considered for modern apartments, residential buildings, offices, hotels, and compatible commercial interior door projects.
Supplied by Jiangmen Degol Hardware Co., Ltd., the LH1100 is positioned for international architectural hardware distributors, door hardware wholesalers, building material importers, door manufacturers, contractors, and OEM/ODM customers.
The supplied reference drawing identifies stainless steel as the intended material and shows a satin silver appearance. The exact material grade and final production specifications require confirmation.
The DEGOL LH1100 is a modern U-shaped return-to-door lever handle featuring a rounded gripping section and a square mounting rose.
Its distinctive design incorporates a curved lever end that turns back toward the door, creating a smooth return profile rather than an exposed straight lever tip.
The product is intended for installation with compatible interior door locking mechanisms and mounting accessories.
1. U-Shaped Return-to-Door Design
The outer end of the lever curves back toward the door, creating a distinctive U-shaped return profile.
2. Smooth Rounded Lever
The reference drawing indicates an approximately 22 mm rounded handle diameter, giving the lever a substantial architectural appearance.
3. Modern Square Rose
The approximately 52 × 52 mm square rose complements the curved lever and creates a contemporary geometric contrast.
4. Satin Silver Appearance
The reference product features a satin metallic appearance suitable for modern architectural interiors.
5. Matching Square Escutcheon
The illustrated configuration includes a matching square escutcheon with a vertical oval keyhole opening.
6. Contemporary Interior Door Hardware
The combination of a curved return lever and minimalist square rose makes the LH1100 suitable for consideration in modern architectural hardware collections.
| Parameter | Specification |
|---|---|
| Product Model | LH1100 |
| Brand | DEGOL |
| Product Name | U-Shaped Return to Door Lever Handle |
| Product Category | Architectural Door Hardware |
| Product Type | Return-to-Door Lever Handle |
| Handle Design | U-Shaped Curved Return Lever |
| Handle Profile | Smooth Rounded Profile |
| Design Style | Modern / Contemporary / Minimalist |
| Main Material | Stainless Steel – Grade Unverified |
| Material Grade | To Be Confirmed |
| Reference Finish | Satin Silver / Satin Stainless Steel Look |
| Handle Length | Approx. 135 mm |
| Handle Projection | Approx. 62 mm |
| Handle Diameter | Approx. 22 mm |
| Rose Shape | Square |
| Rose Dimensions | Approx. 52 × 52 mm |
| Rose Thickness | Approx. 8–11 mm |
| Escutcheon Shape | Square |
| Escutcheon Dimensions | Approx. 52 × 52 mm |
| Escutcheon Thickness | Approx. 8–11 mm |
| Keyhole Type | Vertical Oval Slot |
| Keyhole Slot Dimensions | Approx. 8 × 24 mm |
| Square Spindle | Approx. 8 × 8 mm |
| Applicable Door Thickness | Approx. 35–55 mm |
| Installation Type | Door Mounted |
| Lock Compatibility | Subject to Selected Lock Configuration |
| Applications | Residential / Office / Hotel / Commercial Interiors |
| OEM / ODM Service | Available on Request |
| Supplier | Jiangmen Degol Hardware Co., Ltd. |
| Country of Origin | China |
Specification Notice: All dimensions are approximate references based on the supplied technical illustration. Actual dimensions, material grade, mounting requirements, and product configurations must be confirmed before manufacturing, purchasing, or installation.
The LH1100 features a U-shaped curved return lever mounted on a square rose.

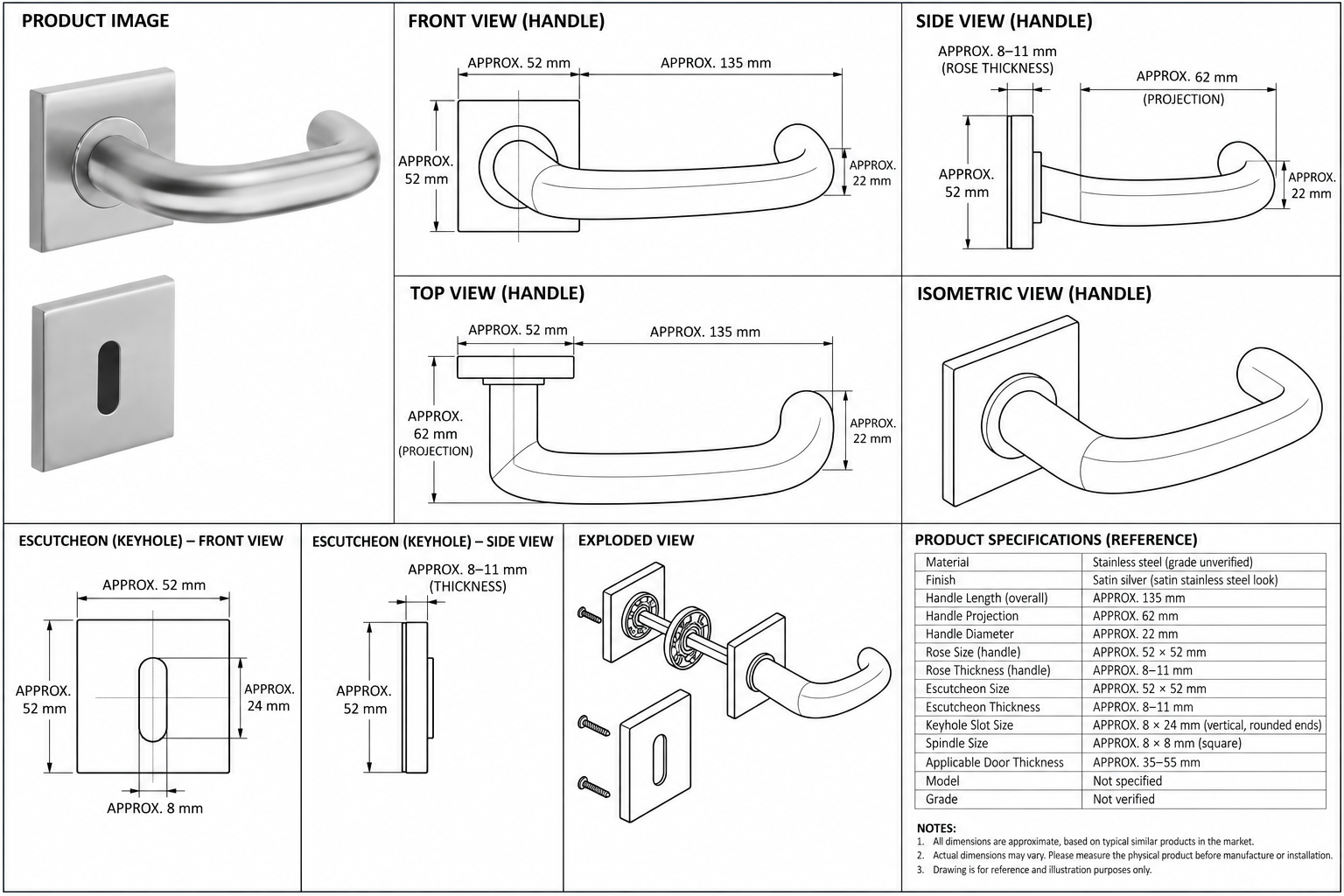

The supplied reference drawing includes front, side, top, and isometric views, together with matching escutcheon dimensions and an exploded assembly illustration.
The reference drawing indicates an overall handle length of approximately 135 mm.
The curved lever profile creates a distinctive horizontal appearance suitable for modern architectural door designs.
The reference handle projection is approximately 62 mm.
This dimension describes the outward projection shown in the technical illustration.
Actual installed projection should be verified against the final production configuration.
The reference drawing identifies a rounded handle diameter of approximately 22 mm.
The rounded gripping section provides a smooth visual profile and complements the curved return design.
The LH1100 features a gently curved lever with an outer end that returns toward the door.
This design distinguishes the LH1100 from straight tubular handles and conventional curved handles without a returned end.
The exact curvature radius and return clearance are not specified in the reference drawing.
The square rose has the following reference dimensions:
Width: Approximately 52 mm
Height: Approximately 52 mm
Thickness: Approximately 8–11 mm
The square mounting plate creates a geometric contrast with the rounded curved lever.
The matching square escutcheon has the following reference dimensions:
Width: Approximately 52 mm
Height: Approximately 52 mm
Thickness: Approximately 8–11 mm
The illustrated escutcheon features a vertical oval keyhole opening.
The reference drawing indicates a vertical oval keyhole opening measuring approximately:
Width: 8 mm
Height: 24 mm
Compatibility with the selected locking mechanism must be confirmed.
The reference assembly identifies an approximately 8 × 8 mm square spindle.
The actual spindle length and engagement requirements should be verified before installation.
The reference drawing indicates an approximate applicable door thickness range of 35–55 mm.
Final compatibility depends on the selected spindle, fixing screws, lock mechanism, and mounting accessories.
The reference drawing illustrates:
U-shaped curved lever handles
Square rose covers
Internal mounting assemblies
Square spindle
Fixing screws
Matching square escutcheon
Escutcheon mounting components
Actual package contents should be confirmed before ordering.
Customers may contact DEGOL Hardware for:
Official LH1100 technical drawings
Confirmed product dimensions
Material specifications
Mounting-hole dimensions
Spindle information
Return-to-door geometry
Square rose installation details
Escutcheon specifications
Lock compatibility information
Installation instructions
The supplied LH1100 reference drawing identifies stainless steel as the intended material, but the exact stainless steel grade has not been verified.
Stainless steel is commonly used in architectural door hardware because of its metallic appearance and corrosion resistance when an appropriate grade and finish are selected.
Customers should confirm the actual material grade before ordering.
SUS304 stainless steel is commonly used in architectural hardware applications where good general corrosion resistance is required.
Customers may inquire whether SUS304 is available for the LH1100.
Actual availability must be confirmed with DEGOL Hardware.
The reference product features a satin silver appearance similar to brushed stainless steel.
This understated metallic finish complements contemporary residential and commercial interiors.
Customers may inquire about:
Satin Stainless Steel (SSS)
A brushed metallic appearance commonly used in modern architectural door hardware.
Polished Stainless Steel (PSS)
A reflective metallic finish suitable for decorative interior door hardware.
Matte Black (BLK)
A contemporary dark finish that creates visual contrast against light-colored doors.
Antique Brass (AB)
A warm decorative finish suitable for selected modern-classic interior designs.
Customized Finishes
Other decorative finishes may be discussed for OEM/ODM projects.
Finish Availability Notice: The supplied reference shows a satin silver appearance. Actual material, finish, and alternative color availability must be confirmed before ordering.
The DEGOL LH1100 U-Shaped Return to Door Lever Handle can be considered for a variety of contemporary interior door applications.
Modern apartments
Private residences
Residential villas
Bedroom doors
Study room doors
Home office doors
Residential renovation projects
Office buildings
Meeting rooms
Administrative offices
Business centers
Commercial interior doors
Interior renovation projects
Hotel interior doors
Serviced apartments
Guest accommodation interiors
Hospitality renovation projects
The LH1100 is also positioned for:
Door hardware wholesalers
Architectural hardware distributors
Building material importers
Door manufacturers
Hardware brands
Construction project buyers
Interior hardware suppliers
The return-to-door profile may be of interest for projects where a rounded lever end is preferred.
However, compliance with accessibility, fire safety, anti-snag, or other regulatory requirements must be independently verified.
The LH1100 may be installed on compatible interior door systems where the mounting dimensions and lock configuration meet the required installation conditions.
| Door Type | Application |
|---|---|
| Wooden Interior Doors | Compatible residential installations |
| MDF Interior Doors | Subject to fixing requirements |
| Composite Interior Doors | Subject to hardware compatibility |
| Apartment Interior Doors | Residential applications |
| Bedroom Doors | Compatible room door systems |
| Office Interior Doors | Commercial interior applications |
| Hotel Interior Doors | Subject to project specifications |
| Decorative Interior Doors | Modern architectural interiors |
Before ordering or installation, verify:
Door thickness
Mortise lock compatibility
Square spindle dimensions
Spindle length
Fixing-hole positions
Square rose mounting configuration
Keyhole compatibility
Lever handing and operating direction
Clearance between the returned lever end and door surface
The LH1100 should not be assumed suitable for fire-rated doors, emergency-exit systems, or other regulated door assemblies without the required approvals.
The LH1100 should be installed according to its confirmed technical drawing and the selected lock manufacturer's instructions.
Verify the door thickness, lock dimensions, spindle opening, and mounting positions.
Confirm that the selected handle configuration is suitable for the door.
Mark the required mounting positions according to the official installation drawing.
Check the alignment of the spindle opening and keyhole before drilling.
Install a compatible mortise lock according to the lock manufacturer's instructions.
Ensure that the latch mechanism operates correctly.
Insert the correctly specified square spindle through the lock follower.
The reference illustration indicates an approximately 8 × 8 mm square spindle.
Confirm the actual spindle length and dimensions before installation.
Position the handle assemblies on both sides of the door.
Align the spindle and mounting components carefully.
Check that the returned ends face the correct direction for the intended installation.
Attach the internal mounting components using the specified fixing screws.
Install the square rose covers and check their alignment.
If matching escutcheons are included in the selected configuration, install them around the compatible keyhole openings.
Secure them using the appropriate mounting components.
Operate the handles several times to verify:
Smooth lever movement
Correct latch retraction
Proper handle return
Secure mounting
Correct rose alignment
Unrestricted lock operation
Adequate clearance around the returned lever ends
Professional installation is recommended for commercial and specialized door hardware projects.
The LH1100 features a curved lever end that returns toward the door, creating a distinctive architectural appearance compared with conventional straight lever handles.
The approximately 22 mm rounded gripping section creates a smooth and substantial visual profile.
The square mounting plate provides a geometric contrast with the curved return lever, creating a balanced contemporary design.
The reference finish complements modern wooden doors, neutral interior palettes, and minimalist architectural environments.
The returned-end configuration reduces the prominence of a straight outward-facing tip.
Suitability for anti-snag or safety-critical applications must be verified against applicable requirements.
The illustrated matching escutcheon provides a consistent appearance for compatible interior door locking configurations.
The LH1100 can be considered for modern apartments, offices, hotels, and compatible commercial interiors.
The supplied drawing includes approximate handle length, projection, diameter, rose dimensions, spindle size, and door thickness information to support preliminary product evaluation.
The LH1100 is positioned for architectural hardware wholesalers, importers, distributors, and international project buyers.
DEGOL welcomes inquiries involving customized branding, packaging, surface finishes, and technically feasible product specifications.
Jiangmen Degol Hardware Co., Ltd. welcomes OEM and ODM cooperation inquiries for the LH1100 U-Shaped Return to Door Lever Handle.
B2B customers may discuss product customization requirements for architectural hardware collections, private-label distribution, and construction projects.
Potential requirements include:
Customer logo
Private-label product identification
Customized packaging artwork
Customer-specific model codes
Custom carton labels
Customers may inquire about:
Satin stainless steel
Polished stainless steel
Matte black
Antique brass
Other project-specific finishes
Actual finish availability depends on material selection, production feasibility, and order requirements.
Project-specific requests may include:
Lever length
Lever curvature
Return-to-door geometry
Handle diameter
Square rose dimensions
Escutcheon configuration
Mounting requirements
Compatible accessories
Structural or dimensional changes require technical evaluation.
Packaging inquiries may include:
Customer-branded boxes
Individual product packaging
Customized product labels
Export carton markings
Project-specific packing instructions
DEGOL welcomes inquiries regarding:
Wholesale door hardware orders
Private-label product collections
Product samples
Technical drawings
Custom finish requirements
Architectural project supply
Bulk purchasing arrangements
Customization options, tooling requirements, minimum order quantities, and production schedules must be confirmed before ordering.
| Item | Information |
|---|---|
| Product Model | LH1100 |
| Brand | DEGOL |
| Product Name | U-Shaped Return to Door Lever Handle |
| Material | Stainless Steel – Grade To Be Confirmed |
| Reference Finish | Satin Silver |
| Standard Packaging | To Be Confirmed |
| Customized Packaging | Available for Discussion |
| Inner Box | According to Order Requirements |
| Export Carton | According to Agreed Packaging |
| MOQ | Contact DEGOL |
| Sample Availability | Upon Inquiry |
| Sample Lead Time | To Be Confirmed |
| Bulk Production Lead Time | Based on Order Specifications |
| OEM Branding | Subject to Confirmation |
| Wholesale Pricing | Quotation Upon Request |
| Shipping Terms | According to Agreed Order Terms |
Step 1 – Submit Product Inquiry
Contact DEGOL Hardware with model LH1100, estimated order quantity, preferred material, finish, and destination market.
Step 2 – Confirm Product Specifications
Review the actual material, dimensions, mounting requirements, lock compatibility, accessories, and packaging.
Step 3 – Request Samples
Discuss sample availability, sample charges, and shipping arrangements.
Step 4 – Receive Wholesale Quotation
Confirm unit price, MOQ, production schedule, packaging requirements, and trading terms.
Step 5 – Confirm Purchase Order
Approve the final technical specifications and commercial conditions.
Step 6 – Arrange Production and Shipment
Production and shipment follow the agreed purchase order requirements.
Jiangmen Degol Hardware Co., Ltd. supplies architectural door hardware products for international B2B sourcing requirements.
The LH1100 U-Shaped Return to Door Lever Handle is positioned within DEGOL's contemporary architectural door handle product range.
DEGOL welcomes inquiries for products including:
U-shaped return-to-door lever handles
Modern curved door handles
Square rose door lever handles
Stainless steel door hardware
Architectural interior door handles
Residential door lever handles
Commercial interior door hardware
Matching escutcheon accessories
OEM and private-label hardware products
Potential customers include:
Door hardware wholesalers
International importers
Architectural hardware distributors
Building material suppliers
Door manufacturers
Construction contractors
Hardware brands
Interior design procurement teams
Customers may contact DEGOL regarding:
Product specifications
Technical drawing requests
Material grade confirmation
Sample arrangements
Surface finish requirements
Wholesale quotations
OEM/ODM inquiries
Custom packaging
Bulk order requirements
Detailed factory production capacity, manufacturing equipment, inspection procedures, material certificates, and product certifications should be confirmed directly where required.
Company: Jiangmen Degol Hardware Co., Ltd.
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
WhatsApp: +86 13725946499
The DEGOL LH1100 is a modern door lever handle featuring a smooth rounded gripping section, a curved return-to-door end, and a square mounting rose.
It is intended for compatible residential and commercial interior door hardware applications.
Return-to-door describes a lever design in which the outer end curves back toward the door surface rather than ending as a straight projecting tip.
The LH1100 features a pronounced curved return at the outer end of the lever.
This distinguishes it from gently curved handles that do not return toward the door.
The supplied reference drawing identifies stainless steel as the intended material, but the exact grade has not been verified.
Customers should confirm the material specification before ordering.
SUS304 may be discussed as a potential material requirement.
Actual availability for LH1100 must be confirmed with DEGOL Hardware.
The reference drawing indicates an approximate overall handle length of 135 mm.
The final production dimension must be verified.
The reference drawing indicates an approximate handle projection of 62 mm.
The reference drawing identifies an approximate rounded handle diameter of 22 mm.
The reference square rose measures approximately 52 × 52 mm with a thickness of approximately 8–11 mm.
The matching reference escutcheon measures approximately 52 × 52 mm with a thickness of approximately 8–11 mm.
The illustrated escutcheon features a vertical oval opening measuring approximately 8 × 24 mm.
The reference illustration indicates an approximately 8 × 8 mm square spindle.
The actual spindle length and specifications must be confirmed.
The reference drawing indicates an approximate applicable door thickness range of 35–55 mm.
Actual compatibility depends on the selected mounting and locking configuration.
The LH1100 may be installed on compatible wooden interior doors when the mounting dimensions and lock configuration are suitable.
The LH1100 can be considered for office and hotel interior door applications, subject to confirmed product specifications and project requirements.
The returned-end geometry may reduce the prominence of an exposed lever tip.
However, anti-snag performance and compliance with any applicable safety standard have not been verified.
ADA compliance cannot be determined from the reference drawing alone.
Compliance depends on the complete hardware configuration, installed clearances, operating force, and applicable requirements.
The reference product features a satin silver appearance similar to brushed stainless steel.
The actual finish must be confirmed before ordering.
The reference illustration shows a matching square escutcheon.
Customers should confirm whether the escutcheon is included in the quoted product set.
DEGOL welcomes OEM and ODM inquiries involving branding, packaging, surface finishes, and technically feasible customized specifications.
Customers may contact DEGOL to inquire about LH1100 sample availability, sample charges, and shipping arrangements.
The MOQ depends on the selected product configuration, material, finish, packaging, and customization requirements.
Contact DEGOL for current wholesale order conditions.
Customers can request official LH1100 technical drawings, mounting information, and installation specifications directly from DEGOL Hardware.
Suitability for fire-rated doors cannot be determined from the lever shape alone.
The complete door and hardware assembly must meet the applicable requirements and certifications.
DEGOL welcomes private-label packaging inquiries, including custom boxes, labels, and carton markings.
Availability and MOQ depend on the order requirements.
Contact DEGOL Hardware through WhatsApp or email.
Provide product model LH1100, preferred material, surface finish, estimated order quantity, destination market, and any special requirements.
Looking for an LH1100 U-Shaped Return to Door Lever Handle on Square Rose for your architectural door hardware range?
Contact DEGOL Hardware for product specifications, technical drawings, available finishes, sample information and wholesale pricing.
Product Model: LH1100 U-Shaped Return to Door Lever Handle on Square Rose
Company: Jiangmen Degol Hardware Co., Ltd.
WhatsApp: +86 13725946499
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
Request Your LH1100 U-Shaped Return to Door Lever Handle Wholesale Quote Today.
