LH1094
Degol
| Quantity: | |
|---|---|
The DEGOL LH1094 Stainless Steel U-Shape Door Lever Handle is a modern architectural door hardware product featuring a distinctive U-shaped tubular lever, a compact oval rose, and a clean minimalist appearance.
Designed for contemporary residential and commercial interiors, the LH1094 combines the visual simplicity of round stainless steel tubing with a return-to-door lever configuration.
Its smooth curved profile creates an elegant and practical architectural appearance, making it an attractive choice for modern apartments, hotels, offices, commercial buildings, and interior renovation projects.
The reference design features a satin or brushed stainless steel appearance, with an oval mounting rose and optional matching Euro-profile escutcheon.
The U-shaped return design is particularly relevant to architectural projects where a lever with a returned end is preferred. Suitability for accessibility, safety, or other regulated applications must be verified against the applicable standards.
Supplied by Jiangmen Degol Hardware Co., Ltd., the LH1094 is positioned for international door hardware wholesalers, distributors, importers, door manufacturers, and OEM/ODM customers.
The LH1094 is a stainless steel tubular door lever handle featuring a U-shaped return design and an oval mounting rose.
Unlike conventional straight lever handles, the LH1094 incorporates a curved return at the outer end of the handle, forming a rounded U-shaped profile when viewed from above.
The handle is designed for installation with compatible door locking mechanisms and mounting accessories.
1. U-Shaped Tubular Lever
The lever features a cylindrical gripping section with a rounded return at the outer end.
2. Return-to-Door Design
The returned lever end creates a distinctive architectural profile and reduces the exposed outward-facing tip compared with some straight lever designs.
3. Compact Oval Rose
The oval mounting rose provides a narrow mounting profile that complements the tubular handle design.
4. Stainless Steel Construction
The product is specified as a stainless steel lever handle, with material grade subject to the selected production configuration.
5. Matching Euro-Profile Escutcheon
The reference design includes an oval escutcheon intended for compatible Euro-profile cylinder installations.
The LH1094 can be considered for residential and commercial interior door hardware applications, subject to final dimensional and mechanical compatibility.
| Parameter | Specification |
|---|---|
| Product Model | LH1094 |
| Product Brand | DEGOL |
| Product Name | Stainless Steel U-Shape Door Lever Handle |
| Product Category | Architectural Door Hardware |
| Product Type | Tubular Lever Handle Set |
| Lever Design | U-Shaped Return Lever |
| Lever Profile | Round Tubular |
| Rose Type | Oval Rose |
| Main Material | Stainless Steel |
| Material Grade Options | SS304 / SS201 – subject to confirmation |
| Reference Surface Finish | Satin / Brushed Stainless Steel |
| Reference Lever Length | 140 mm |
| Reference Projection | 60 mm |
| Reference Tube Diameter | Ø19 mm |
| Reference Rose Dimensions | 52 × 30 × 8 mm |
| Reference Escutcheon Dimensions | 52 × 30 × 8 mm |
| Reference Fixing Hole Spacing | 38 mm |
| Reference Square Spindle | 8 × 8 mm |
| Reference Door Thickness | 35–55 mm |
| Cylinder Compatibility | Euro Profile – subject to configuration |
| Installation Type | Door Mounted |
| Suitable Applications | Residential / Hotel / Office / Commercial |
| OEM / ODM Service | Available on Request |
| Manufacturer | Jiangmen Degol Hardware Co., Ltd. |
| Country of Origin | China |
Specification Notice: The supplied technical illustration identifies these measurements as typical market reference dimensions. Final LH1094 production dimensions, stainless steel grade, hardware configuration, and door compatibility must be confirmed before ordering or manufacturing.
The LH1094 features a stainless steel tubular lever with a U-shaped return, mounted on a compact oval rose.

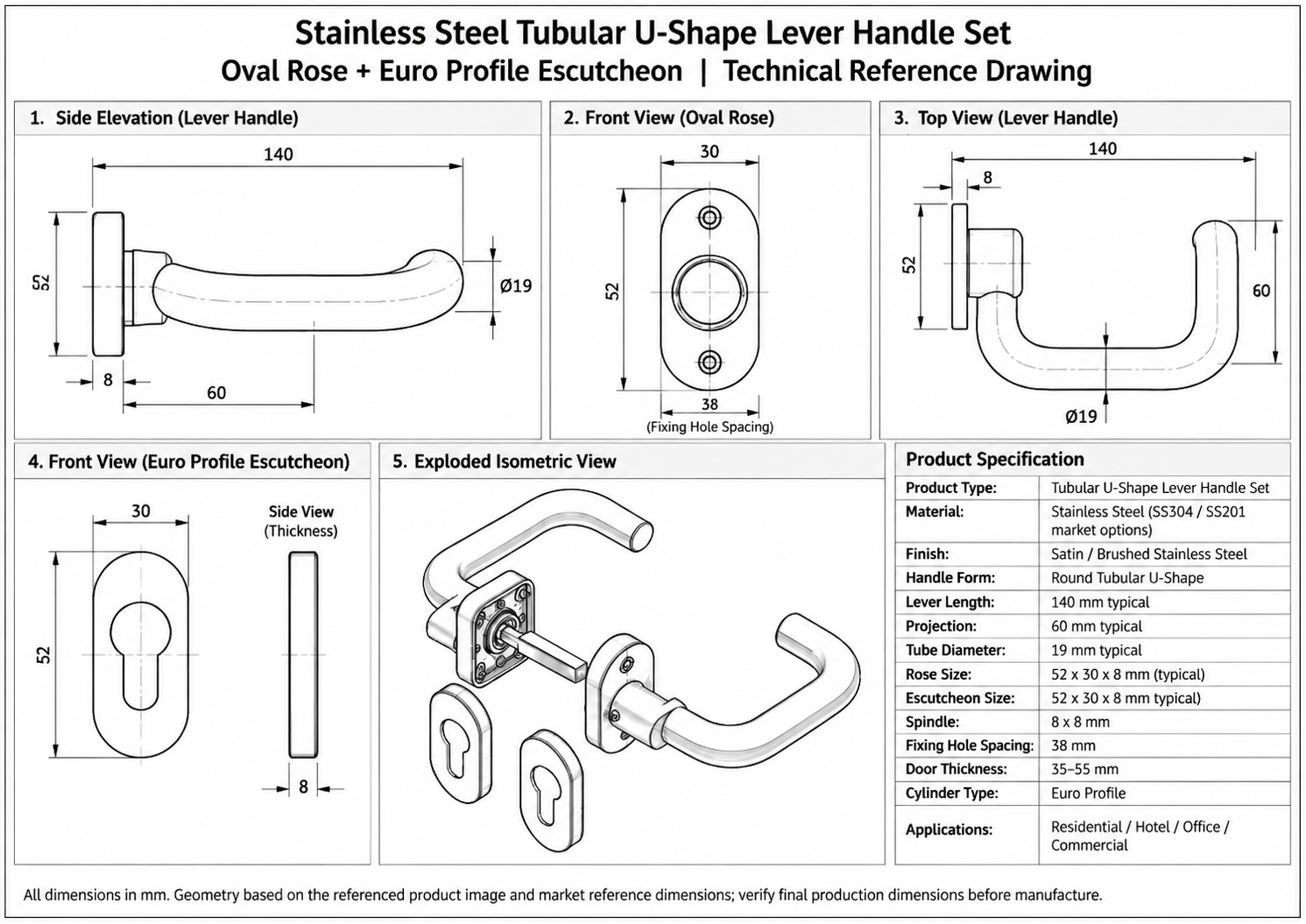

The supplied technical reference drawing includes side elevation, front view, top view, escutcheon dimensions, and an exploded installation illustration.
The reference drawing indicates a nominal lever length of 140 mm.
This dimension represents the overall horizontal length of the handle as illustrated.
The final production length must be verified against the official LH1094 technical drawing.
The top-view illustration indicates a nominal projection of 60 mm.
The projection represents the approximate distance from the mounting region to the outermost portion of the returned lever.
The final installed projection depends on the actual handle and rose configuration.
The handle is illustrated with a nominal round tube diameter of 19 mm.
The cylindrical section creates a smooth, minimalist appearance suitable for contemporary architectural door hardware.
The oval mounting rose is shown with the following dimensions:
Height: 52 mm
Width: 30 mm
Thickness: 8 mm
The compact oval design provides a narrow mounting profile compared with many conventional round roses.
The reference drawing indicates a fixing-hole spacing of 38 mm.
Mounting-hole positions must be confirmed before door preparation or installation.
The installation illustration identifies an 8 × 8 mm square spindle.
This spindle format is commonly used with compatible lever-operated mortise locks.
The final spindle length and compatibility depend on the selected lock and door thickness.
The reference specification indicates a door thickness range of 35–55 mm.
Actual installation compatibility depends on spindle length, mounting screws, lock configuration, and the final production assembly.
The reference illustration shows an oval escutcheon with nominal dimensions of 52 × 30 × 8 mm.
It includes an opening intended for a Euro-profile cylinder.
The actual cylinder opening and accessory compatibility must be verified for the selected configuration.
Customers may contact DEGOL Hardware for:
Official LH1094 dimensional drawings
Lever length and projection confirmation
Tube diameter and wall thickness information
Oval rose mounting dimensions
Fixing-hole spacing
Spindle specifications
Door thickness compatibility
Escutcheon dimensions
Installation instructions
The LH1094 is designed as a stainless steel tubular door lever handle.
Stainless steel is widely used in architectural hardware because of its contemporary appearance, suitability for decorative surface finishing, and potential corrosion resistance when an appropriate grade and manufacturing process are selected.
The reference specification identifies SS304 and SS201 as market material options.
The exact material grade available for LH1094 must be confirmed before purchasing.
SS304 is commonly specified for architectural hardware where improved corrosion resistance is required compared with some lower-alloy stainless steel grades.
Suitability depends on environmental exposure, surface treatment, maintenance, and project requirements.
SS201 is another stainless steel grade used in architectural hardware production.
Its suitability depends on the intended environment, product construction, and required performance.
1. Satin Stainless Steel (SSS)
A brushed metallic appearance suitable for contemporary architectural interiors.
2. Polished Stainless Steel (PSS)
A bright reflective finish suitable for decorative interior door hardware.
3. Matte Black (BLK)
A modern dark finish that can create contrast against light-colored wooden doors and minimalist interiors.
4. Antique Brass (AB)
A warmer decorative finish suitable for selected contemporary and modern-classic projects.
5. Customized Surface Finishes
Additional finishes may be discussed for OEM/ODM projects.
Finish Availability: The reference drawing specifies satin or brushed stainless steel. Other finishes are potential customization requirements and must be confirmed with DEGOL before ordering.
The DEGOL LH1094 Stainless Steel U-Shape Door Lever Handle can be considered for various residential, commercial, and architectural interior applications.
Modern apartments
Private residences
Residential villas
Bedroom doors
Study room doors
Residential renovation projects
Contemporary interior spaces
Hotel interior doors
Serviced apartments
Guest accommodation projects
Hospitality renovation projects
Interior corridor doors, subject to project requirements
Office buildings
Meeting rooms
Administrative offices
Business centers
Commercial interior doors
Interior renovation projects
The LH1094 is positioned for:
Door hardware wholesalers
Architectural hardware distributors
Building material importers
Door manufacturers
Interior hardware brands
Construction project buyers
Private-label hardware suppliers
Application suitability depends on the final product specification and relevant building requirements.
The LH1094 may be used with compatible door systems where the mounting dimensions and lock configuration meet installation requirements.
| Door Type | Application |
|---|---|
| Wooden Interior Doors | Compatible interior installations |
| MDF Interior Doors | Subject to fixing requirements |
| Composite Interior Doors | Subject to mounting compatibility |
| Apartment Interior Doors | Residential applications |
| Bedroom Doors | Compatible room door configurations |
| Office Interior Doors | Commercial interior applications |
| Hotel Interior Doors | Subject to project requirements |
| Commercial Interior Doors | Compatible locking configurations |
Before ordering or installation, confirm:
Door thickness
Lock case dimensions
Square spindle size
Fixing-hole positions
Rose mounting configuration
Cylinder compatibility
Handle operating direction
Important: Fire-rated, emergency-exit, accessibility-regulated, and other specialized door applications require separate verification of the complete door and hardware assembly.
The LH1094 should be installed according to the confirmed technical drawing and the selected door lock configuration.
Verify the door thickness, lock dimensions, spindle opening, and mounting-hole positions.
Ensure that the selected handle configuration is suitable for the door.
Install a compatible mortise lock according to the lock manufacturer's instructions.
Check that the latch operates correctly.
Insert the correctly sized square spindle through the lock follower.
The reference illustration identifies an 8 × 8 mm spindle.
Confirm the actual spindle size and required length before installation.
Position the lever handle assemblies on both sides of the door.
Align the spindle and mounting components carefully.
Attach the mounting plates using the appropriate screws and installation method.
Ensure that the roses are securely fixed and correctly aligned.
If matching Euro-profile escutcheons are included in the selected configuration, position and secure them around the compatible cylinder openings.
Operate the handles several times to verify:
Smooth lever movement
Correct latch retraction
Proper lever return
Secure mounting
Correct rose alignment
Unrestricted lock operation
Professional installation is recommended for commercial and specialized door hardware projects.
The returned tubular lever creates a distinctive architectural appearance compared with conventional straight door handles.
The cylindrical lever provides a clean visual appearance with rounded edges and a continuous curved return.
The narrow oval mounting rose complements the tubular design and creates a streamlined architectural profile.
Stainless steel provides a contemporary metallic appearance and can be specified according to project material requirements.
Actual performance depends on the selected material grade and production configuration.
The LH1094 design coordinates with contemporary wooden, composite, and decorative interior doors.
The reference configuration includes a matching oval Euro-profile escutcheon for a coordinated appearance.
The LH1094 is suitable for inquiries from architectural hardware importers, wholesalers, distributors, and project procurement companies.
DEGOL welcomes discussions involving custom branding, finishes, packaging, and technically feasible product specifications.
Jiangmen Degol Hardware Co., Ltd. welcomes OEM and ODM inquiries for the LH1094 Stainless Steel U-Shape Door Lever Handle.
Our B2B customers may discuss product requirements for architectural hardware collections, private-label distribution, and project supply.
Potential branding requirements include:
Customer logo
Private-label packaging
Customized product identification
Custom carton labels
Customer-specific model codes
Customers may inquire about:
Satin stainless steel
Polished stainless steel
Matte black
Antique brass
Other decorative finishes
Actual finish availability depends on production feasibility and order requirements.
Project requirements may include:
Lever length
Tube diameter
Oval rose dimensions
Mounting configurations
Spindle requirements
Matching accessories
Dimensional changes require engineering evaluation and may involve additional tooling.
Possible requirements include:
Customer-branded boxes
Individual product packaging
Customized product labels
Export carton markings
Project-specific packing instructions
DEGOL welcomes inquiries relating to:
Bulk door handle orders
Product samples
Technical drawing requests
OEM hardware collections
Private-label product lines
Architectural project supply
Wholesale quotations
Customization feasibility, MOQ, tooling requirements, and production lead times must be confirmed before ordering.
| Item | Information |
|---|---|
| Product Model | LH1094 |
| Product Brand | DEGOL |
| Product Name | Stainless Steel U-Shape Door Lever Handle |
| Custom Packaging | Available for Discussion |
| Inner Box | According to Order Requirements |
| Export Carton | According to Agreed Packaging |
| MOQ | Contact DEGOL |
| Sample Availability | Upon Inquiry |
| Bulk Production Lead Time | Based on Order Specifications |
| OEM Branding | Subject to Confirmation |
| Wholesale Pricing | Quotation Upon Request |
| Shipping Terms | According to Agreed Order Terms |
Step 1 – Send Product Inquiry
Contact DEGOL Hardware with model LH1094, estimated quantity, preferred material grade, finish, and destination market.
Step 2 – Confirm Specifications
Review product dimensions, material grade, rose configuration, spindle requirements, and accessories.
Step 3 – Request Samples
Discuss sample availability, sample charges, and shipping arrangements.
Step 4 – Receive Wholesale Quotation
Confirm unit price, MOQ, packaging, production schedule, and trading terms.
Step 5 – Confirm Purchase Order
Approve the final technical specifications and commercial conditions.
Step 6 – Arrange Production and Shipment
Production and shipment follow the agreed order requirements.
Jiangmen Degol Hardware Co., Ltd. supplies architectural door hardware products for international B2B sourcing requirements.
The LH1094 Stainless Steel U-Shape Door Lever Handle is positioned within DEGOL's modern architectural door handle product range.
DEGOL welcomes inquiries for products including:
Stainless steel door lever handles
U-shaped tubular door handles
Modern interior door handles
Oval rose lever handles
Architectural door hardware
Residential door hardware
Commercial interior door handles
Matching escutcheon accessories
OEM and private-label hardware products
Potential customers include:
Door hardware wholesalers
International importers
Architectural hardware distributors
Building material suppliers
Door manufacturers
Construction contractors
Hardware brands
Interior design procurement teams
Customers may contact DEGOL regarding:
Product specifications
Technical drawing requests
Material grade options
Sample arrangements
Surface finish requirements
Wholesale quotations
OEM/ODM inquiries
Custom packaging
Bulk order requirements
Factory production capacity, manufacturing equipment, testing procedures, material certificates, and product certifications should be confirmed directly when required.
Company: Jiangmen Degol Hardware Co., Ltd.
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
WhatsApp: +86 13725946499
The DEGOL LH1094 is a modern stainless steel tubular lever handle featuring a U-shaped return design and an oval mounting rose.
It is intended for compatible residential and commercial interior door hardware applications.
A U-shaped return lever features a curved outer end that turns back toward the door.
This design creates a rounded architectural profile and reduces the exposed outward-facing tip compared with some straight lever designs.
The LH1094 is specified as a stainless steel door lever handle.
SS304 and SS201 are identified as reference material options. The actual available grade must be confirmed before ordering.
The supplied reference drawing indicates a typical lever length of 140 mm.
The final LH1094 production dimension must be verified with DEGOL.
The reference drawing indicates a nominal tube diameter of Ø19 mm.
Customers should request the official technical drawing to confirm the final dimension.
The reference illustration identifies a typical oval rose size of 52 × 30 × 8 mm.
The final rose dimensions should be confirmed before installation.
The supplied reference drawing indicates a nominal fixing-hole spacing of 38 mm.
Actual production mounting dimensions must be verified before preparing the door.
The reference illustration shows an 8 × 8 mm spindle.
Final spindle requirements depend on the selected handle assembly and compatible lock mechanism.
The reference specification indicates a typical door thickness range of 35–55 mm.
Actual compatibility depends on the mounting hardware, spindle length, and lock configuration.
The LH1094 may be installed on compatible wooden interior doors when the mounting dimensions and lock configuration are suitable.
The LH1094 can be considered for hotel and office interior door applications, subject to confirmed durability, installation, and project requirements.
The reference illustration includes a matching oval Euro-profile escutcheon.
Customers should confirm accessory availability, dimensions, and compatibility before ordering.
The reference specification identifies satin or brushed stainless steel.
Customers may also inquire about polished stainless steel, matte black, antique brass, and other finishes, subject to availability.
DEGOL welcomes OEM and ODM inquiries involving product branding, finishes, packaging, and technically feasible specification customization.
Customers may inquire about LH1094 sample availability.
Sample charges, preparation time, and shipping arrangements will be confirmed during the inquiry process.
The MOQ depends on the selected material grade, finish, packaging, and customization requirements.
Contact DEGOL for current wholesale order conditions.
Customers can request official LH1094 technical drawings, dimensional information, and installation specifications directly from DEGOL Hardware.
Suitability for fire-rated doors cannot be assumed from the handle design alone.
The complete door and hardware assembly must meet the applicable fire-rating and certification requirements.
DEGOL welcomes private-label packaging inquiries, including custom boxes, labels, and carton markings.
Availability and MOQ depend on the order requirements.
Contact DEGOL Hardware through WhatsApp or email.
Provide model LH1094, preferred material grade, surface finish, order quantity, destination market, and any special requirements.
Looking for an LH1094 Stainless Steel U-Shape Tubular Door Lever Handle for your architectural door hardware range?
Contact DEGOL Hardware for product specifications, technical drawings, available finishes, sample information and wholesale pricing.
Product Model: LH1094 Stainless Steel U-Shape Door Lever Handle
Company: Jiangmen Degol Hardware Co., Ltd.
WhatsApp: +86 13725946499
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
Request Your LH1094 Stainless Steel U-Shape Door Lever Handle Wholesale Quote Today
