LH1101
Degol
| Quantity: | |
|---|---|
The DEGOL LH1101 Matte Black Tapered Door Lever Handle is a contemporary architectural door hardware design featuring a distinctive angular lever, a minimalist square rose, and a refined matte black appearance.
The LH1101 stands out through its sculpted, wedge-inspired shape. The lever starts with a bold geometric section near the mounting rose, extends into a gradually tapered profile, and finishes with a smoothly rounded tip.
This combination of sharp architectural lines and softened edges gives the handle a distinctive modern appearance.
Unlike traditional tubular door handles, the LH1101 offers a more expressive geometric profile, making it particularly suitable for modern interiors, minimalist residential developments, contemporary office environments, and architectural hardware collections.
The reference drawing indicates an approximate lever length of 125 mm, an outward projection of 60 mm, and a maximum handle height of 27 mm.
Its square mounting rose measures approximately 52 × 52 mm. The illustrated configuration also includes matching square escutcheons with Euro-profile cylinder openings.
The matte black appearance coordinates particularly well with light wooden doors, white interior doors, dark architectural finishes, and contemporary residential or commercial design schemes.
Jiangmen Degol Hardware Co., Ltd. welcomes wholesale and OEM/ODM inquiries for LH1101 from architectural hardware importers, distributors, door manufacturers, construction project buyers, and private-label hardware brands.
The supplied illustration lists zinc alloy and aluminum alloy as possible materials. The actual base material and manufacturing specifications require confirmation before ordering.
The DEGOL LH1101 is a modern angular tapered door lever handle designed for installation on compatible interior doors.
Its main characteristics are a wedge-inspired gripping section, a matte black finish, a square mounting rose, and a coordinated square Euro-profile escutcheon design.
1. Angular Tapered Lever
The handle features a sculpted geometric transition from the mounting section into a slimmer outward-extending lever.
2. Wedge-Inspired Architectural Styling
The angular shape creates a contemporary visual character that distinguishes it from round tubular and conventional curved lever handles.
3. Rounded Lever Tip
The outer end transitions into a rounded shape, softening the overall angular design.
4. Matte Black Appearance
The reference product features a non-glossy black finish suitable for modern architectural interiors.
5. Square Rose
The approximately 52 × 52 mm square mounting rose reinforces the handle's geometric styling.
6. Matching Euro Profile Escutcheons
The illustrated handle configuration includes matching square keyhole escutcheons with Euro-profile openings.
7. Interior Door Hardware Application
The product can be considered for compatible residential and commercial interior doors, subject to confirmed technical specifications.
| Parameter | Specification |
|---|---|
| Model Number | LH1101 |
| Brand | DEGOL |
| Product Name | Matte Black Angular Tapered Door Lever Handle |
| Product Type | Interior Lever Door Handle |
| Product Category | Architectural Door Hardware |
| Lever Shape | Angular / Tapered / Wedge-Inspired |
| Lever End | Smooth Rounded Tip |
| Design Style | Modern / Minimalist / Contemporary |
| Reference Material | Zinc Alloy or Aluminum Alloy – Unverified |
| Confirmed Material Grade | To Be Confirmed |
| Reference Finish | Matte Black |
| Handle Length | Approx. 125 mm |
| Handle Projection | Approx. 60 mm |
| Maximum Handle Height | Approx. 27 mm |
| Rose Shape | Square |
| Rose Size | Approx. 52 × 52 mm |
| Rose Thickness | Approx. 10–12 mm |
| Escutcheon Shape | Square |
| Escutcheon Size | Approx. 52 × 52 mm |
| Escutcheon Thickness | Approx. 8–12 mm |
| Escutcheon Opening | Euro Profile |
| Keyhole Opening Dimensions | Approx. 17 × 33 mm |
| Spindle Size | Approx. 8 × 8 mm |
| Reference Door Thickness | Approx. 35–55 mm |
| Handle Configuration | Left and Right Assemblies Illustrated |
| Reversible Handing | Not Confirmed |
| Lock Compatibility | Subject to Selected Mortise Lock and Cylinder |
| Intended Application | Compatible Interior Doors |
| OEM / ODM | Subject to Technical and Commercial Confirmation |
| Supplier | Jiangmen Degol Hardware Co., Ltd. |
| Country of Origin | China |
Important Technical Notice: All listed dimensions are approximate reference measurements from the supplied illustration. Material options are not verified production specifications. The actual LH1101 material, dimensions, finish, assembly components, handing, and installation compatibility must be confirmed before purchase or manufacturing.

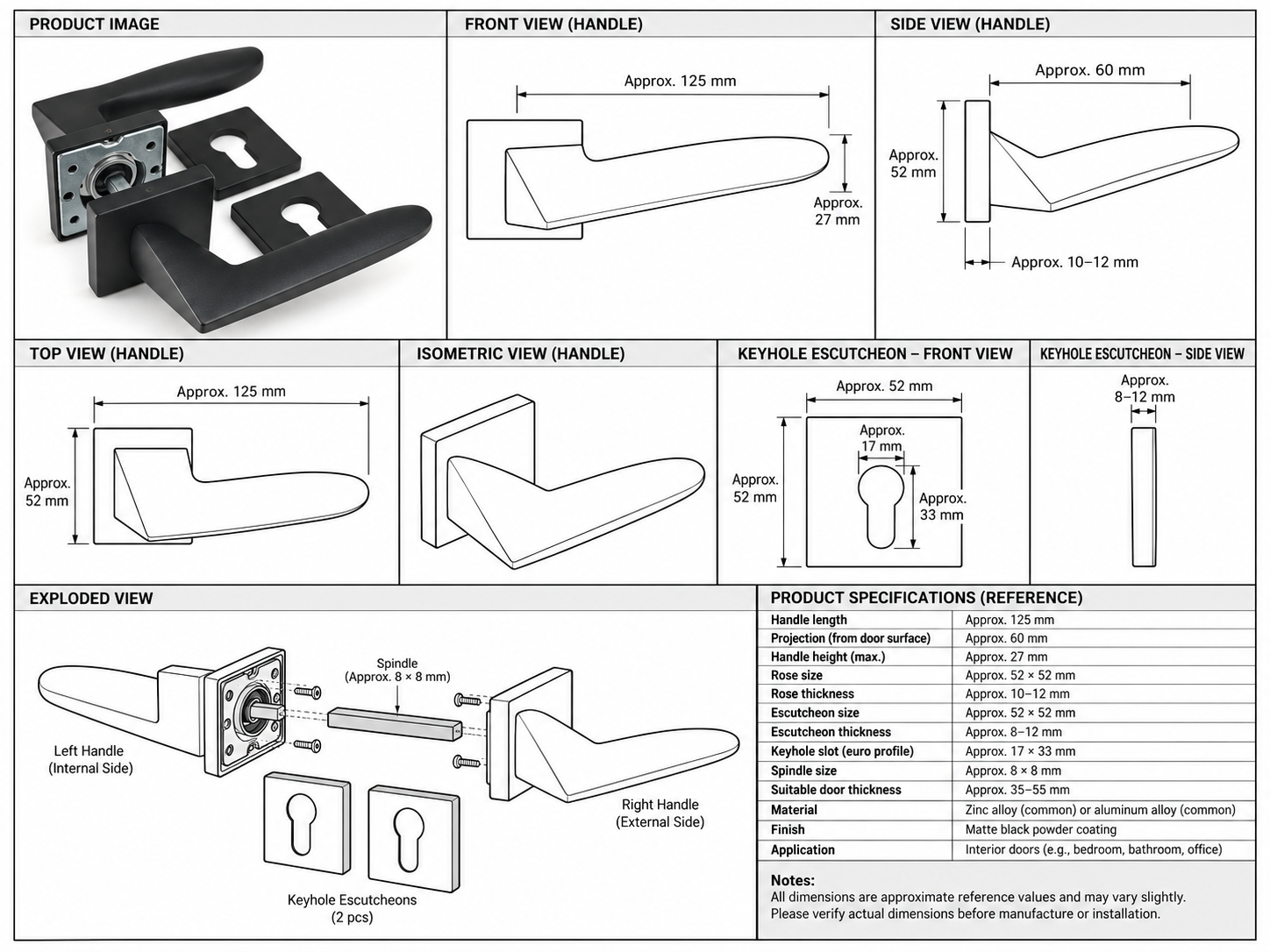

The LH1101 reference illustration provides front, side, top, and isometric views of the lever, together with matching Euro-profile escutcheons and an exploded assembly diagram.
The reference lever length is approximately 125 mm.
This dimension describes the overall lever length indicated in the drawing, not a verified factory measurement.
The tapered shape gives the handle a visually streamlined appearance despite its bold angular starting section.
The reference drawing indicates an approximate outward projection of 60 mm from the door surface.
Actual installed projection may vary according to the production configuration and mounting components.
The illustrated maximum lever height is approximately 27 mm.
This dimension helps describe the broad geometric profile of the handle and should not be interpreted as a uniform cross-section along the entire lever.
The reference rose dimensions are:
Width: Approximately 52 mm
Height: Approximately 52 mm
Thickness: Approximately 10–12 mm
The square shape creates a clean, modern mounting appearance.
The reference matching escutcheon dimensions are:
Width: Approximately 52 mm
Height: Approximately 52 mm
Thickness: Approximately 8–12 mm
The escutcheon incorporates an opening shaped for a Euro-profile cylinder configuration.
The reference drawing identifies an approximately 17 × 33 mm Euro-profile opening.
The exact opening dimensions and compatibility with a selected cylinder must be verified.
The illustrated square spindle measures approximately 8 × 8 mm.
The drawing does not confirm the production spindle length.
Spindle length must be matched to the final door thickness and lock configuration.
The reference door thickness range is approximately 35–55 mm.
Actual compatibility depends on the mounting screws, spindle, lock case, cylinder and selected handle assembly.
The reference drawing illustrates:
Left lever handle assembly
Right lever handle assembly
Square rose covers
Internal mounting plates
Square spindle
Fixing screws
Two square Euro-profile keyhole escutcheons
The illustration should not be treated as a confirmed packing list. Final supplied components must be specified in the quotation.
Customers can request confirmation of:
Official LH1101 product dimensions
Lever geometry and cross-section
Exact rose dimensions
Mounting-hole positions
Spindle size and length
Lock and cylinder compatibility
Handing requirements
Surface finish specifications
Assembly components
Installation instructions
The supplied drawing lists zinc alloy and aluminum alloy as common material possibilities for this type of door lever.
However, the illustration does not identify the actual material used for LH1101.
Zinc Alloy
Zinc alloy is commonly used for decorative door handles requiring detailed cast shapes and contemporary surface finishes.
Its suitability depends on the selected alloy, manufacturing process, coating and application requirements.
Aluminum Alloy
Aluminum alloy is another material used for modern lever handle designs.
Its properties depend on the particular alloy, manufacturing method and finishing process.
Customers should confirm which material is used for the LH1101 before ordering.
The reference product features a matte black appearance with a modern, understated surface.
Matte black architectural hardware is widely used in:
Contemporary residential interiors
Minimalist apartment developments
Black-and-white interior schemes
Modern office spaces
Coordinated dark hardware collections
The exact coating method, coating thickness, abrasion resistance and corrosion performance are not specified in the reference drawing.
Customers may discuss the possibility of other finishes, including satin nickel, brushed metallic finishes, polished chrome or other project-specific colors.
Alternative finishes are not confirmed as available LH1101 options and must be evaluated before quotation.
For an approved matte black finish, general maintenance may include wiping with a soft, damp cloth and drying with a clean microfiber cloth.
Avoid abrasive pads and harsh chemicals unless approved by the coating supplier.
The final care instructions should follow the confirmed coating specifications.
The LH1101 Matte Black Angular Tapered Door Lever Handle can be considered for compatible interior door hardware projects requiring a contemporary architectural appearance.
Modern apartments
Private residences
Residential villas
Bedroom doors
Home office doors
Study room doors
Renovation projects
Office rooms
Meeting rooms
Administrative spaces
Commercial interior renovations
Business centers
Interior doors in mixed-use buildings
Hotel interior doors
Serviced apartments
Guest accommodation interiors
Hospitality renovation projects
The LH1101 is positioned for inquiries from:
Architectural hardware wholesalers
International door hardware importers
Building material distributors
Interior door manufacturers
Private-label hardware brands
Construction procurement teams
Hardware retail and wholesale businesses
Application suitability must be assessed against confirmed installation, durability and project requirements.
The LH1101 may be considered for compatible interior doors with suitable mounting structures and locking mechanisms.
| Door Type | Potential Application |
|---|---|
| Wooden Interior Doors | Residential installations |
| MDF Interior Doors | Subject to fixing compatibility |
| Composite Interior Doors | Subject to hardware compatibility |
| Bedroom Doors | Compatible lock and latch systems |
| Apartment Interior Doors | Modern residential interiors |
| Office Interior Doors | Commercial interior applications |
| Hotel Interior Doors | Subject to project requirements |
| Decorative Interior Doors | Contemporary architectural interiors |
Before installation, verify:
Actual door thickness
Mortise lock dimensions
Square spindle compatibility
Mounting-hole positions
Door material and fixing strength
Euro-profile cylinder dimensions
Lever handing and orientation
Clearance between lever and nearby surfaces
The LH1101 should not be described as fire-rated, emergency-exit compliant, accessibility certified or suitable for other regulated applications without supporting verification.
The following guide provides a general installation sequence. The official LH1101 installation instructions and the selected lock manufacturer's requirements must take precedence.
Review the handle assemblies, roses, spindle, mounting screws and escutcheons.
Confirm that all components required for the chosen installation are available.
Check the door thickness and compatibility with the selected mortise lock and Euro-profile cylinder.
Compare the actual installation conditions with the confirmed technical drawing.
Mark and prepare the installation openings according to the approved drilling template.
Avoid drilling based solely on approximate illustration dimensions.
Install the selected mortise lock according to its manufacturer's instructions.
Test the latch mechanism before fitting the lever handles.
Insert the correctly sized spindle into the lock follower.
The reference illustration identifies an approximately 8 × 8 mm spindle.
Place the lever assemblies on the two sides of the door.
Ensure the angular lever orientation is correct for the selected handing configuration.
Install and tighten the mounting screws according to the specified fixing system.
Avoid overtightening or damaging the door surface.
Position the square rose covers and ensure that they align neatly with the door surface.
Where included, fit the matching escutcheons around a compatible Euro-profile cylinder opening.
Check:
Smooth lever operation
Correct latch retraction
Proper handle return
Secure mounting
Correct handing
Rose and escutcheon alignment
Unrestricted locking operation
Professional installation is recommended where the project involves specialized lock systems or commercial requirements.
The LH1101 uses a sculpted, gradually tapered lever shape that gives it a recognizable architectural appearance.
The matte black appearance is suitable for modern interior design schemes and coordinated black hardware collections.
The compact square rose reinforces the lever's angular design language.
The softened outer end creates a visual balance between sharp geometric surfaces and rounded contours.
The illustrated matching square escutcheons help create a consistent appearance around compatible cylinder openings.
The LH1101 design can be considered for compatible residential, office and hospitality interior door projects.
The supplied drawing provides approximate lever, projection, rose, escutcheon and spindle dimensions for preliminary specification review.
The product is suitable for inquiry by architectural hardware distributors, importers and project procurement buyers.
Customers can discuss branding, packaging and product customization requirements with DEGOL.
The LH1101 provides a distinctly angular alternative to the tubular, curved and return-to-door lever designs found in other architectural handle collections.
Jiangmen Degol Hardware Co., Ltd. welcomes OEM and ODM inquiries for the LH1101 Matte Black Angular Tapered Door Lever Handle.
Potential cooperation areas include the following.
Customers may inquire about:
Customized brand identification
Customer product codes
Packaging artwork
Product labels
Carton markings
Customers may request evaluation of alternative finishes or color matching for a particular architectural hardware collection.
Any special coating requirements should be supported by a technical specification.
Potential customization requests include:
Lever length
Lever profile
Handle projection
Square rose dimensions
Escutcheon configuration
Spindle requirements
Mounting arrangement
All dimensional modifications are subject to engineering feasibility and tooling requirements.
Customers may discuss branded cartons, individual boxes, labeling and export packing requirements.
DEGOL welcomes requests for product samples, technical drawings, wholesale pricing, and project-specific product requirements.
Actual OEM/ODM availability, tooling charges, production quantities and lead times must be confirmed.
| Item | Information |
|---|---|
| Model | LH1101 |
| Product Name | Matte Black Angular Tapered Door Lever Handle |
| Brand | DEGOL |
| Reference Finish | Matte Black |
| Confirmed Material | To Be Confirmed |
| Quotation Unit | To Be Confirmed |
| Handle Pair | Illustrated; inclusion to be confirmed |
| Matching Escutcheons | Illustrated; inclusion to be confirmed |
| Spindle & Fixings | Final packing list to be confirmed |
| Standard Packaging | To Be Confirmed |
| Custom Packaging | Subject to Inquiry |
| MOQ | Contact DEGOL |
| Sample Availability | Upon Inquiry |
| Sample Lead Time | To Be Confirmed |
| Bulk Order Lead Time | To Be Confirmed |
| OEM / ODM | Subject to Confirmation |
| Wholesale Price | Quotation Upon Request |
| Shipping Terms | To Be Agreed |
1. Submit an Inquiry
Provide model LH1101, preferred material, finish, estimated order quantity and destination market.
2. Confirm Technical Specifications
Review the official product drawing, material, coating, lock compatibility and supplied components.
3. Discuss Samples
Request information on sample availability, pricing and delivery.
4. Confirm Quotation
Agree on unit pricing, MOQ, packaging, production schedule and trading terms.
5. Approve the Order
Confirm specifications and commercial arrangements before production.
6. Arrange Shipment
Shipment is organized according to the agreed purchase order.
Jiangmen Degol Hardware Co., Ltd. supplies architectural door hardware products for international B2B sourcing and wholesale inquiries.
The LH1101 is a modern matte black lever handle design suitable for consideration within contemporary interior door hardware collections.
Customers may inquire about:
Modern lever door handles
Angular tapered door handles
Matte black interior door handles
Square rose door lever handles
Euro-profile keyhole escutcheons
Architectural door hardware
Residential interior door hardware
Commercial interior door hardware
DEGOL welcomes inquiries from:
Architectural hardware distributors
Wholesale door hardware buyers
International importers
Door manufacturers
Building material suppliers
Construction procurement teams
Hardware brands
OEM/ODM customers
Customers can request information concerning:
Official product drawings
Material selection
Surface finishes
Lock compatibility
Samples
Packaging requirements
Product customization
MOQ
Wholesale quotations
Production and shipping arrangements
Factory capacity, production equipment, testing procedures and certifications should be verified directly before being used as specific commercial claims.
Company: Jiangmen Degol Hardware Co., Ltd.
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
WhatsApp: +86 13725946499
The DEGOL LH1101 is a modern angular tapered lever door handle featuring a matte black appearance and square mounting rose.
The handle features a wedge-inspired geometric profile that gradually tapers toward a rounded outer end.
The reference illustration shows a matte black finish. The actual coating specification must be confirmed.
The reference drawing lists zinc alloy and aluminum alloy as possible materials. The actual material has not been verified.
Stainless steel is not identified as the confirmed material in the supplied drawing. Customers should request the official material specification.
The reference handle length is approximately 125 mm.
The drawing indicates an approximate projection of 60 mm.
The illustrated maximum lever height is approximately 27 mm.
The reference rose measures approximately 52 × 52 mm.
The reference rose thickness is approximately 10–12 mm.
The reference illustration includes matching square Euro-profile escutcheons. Their inclusion in the final product set must be confirmed.
The reference square escutcheons measure approximately 52 × 52 mm, with a thickness of approximately 8–12 mm.
The illustrated reference opening is approximately 17 × 33 mm.
The reference drawing identifies an approximately 8 × 8 mm square spindle.
The reference drawing indicates approximately 35–55 mm. Final compatibility must be verified.
It may be suitable for compatible wooden interior doors when the mounting, spindle and lock specifications match.
The angular matte black design is suitable for consideration in contemporary office interiors, subject to the required technical specifications.
It can be considered for compatible hotel interior door projects. Suitability and any required performance certifications must be checked.
The illustration shows left and right handle assemblies. It does not confirm that the product is mechanically reversible.
The reference escutcheons have Euro-profile-shaped openings. Actual cylinder and lock compatibility must be verified.
The reference drawing describes matte black powder coating as a finish. The actual coating process requires confirmation.
Exterior use should not be assumed from the reference drawing. Material, coating, weather resistance and security requirements must be evaluated separately.
No fire-rating certification has been provided. Suitability for a fire-rated assembly must be independently verified.
Customers may discuss OEM or private-label branding with DEGOL. Specific options require confirmation.
Contact DEGOL to inquire about samples, sample charges and shipping arrangements.
The LH1101 MOQ must be confirmed with DEGOL according to the requested configuration and order requirements.
Yes. Customers may contact DEGOL to request an official LH1101 technical drawing and confirmed dimensions.
Provide model LH1101, estimated quantity, preferred material, finish, packaging requirements and destination market through WhatsApp or email.
Looking for an LH1101 Matte Black Angular Tapered Door Lever Handle on Square Rose for your architectural door hardware range?
Contact DEGOL Hardware for product specifications, technical drawings, confirmed material information, available finishes, sample information and wholesale pricing.
Product Model: LH1101 Matte Black Angular Tapered Door Lever Handle on Square Rose
Company: Jiangmen Degol Hardware Co., Ltd.
WhatsApp: +86 13725946499
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
Request Your LH1101 Matte Black Angular Tapered Door Lever Handle Wholesale Quote Today.
