LH1011
Degol
| Quantity: | |
|---|---|

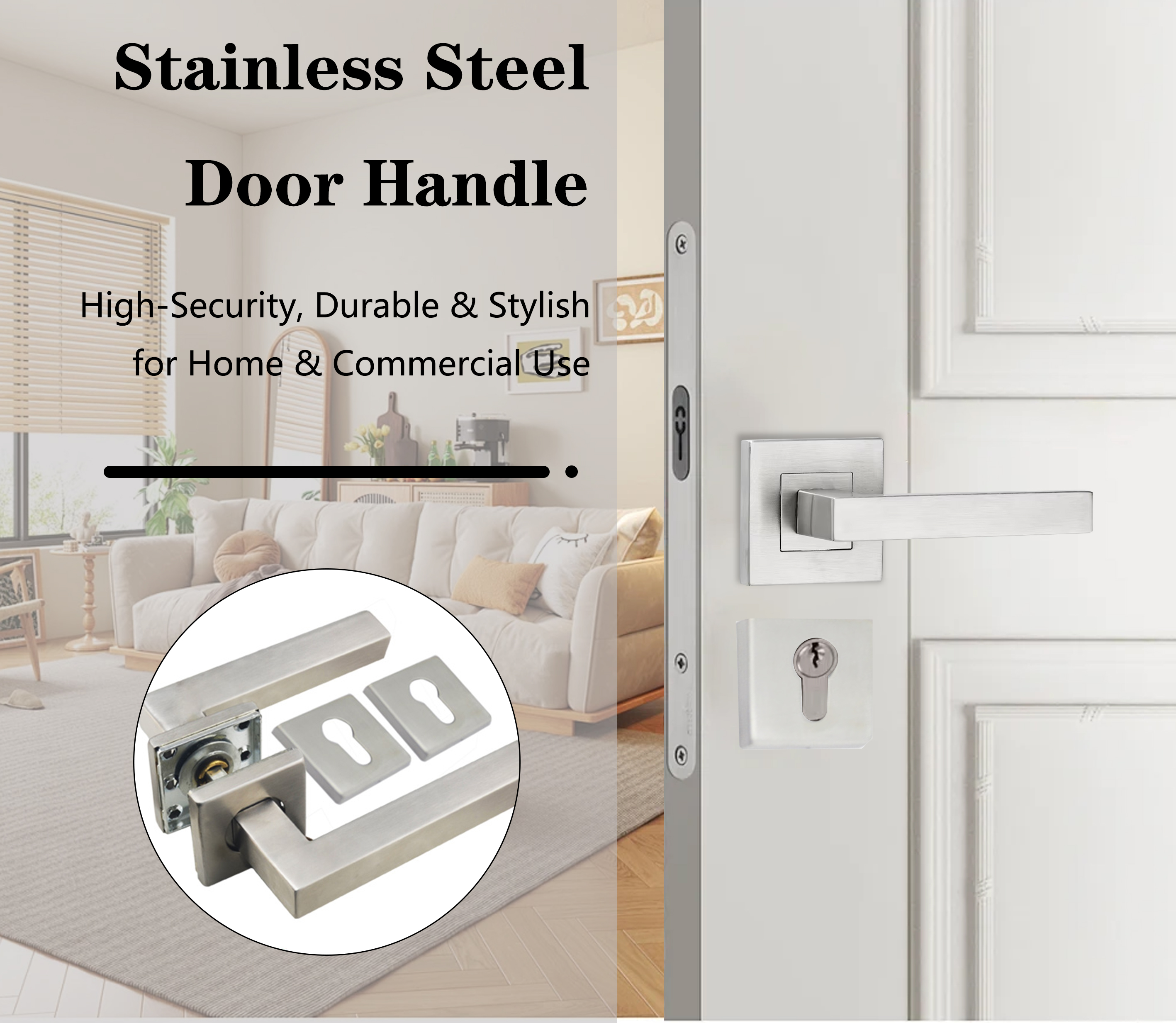

The LH1011 Stainless Steel L-Shape Square Lever Handle Set is a modern architectural door handle designed for projects that require clean geometric lines, practical operation and coordinated door hardware.
Featuring a square tube lever, a matching square rose and a contemporary L-shaped profile, this handle set offers a minimalist appearance suitable for modern residential interiors, hotels, offices, apartments and commercial buildings.
The straight lever geometry provides a simple, architectural aesthetic that coordinates with contemporary door designs. The square rose creates a consistent visual profile around the handle mounting point, while the optional Euro profile escutcheon provides a matching finish around a compatible key cylinder opening.
According to the supplied reference drawing, common market dimensions include lever lengths of 120–140 mm, square rose dimensions of 50–60 mm and a standard 8 × 8 mm spindle configuration. These reference values provide a starting point for specification discussions; the actual LH1011 dimensions must be confirmed before ordering.
The LH1011 is intended for architectural hardware distributors, door manufacturers, interior design companies, construction contractors and project procurement teams seeking contemporary lever handles for residential and commercial doors.
Jiangmen Degol Hardware Co., Ltd. welcomes enquiries regarding product dimensions, stainless steel grades, surface finishes, lock compatibility, technical drawings, samples and wholesale pricing.
A lever handle set is a door operating component consisting of lever handles and the associated mounting hardware required for installation on a compatible door and lock mechanism.
The LH1011 is characterized by its L-shaped square tube lever and square rose design. It may be supplied with Euro profile escutcheons to provide a coordinated appearance around a compatible Euro profile cylinder opening.
The handle operates through a spindle connected to a compatible lock case. When the lever is pressed or rotated, the spindle transfers movement to the lock mechanism, retracting the latch where supported by the lock configuration.
L-shaped square lever design
Modern geometric appearance
Square rose for coordinated architectural styling
Euro profile key escutcheon option
Reference 8 × 8 mm spindle configuration
Multiple reference lever lengths and cross-sections
Multiple potential surface finishes
Suitable for compatible residential and commercial door systems
Depending on the confirmed product configuration, a complete set may include:
Lever handles for both sides of the door
Square roses or mounting bases
Spindle
Fixing screws and mounting hardware
Euro profile escutcheons, where specified
Installation instructions, where available
The exact package contents must be confirmed with DEGOL before purchase.
| Specification Item | Details |
|---|---|
| Model Number | LH1011 |
| Product Name | L-Shape Square Lever Handle Set |
| Handle Type | Square Tube Lever |
| Handle Shape | L-Shape |
| Rose Shape | Square |
| Escutcheon Type | Euro Profile |
| Main Material | Stainless Steel – Grade to Be Confirmed |
| Lever Length | 120 / 130 / 135 / 140 mm – Reference |
| Rose Width / Height | 50 / 52 / 55 / 60 mm – Reference |
| Lever Width | 20 / 22 / 25 mm – Reference |
| Total Projection | 55 / 60 / 65 / 70 mm – Reference |
| Rose Thickness | 8 / 10 / 12 mm – Reference |
| Spindle | 8 × 8 mm – Reference |
| Reference Door Thickness | 35–55 mm |
| Fixing Hole Spacing | 38 mm – Reference |
| Key Escutcheon Dimensions | 50 × 50 × 8–10 mm – Reference |
| Lever Cross-Section | 20 × 20 / 22 × 22 / 25 × 23 mm – Reference |
| Satin Stainless Steel Finish | Subject to Availability |
| Polished Stainless Steel Finish | Subject to Availability |
| Matte Black Finish | Subject to Availability |
| Antique Brass Finish | Subject to Availability |
| Cylinder Compatibility | Euro Profile Configuration, Subject to Verification |
| Installation Method | According to Confirmed Fixing System |
| Applications | Residential and Commercial Doors |
| OEM / ODM | Subject to Feasibility |
| MOQ | 500 sets |
| Dimension Unit | mm |
Specification note: Dimensions and options in this table are reference values taken from the supplied image. They should not be treated as verified factory specifications for LH1011 until confirmed by DEGOL.

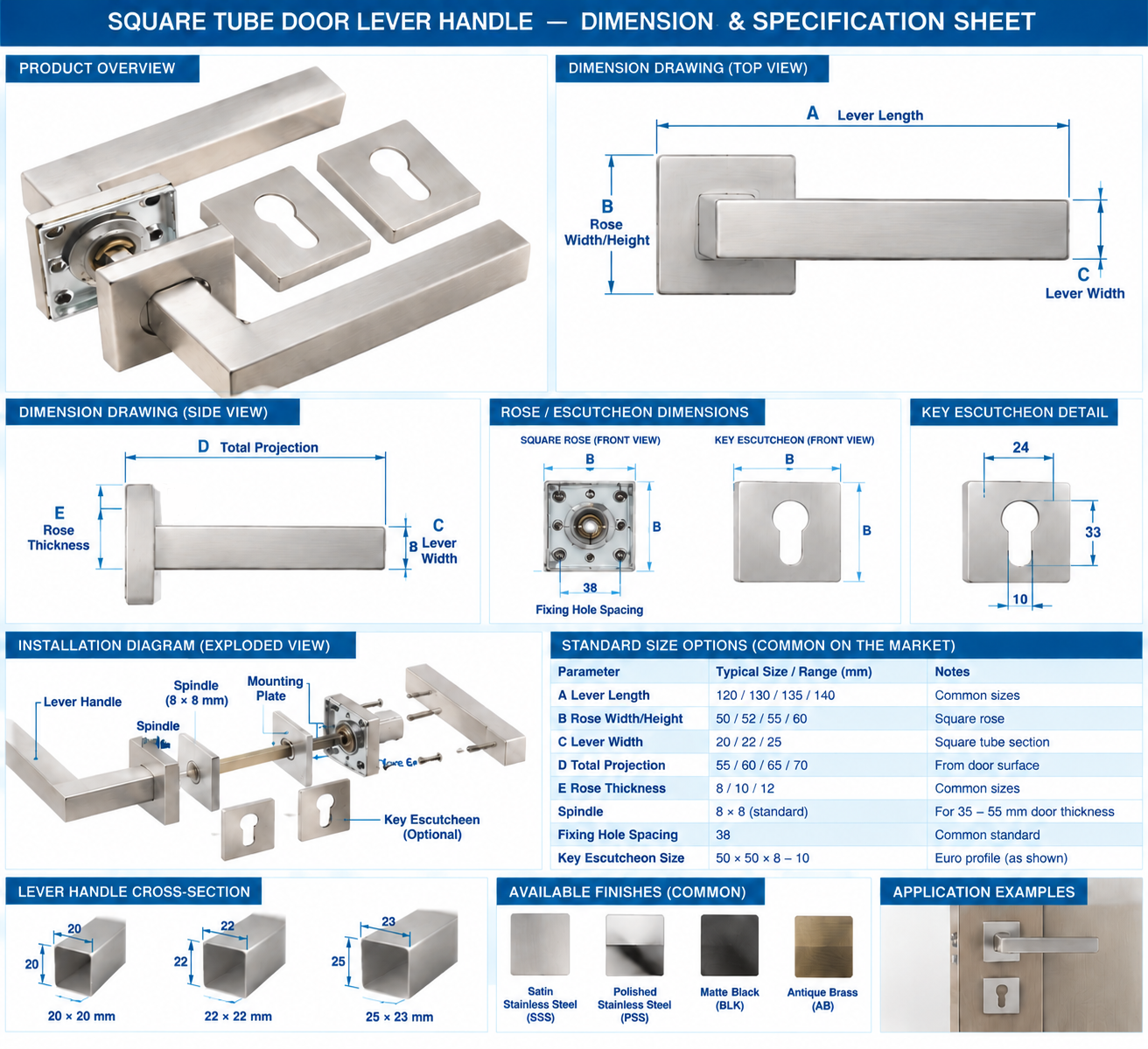

The supplied dimension sheet illustrates the LH1011 square tube lever handle from the top, side and front views, together with rose details, escutcheon dimensions, mounting arrangements and lever cross-sections.
The main dimensional parameters are lever length (A), rose width and height (B), lever width (C), total projection (D) and rose thickness (E).
| Symbol | Dimension | Reference Value |
|---|---|---|
| A | Lever Length | 120 / 130 / 135 / 140 mm |
| B | Rose Width / Height | 50 / 52 / 55 / 60 mm |
| C | Lever Width | 20 / 22 / 25 mm |
| D | Total Projection | 55 / 60 / 65 / 70 mm |
| E | Rose Thickness | 8 / 10 / 12 mm |
| — | Spindle Size | 8 × 8 mm |
| — | Fixing Hole Spacing | 38 mm |
| — | Key Escutcheon Size | 50 × 50 × 8–10 mm |
Lever length refers to the overall length of the operating handle.
The drawing shows common reference sizes of 120 mm, 130 mm, 135 mm and 140 mm. The appropriate size depends on the product configuration, ergonomic requirements and project specifications.
The square rose covers the mounting area around the handle spindle.
Reference dimensions include 50 mm, 52 mm, 55 mm and 60 mm. The selected rose must be compatible with the handle base and mounting arrangement.
Lever width refers to the external width of the square tube lever.
The reference drawing identifies common sizes of 20 mm, 22 mm and 25 mm. The actual cross-section should be confirmed for the selected model.
Total projection measures the distance from the door surface to the outermost point of the lever.
The reference drawing shows 55 mm, 60 mm, 65 mm and 70 mm. Projection should be checked against door clearance, adjacent hardware and accessibility requirements.
Rose thickness refers to the depth of the square mounting base.
Reference values include 8 mm, 10 mm and 12 mm. The actual rose thickness and mounting depth must be verified before installation.
The drawing identifies an 8 × 8 mm spindle and a 38 mm reference fixing-hole spacing.
These dimensions must be matched to the selected lock case, mounting plates and fixing hardware. Do not assume compatibility with every lock case or door preparation.
The illustrated key escutcheon has a reference external size of 50 × 50 mm, with a thickness of 8–10 mm. The keyhole profile and fixing dimensions must match the selected cylinder and lock configuration.
Before production or installation, request:
Official overall dimension drawing
Lever cross-section drawing
Rose and escutcheon dimensions
Spindle length and cross-section
Fixing-hole layout
Compatible lock case specifications
Approved door thickness range
Installation instructions and fastener details
All dimensions should be verified against the actual product or approved factory drawing.
The LH1011 is presented as a stainless steel square lever handle set. The exact stainless steel grade and the materials used for individual components must be confirmed with DEGOL.
| Component / Feature | Specification |
|---|---|
| Lever Handle | Stainless Steel – Grade to Be Confirmed |
| Fixing Hardware | Material and Grade to Be Confirmed |
| Satin Stainless Steel | Reference Finish |
| Polished Stainless Steel | Reference Finish |
| Matte Black | Reference Finish |
| Antique Brass | Reference Finish |
| Corrosion Resistance | Depends on Material Grade and Finish |
| Cleaning Requirements | According to Material and Finish |
A satin stainless steel appearance provides a restrained, contemporary finish that coordinates with modern architectural hardware and neutral interior palettes.
A polished stainless steel finish creates a brighter, reflective appearance for projects requiring a more decorative metallic look.
Matte black can provide a strong visual contrast against light-colored doors and contemporary interior finishes.
An antique brass appearance may suit traditional, transitional or decorative interior schemes, subject to the actual finish available.
For coastal, humid or high-use environments, confirm the material grade, corrosion resistance and maintenance requirements.
Finish names describe appearance and do not independently establish the base material or its corrosion performance.
The LH1011 Square Lever Handle Set can be evaluated for a range of residential and commercial door applications where a contemporary lever design is desired.
Suitable for compatible interior doors in houses, apartments and residential developments.
Can be considered for guest rooms, suites and selected interior doors where the handle specification matches the project requirements.
Suitable for office doors and meeting rooms when paired with compatible lock cases and access requirements.
The square lever design can complement modern apartment interiors and coordinated architectural hardware packages.
Can be evaluated for interior doors in retail, office and other commercial spaces.
The geometric handle profile can coordinate with contemporary doors, square accessories and minimalist interior styles.
Can be considered when replacing existing lever handles, provided the spindle, fixing points, door thickness and lock configuration are compatible.
Multiple finish options, where available, can help coordinate handles with hinges, locks, escutcheons and other door accessories.
| Door Type | Suitability Considerations |
|---|---|
| Timber Doors | Confirm door thickness and lock preparation |
| Engineered Wood Doors | Verify fixing strength and lock compatibility |
| Apartment Doors | Check lock case, cylinder and access requirements |
| Hotel Interior Doors | Confirm project hardware specifications |
| Office Doors | Select a compatible latch or lock case |
| Commercial Interior Doors | Verify door construction and operating requirements |
| Metal Doors | Confirm mounting system and fixing compatibility |
| Renovation Doors | Check existing spindle, fixing points and door thickness |
| Custom Architectural Doors | Match the approved door and hardware drawings |
Before ordering LH1011, confirm:
Door material and construction
Door thickness
Lock case type
Spindle size and length
Handle fixing arrangement
Rose dimensions
Euro profile cylinder requirements
Required finish
Door handing, where relevant to the selected configuration
Applicable project and accessibility requirements
The handle set should be selected as part of a compatible door hardware system. It does not itself provide a lock function unless paired with the appropriate lock mechanism.
The following is a general installation overview. The actual LH1011 must be installed according to the approved product drawing and supplied instructions.
Step 1: Confirm the Product Configuration
Check the handle model, rose type, escutcheon type, spindle dimensions and fixing hardware.
Step 2: Check Door Thickness
Verify that the door thickness falls within the approved range for the selected spindle and fixing arrangement.
Step 3: Check Lock Compatibility
Confirm that the lock case accepts the specified spindle and that the Euro profile escutcheon, if included, matches the intended cylinder and lock configuration.
Step 4: Prepare the Door
Check the existing spindle opening, mounting holes and lock case position. Any new drilling should follow the approved template.
Step 5: Install the Spindle
Insert the correct spindle through the lock follower, ensuring that it engages properly with the lock mechanism.
Step 6: Position the Handle Roses
Place the square roses or mounting bases against both sides of the door and align them with the spindle and fixing points.
Step 7: Secure the Handle Set
Install the specified fixing screws and tighten them evenly according to the manufacturer's instructions. Avoid overtightening or distorting the mounting bases.
Step 8: Install the Escutcheons
If Euro profile escutcheons are included, align and secure them around the compatible cylinder opening.
Step 9: Test the Handle Operation
Operate the lever from both sides where applicable. Confirm smooth movement and proper latch retraction.
Step 10: Complete the Final Inspection
Check handle stability, rose alignment, screw security and lock operation. Confirm that the lever returns correctly where the lock and handle mechanism are designed to do so.
Use the correct spindle size and length.
Confirm the lock case and handle compatibility before installation.
Do not force incompatible components together.
Protect the surface finish during installation.
Recheck the fixing screws after initial operation if required by the manufacturer.
The L-shaped lever and square rose create a clean architectural appearance for contemporary interiors.
The square tube design coordinates with modern doors and other square-profile hardware.
The Euro profile escutcheon option allows the handle and keyhole area to share a consistent design language.
The reference drawing includes several lever lengths, rose dimensions and lever cross-sections for specification discussions.
Satin stainless steel, polished stainless steel, matte black and antique brass are shown as common market finishes, subject to actual availability.
The handle can operate a compatible lock case through the spindle when correctly specified and installed.
The product can be evaluated for houses, apartments, hotels, offices and other compatible door installations.
The square design can be coordinated with matching escutcheons and other architectural door hardware.
Buyers can discuss available customization options for dimensions, finishes, packaging and branding.
DEGOL welcomes enquiries from distributors, contractors, door manufacturers and project buyers.
Jiangmen Degol Hardware Co., Ltd. welcomes OEM and ODM enquiries for the LH1011 Square Lever Handle Set and related architectural door hardware.
Lever Dimensions
Buyers can submit their required lever length, width, projection and cross-section for technical review.
Rose Dimensions
Alternative square rose dimensions and thicknesses can be evaluated according to manufacturing feasibility.
Material Selection
Available stainless steel grades and other component materials can be confirmed with DEGOL.
Surface Finishes
Buyers can enquire about satin, polished, matte black, antique brass and other available finishes.
Escutcheon Options
Euro profile escutcheons and other compatible options can be discussed according to the lock configuration.
Spindle and Fixing System
Spindle dimensions, fixing arrangements and door thickness requirements can be reviewed for compatibility.
Branding and Private Label
Product identification and private-label requirements may be discussed.
Customized Packaging
Retail packaging, product labels, export cartons and project-specific packaging can be evaluated.
Technical Drawing Review
Customers can submit lock case details, door thickness and project drawings for compatibility assessment.
Sample Evaluation
Sample availability can be confirmed for buyers who wish to inspect the handle design, finish and installation compatibility before placing a bulk order.
All customization options, tooling requirements, MOQ and lead times are subject to technical feasibility and commercial confirmation.
| Order Item | Details |
|---|---|
| Product Model | LH1011 |
| Product Name | Stainless Steel L-Shape Square Lever Handle Set |
| Product Category | Architectural Door Hardware |
| Brand | DEGOL |
| Sales Type | Wholesale / Project Procurement |
| Sample Availability | Contact DEGOL |
| MOQ | To Be Confirmed |
| Wholesale Price | Based on Confirmed Specification and Quantity |
| Standard Packaging | To Be Confirmed |
| Customized Packaging | Subject to Order Requirements |
| Private Label | Enquiries Welcome |
| Shipping Method | Subject to Destination and Agreement |
| Payment Terms | Confirmed During Quotation |
| Inspection Requirements | Subject to Order Specifications |
Contact DEGOL with model number LH1011.
Specify the intended application and destination market.
Confirm door thickness and compatible lock case.
Select lever dimensions and rose configuration.
Confirm spindle size and fixing arrangement.
Select the required finish and escutcheon type.
Request an official technical drawing or sample.
Confirm package contents, MOQ, price and delivery schedule.
Approve the final specifications before production.
Jiangmen Degol Hardware Co., Ltd. serves the architectural door hardware market and welcomes enquiries from international distributors, door manufacturers, contractors, interior design companies and project procurement teams.
For the LH1011 Square Lever Handle Set, DEGOL can be contacted regarding verified product specifications, available finishes, lock compatibility, technical drawings, samples and wholesale purchasing requirements.
Product Specification Enquiries
Buyers may request confirmed dimensions, materials and configuration details.
Technical Drawing Support
Available drawings and installation details can be requested for product evaluation and project planning.
Material and Finish Information
Customers can confirm stainless steel grades, finish options and maintenance requirements.
Lock Compatibility Review
Buyers can provide lock case specifications and door thickness for compatibility assessment.
Sample Requests
Sample availability, cost and delivery arrangements can be discussed before bulk purchasing.
OEM / ODM Projects
Customization requests involving dimensions, finishes, branding and packaging may be reviewed.
Wholesale Quotations
Commercial quotations can be requested according to the final product specification and order quantity.
Export Order Coordination
Packaging, shipment requirements and commercial documentation can be discussed with DEGOL.
Specific factory capacity, production equipment, quality certifications and manufacturing processes should be confirmed directly with the company.
Company: Jiangmen Degol Hardware Co., Ltd.
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
WhatsApp: +86 13725946499
Q1: What is the LH1011 Square Lever Handle Set?
LH1011 is a stainless steel L-shaped square tube lever handle set with a matching square rose and a Euro profile escutcheon option.
Q2: What is the advantage of an L-shaped lever handle?
Its straight geometric lines provide a contemporary appearance and coordinate with modern architectural door hardware.
Q3: What material is used for LH1011?
The product is presented as a stainless steel handle set. The exact stainless steel grade and the materials used for individual components must be confirmed with DEGOL.
Q4: What lever lengths are available?
The reference drawing shows common lengths of 120 mm, 130 mm, 135 mm and 140 mm. Confirm the actual LH1011 options before ordering.
Q5: What is the standard spindle size?
The reference drawing identifies an 8 × 8 mm spindle. Verify the actual spindle size and length against the selected lock case and door thickness.
Q6: What door thickness does LH1011 support?
The drawing shows a reference range of 35–55 mm. The actual compatible range depends on the supplied spindle and fixing configuration.
Q7: Is the Euro profile escutcheon included?
The drawing shows the escutcheon as an optional component. Confirm whether it is included in the selected product set.
Q8: What finishes are available?
The reference drawing shows satin stainless steel, polished stainless steel, matte black and antique brass. Actual finish availability must be confirmed with DEGOL.
Q9: Can LH1011 be installed on timber doors?
It can be considered for compatible timber doors when the lock case, spindle, fixing arrangement and door thickness match the product specification.
Q10: Can LH1011 be used on metal doors?
Suitability depends on the door construction, mounting system and lock preparation. Confirm compatibility before ordering.
Q11: Does LH1011 include a lock case or cylinder?
The supplied drawing focuses on the lever handle set and escutcheon components. A lock case and cylinder should not be assumed to be included unless confirmed in the quotation.
Q12: Can the handle dimensions be customized?
Buyers may enquire about alternative lever lengths, cross-sections, rose dimensions and other configurations, subject to manufacturing feasibility.
Q13: Can I request a sample before placing a bulk order?
Contact DEGOL to confirm sample availability, cost and shipping arrangements.
Q14: Does DEGOL accept OEM / ODM orders?
DEGOL welcomes OEM / ODM enquiries regarding dimensions, finishes, branding and packaging, subject to feasibility.
Q15: What is the MOQ for LH1011?
The minimum order quantity must be confirmed directly with DEGOL according to the selected specification.
Q16: How can I obtain wholesale pricing?
Send DEGOL the model number LH1011, required quantity, door thickness, preferred finish and destination country through WhatsApp or email.
Looking for an L-shape square lever handle set with Euro profile escutcheons for your architectural door hardware range? Contact DEGOL Hardware for product specifications, technical drawings, available finishes, sample information and wholesale pricing.
Product Model: LH1011
Product Name: LH1011 Stainless Steel L-Shape Square Lever Handle Set with Euro Profile Escutcheons
Company: Jiangmen Degol Hardware Co., Ltd.
WhatsApp: +86 13725946499
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
Request Your LH1011 Stainless Steel L-Shape Square Lever Handle Wholesale Quote Today.
Contact DEGOL on WhatsApp – Request LH1011 Wholesale Pricing
