Sliding door locks, as the core security component of sliding doors, often encounter issues such as mismatched lock types, complicated installation, or jammed lock teeth during replacement or installation. The process of replacing a sliding door lock is slightly more complex than replacing a standard wooden or metal sliding door lock, but it can still be completed through the following basic steps. Replacing a sliding door lock yourself not only saves time but also reduces costs.
This article will provide a detailed explanation from the perspectives of lock structure, type classification, installation steps, and common problems, helping you quickly master the correct method for replacing sliding door locks and easily resolve usage and installation issues.
Which type of sliding door lock you need to replace？

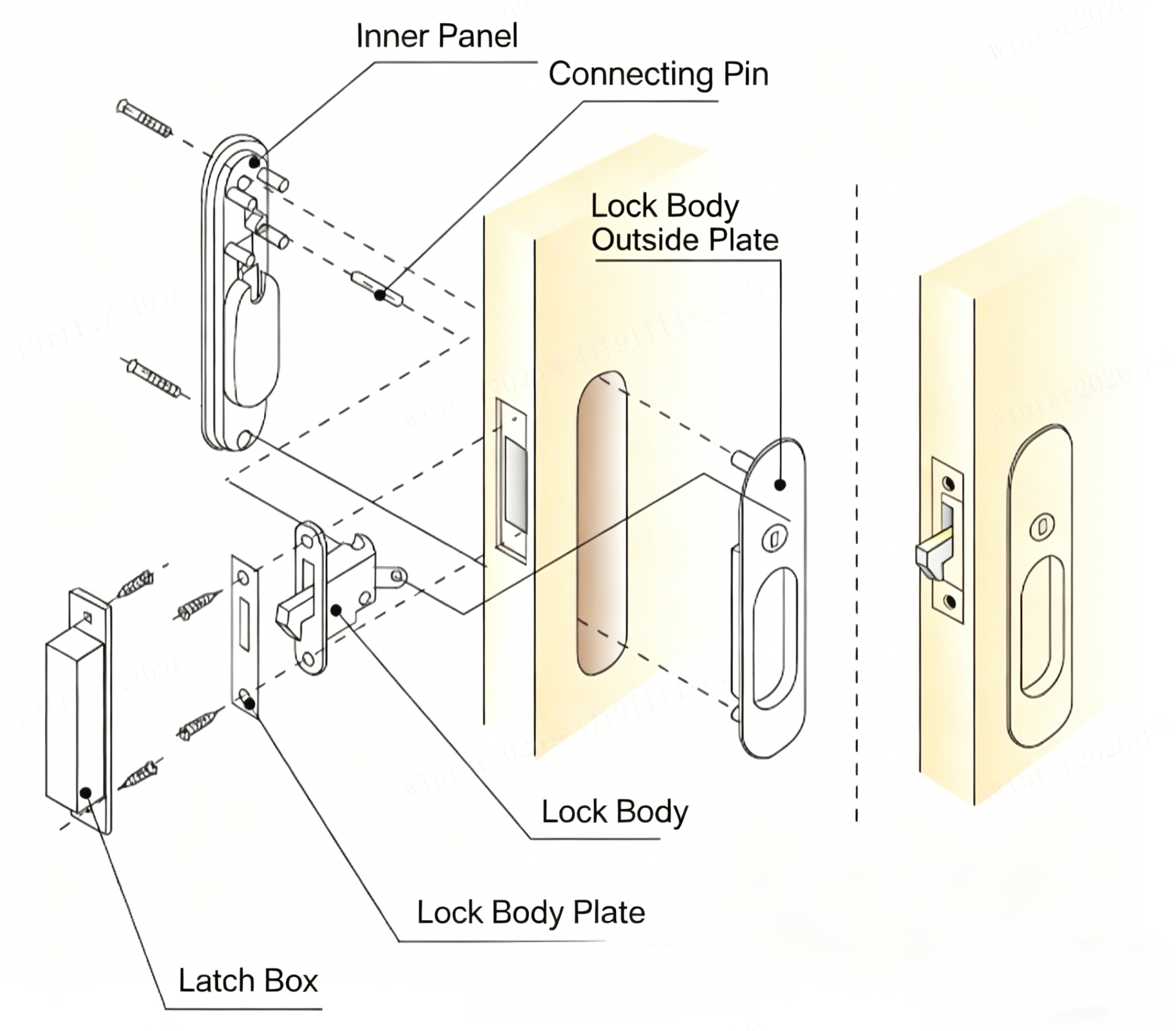

① Components of a sliding door lock
Sliding door locks mainly consist of the lock case, lock cylinder, gears, lock teeth, and handles, which work together to enable the door’s sliding operation.
(1) Lock case: The external protective structure of the sliding door lock, used to house all internal components and provide sturdy support.
(2) Lock cylinder: Located inside the lock case, it is the core part of the lock and can be operated with a key or knob.
(3) Gears and teeth: When the lock cylinder or handle turns, the gears drive the teeth inside the lock case to move up and down. The teeth are connected to the lock tooth shaft through a pin, allowing the lock teeth to rotate or retract.
(4) Lock teeth: Usually hook-shaped or straight, distributed on the upper and lower sides of the lock case. When closed, the lock teeth extend and hook onto the lock catch on the door frame to secure the door; when opened, the lock teeth retract into the lock case.
(5) Handle or knob: Installed on the interior or exterior, used to manually operate the lock cylinder or knob to control the extension and retraction of the lock teeth.
② Functions and advantages and disadvantages of sliding door locks
Working principle: When the handle or key turns the lock cylinder, the gear drives the rack to move up and down. The rack drives the latch to rotate via the pin. When the latch extends, it hooks onto the door frame latch to lock the door; when the latch retracts, the door can be freely pushed or pulled open. The entire process relies on the precise coordination of the lock case, lock cylinder, gears, rack, and latch.
Advantages:
(1) Saves space (the most obvious benefit)
Compared to traditional swinging doors, sliding doors don’t require the door panels to swing in or out, so they don’t take up much space.
(2) More modern and aesthetically pleasing design
Sliding doors generally have a sleek, modern design that can fit into various home or commercial styles. Glass sliding doors not only increase natural light indoors but also make the space feel more open and bright.
(3) Reduces noise
Sliding doors tend to operate more quietly than traditional doors. Especially when paired with high-quality rollers and tracks, they can reduce the noise from opening and closing and avoid common sounds from door frames bumping or rubbing.
Disadvantages:
(1) High installation requirements
Compared with traditional doors, sliding doors are more complicated to install. Accurate measurements and professional installation skills are necessary. Improper installation of track systems can easily cause the door to become unbalanced, affecting smooth operation.
(2) Possible safety risks
Sliding doors, especially glass ones, can pose safety hazards if the door or track system is damaged, potentially causing the door to fall or get stuck.
(3) Sliding may slow over long-term use
Although sliding doors usually operate smoothly, improper use or lack of maintenance can cause the tracks and rollers to wear down over time.
③ Types of Sliding Door Locks and Their Applications
Looking for sliding door locks that are easier to replace? The table below will help you quickly understand which type of sliding door lock you need:
Lock Type | Lock Body Features | Suitable Scenarios |
Hook Lock | Hook-shaped lock body, installed on the edge of the sliding door, fixed by hooking the door frame | Kitchen sliding doors, balcony glass sliding doors |
Latch Bolt Lock | Bolt-type lock structure, locked by inserting into the door frame lock hole | Bathroom sliding doors, storage room sliding doors |
Sliding Lock | Lock body slides along the track to engage the lock slot, must be matched with the track | Wardrobe sliding doors, partition sliding doors |
Magnetic Lock | Lock body is locked by magnetic adsorption, no mechanical collision noise | Bedroom sliding doors, study sliding doors |
Tools Needed for Replacement and How to Install More Easily
① Choose the Right Sliding Door Lock
Choosing a suitable sliding door lock is crucial for ensuring home security. According to the above guidelines, usage scenarios, and personal needs, select a sliding door lock with features and design that suit you.
② Prepare Installation Tools and Materials
Before installing a sliding door lock, you need to prepare some basic tools and materials, including a screwdriver, electric drill, pencil, batteries, ruler, wrench, installation manual, etc. Make sure you have these tools and materials to ensure a smooth installation process.
③ Remove the Existing Lock
Before installing the new sliding door lock, you need to remove the existing lock. Use tools like a screwdriver and wrench to loosen the screws of the existing lock and remove it. Be sure to keep the original lock hole clean and tidy to facilitate the installation of the new lock.
④ Install the New Sliding Door Lock
According to the installation instructions, install the new sliding door lock on the door. Use a pencil, ruler, etc., to accurately measure the lock hole position and mark it on the door. Drill the lock hole with an electric drill and then install and secure the lock body on the door. Next, insert the latch into the door frame and test whether the lock operates smoothly.
⑤ Test and Adjust
After installation, test the operation of the sliding door lock. Use a key or other methods to operate the lock, ensuring that the latch can fully extend and retract, and that the door lock locks securely. If any issues or defects are found, adjust and correct them according to the installation instructions.
Installation Precautions
① When purchasing a new lock, make sure it matches the brand, style and size of the old lock.
② If you want to replace the old lock with a different lock system, the door may need to be modified.
③ If the new lock requires new holes, mark the new drilling positions with a marker pen or pencil.
④ If your lock has an impact plate (the metal plate where the lock tongue is inserted), check if it is properly aligned with the lock. If the door does not close properly after replacing the lock, it may be necessary to adjust the rollers or tracks, as the door may not be aligned.
FAQS
Why is the lock tongue not aligned properly and can't be locked?
Inclined door rail: the Roller under the door may be worn, causing the door to sink or tilt. Try to adjust the screw at the bottom of the door roller to restore the door panel to the vertical position.
Tight screw: If the lock is newly installed, the door handle screw is tightened too tightly, which may press the door panel (especially plastic/steel/vinyl material), resulting in the internal linkage parts being stuck.
Which material is the most durable?
Stainless steel: cost-effective, suitable for wet environment such as balcony, but long-term use requires lubricating oil to prevent "rust".
Zinc alloy/aluminum alloy: diverse styles, strong decoration and relatively long service life (some high-quality brands can be used for up to 10 years).
Can the sliding door lock be operated on both sides?
Sure. Select the double-sided key/double-sided knob model to operate inside and outside; One-sided lock can only be opened on one side.
In summary, although the installation steps of sliding door locks are slightly more complicated than conventional door locks, as long as you choose the right type of lock, prepare the necessary tools, and follow standard procedures, the replacement can be completed smoothly, effectively saving time and cost. When purchasing and installing, the focus should be on matching the door and window profiles, dimensions, and usage scenarios, and performing regular maintenance and adjustments. This not only ensures smooth operation of the lock but also enhances the security and lifespan of the sliding door, providing a stable and reliable user experience for homes and commercial spaces.
