LH1102
Degol
| Quantity: | |
|---|---|

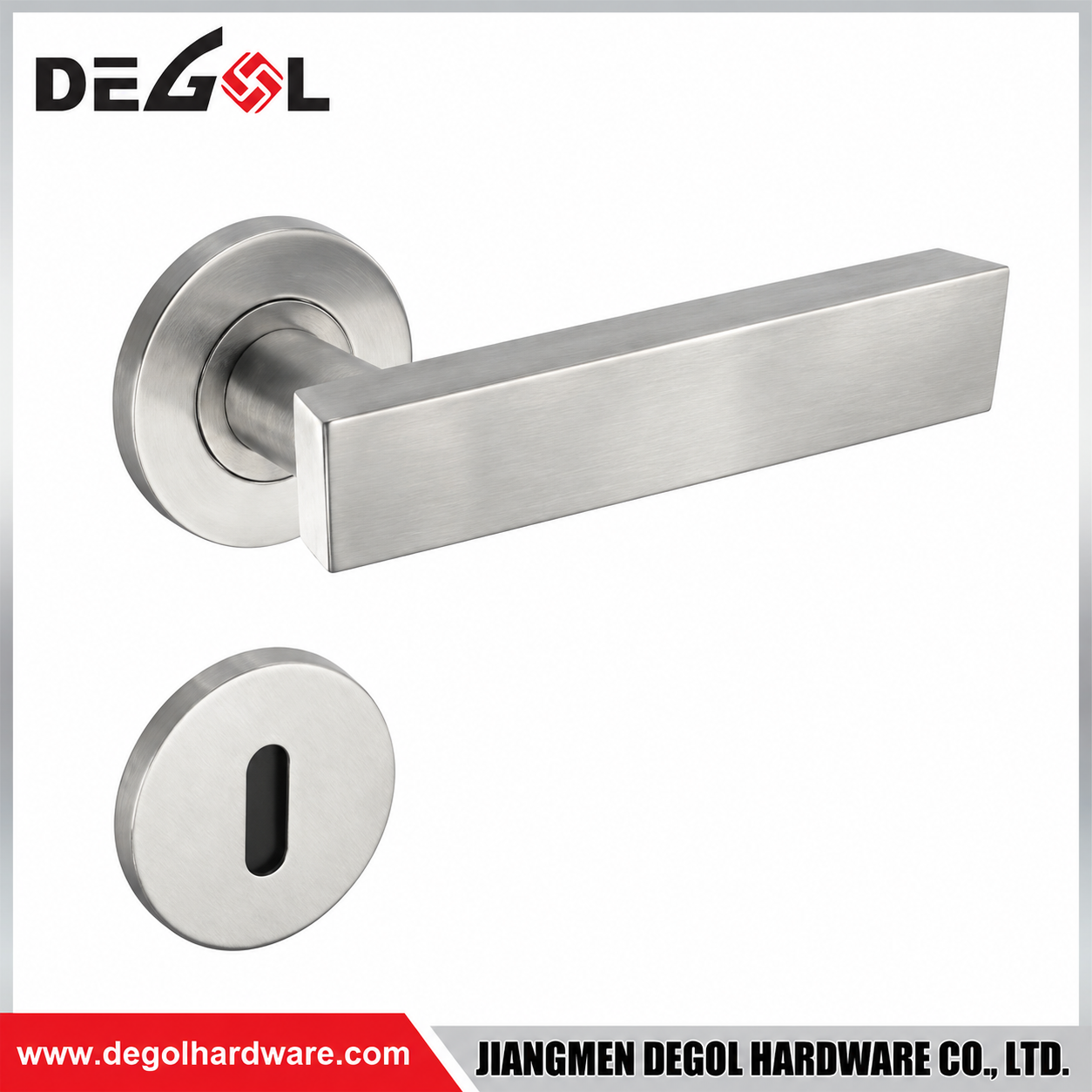

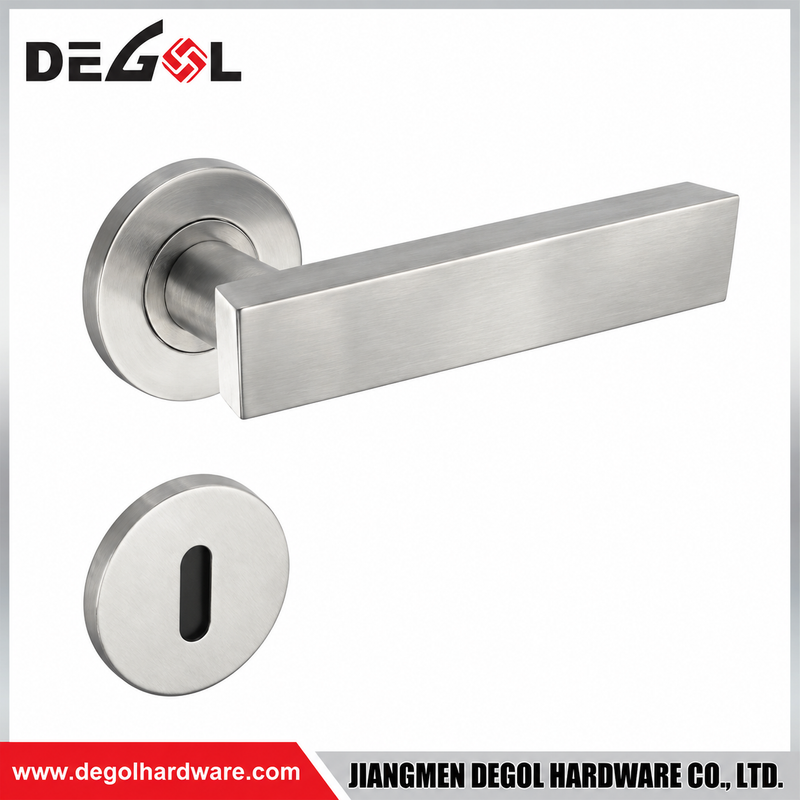

The DEGOL LH1102 Flat Rectangular Stainless Steel Door Lever Handle is a contemporary architectural hardware design featuring a straight flat-bar lever, a minimalist round rose, and an elegant brushed satin stainless steel appearance.
Unlike conventional round tubular lever handles, the LH1102 features a distinctive rectangular gripping section with flat surfaces and clean linear edges. Its strong horizontal profile creates a modern architectural statement while retaining a simple, understated appearance.
The combination of a rectangular lever and a circular mounting rose provides a balanced contrast between straight lines and rounded geometry.
According to the supplied reference drawing, the LH1102 features an approximate handle length of 135 mm, a projection of 60 mm, and a rectangular gripping section measuring approximately 25 mm in height and 12 mm in thickness.
The handle is illustrated on a round rose with an approximate diameter of 52 mm. A coordinated round keyhole escutcheon with a vertical rounded slot is also shown.
With its brushed metallic look and minimalist geometry, the LH1102 is suitable for consideration in modern apartments, private homes, offices, hotels, and compatible commercial interior door projects.
The LH1102 is positioned for architectural hardware wholesalers, international importers, building material distributors, door manufacturers, private-label hardware brands, and OEM/ODM buyers.
Jiangmen Degol Hardware Co., Ltd. welcomes inquiries for LH1102 product specifications, material confirmation, samples, custom finish requirements, and wholesale quotations.
The technical illustration references stainless steel, but the actual material grade and final manufacturing specifications have not been verified.
The DEGOL LH1102 is a modern straight rectangular lever door handle mounted on a round rose.
Its distinctive feature is a broad, flat gripping section with a rectangular cross-section, creating a streamlined architectural appearance.
The handle is intended for use with compatible interior door latch or locking systems.
1. Flat Rectangular Lever Profile
The LH1102 features a straight rectangular bar-shaped lever instead of a conventional round tubular handle.
2. Clean Modern Lines
The flat surfaces and straight edges create a minimalist architectural appearance.
3. Round Rose Mounting
The circular mounting plate offers a geometric contrast to the rectangular lever.
4. Brushed Satin Metallic Appearance
The reference finish features a subtle brushed stainless steel look.
5. Matching Round Keyhole Escutcheon
The illustrated configuration features a matching round escutcheon with a vertical rounded keyhole slot.
6. Contemporary Interior Design
The combination of flat-bar geometry and a round rose makes the LH1102 suitable for modern residential and commercial interior hardware collections.
7. B2B Architectural Hardware Positioning
The LH1102 is available for product inquiries from wholesalers, distributors, construction buyers and OEM/ODM customers.
| Parameter | Specification |
|---|---|
| Product Model | LH1102 |
| Brand | DEGOL |
| Product Name | Flat Rectangular Stainless Steel Door Lever Handle on Round Rose |
| Product Category | Architectural Door Hardware |
| Product Type | Straight Flat Bar Lever Handle |
| Handle Design | Flat Rectangular Lever |
| Handle Shape | Straight / Geometric / Rectangular |
| Design Style | Modern / Minimalist / Contemporary |
| Reference Material | Stainless Steel |
| Stainless Steel Grade | Not Verified |
| Reference Surface Finish | Satin Stainless Steel / Brushed Appearance |
| Overall Handle Length | Approx. 135 mm |
| Handle Projection | Approx. 60 mm |
| Handle Section Height | Approx. 25 mm |
| Handle Section Thickness | Approx. 12 mm |
| Rose Shape | Round |
| Rose Diameter | Approx. Ø52 mm |
| Rose Thickness | Approx. 8–10 mm |
| Escutcheon Shape | Round |
| Escutcheon Diameter | Approx. Ø52 mm |
| Escutcheon Thickness | Approx. 8–10 mm |
| Keyhole Type | Vertical Rounded Slot |
| Keyhole Slot Dimensions | Approx. 8 × 24 mm |
| Square Spindle | Approx. 8 × 8 mm |
| Suitable Door Thickness | Approx. 35–55 mm |
| Fixing Method | Screw Fixing Through Rose – Reference |
| Lock Compatibility | Subject to Selected Lock System |
| Application | Compatible Interior Doors |
| OEM / ODM | Subject to Technical and Commercial Confirmation |
| Supplier | Jiangmen Degol Hardware Co., Ltd. |
| Country of Origin | China |
Specification Notice: All dimensions are approximate references based on the supplied technical illustration. The product model is LH1102, but the stainless steel grade, exact production dimensions, surface treatment, and final assembly configuration require confirmation before ordering or installation.

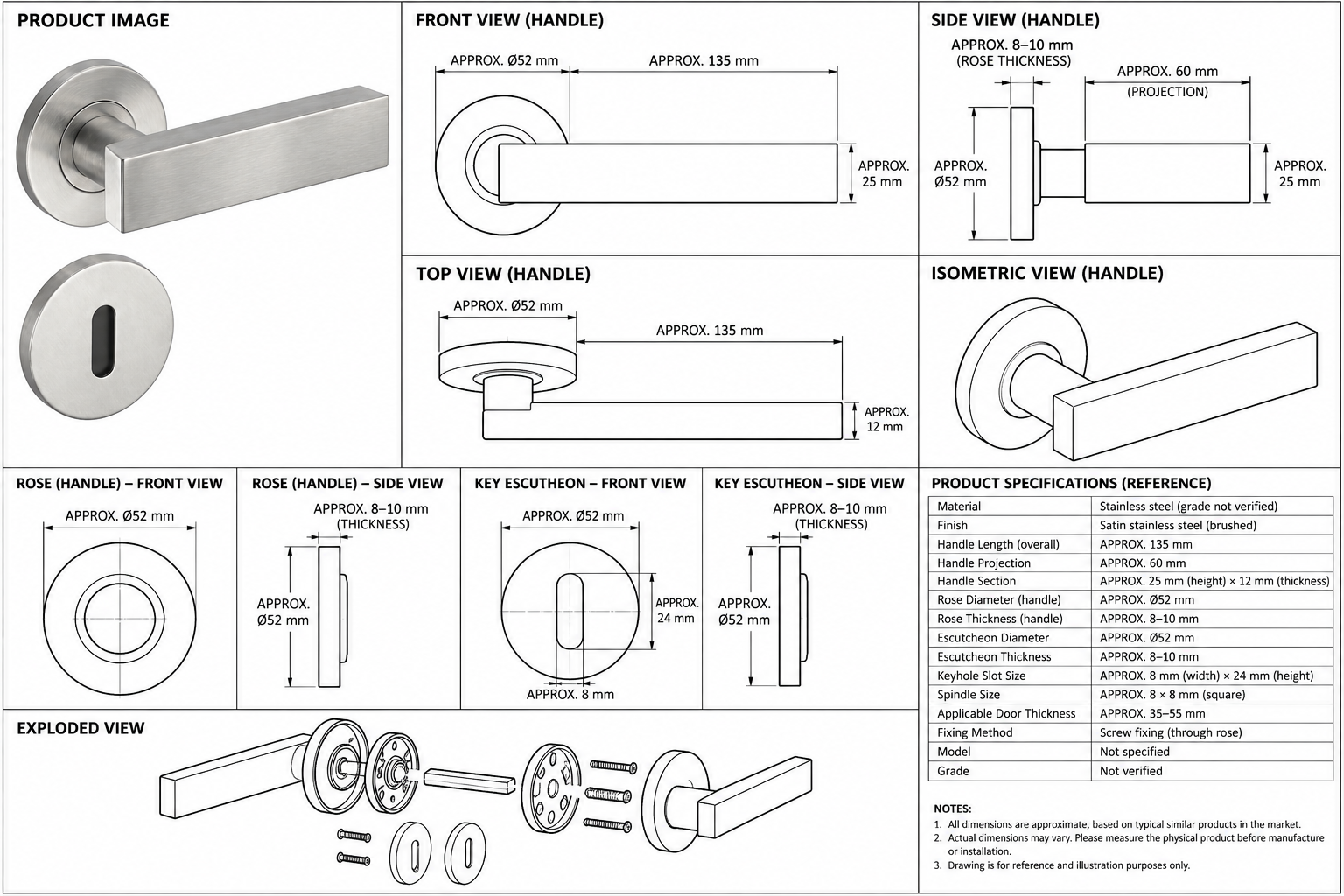

The LH1102 reference illustration includes front, side, top, and isometric views of the lever handle, together with round rose details, matching keyhole escutcheons, and an exploded assembly diagram.
The reference drawing indicates an overall lever length of approximately 135 mm.
The straight rectangular profile creates a clean horizontal appearance suitable for contemporary architectural door designs.
The reference handle projection is approximately 60 mm.
The final installed projection should be verified against the official LH1102 product drawing and mounting configuration.
The reference rectangular gripping section measures approximately:
Height: 25 mm
Thickness: 12 mm
These dimensions describe the flat-bar section of the lever.
The LH1102 should not be described as a Ø25 mm round tubular handle.
The reference round mounting rose has:
Diameter: Approximately 52 mm
Thickness: Approximately 8–10 mm
The circular rose provides a clean contrast with the rectangular lever.
The illustrated keyhole escutcheon has:
Diameter: Approximately 52 mm
Thickness: Approximately 8–10 mm
Its round design coordinates with the handle rose.
The matching escutcheon features a vertical rounded slot measuring approximately:
Width: 8 mm
Height: 24 mm
The exact lock and keyhole compatibility must be verified before ordering.
The reference drawing indicates an approximately 8 × 8 mm square spindle.
The final spindle length and mounting requirements must be confirmed for the selected door thickness and lock configuration.
The reference applicable door thickness is approximately 35–55 mm.
Final compatibility depends on the selected spindle, fixing screws, lock body, and door construction.
The reference specifications describe screw fixing through the round rose.
Actual fixing positions, screw sizes, mounting arrangements, and installation requirements must be confirmed from the official LH1102 technical documentation.
The drawing illustrates:
Rectangular lever handle assemblies
Round rose covers
Internal fixing and mounting plates
Square spindle
Fixing screws
Matching round keyhole escutcheons
The final package contents should be verified before quotation and order confirmation.
Customers may contact DEGOL Hardware for:
Official LH1102 technical drawings
Confirmed lever dimensions
Material specifications
Round rose dimensions
Mounting-hole measurements
Spindle dimensions
Keyhole escutcheon details
Compatible lock information
Installation instructions
The LH1102 reference illustration identifies stainless steel as the intended material, but the exact grade is not verified.
Stainless steel is widely used in architectural door hardware for its metallic appearance and, when an appropriate grade is selected, corrosion resistance.
The actual material grade must be confirmed before ordering.
SUS304 is commonly used in architectural hardware applications where good general corrosion resistance is required.
Buyers can ask whether LH1102 can be supplied in SUS304.
However, SUS304 must not be treated as a confirmed LH1102 specification without supplier verification.
The supplied illustration shows a brushed satin stainless steel appearance.
This understated metallic look is suitable for contemporary interior design projects and modern hardware collections.
The exact brushing process, surface roughness, and finishing requirements should be confirmed before production.
Depending on manufacturing feasibility, customers may inquire about:
Satin stainless steel
Polished stainless steel
Matte black
Customized decorative finishes
Only the brushed satin appearance is illustrated. Alternative finish availability is subject to confirmation.
For a confirmed satin stainless steel finish, regular cleaning with a soft cloth and a suitable mild cleaner can help maintain the appearance.
Avoid abrasive cleaning materials or harsh chemicals that could damage the surface treatment.
The DEGOL LH1102 Flat Rectangular Door Lever Handle can be considered for various contemporary architectural interior projects.
Modern apartments
Private residences
Residential villas
Bedroom doors
Study room doors
Home office doors
Residential renovation projects
Office buildings
Meeting rooms
Administrative offices
Business centers
Commercial interior doors
Interior fit-out projects
Hotel interior doors
Serviced apartments
Guest accommodation interiors
Hospitality renovation projects
The LH1102 is positioned for:
Door hardware wholesalers
International importers
Architectural hardware distributors
Building material suppliers
Door manufacturers
Interior hardware brands
Construction project buyers
OEM and private-label customers
Final application suitability must be verified against the selected locking system and relevant project requirements.
The LH1102 may be installed on compatible interior door systems when the mounting dimensions, fixing arrangement, and lock mechanism meet the required conditions.
| Door Type | Potential Application |
|---|---|
| Wooden Interior Doors | Compatible residential installations |
| MDF Interior Doors | Subject to fixing requirements |
| Composite Interior Doors | Subject to hardware compatibility |
| Apartment Interior Doors | Residential use |
| Bedroom Doors | Compatible latch and lock systems |
| Office Interior Doors | Commercial interior applications |
| Hotel Interior Doors | Subject to project requirements |
| Decorative Interior Doors | Contemporary interiors |
Before ordering, verify:
Actual door thickness
Mortise lock or latch dimensions
Square spindle size
Spindle length
Fixing-hole positions
Rose installation requirements
Escutcheon keyhole compatibility
Handle handing
Required operating clearance
The LH1102 should not be assumed suitable for fire-rated doors, emergency-exit assemblies, or regulated accessibility applications without supporting verification.
The following instructions are general guidance. The official LH1102 installation drawing and selected lock manufacturer's instructions must take precedence.
Confirm the door thickness, locking mechanism, and mounting requirements.
Check the supplied lever assemblies, roses, spindle, fixing plates, screws, and escutcheons against the packing list.
Mark the mounting positions using an approved drilling template.
Do not drill directly from unverified reference dimensions.
Install the selected mortise lock or latch in accordance with its manufacturer's instructions.
Insert the correctly specified square spindle through the lock follower.
The reference spindle size is approximately 8 × 8 mm.
Fit the lever assemblies on both sides of the door.
Ensure that the rectangular gripping sections are correctly aligned.
Attach the mounting components using the appropriate fixing screws.
Install the round rose covers and check their alignment.
If matching keyhole escutcheons are included, install them according to the selected lock configuration.
Check that:
The lever moves smoothly
The latch retracts correctly
The handle returns as intended
The mounting components are secure
The rose and escutcheon are aligned
The lock operates without obstruction
Professional installation is recommended for commercial projects or specialized locking systems.
The LH1102 features a straight rectangular bar, offering a modern alternative to conventional round tubular door handles.
The clean horizontal lines and flat surfaces create a contemporary visual profile.
The approximate 25 × 12 mm reference gripping section emphasizes the flat-bar design.
The circular mounting rose provides a geometric contrast with the straight rectangular lever.
The reference finish complements modern residential and commercial interior design schemes.
The matching round keyhole escutcheon creates a consistent decorative appearance.
The LH1102 design can be considered for apartments, offices, hotels, and other compatible interior door applications.
The supplied drawing provides approximate dimensions for preliminary product selection and project evaluation.
The LH1102 is suitable for inquiries from importers, architectural hardware distributors, and international wholesale buyers.
DEGOL welcomes discussions regarding branding, packaging, finishes, and technically feasible custom requirements.
Jiangmen Degol Hardware Co., Ltd. welcomes OEM and ODM inquiries for the LH1102 Flat Rectangular Door Lever Handle.
Customers may discuss:
Customized product branding
Customer-specific product codes
Private-label packaging
Customized product labels
Export carton markings
Customers can inquire about alternative finishes according to project requirements and manufacturing feasibility.
Potential customization requests include:
Lever length
Rectangular gripping section
Handle projection
Round rose diameter
Escutcheon dimensions
Spindle requirements
Mounting systems
Structural modifications require technical evaluation.
Private-label packaging requests may include:
Branded individual boxes
Customized labels
Project-specific product information
Export carton markings
DEGOL welcomes inquiries for:
Bulk door hardware orders
Architectural project supply
Product samples
Technical drawings
Customized packaging
OEM/ODM hardware collections
Customization availability, MOQ, tooling costs, and delivery schedules must be confirmed before ordering.
| Item | Information |
|---|---|
| Product Model | LH1102 |
| Product Name | Flat Rectangular Door Lever Handle on Round Rose |
| Brand | DEGOL |
| Reference Material | Stainless Steel – Grade Unverified |
| Reference Finish | Satin Stainless Steel |
| Handle Pair | Illustrated; inclusion to be confirmed |
| Round Roses | Illustrated; inclusion to be confirmed |
| Matching Keyhole Escutcheons | Illustrated; inclusion to be confirmed |
| Square Spindle | Reference 8 × 8 mm; supplied length to be confirmed |
| Fixing Screws | Final packing list to be confirmed |
| Standard Packaging | To Be Confirmed |
| Customized Packaging | Subject to Inquiry |
| MOQ | Contact DEGOL |
| Sample Availability | Upon Inquiry |
| Sample Lead Time | To Be Confirmed |
| Production Lead Time | To Be Confirmed |
| Wholesale Pricing | Quotation Upon Request |
| Shipping Terms | To Be Agreed |
Step 1 – Submit an Inquiry
Provide model LH1102, preferred material, finish, estimated quantity, and destination market.
Step 2 – Confirm Technical Specifications
Review the official drawing, material grade, dimensions, spindle, locking system, and included accessories.
Step 3 – Request Samples
Discuss sample availability, sample charges, and shipping arrangements.
Step 4 – Receive Wholesale Quotation
Confirm unit pricing, MOQ, packaging, production lead time, and trading terms.
Step 5 – Approve the Order
Finalize product specifications and purchase order requirements.
Step 6 – Arrange Production and Shipment
Production and delivery follow the agreed order terms.
Jiangmen Degol Hardware Co., Ltd. supplies architectural door hardware products for international wholesale and B2B sourcing inquiries.
The LH1102 Flat Rectangular Door Lever Handle is positioned within DEGOL's modern interior door handle product range.
Customers may inquire about:
Flat rectangular door lever handles
Modern straight-bar door handles
Stainless steel appearance door hardware
Round rose lever handles
Matching keyhole escutcheons
Residential interior door hardware
Commercial interior door hardware
OEM and private-label door hardware
DEGOL welcomes inquiries from:
Door hardware wholesalers
Architectural hardware distributors
International importers
Building material suppliers
Door manufacturers
Construction procurement teams
Hardware brands
Interior design buyers
Customers may request:
LH1102 technical drawings
Material specification confirmation
Product dimensions
Surface finish information
Sample arrangements
OEM/ODM consultation
Packaging details
Bulk order quotations
Specific factory capacity, manufacturing equipment, material certifications, inspection processes, and test results should be independently confirmed before publication.
Company: Jiangmen Degol Hardware Co., Ltd.
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
WhatsApp: +86 13725946499
The DEGOL LH1102 is a modern flat rectangular lever door handle featuring a straight bar-shaped gripping section and a round mounting rose.
The LH1102 features a rectangular gripping section rather than a conventional cylindrical tube.
It features a minimalist architectural design with straight edges, flat surfaces, and a round mounting rose.
The reference drawing lists stainless steel, but the actual material grade has not been verified.
SUS304 has not been confirmed. Contact DEGOL to request the official material specification.
The reference illustration shows a brushed satin stainless steel appearance.
The reference handle length is approximately 135 mm.
The reference projection is approximately 60 mm.
The reference section measures approximately 25 mm in height and 12 mm in thickness.
No. The illustrated LH1102 is a flat rectangular lever design.
LH1102 features a round mounting rose.
The reference rose diameter is approximately 52 mm.
The reference rose thickness is approximately 8–10 mm.
The supplied illustration shows matching round keyhole escutcheons. Their inclusion in the quoted product set must be confirmed.
The reference escutcheon diameter is approximately 52 mm.
The reference vertical rounded slot measures approximately 8 × 24 mm.
Euro-profile cylinder compatibility has not been established by the reference illustration. Buyers must confirm the required lock and escutcheon dimensions.
The reference drawing identifies an approximately 8 × 8 mm square spindle.
The reference drawing indicates approximately 35–55 mm. Actual installation compatibility must be verified.
It may be installed on compatible wooden interior doors with appropriate mounting and locking systems.
Its modern appearance is suitable for consideration in office interior door projects, subject to confirmed performance requirements.
It may be considered for compatible hotel interior doors, provided the product meets the project's technical specifications.
Exterior suitability has not been verified. Material grade, finish performance, and environmental exposure must be assessed separately.
Fire-rated compatibility has not been established. The complete door assembly and hardware must satisfy the applicable requirements.
Customers may discuss OEM branding, product labeling, and private-label packaging with DEGOL.
Contact DEGOL to inquire about sample availability, charges, and shipment arrangements.
The MOQ depends on the selected product specifications and order conditions. Please contact DEGOL for confirmation.
Customers may request an official LH1102 technical drawing and confirmed dimensions.
A paired assembly is illustrated, but the final quotation and packing list must confirm the supplied components.
Contact DEGOL through WhatsApp or email with model LH1102, estimated quantity, preferred material, finish, packaging requirements, and destination market.
Looking for an LH1102 Flat Rectangular Stainless Steel Door Lever Handle on Round Rose for your architectural door hardware range?
Contact DEGOL Hardware for product specifications, technical drawings, confirmed material grades, available finishes, sample information and wholesale pricing.
Product Model: LH1102 Flat Rectangular Stainless Steel Door Lever Handle on Round Rose
Company: Jiangmen Degol Hardware Co., Ltd.
WhatsApp: +86 13725946499
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
Request Your LH1102 Flat Rectangular Door Lever Handle Wholesale Quote Today
