Comprehensive Analysis of CE-Certified Hinges: Applications, Sizes, Installation & Technical Advantages

CE-Certified Hinges – Dual Guarantee of Compliance and Performance in Global Architectural Hardware

In the global market of architectural and household hardware, CE certification serves as a mandatory threshold for entering the EU market, and more importantly, an authoritative endorsement of product safety, durability, and technical compliance. As core components connecting doors, windows, and furniture, CE-certified hinges not only meet the rigorous testing requirements of the EN 1935:2002 standard but also demonstrate outstanding advantages in load-bearing capacity, corrosion resistance, and installation convenience. This article provides professional interpretations for foreign trade practitioners and overseas buyers from the perspectives of technical parameters, application scenarios, installation guidelines, and certification value.

Core Applications and Technical Characteristics of CE-Certified Hinges

(1)Diverse Application Scenarios: Key Connections from Basic Building Materials to High-End Projects

• Architectural Door & Window Systems: Suitable for swing doors, sliding doors, and fire-rated doors in residential buildings, commercial buildings, and public facilities. They ensure smooth opening and closing of door leaves, with a load-bearing capacity ranging from 30kg to 160kg (in line with the EN 1935 load classification standard).

• Furniture & Cabinets: Provide quiet and wear-resistant connection solutions for custom furniture such as wardrobes and cabinets. They pass a fatigue test of 25,000 to 200,000 cycles (classified by application scenarios) to meet the needs of high-frequency use.

(2)Special Function Scenarios:

• Fire-rated door hinges: Pass the additional fire resistance test of EN 1935, supporting a fire resistance duration of 30 to 60 minutes and ensuring fire safety when used with smoke control systems.

• Anti-theft hinges: Feature a reinforced shear strength design to resist external impact, complying with the structural safety requirements of EU anti-theft doors and windows.

(3)Precise Size System: Modular Design Adapting to Global Construction Standards

Mainstream Specification Parameters:

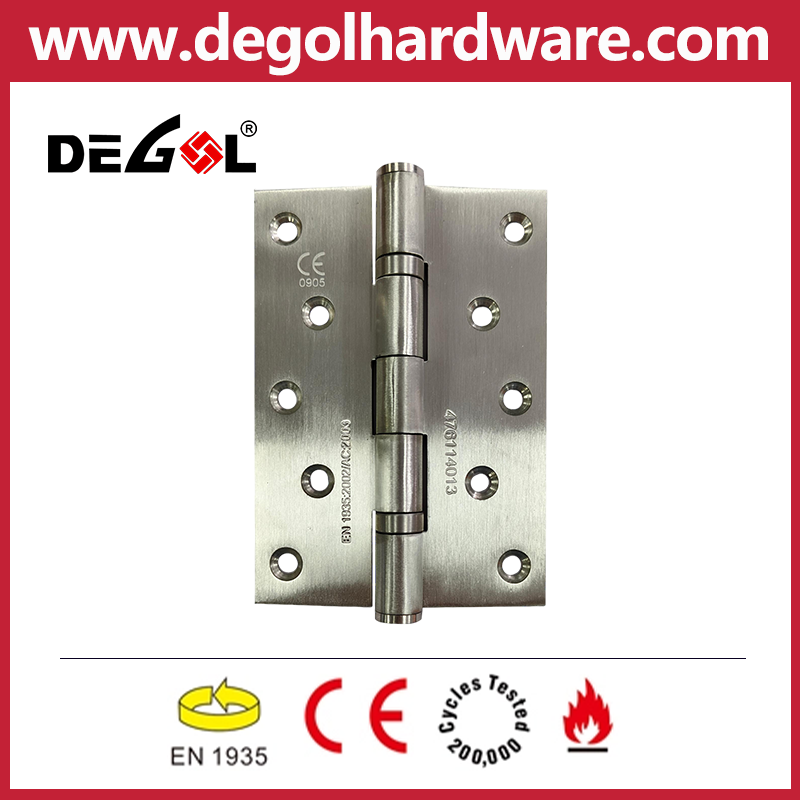

• Regular sizes: 4 inches (100mm) × 3 inches (75mm) × 3mm (thickness), suitable for standard interior doors; heavy-duty hinges can reach 6 inches (150mm) × 4 inches (100mm) × 5mm, used for industrial doors or ultra-heavy door leaves.

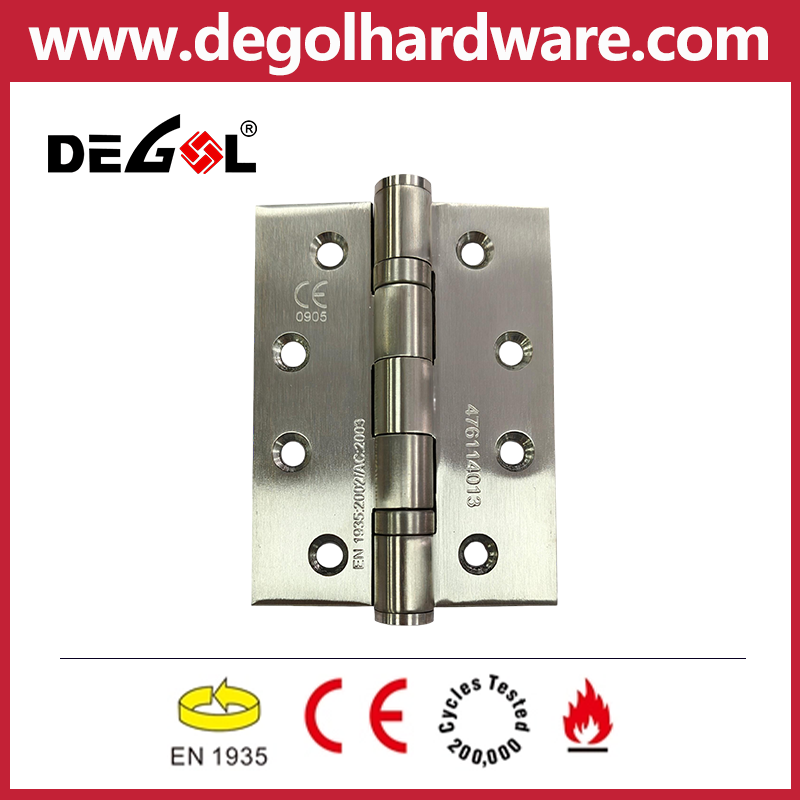

• European standard coding: For example, "4x3x3-4BB-304" indicates a hinge with 4 inches in length, 3 inches in width, 3mm in thickness, load class 4 (bearing 80kg), ball bearing structure (BB), and 304 stainless steel material.

(4)Selection Basis:

• Select the corresponding load class (Class 0 to Class 7, with a maximum load-bearing capacity of 160kg) and durability class (Class 3 to Class 7, with a maximum of 200,000 cycles) based on the weight of the door leaf (refer to the EN 1935 load table), door frame thickness, and opening frequency.

Application Scenarios and Supporting Tools: Professional Solutions for Full-Scenario Use

(1)Multi-Field Adaptation Solutions

• Residential Scenarios: Quiet hinges (noise ≤ 35dB) are combined with invisible installation design to improve home comfort; 子母 hinges are suitable for narrow-edge door frames, balancing aesthetics and practicality.

• Commercial & Public Facilities: High-load hinges (e.g., Class 7 with a load-bearing capacity of 160kg) are used for hotel lobby doors and hospital ward doors, supporting more than 500 openings/closing cycles per day; corrosion-resistant hinges (salt spray test ≥ 96 hours) are applicable to coastal buildings or humid environments.

• Industrial & Engineering Scenarios: Explosion-proof hinges pass ATEX certification for use in chemical workshops; fire-rated hinges comply with the EN 1634-1 standard to meet the fire protection requirements of industrial plants.

(2)Professional Installation Tool Kit

• Basic Tools: High-precision tape measure (±0.5mm error), electronic level (ensuring ±0.1° vertical/horizontal), wood drill bit (suitable for the size of the hinge cup groove).

• Advanced Equipment: Electric screwdriver (adjustable torque to avoid screw slipping), laser level (improving positioning efficiency during batch installation).

• Consumable Accessories: Stainless steel self-tapping screws (complying with the EN ISO 3506 standard, corrosion resistance class A4-70), shock-absorbing gaskets (reducing vibration noise during opening and closing).

Technical Advantages of CE-Certified Hinges: Five Core Selling Points Beyond Basic Performance

(1)Compliance: Full Compliance with the EN 1935 Standard

• Pass 7 core tests: Static load deformation test (verifying load-bearing stability), overload test (no failure under 1.5 times the rated load), salt spray corrosion test (Class 3 corrosion resistance, suitable for coastal climates), 200,000-cycle fatigue test (lifetime warranty for commercial scenarios).

• Certification mark interpretation: The CE mark is accompanied by a notified body code (e.g., 0086), and the Declaration of Performance (DoP) includes 21 technical parameters such as material, load class, and fire rating.

(2)Material and Process Innovation

• 304 Stainless Steel as the Main Material: Contains 8% nickel, improving intergranular corrosion resistance by 40%, with a tensile strength of ≥ 520MPa, far exceeding that of ordinary 201 stainless steel hinges.

• Optimized Bearing Structure: Adopting double-row ball bearings (e.g., the "4BB" design in materials), reducing the friction torque to ≤ 2.5N·m and the opening resistance by 30%, suitable for barrier-free access (complying with the US ADA standard).

(3)Detail Design Enhancing User Experience

• Maintenance-Free Feature: Self-lubricating coating technology (e.g., molybdenum disulfide coating) reduces maintenance needs by 90%, requiring no oil injection during the service life.

• 3D Adjustable Function: ±2mm horizontal adjustment, ±1mm vertical adjustment, and ±1mm depth adjustment, solving the problem of door frame installation deviation and increasing the adaptation rate to 98%.

Standardized Installation Process: 6-Step Operation Guide from Measurement to Debugging

(1)Pre-Installation Preparation

• Confirm product parameters: Check the hinge load class, door opening direction (left/right), and installation method (full overlay/half overlay/inset).

• Tool calibration: Calibrate the level and check the screw specifications (the diameter must match the hinge hole, e.g., M4×30mm stainless steel screws).

(2)Precise Positioning and Marking

• Door leaf positioning: Mark the hinge center 150-200mm from the top/bottom edge of the door leaf; double hinges are suitable for door leaves with a height of ≤ 2m, and triple hinges are used for ultra-heavy doors (e.g., ≥ 40kg).

• Door frame marking: Use a template paper or laser level to ensure the distance between the hinge axis and the door frame edge is ≤ 30mm (complying with the EN 1935 installation specification).

(3)Fixing and Debugging

• Pre-fix the hinge: First screw in 2 positioning screws, and check the verticality of the door leaf (re-adjust if the deviation is > 1°).

• Load test: Simulate 50 daily opening/closing cycles, observe for jamming or abnormal noise, and ensure the bearing hinge can rotate at an angle of ≥ 180° without obstruction.

(4)Final Fastening and Acceptance

• Torque control: Use a torque screwdriver to tighten all screws with a torque of 8-10N·m to avoid hinge deformation due to over-tightening.

• Functional acceptance: Test the door closing force (≤ 50N, complying with the EN 1154 standard) and the uniformity of the door gap (error ≤ 1mm), and generate an installation record for filing.




Academic Technical Interpretation: Materials Science and Engineering Mechanics Behind CE Certification

(1)Comparison of Material Performance Parameters

Indicator	304 Stainless Steel Hinges	Ordinary Galvanized Hinges	Technical Standard
Tensile Strength	≥ 520MPa	≤ 380MPa	EN 10088-2
Salt Spray Test	No Rust for 96 Hours	Rusting in 24 Hours	EN ISO 9227
Coefficient of Friction	0.15-0.20	0.35-0.45	EN 1935 Annex C

(2)Mechanical Model of Structural Design

• Load distribution: Optimize the hinge arm thickness through finite element analysis (FEA) to ensure the uniform transmission of door leaf weight to the door frame, reducing edge stress concentration (stress value ≤ 120MPa).

• Fatigue life prediction: Based on Miner's linear cumulative damage theory and combined with 200,000-cycle test data, establish a life model (R90 reliability ≥ 10 years).

Choosing CE-Certified Hinges – The Optimal Balance of Compliance and Cost-Effectiveness

For foreign trade enterprises, CE-certified hinges are not only a "passport" to enter the EU market but also a core competitive advantage in high-end engineering procurement. From residential decoration to commercial landmarks, from material research and development to installation technology, CE-certified hinges provide reliable connection solutions for global customers through standardized technical parameters, rigorous testing processes, and modular solutions. Contact us now to obtain customized CE-certified hinge product catalogs and technical white papers, and boost the compliant and efficient expansion of your overseas business.
