LH1013
Degol
| Quantity: | |
|---|---|
The DEGOL LH1013 Offset Rectangular Stainless Steel Door Lever Handle is a modern architectural door hardware design featuring a straight flat-bar gripping section, a distinctive angled neck, and a round mounting rose.
The defining feature of the LH1013 is its offset lever construction. Instead of connecting the rectangular grip to the rose through a simple straight stem, the handle incorporates a bent transition that creates a distinctive geometric profile.
This angled connection gives the LH1013 a more architectural appearance than a conventional straight tubular lever handle.
The product features a brushed satin stainless steel appearance and a circular rose measuring approximately 52 mm in diameter.
According to the reference drawing, the LH1013 has an approximate handle length of 135 mm, a projection of 60–70 mm, and a rectangular lever section approximately 22 mm wide and 10–12 mm thick.
The illustrated assembly includes two opposing lever handles, round rose components, mounting plates, a square spindle, and fixing screws.
Its modern geometric design makes the LH1013 suitable for consideration in contemporary residential interiors, office environments, hospitality projects, and architectural door hardware collections.
Jiangmen Degol Hardware Co., Ltd. welcomes wholesale and OEM/ODM inquiries from door hardware distributors, international importers, building material suppliers, door manufacturers, and private-label hardware brands.
The supplied drawing identifies stainless steel as the reference material, but the exact stainless steel grade and production dimensions require confirmation.
The LH1013 Offset Rectangular Door Lever Handle is a contemporary lever-on-rose door handle with a flat rectangular gripping section and an angled transition between the lever and its mounting stem.
1. Offset Lever Geometry
The lever incorporates a visible bend between the mounting stem and the gripping section, creating a distinctive offset profile.
2. Straight Rectangular Grip
The main gripping section features straight lines, flat surfaces, and a rectangular cross-section.
3. Angled Neck Transition
The angled connection creates a visual difference from conventional straight-stem lever handles.
4. Satin Stainless Steel Appearance
The reference finish has a brushed metallic appearance suited to modern interior design.
5. Round Mounting Rose
The approximately 52 mm circular rose provides a clean mounting design.
6. Screw-Fixed Mounting Assembly
The reference drawing shows a rose-mounted assembly with fixing screws and internal mounting components.
7. Contemporary Architectural Style
The combination of offset geometry, flat surfaces, and a round rose makes LH1013 suitable for modern door hardware collections.
| Parameter | Specification |
|---|---|
| Product Model | LH1013 |
| Brand | DEGOL |
| Product Name | Offset Rectangular Stainless Steel Door Lever Handle |
| Product Category | Architectural Door Hardware |
| Product Type | Lever Door Handle on Round Rose |
| Handle Style | Offset / Angular / Flat Bar |
| Lever Geometry | Straight Rectangular Grip with Bent Neck |
| Reference Material | Stainless Steel |
| Material Grade | Not Verified |
| Reference Finish | Satin Stainless Steel / Brushed |
| Handle Length | Approx. 135 mm |
| Handle Projection | Approx. 60–70 mm |
| Lever Width | Approx. 22 mm |
| Lever Thickness | Approx. 10–12 mm |
| Rose Shape | Round |
| Rose Diameter | Approx. 52 mm |
| Rose Thickness | Approx. 10–12 mm |
| Spindle Section | Approx. 8 × 8 mm Square |
| Reference Fixing Hole Distance | Approx. 38–42 mm |
| Fixing Method | Screw Fixing Through Rose |
| Applicable Door Thickness | Approx. 35–55 mm |
| Handle Pair | Illustrated; Final Package Contents Unconfirmed |
| Separate Keyhole Escutcheon | Not Shown in Reference Drawing |
| Lock Compatibility | Subject to Selected Lock or Latch |
| Intended Application | Compatible Interior Doors |
| OEM / ODM | Subject to Confirmation |
| Supplier | Jiangmen Degol Hardware Co., Ltd. |
| Country of Origin | China |
Technical Notice: All measurements are approximate reference values. The actual material grade, dimensions, mounting-hole positions, supplied accessories, and mechanical specifications must be confirmed before ordering or installation.

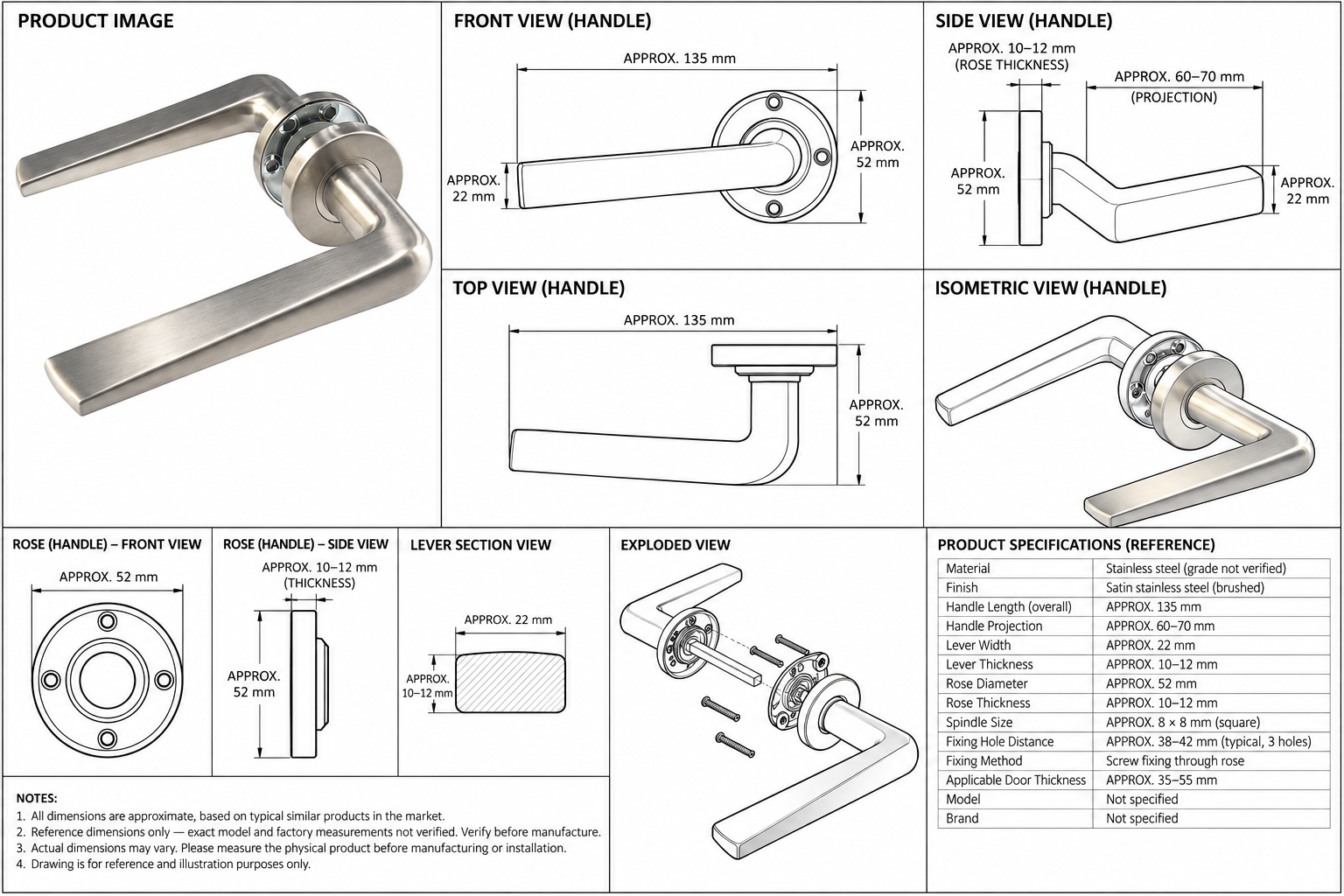

The LH1013 reference drawing includes front, side, top, and isometric views, a round rose detail, a lever section drawing, and an exploded assembly illustration.
The drawing indicates a reference lever length of approximately 135 mm.
The straight gripping section creates a strong horizontal appearance, while the angled neck introduces a distinct geometric transition.
The reference side view indicates a projection of approximately 60–70 mm.
This measurement should be checked against the official product drawing before planning clearances or door installations.
The flat rectangular gripping section has a reference width of approximately 22 mm.
This is a linear width measurement, not a circular diameter.
The lever section view indicates a thickness of approximately 10–12 mm.
The relatively slim rectangular section contributes to the product's modern flat-bar appearance.
The circular mounting rose measures approximately 52 mm in diameter.
The rose creates a geometric contrast with the rectangular lever profile.
The reference rose thickness is approximately 10–12 mm.
Actual mounting depth may depend on the rose construction and fixing components.
The reference exploded assembly shows an approximately 8 × 8 mm square spindle.
The required spindle length must be selected according to the door thickness and locking mechanism.
The reference specification lists an approximate fixing-hole distance of 38–42 mm.
This is not a confirmed drilling specification. The drawing also depicts several fixing positions, so the official mounting-hole layout must be obtained before preparing the door.
The reference door thickness range is approximately 35–55 mm.
Final suitability depends on the lock case, spindle length, screw arrangement, and door construction.
The illustration shows:
Two offset rectangular lever assemblies
Round rose components
Internal mounting plates
Square spindle
Fixing screws
The drawing does not establish a confirmed packing list or identify a separate keyhole escutcheon.
Customers can request confirmation of the LH1013 dimensions, material grade, mounting-hole layout, fixing arrangement, spindle specifications, available finishes, and installation requirements.
The supplied drawing identifies stainless steel as the reference material for LH1013.
However, the exact stainless steel grade has not been verified.
The final material grade should be selected and confirmed according to the product's intended application, manufacturing requirements, and environmental conditions.
SUS304 is commonly used for architectural door hardware.
Customers requiring SUS304 can ask DEGOL whether this grade is available for LH1013.
The supplied drawing does not establish SUS304 as a confirmed product specification.
The illustrated LH1013 has a brushed satin metallic appearance.
This finish creates a restrained, contemporary visual effect that coordinates with modern door and interior hardware.
Customers may inquire about the feasibility of alternative finishes, including polished metallic finishes, matte black, or project-specific decorative colors.
Availability must be confirmed before quotation.
For a confirmed brushed stainless steel finish, routine cleaning may be performed using a soft cloth and a suitable mild cleaner.
Avoid abrasive pads and chemicals that are not approved for the selected finish.
The LH1013 can be considered for contemporary interior door hardware projects requiring an offset rectangular lever design.
Modern apartments
Private residences
Residential villas
Bedroom doors
Study rooms
Home office doors
Interior renovation projects
Office rooms
Meeting rooms
Administrative interiors
Business centers
Commercial interior doors
Interior fit-out projects
Hotel interior doors
Serviced apartments
Guest accommodation interiors
Hospitality renovation projects
The LH1013 is positioned for inquiries from:
Architectural hardware wholesalers
Door hardware distributors
International importers
Building material suppliers
Door manufacturers
Construction procurement teams
Private-label hardware brands
Application suitability depends on the final material, mounting system, lock compatibility, and project specifications.
The LH1013 may be considered for compatible interior doors that meet the product's confirmed mounting and locking requirements.
| Door Type | Potential Application |
|---|---|
| Wooden Interior Doors | Residential interiors |
| MDF Interior Doors | Subject to fixing compatibility |
| Composite Interior Doors | Subject to hardware compatibility |
| Bedroom Doors | Compatible latch or lock systems |
| Apartment Interior Doors | Modern residential projects |
| Office Interior Doors | Commercial interior applications |
| Hotel Interior Doors | Subject to project specifications |
| Decorative Interior Doors | Contemporary architectural interiors |
Before installation, verify the actual door thickness, lock dimensions, square spindle requirements, mounting-hole layout, lever orientation, and available operating clearance.
The supplied reference drawing does not establish fire-door approval, emergency-exit compliance, accessibility certification, or suitability for exposed exterior installations.
The following is a general installation overview. Always follow the official LH1013 installation drawing and the selected lock manufacturer's instructions.
Confirm the door thickness, latch or mortise lock requirements, and available mounting space.
Check the lever assemblies, round roses, internal fixing plates, square spindle, and screws against the final packing list.
Use the official drilling template to establish the correct fixing-hole positions.
Do not drill using the approximate reference hole-distance value alone.
Install the selected latch or mortise lock according to its manufacturer's instructions.
Position the correctly sized spindle through the lock follower.
The reference spindle section is approximately 8 × 8 mm.
Place the lever handles on the two sides of the door.
Check that the offset necks and rectangular gripping sections are oriented correctly.
Fasten the mounting components using the specified fixing arrangement.
Avoid overtightening.
Install the round rose covers and check their alignment with the door surface.
Confirm that the lever moves smoothly, retracts the latch, returns correctly, and remains securely mounted.
Check lever alignment, screw security, rose seating, and locking operation before use.
Professional installation is recommended for specialized or commercial door systems.
The angled neck creates a recognizable architectural feature that differentiates LH1013 from conventional straight lever handles.
The flat-bar gripping section gives the handle a clean, contemporary profile.
The reference finish complements modern interior door and architectural hardware schemes.
The approximately 52 mm circular rose provides a clean and balanced mounting appearance.
The combination of a circular rose, bent neck, and straight rectangular grip creates a distinctive visual composition.
The reference drawing provides useful dimensions for initial product assessment and quotation discussions.
The design can be considered for residential, commercial, and hospitality interior doors.
The LH1013 is suitable for international B2B product inquiries and architectural hardware sourcing.
Customers can discuss branding, packaging, finishes, and technically feasible customization requirements.
The offset neck distinguishes LH1013 from DEGOL's tubular, curved, straight flat-bar, and tapered lever handle designs.
Jiangmen Degol Hardware Co., Ltd. welcomes OEM and ODM inquiries for the LH1013 Offset Rectangular Door Lever Handle.
Customers may discuss customized product identification, branding, labels, and packaging artwork.
Project-specific finish requests can be evaluated according to manufacturing feasibility and order requirements.
Potential customization requests include:
Lever length
Lever width and thickness
Offset neck geometry
Handle projection
Round rose dimensions
Spindle requirements
Mounting arrangement
Any structural changes require engineering review.
Customers may inquire about branded boxes, individual product labels, protective packaging, and export carton markings.
DEGOL welcomes inquiries regarding wholesale orders, project quantities, samples, technical drawings, and private-label product collections.
Actual customization availability, tooling charges, minimum quantities, and lead times must be confirmed.
| Item | Information |
|---|---|
| Product Model | LH1013 |
| Product Name | Offset Rectangular Stainless Steel Door Lever Handle |
| Brand | DEGOL |
| Reference Material | Stainless Steel – Grade Unverified |
| Reference Finish | Satin Stainless Steel / Brushed |
| Handle Pair | Illustrated; Inclusion to Be Confirmed |
| Round Rose Assemblies | Illustrated; Inclusion to Be Confirmed |
| Square Spindle | Reference 8 × 8 mm; Final Length Unconfirmed |
| Fixing Screws | Final Packing List to Be Confirmed |
| Keyhole Escutcheons | Not Illustrated |
| Standard Packaging | To Be Confirmed |
| Customized Packaging | Subject to Inquiry |
| MOQ | Contact DEGOL |
| Sample Availability | Upon Inquiry |
| Sample Lead Time | To Be Confirmed |
| Bulk Order Lead Time | To Be Confirmed |
| Wholesale Price | Quotation Upon Request |
| Shipping Terms | To Be Agreed |
Step 1 – Submit an Inquiry
Provide model LH1013, requested material, finish, quantity, and destination market.
Step 2 – Confirm Technical Specifications
Review the official drawing, dimensions, mounting-hole positions, material grade, and lock compatibility.
Step 3 – Discuss Samples
Request sample availability, pricing, and shipping information.
Step 4 – Review the Quotation
Confirm wholesale unit price, MOQ, packaging, lead time, and commercial terms.
Step 5 – Approve the Order
Finalize the product configuration and purchase order.
Step 6 – Arrange Production and Shipment
Production and delivery follow the agreed order conditions.
Jiangmen Degol Hardware Co., Ltd. supplies architectural door hardware products for international wholesale and B2B sourcing inquiries.
The LH1013 Offset Rectangular Door Lever Handle is positioned within DEGOL's modern architectural lever handle range.
Customers may inquire about:
Offset rectangular door lever handles
Flat-bar door handles
Satin stainless steel appearance door handles
Lever handles on round roses
Modern interior door hardware
Architectural door hardware
OEM and private-label door handles
DEGOL welcomes inquiries from architectural hardware distributors, international importers, door manufacturers, building material suppliers, hardware brands, and construction project buyers.
Customers may request:
LH1013 technical drawings
Material grade confirmation
Product dimensions
Available finish information
Samples
Packaging details
OEM/ODM consultation
Wholesale quotations
Specific factory capacity, production equipment, manufacturing processes, testing results, and certifications must be confirmed before being published as verified claims.
Company: Jiangmen Degol Hardware Co., Ltd.
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
WhatsApp: +86 13725946499
The DEGOL LH1013 is an offset rectangular lever door handle featuring a flat-bar grip, angled neck, and round mounting rose.
Its distinctive feature is the bent or offset transition between the mounting stem and the straight rectangular gripping section.
No. The illustrated lever has a flat rectangular section rather than a round tubular gripping section.
The reference drawing identifies stainless steel, but the actual grade is not verified.
SUS304 has not been confirmed. Buyers should request the official material specification.
The reference illustration shows a brushed satin stainless steel appearance.
The reference handle length is approximately 135 mm.
The reference projection is approximately 60–70 mm.
The reference lever width is approximately 22 mm.
The reference lever thickness is approximately 10–12 mm.
LH1013 uses a round mounting rose.
The reference rose diameter is approximately 52 mm.
The reference rose thickness is approximately 10–12 mm.
The reference square spindle section is approximately 8 × 8 mm.
The reference drawing lists approximately 38–42 mm. The official fixing-hole layout must be confirmed before drilling.
The reference drawing indicates approximately 35–55 mm, subject to final compatibility verification.
It may be suitable for compatible wooden interior doors with the appropriate lock and mounting arrangement.
The modern geometric design can be considered for office interior doors, subject to the required technical specifications.
It may be considered for compatible hotel interior door applications where project requirements are satisfied.
Separate keyhole escutcheons are not illustrated in the supplied reference drawing. Any required escutcheons should be specified separately.
A paired lever assembly is illustrated, but the final quotation and packing list must confirm the supplied components.
Exterior suitability has not been established. The material grade, finish, and environmental conditions must be evaluated.
No fire-rating documentation has been provided. Suitability for fire-rated doors requires verification of the complete door assembly.
Customers may discuss private-label branding and packaging requirements with DEGOL.
Contact DEGOL to inquire about sample availability, costs, and shipping arrangements.
The MOQ depends on the final configuration and order requirements. Please contact DEGOL for confirmation.
Customers may request an official LH1013 technical drawing and confirmed dimensions.
Alternative finish requirements may be discussed with DEGOL, subject to technical and commercial feasibility.
LH1013 has a pronounced offset or angled neck, while a conventional straight flat-bar lever typically has a simpler transition between its stem and grip.
Contact DEGOL through WhatsApp or email with model LH1013, estimated quantity, preferred material, finish, packaging requirements, and destination market.
Looking for an LH1013 Offset Rectangular Stainless Steel Door Lever Handle on Round Rose for your architectural door hardware range?
Contact DEGOL Hardware for product specifications, technical drawings, confirmed material grades, available finishes, sample information and wholesale pricing.
Product Model: LH1013 Offset Rectangular Stainless Steel Door Lever Handle on Round Rose
Company: Jiangmen Degol Hardware Co., Ltd.
WhatsApp: +86 13725946499
Website: https://www.degolhardware.com/
Email: info@degolhardware.com
Request Your LH1013 Offset Rectangular Door Lever Handle Wholesale Quote Today.
